Plan 710114BTZ
Traditional House Plan with Media Room and More Below
Heated S.F.
3,556
Beds
4
Baths
3.5
Stories
1
Cars
2
What's Included
Plan Details
  • A courtyard-entry garage with a shed dormer above - there for aesthetics rather than for a usable room above - and a charming brick and clapboard exterior give this four-bed house plan great curb appeal. Inside, great vaulted spaces await.

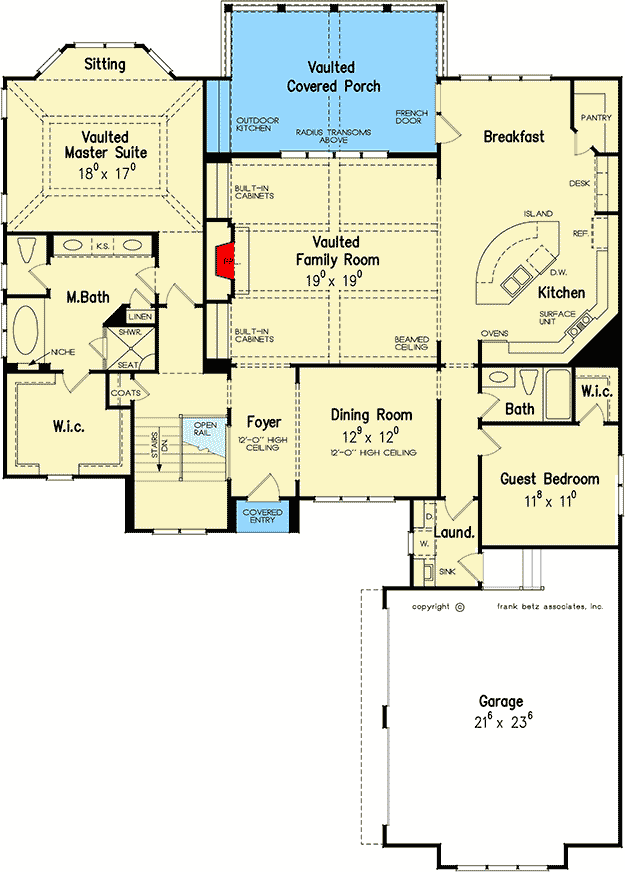

  • The foyer leads past the dining room and into the family room with beamed ceilings and a fireplace flanked by built-in cabinets. The island kitchen and breakfast nook are wide open to the family room. With an outdoor kitchen, a covered porch aids in entertaining.
  • The master suite with bayed sitting area occupies the left side of this home. A guest bedroom is located on the main floor.

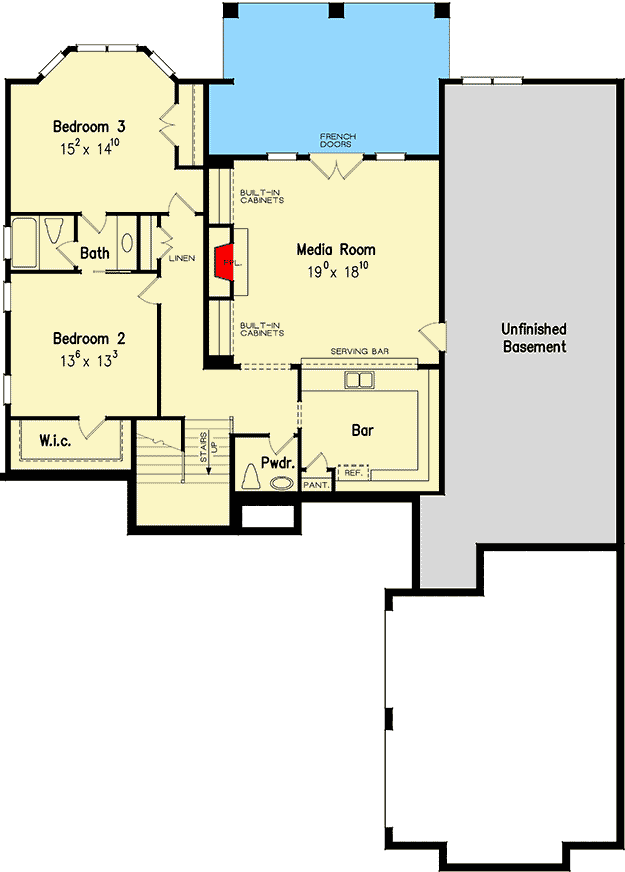

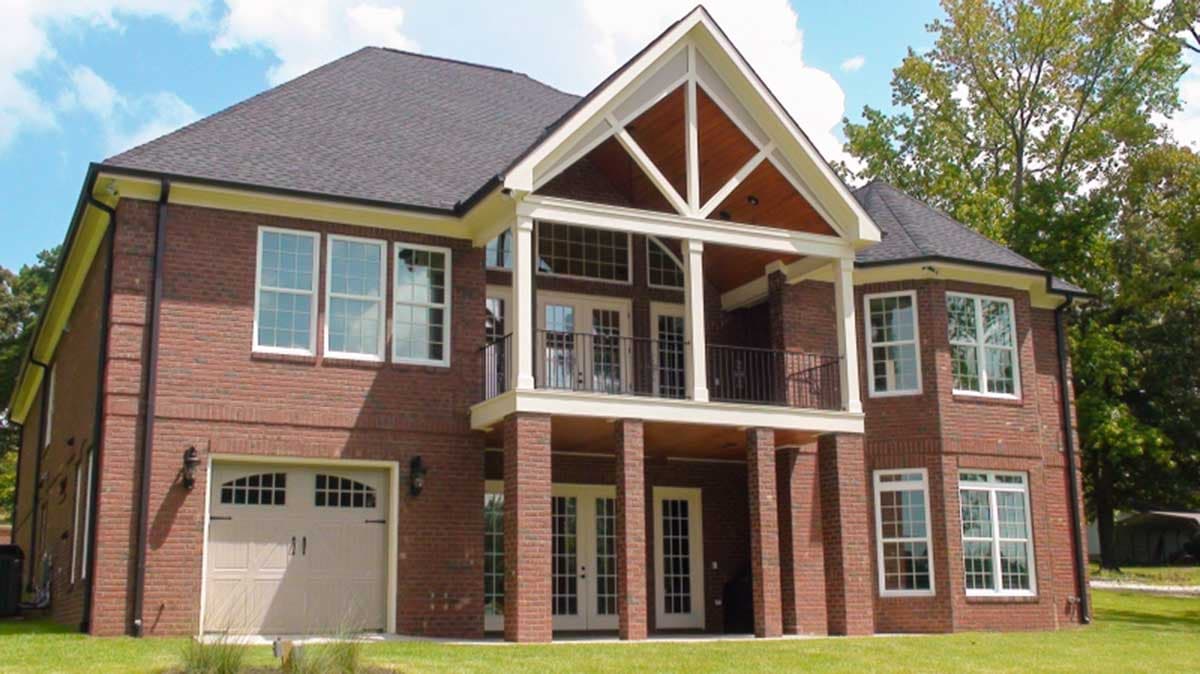

  • The lower level gives you two more bedrooms, a bar, a media room with fireplace and loads of storage. French doors lead to a covered patio outside.
What's Included
The plans include the following:

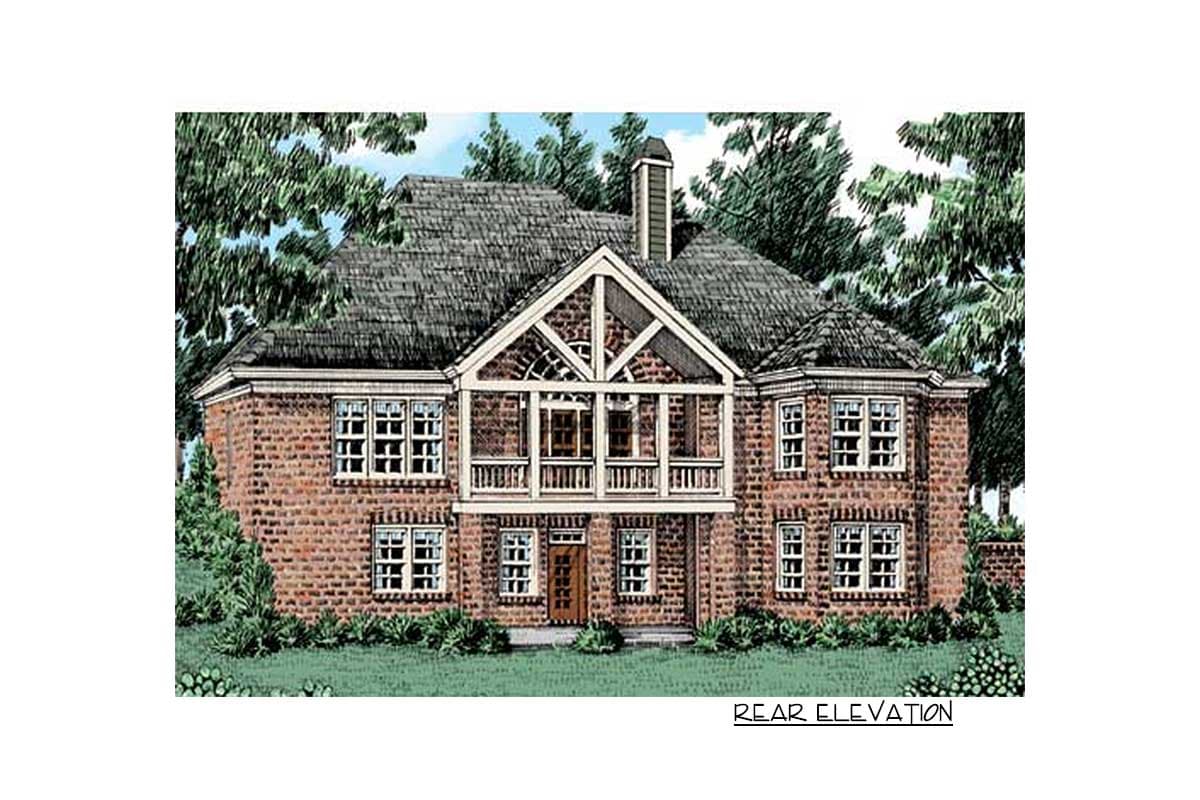

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional House Plan with Media Room and More Below

  • 3,556

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 3,556 sq. ft.
  • Lower Level: 1,331 sq. ft.
  • 1st Floor: 2,225 sq. ft.

Dimensions

  • Width: 57' 0"
  • Depth: 79' 8"
  • Max ridge height: 29' 8"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 595 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
