Traditional House Plan with Rocking Chair Porch

1,769 3-4 2 - 3 1-2 2
Print
Compare
...

Traditional House Plan with Rocking Chair Porch

Plan 710161BTZ

  • 1,769

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • A traditional combination of brick and siding is a backdrop for the rocking chair front porch this 3-bed house plan (with optional 4th bedroom upstairs). Oval and radius windows provide a fresh, homey appeal.
  • Inside, a clean and simple split bedroom design features three bedrooms and two baths.
  • A versatile serving bar accommodates the breakfast area and family room, providing additional seating or serving space for gatherings with family or friends.
  • Optional space opens the opportunity for a fourth bedroom and third bath, ideal for a home office or guest accommodations. A storage niche in the garage is perfectly sized for gardening tools.

The plans include the following:

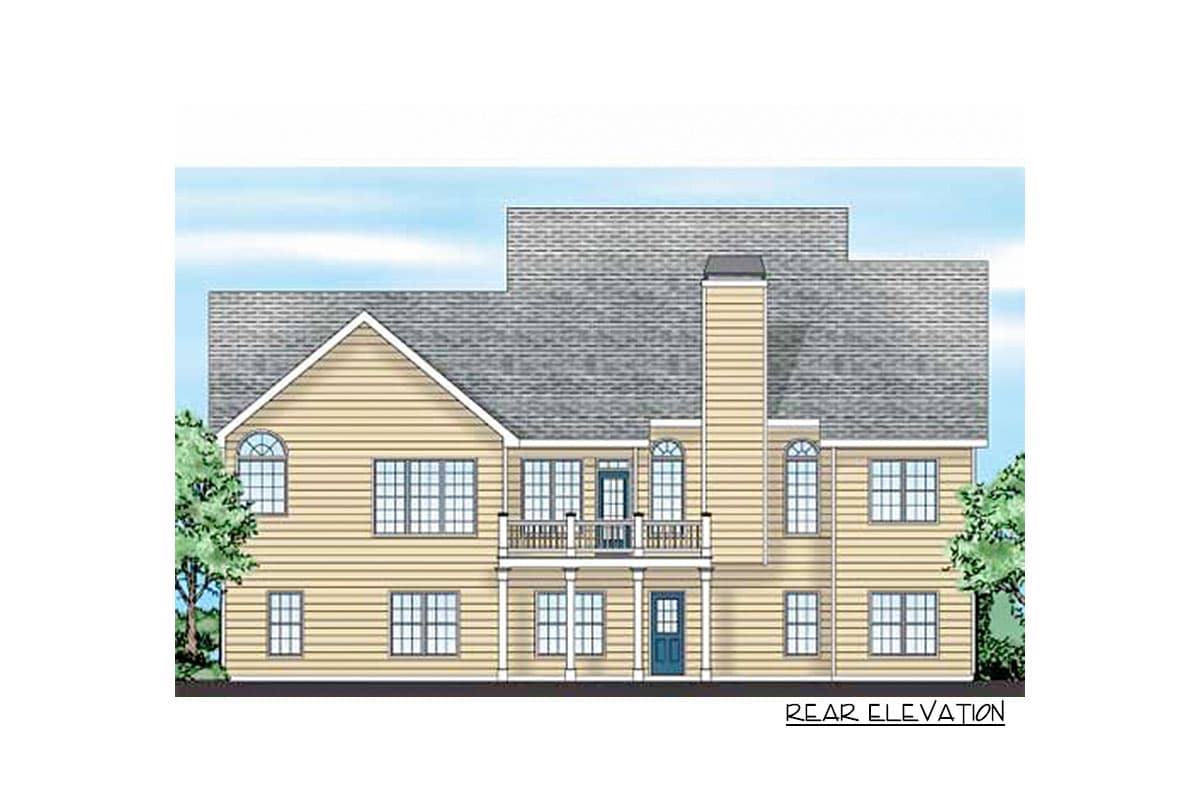

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Kitchen & Bath elevations - show the arrangement and size of each cabinet and other fixtures in the room.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations

Floor Plan

Main Level

Reverse Floor Plan

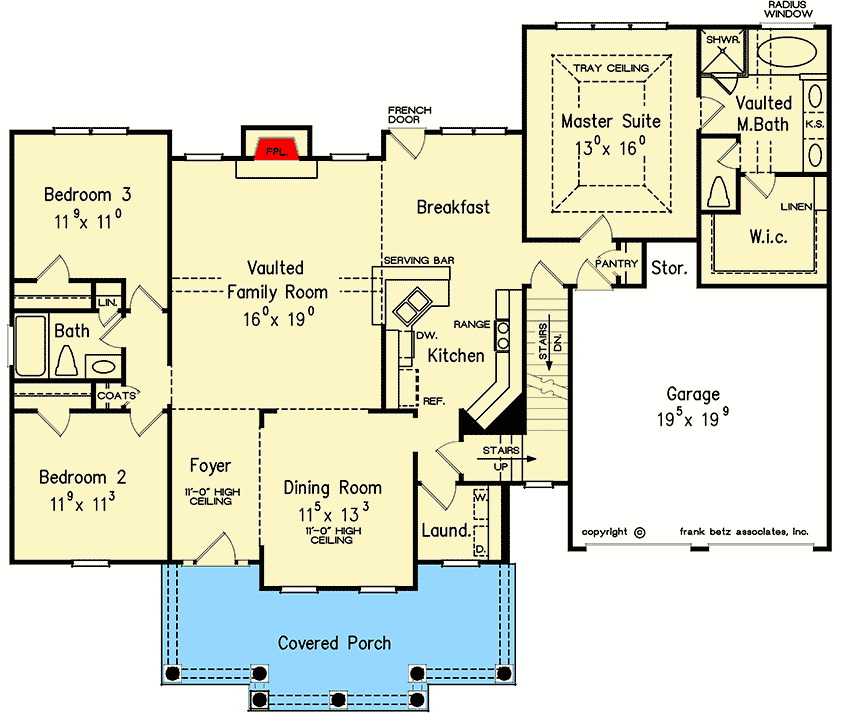

Traditional House Plan with Rocking Chair Porch - 710161BTZ floor plan - Main Level

2nd Floor

Reverse Floor Plan

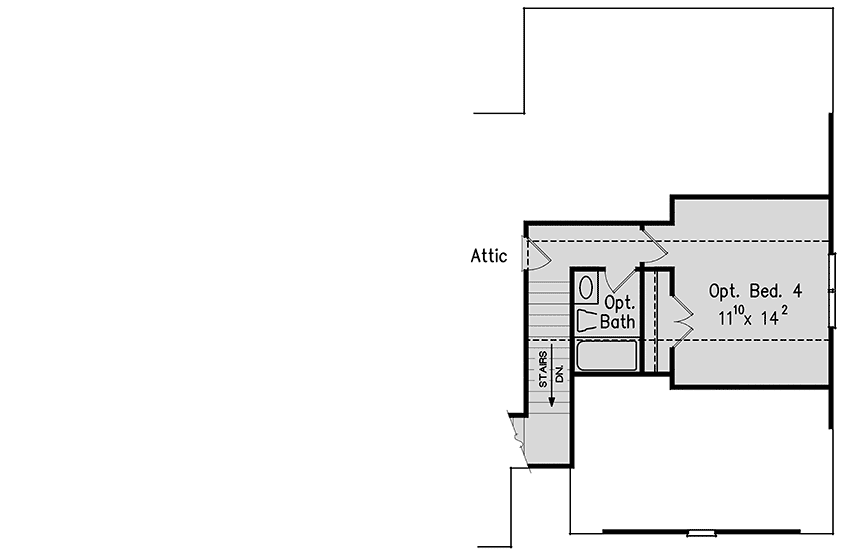

Traditional House Plan with Rocking Chair Porch - 710161BTZ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,769 sq. ft.
  • 1st Floor: 1,769 sq. ft.
  • Bonus: 289 sq. ft.
  • Basement Unfinished: 1,769 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 6"
  • Depth: 51' 10"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 409 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



Traditional House Plan with Rocking Chair Porch

  • 1,769

    Heated s.f.

  • 3 - 4

    Beds

  • 2 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,150
  • 8 Sets $1,195
  • PDF - multi-use $1,255
  • Reproducible Set $1,315
  • CAD - multi-use $2,390
  • View all purchase option online

About This Plan

  • A traditional combination of brick and siding is a backdrop for the rocking chair front porch this 3-bed house plan (with optional 4th bedroom upstairs). Oval and radius windows provide a fresh, homey appeal.
  • Inside, a clean and simple split bedroom design features three bedrooms and two baths.
  • A versatile serving bar accommodates the breakfast area and family room, providing additional seating or serving space for gatherings with family or friends.
  • Optional space opens the opportunity for a fourth bedroom and third bath, ideal for a home office or guest accommodations. A storage niche in the garage is perfectly sized for gardening tools.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,769 sq. ft.
  • 1st Floor: 1,769 sq. ft.
  • Bonus: 289 sq. ft.
  • Basement Unfinished: 1,769 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 62' 6"
  • Depth: 51' 10"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 409 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
