Plan 72538DA

Traditional House Plan with Split-Bedroom Layout and Media or Study

Name: Plan 72538DA: Traditional House Plan with Split-Bedroom Layout and Media or Study
Brand: Architectural Designs
SKU: 72538DA
Price: 2360.0 USD
Availability: InStock

Heated S.F.

2,087

Beds

Baths

Stories

Cars

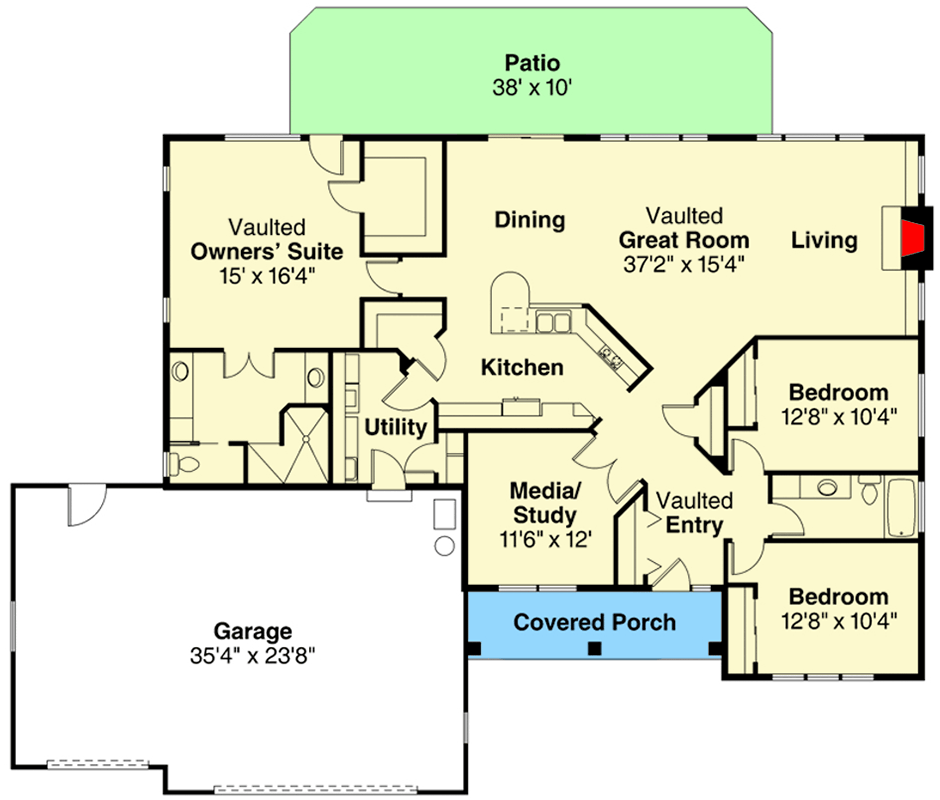

Floor Plan

Main Level

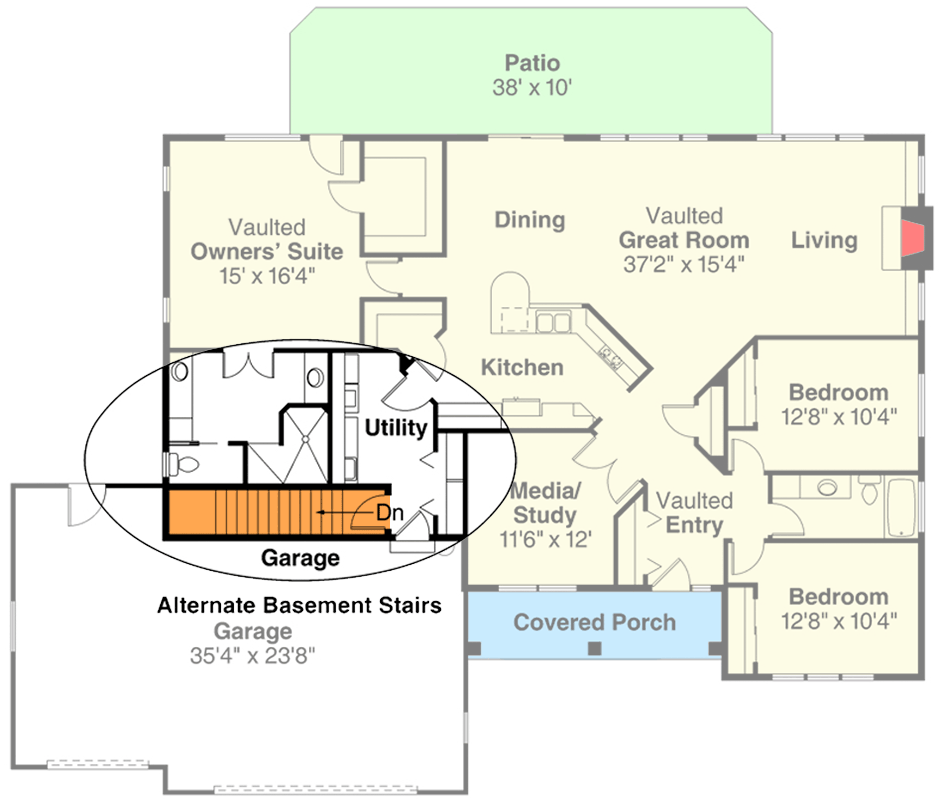

Main Level - Basement Stairs

Plan Details

Clean lines join with a hipped roof to give a fresh look to this home plan. Raised stucco forms corner quoins and accents the sturdy square columns of this informal single-level home.
This plan could be easily adapted for wheelchair accessibility.
A vaulted great room is the largest space, spanning about two-thirds of the rear. Its wealth of windows makes this broad area naturally bright on all but the darkest days.
On the far right, high windows flank the fireplace, and the rear wall has three sets of windows. One set slides open to access a large patio.
Double doors there open into a large bright front room that could be furnished as a media room, study, home office, or fourth bedroom.
This house plan's vaulted master suite has direct patio access and a large walk-in closet. Double doors open to a bathroom with two vanities, a large walk-in shower, and a private water closet.
Secondary bedrooms share a bathroom near the entry.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

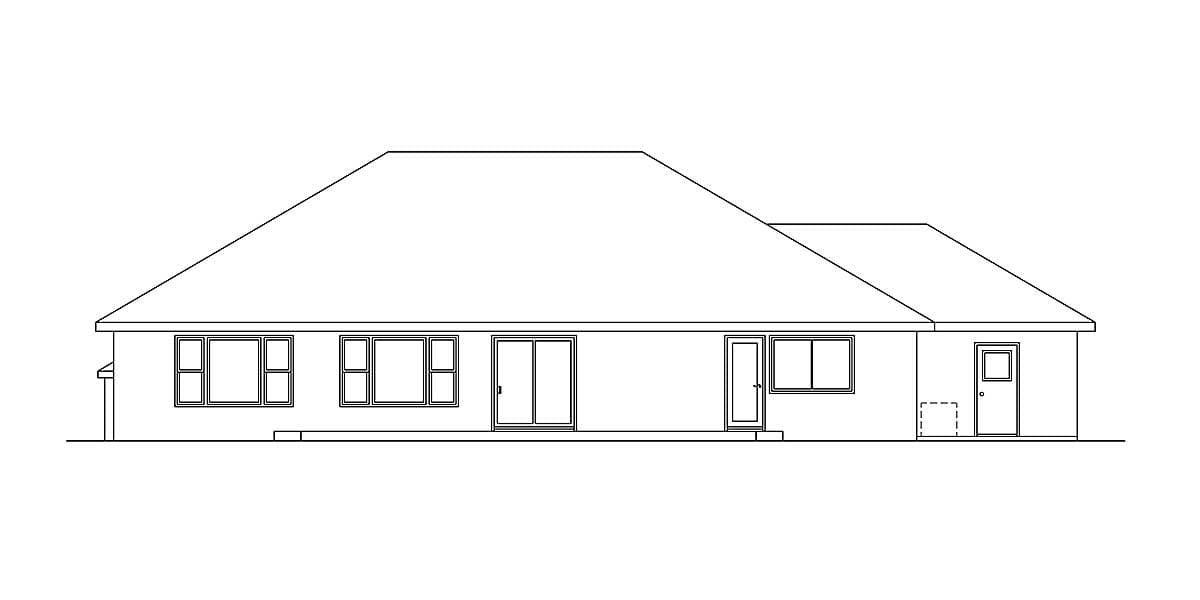

Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
