Plan 42503DB

Traditional House Plan with Two Flex Spaces

Pageloader

Traditional House Plan with Two Flex Spaces

Plan 42503DB

  • 2,774

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Transom windows, built-ins, window seats and two flex spaces are wonderful amenities that come with this exciting Traditional house plan.
  • There's also a pocket study off the kitchen and a second study on the second floor or the kids.
  • The great room is a massive space perfect for entertaining.
  • Use the first floor flex room as a master sitting room or a formal dining room.
  • In the master suite, the huge divided walk-in closet gives you his and her sections, both with a door right into the laundry room.
  • Each bedroom on the upper floor has a large walk-in closet.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

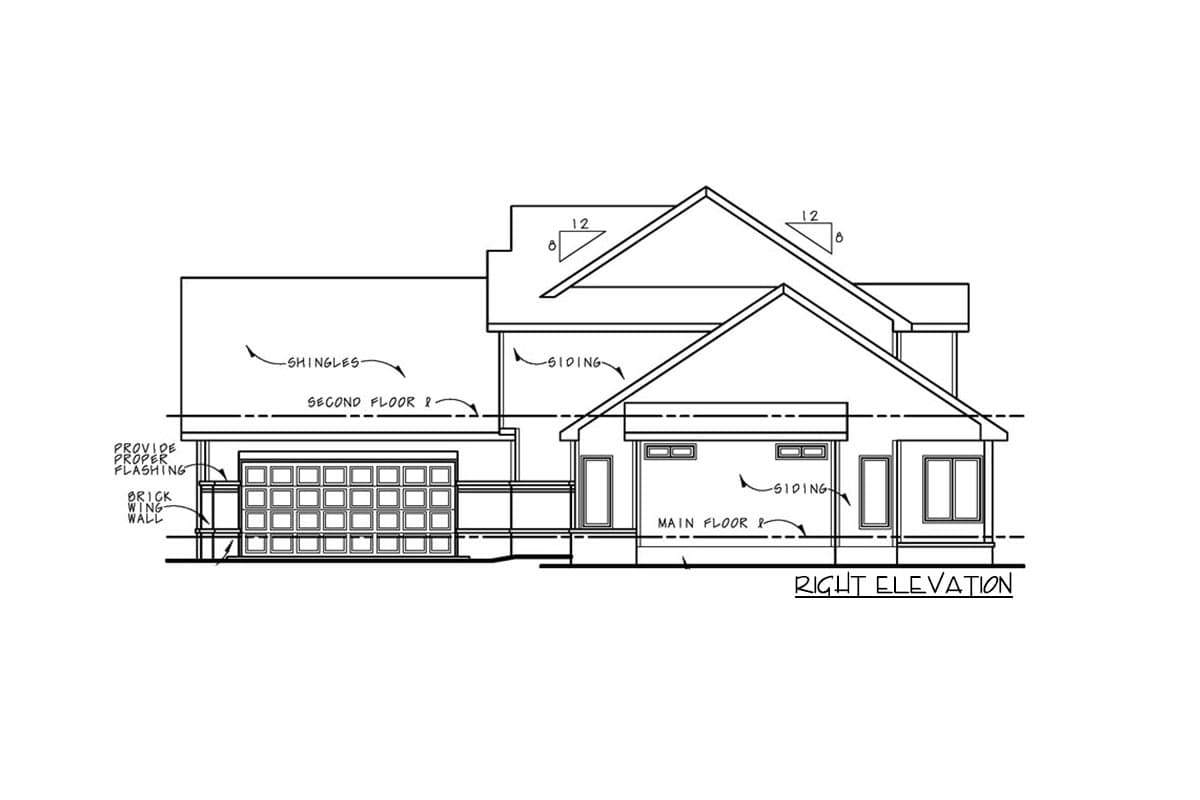

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

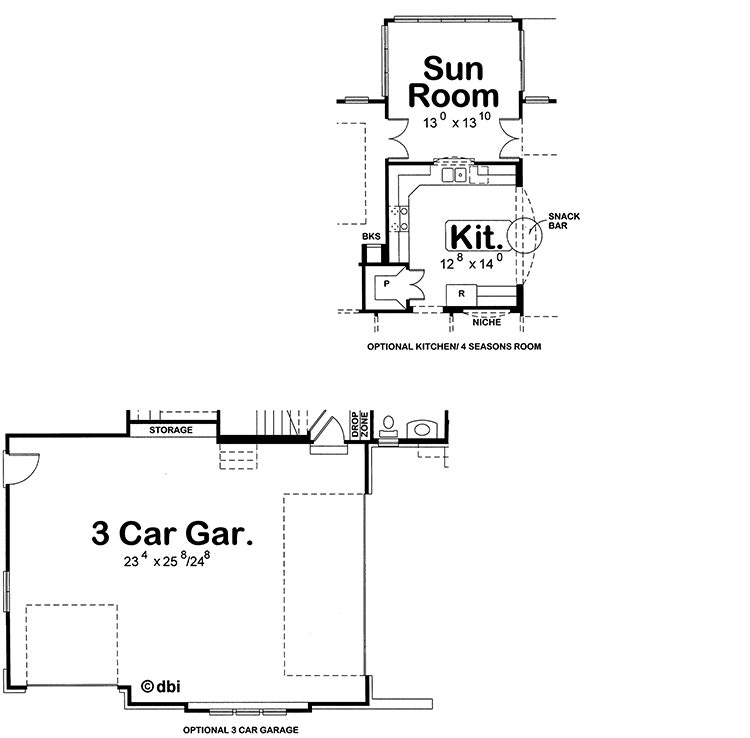

Optional Layout

Pinit white
Traditional House Plan with Two Flex Spaces - 42503DB floor plan - Optional Layout

Plan details



Traditional House Plan with Two Flex Spaces

  • 2,774

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $690
  • PDF - single-use $1,055
  • 5 Sets $1,180
  • 5 Sets PLUS $1,225
  • 8 Sets $1,250
  • PDF - multi-use $1,555
  • CAD $1,846
  • CAD - multi-use $2,346
  • View all purchase option online

About This Plan

  • Transom windows, built-ins, window seats and two flex spaces are wonderful amenities that come with this exciting Traditional house plan.
  • There's also a pocket study off the kitchen and a second study on the second floor or the kids.
  • The great room is a massive space perfect for entertaining.
  • Use the first floor flex room as a master sitting room or a formal dining room.
  • In the master suite, the huge divided walk-in closet gives you his and her sections, both with a door right into the laundry room.
  • Each bedroom on the upper floor has a large walk-in closet.

Floor Plans

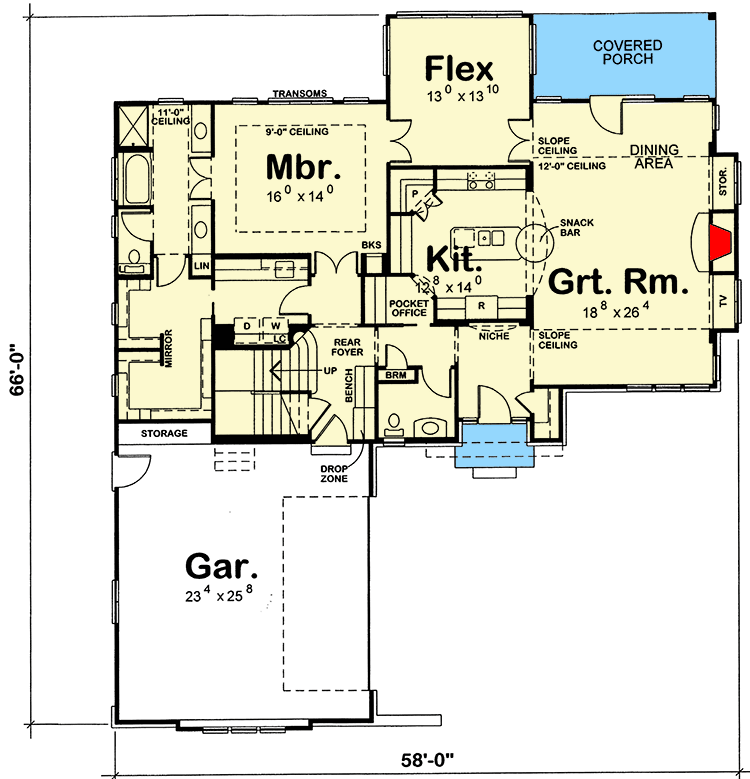

  • Main Level

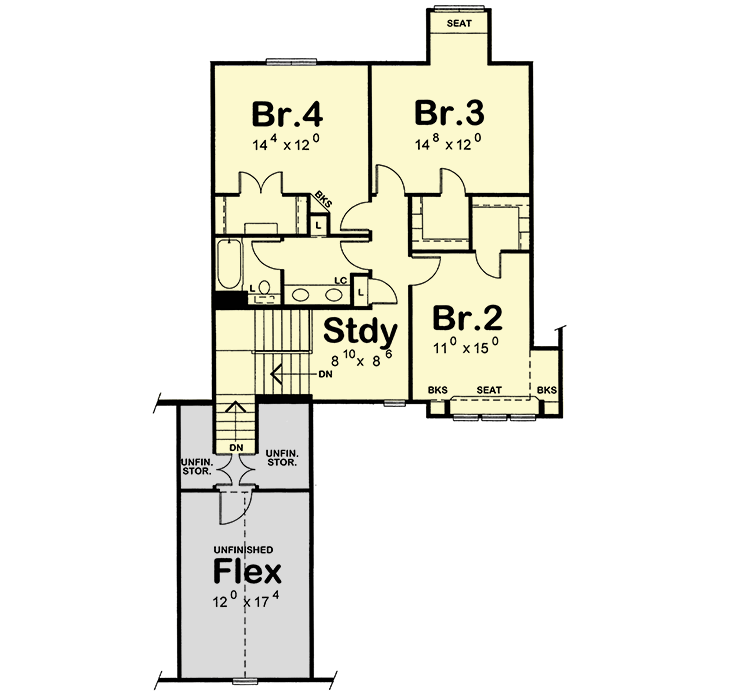

  • 2nd Floor

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,774 sq. ft.
  • 1st Floor: 1,832 sq. ft.
  • 2nd Floor: 942 sq. ft.
  • Bonus: 322 sq. ft.
  • Porch, Rear: 136 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Optional Foundations: Crawl, Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 58' 0"
  • Depth: 66' 0"
  • Max ridge height: 29' 2"

Garage

  • Type: Attached
  • Area: 650 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
