Plan 280009JWD

Traditional House Plan with Vaulted Great Room and Bonus Room

Heated S.F.
2,162
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 280009JWD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 280009JWD

M-F 9am-5pm EST |

1-203-761-8500

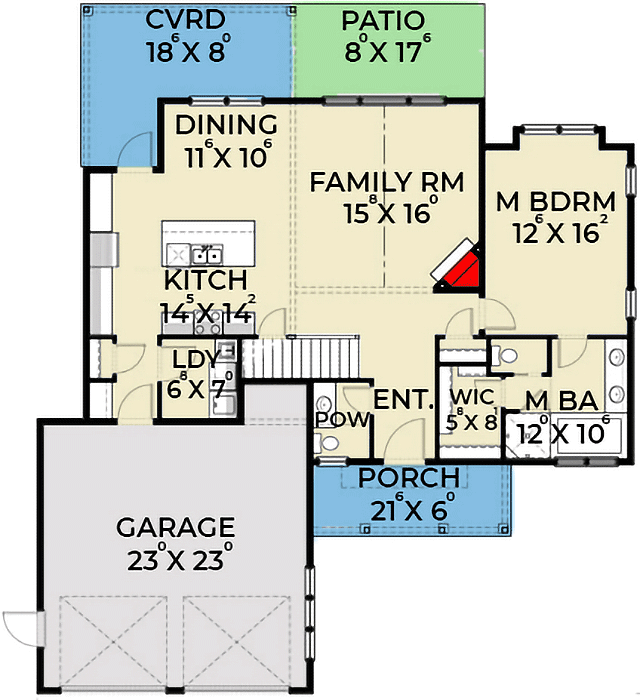

Main Level

Plan 280009JWD: Traditional House Plan with Vaulted Great Room and Bonus Room - Floor Plan - Main Level - Country, Traditional

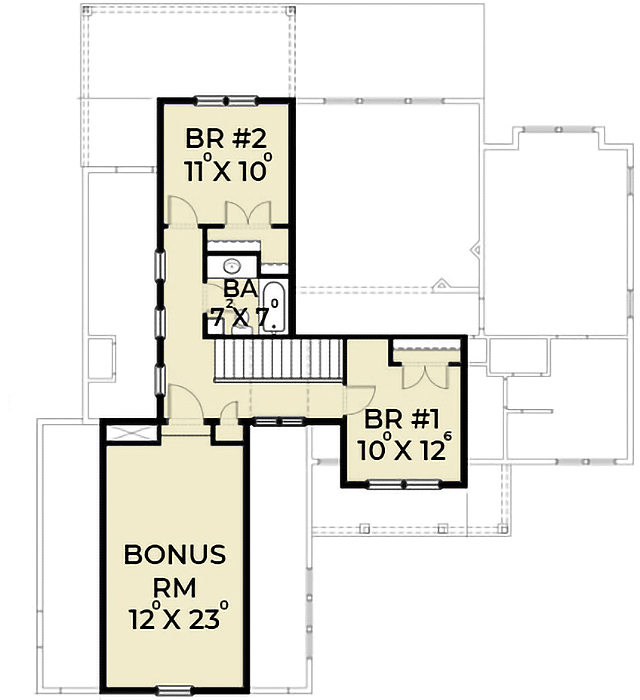

2nd Floor

Plan 280009JWD: Traditional House Plan with Vaulted Great Room and Bonus Room - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • Three timber posts support the front entry porch of this 3-bed Traditional house plan.
  • The family room has a vaulted ceiling and an angled fireplace. Views extend to the patio in back and the room is open to both the kitchen and dining area.
  • Enjoy both covered and open spaces in back, accessible from the door by the kitchen.
  • The master bedroom is on the main floor and has dual vanities and a walk-in closet.
  • Upstairs, there are two bedrooms and a bonus room over the garage.
  • Related Plan: Get an alternate version with house plan 280014JWD.

What's Included

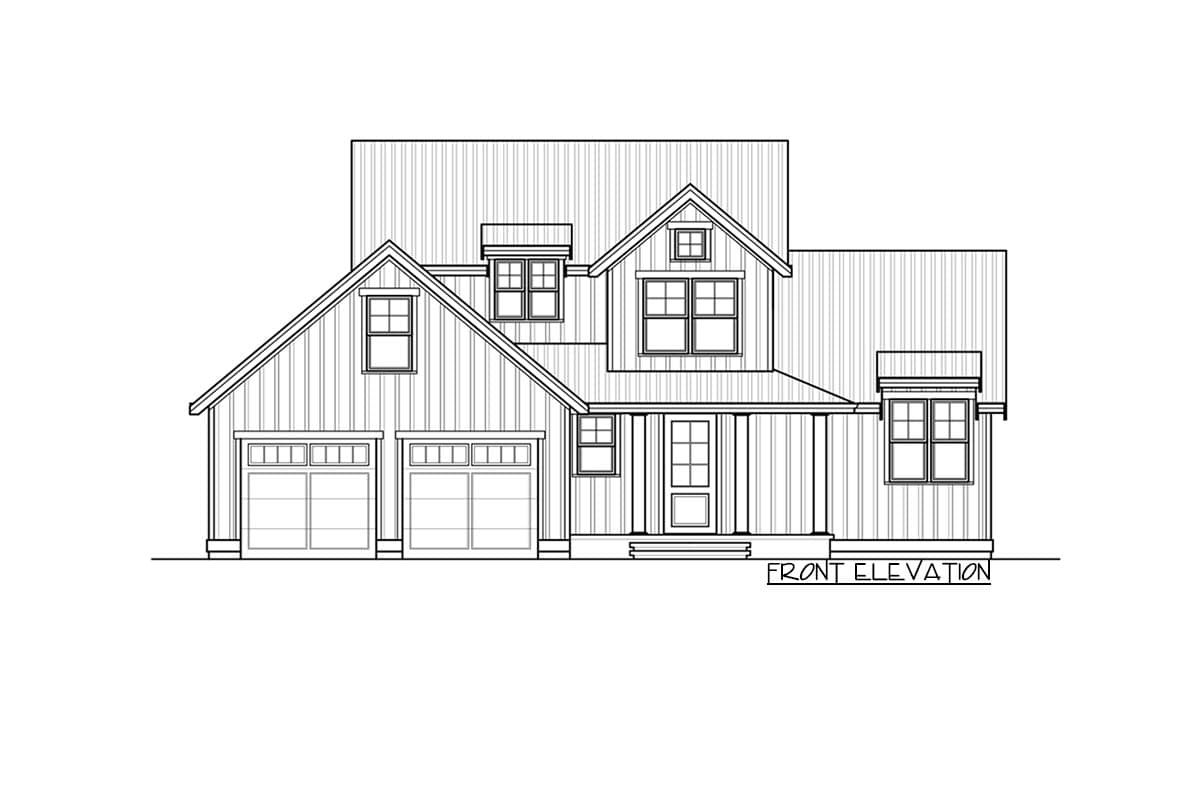

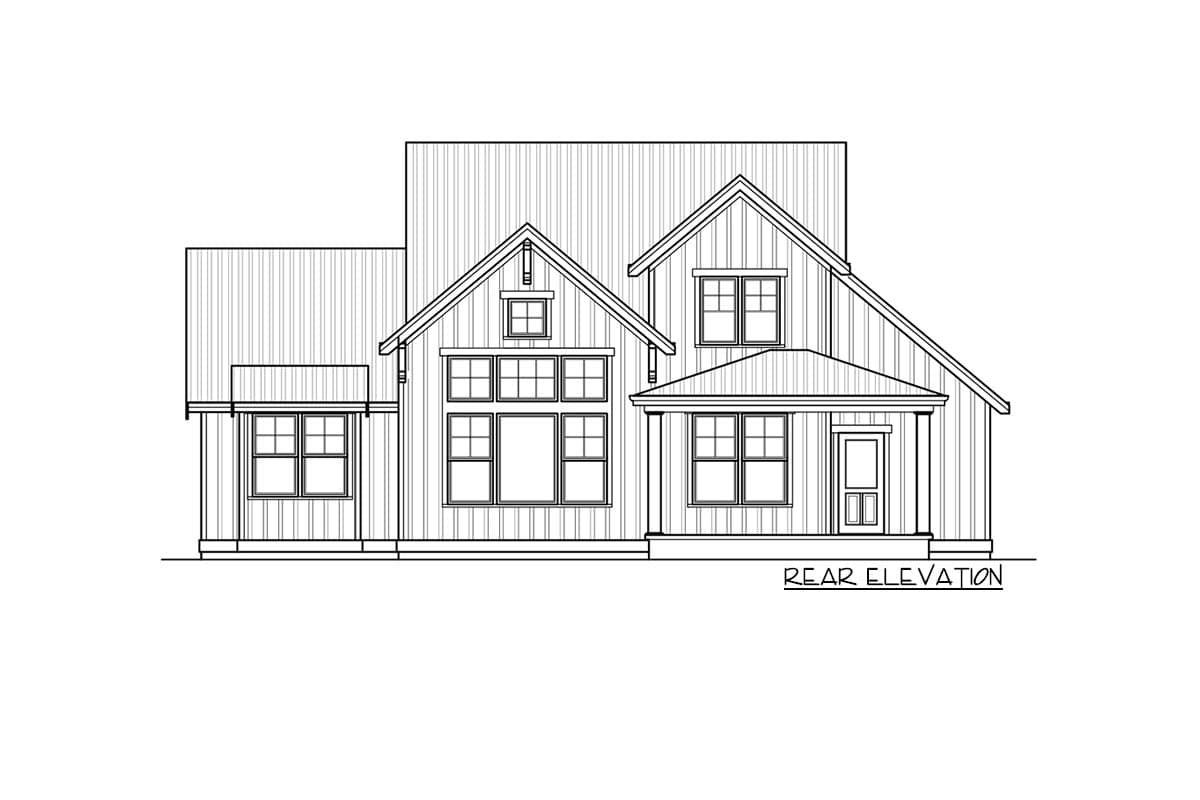

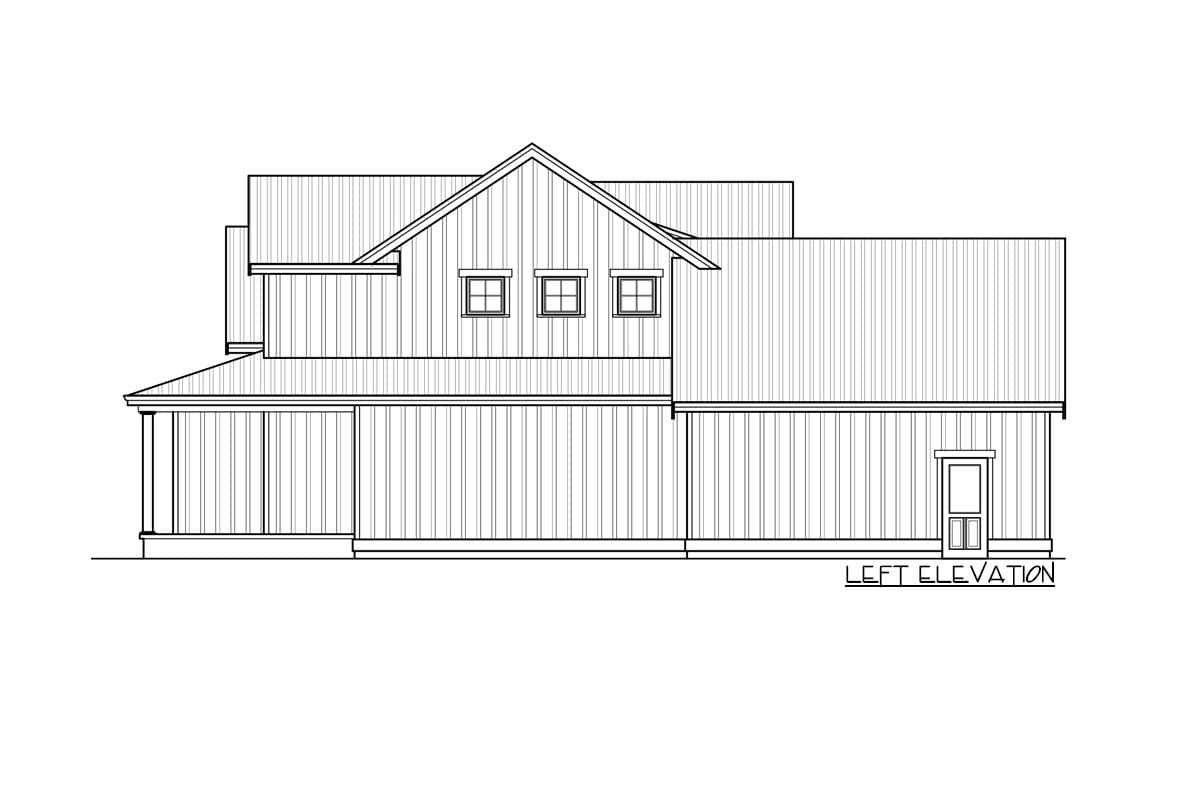

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,162 sq. ft.

1st Floor

1,369 sq. ft.

2nd Floor

485 sq. ft.

Bonus

308 sq. ft.

Porch, Front

129 sq. ft.

Porch, Rear

186 sq. ft.

Covered Patio

186 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

60' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

2,162 sq. ft.

1st Floor

1,369 sq. ft.

2nd Floor

485 sq. ft.

Bonus

308 sq. ft.

Porch, Front

129 sq. ft.

Porch, Rear

186 sq. ft.

Covered Patio

186 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

60' 0"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Country

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Plan Collections

Photo Gallery
