Traditional Northwest Home Plan with Main-level Master Bedroom

Plan 135070GRA

  • 3,044

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Traditional Northwest home plan provides 3,044 square feet of living space spread between two floors.
  • The formal entry merges with the family foyer to take advantage of the nearby powder bath, while the heart of the home is open to the great room and dining area to create a warm and inviting space.
  • Pocket doors in the main-level master bedroom reveal a walk-in closet and 4-fixture bathroom.
  • Upstairs, large bedrooms in each corner share Jack-and-Jill bathrooms, and a second laundry room on this level is an added convenience. Gain 352 square feet of living space when you finish the bonus room above the garage.
  • Additional storage space is included in the double garage, as well as access to the partially-covered patio.

  • All elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

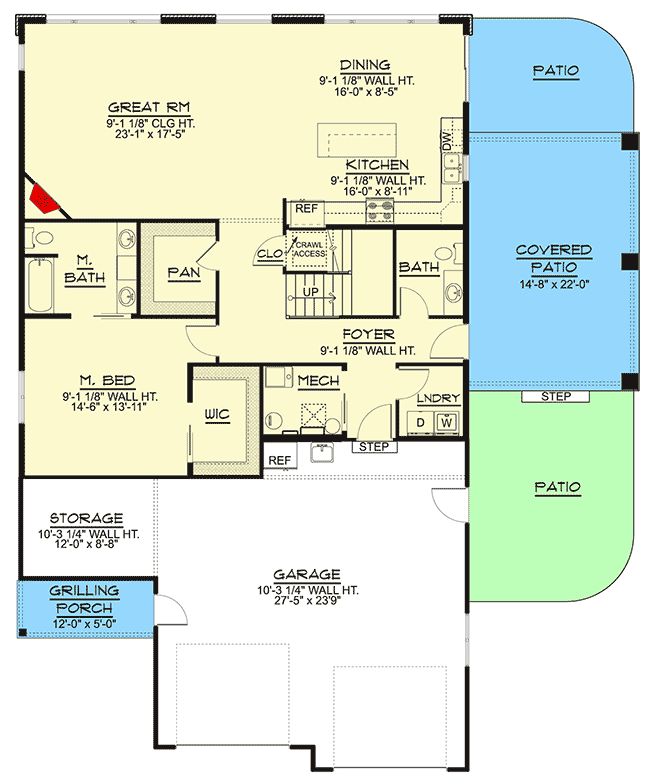

Traditional Northwest Home Plan with Main-level Master Bedroom - 135070GRA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

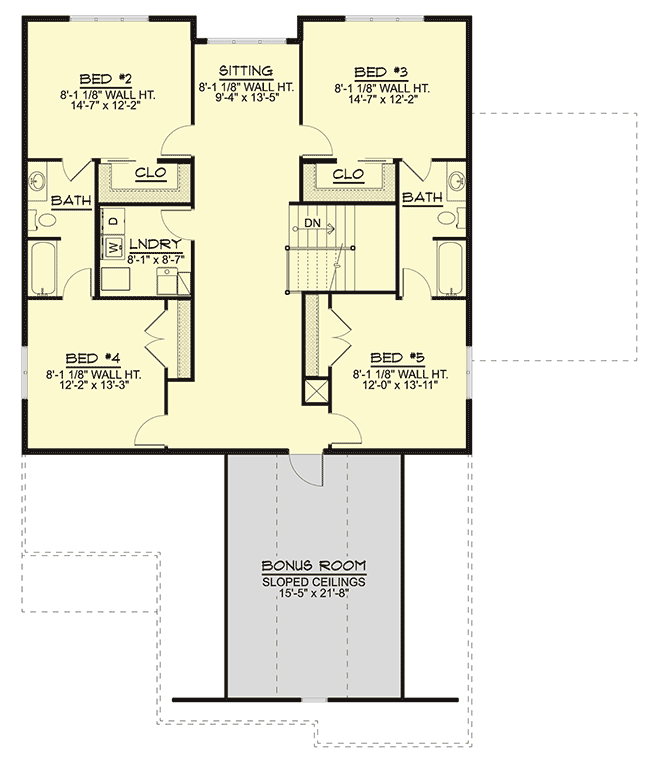

Traditional Northwest Home Plan with Main-level Master Bedroom - 135070GRA floor plan - 2nd Floor

Traditional Northwest Home Plan with Main-level Master Bedroom

  • 3,044

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,044 sq. ft.
  • 1st Floor: 1,579 sq. ft.
  • 2nd Floor: 1,465 sq. ft.

Dimensions

  • Width: 54' 8"
  • Depth: 67' 0"
  • Max ridge height: 30' 1"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 869 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 7 on 12
  • Framing Type: Truss
