Traditional One-Story House Plan with Second Floor Option

Pageloader

Traditional One-Story House Plan with Second Floor Option

Plan 42538DB

  • 2,083

    Heated s.f.

  • 2-4

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • A brick exterior with quoins and gables gives this flexible house plan great curb appeal.
  • The great room is open to the kitchen and dining room and has a fireplace.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry and an island with double-sink and dishwasher on one side and casual seating on the other.
  • The master suite has a sitting area and a sunset deck as well as a pocket office.
  • Stairs lead to a bonus room over the garage giving you expansion possibilities.
  • The house plans include an optional pantry, basement stair location, second floor, and two different right-side options giving you great flexibility.
  • Related Plans: Get alternate versions with house plans 40898DB, 42537DB42536DB and 42535DB.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

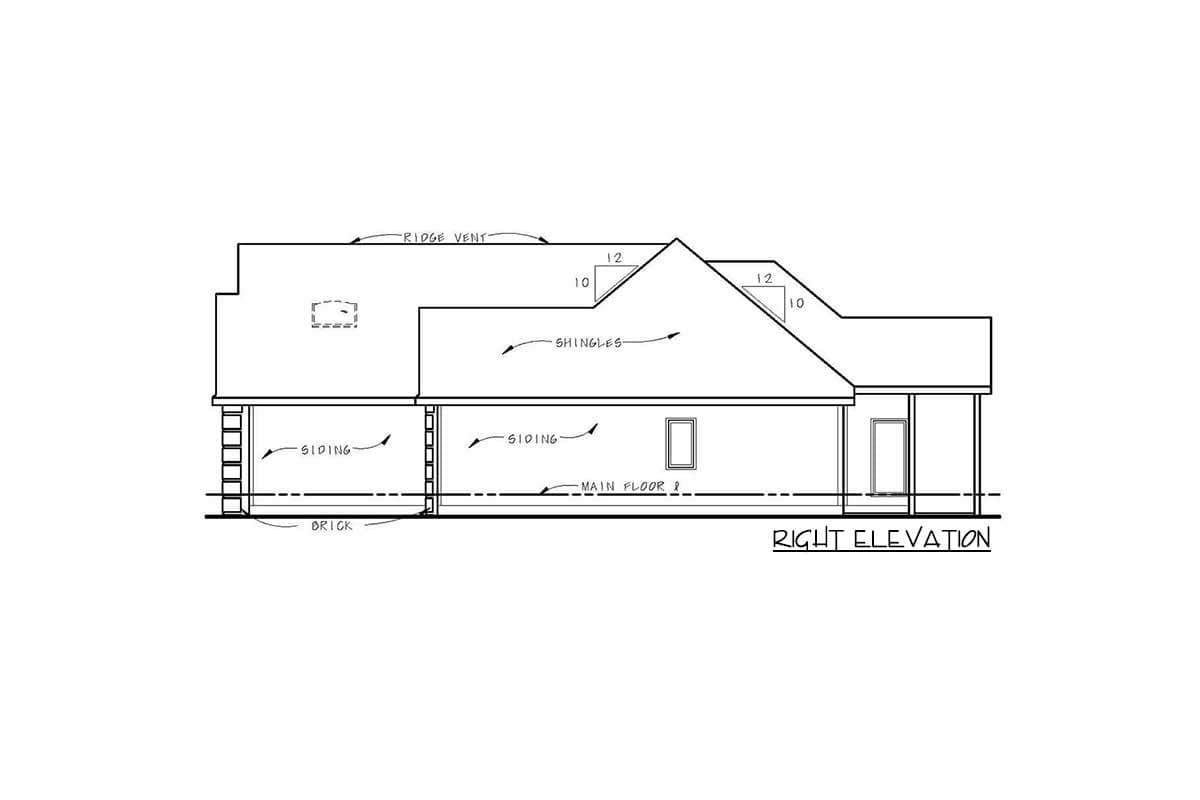

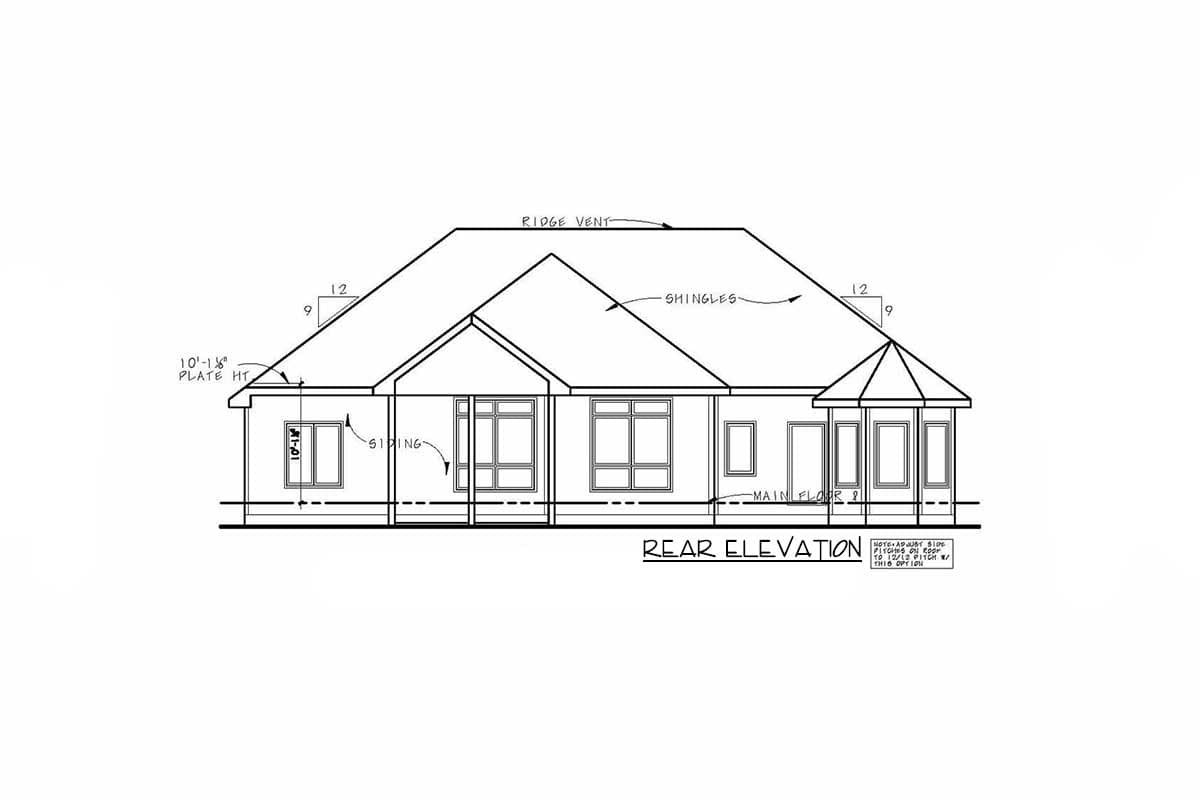

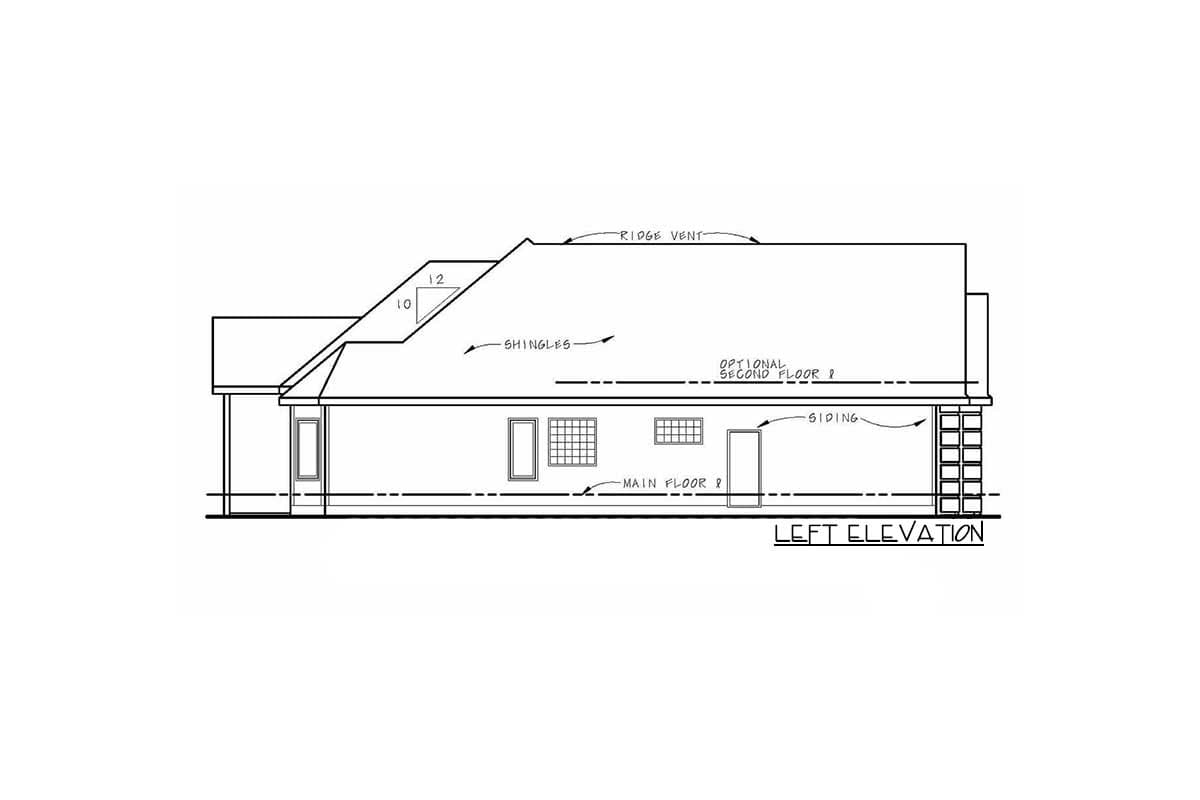

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Optional Layout

Pinit white
Traditional One-Story House Plan with Second Floor Option - 42538DB floor plan - Optional Layout

Plan details



Traditional One-Story House Plan with Second Floor Option

  • 2,083

    Heated s.f.

  • 2 - 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $650
  • PDF - single-use $985
  • 4 Sets $1,060
  • 5 Sets $1,110
  • 5 Sets PLUS $1,155
  • 8 Sets $1,180
  • PDF - multi-use $1,485
  • CAD $1,724
  • CAD - multi-use $2,224
  • View all purchase option online

About This Plan

  • A brick exterior with quoins and gables gives this flexible house plan great curb appeal.
  • The great room is open to the kitchen and dining room and has a fireplace.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry and an island with double-sink and dishwasher on one side and casual seating on the other.
  • The master suite has a sitting area and a sunset deck as well as a pocket office.
  • Stairs lead to a bonus room over the garage giving you expansion possibilities.
  • The house plans include an optional pantry, basement stair location, second floor, and two different right-side options giving you great flexibility.
  • Related Plans: Get alternate versions with house plans 40898DB, 42537DB42536DB and 42535DB.

Floor Plans

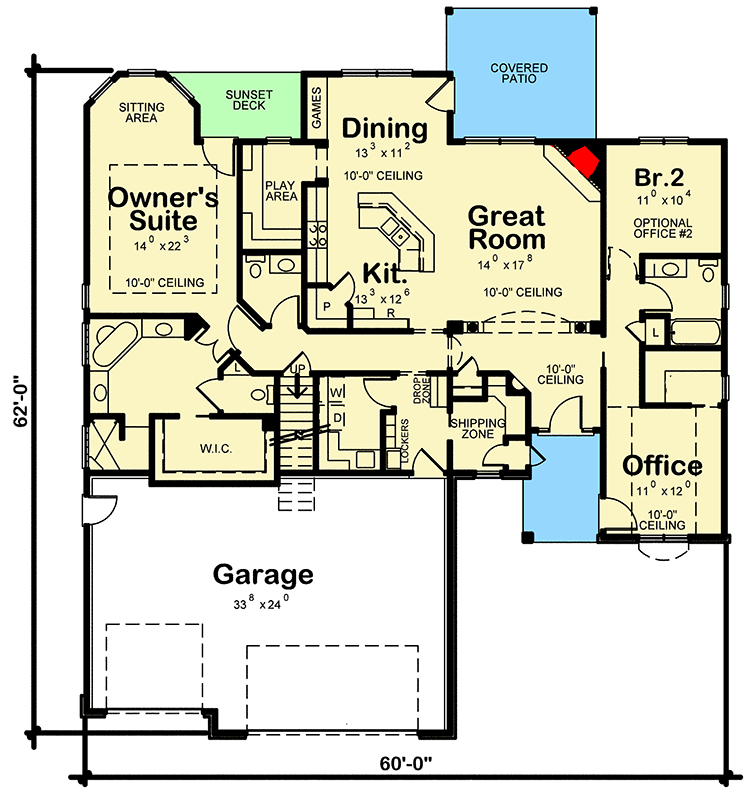

  • Main Level

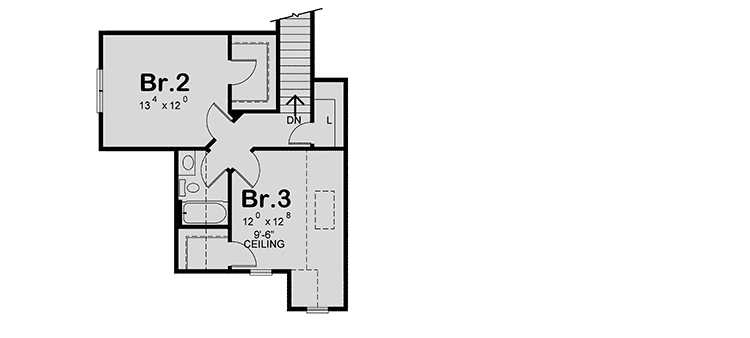

  • 2nd Floor

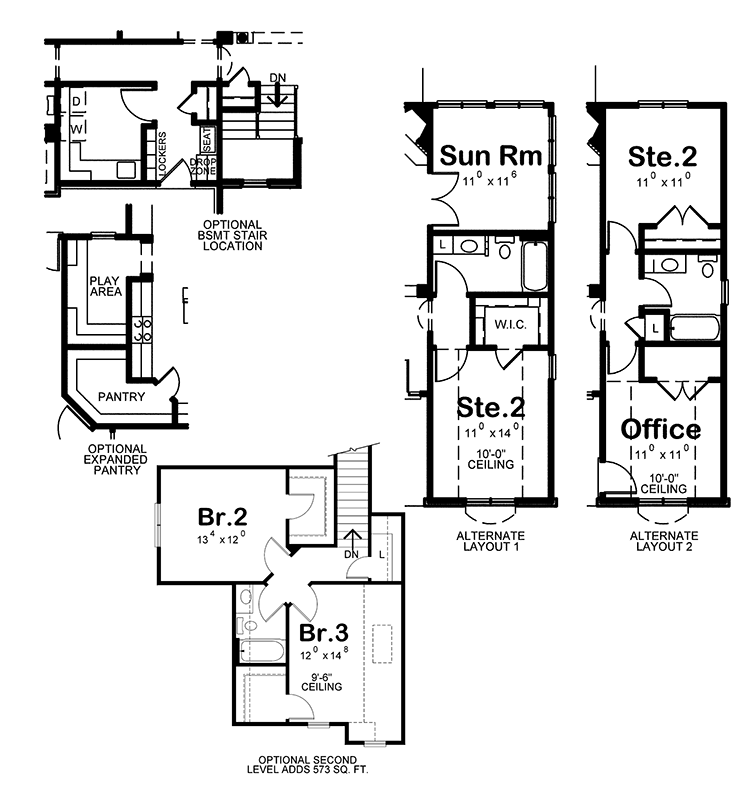

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,083 sq. ft.
  • 1st Floor: 2,083 sq. ft.
  • Porch, Rear: 170 sq. ft.
  • Porch, Front: 73 sq. ft.
  • Bonus: 549 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, & 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 60' 0"
  • Depth: 62' 0"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 798 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 10
  • Secondary Pitch: 12 on 10
