Traditional Split Bedroom Home Plan
Heated S.F.
1,317
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This split bedroom traditional home plan will turn your dreams into reality. Imagine greeting your family and friends on the front porch adorned with ten inch columns.
  • Upon entering the home, you'll notice the expansive great room with fireplace, open to the dining room and kitchen. This will make entertaining guests a cinch.
  • The master suite will be your haven with it's spacious ten foot boxed ceiling and full bath.
  • The second and third bedrooms offer the kids their own part of the home with a full bath complete with 'his and her' vanities, as well as ample closet space.
What's Included
Each plan set includes the following:
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Traditional Split Bedroom Home Plan

  • 1,317

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

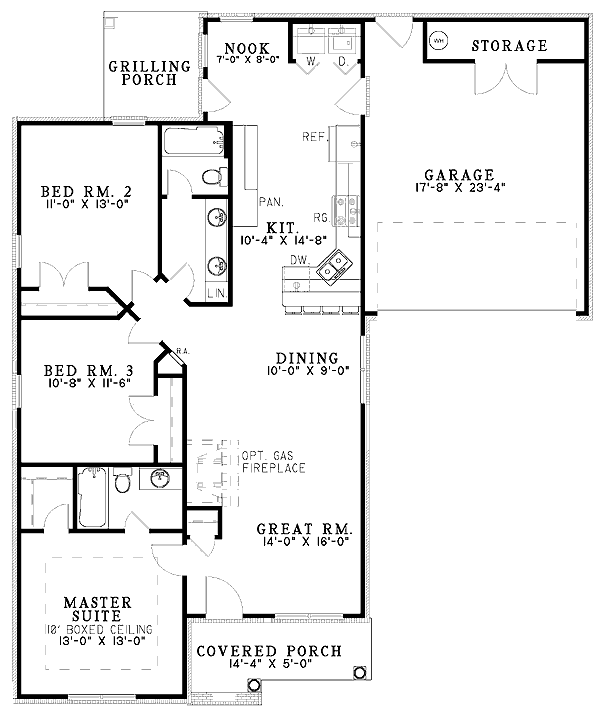

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,317 sq. ft.
  • 1st Floor: 1,317 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 54' 10"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 412 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Crawl, Daylight, Slab
    • Optional Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
