Plan 623439DJ

Traditional Split Level Duplex House Plan with Vaulted Open Concept Living - 1981 Sq Ft Per Unit

Heated S.F.
3,962
Units
2
Width
Depth
Tour

Floor Plan

Plan 623439DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 623439DJ

M-F 9am-5pm EST |

1-203-761-8500

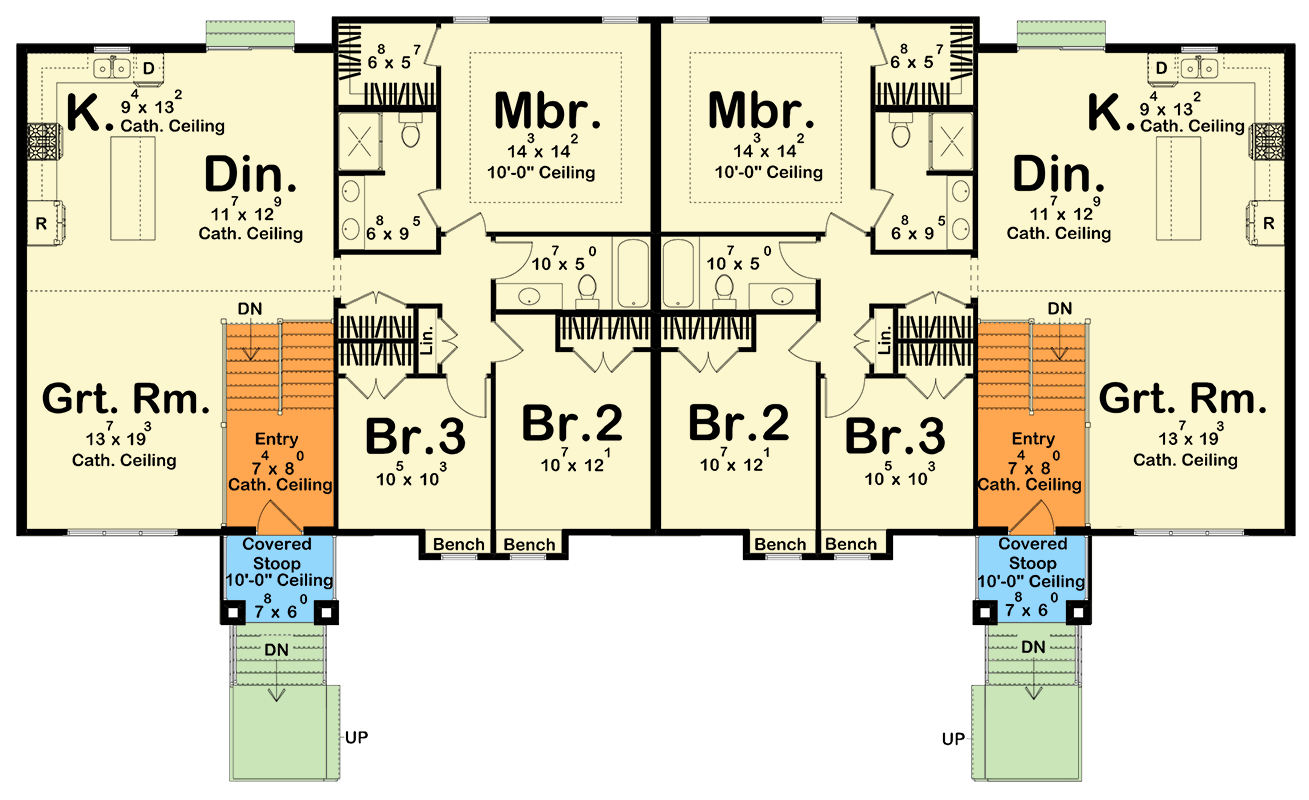

Main Level

Plan 623439DJ: Traditional Split Level Duplex House Plan with Vaulted Open Concept Living - 1981 Sq Ft Per Unit - Floor Plan - Main Level - Country, New American, Traditional

2nd Floor

Plan 623439DJ: Traditional Split Level Duplex House Plan with Vaulted Open Concept Living - 1981 Sq Ft Per Unit - Floor Plan - 2nd Floor - Country, New American, Traditional

Plan Details

  • This traditional split-level duplex offers a practical layout for modern living. Upon entering, a stair landing leads to the different levels of the home. The lower level features a spacious family room, a bathroom, laundry room, and access to the garage with ample storage space.
  • The main level has an open concept design, combining the great room, dining room, and kitchen under a cathedral ceiling. The kitchen includes modern appliances, plenty of counter space, and an island for casual dining. Two bedrooms on this level share a hall bathroom, while the master bedroom features an en-suite bathroom and walk-in closet.
  • Outside, the backyard provides space for outdoor activities. Located in a desirable neighborhood, this home balances functionality and comfort.
  • Related Plan: Get the single-family version with house plan 623257DJ (1,981 sq. ft.).
Unit A
Heated Area
1,981Sq. Ft.
502 Sq. Ft. LL
1479 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
679 Sq. Ft.
Dimensions
43'width
41'depth
25'height
Unfinished Areas
92 Sq. Ft. Porch, Front
679 Sq. Ft. Garage
Unit B
Heated Area
1,981Sq. Ft.
502 Sq. Ft. LL
1479 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Drive Under
679 Sq. Ft.
Dimensions
42'width
41'depth
25'height
Unfinished Areas
679 Sq. Ft. Garage
46 Sq. Ft. Porch, Front

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,962 sq. ft.

Lower Level

1,004 sq. ft.

1st Floor

2,958 sq. ft.

Porch, Front

92 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 0"

Depth

41' 0"

Max Ridge Height

25' 10"

Garage

Type

Drive Under

Area

1358 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

3,962 sq. ft.

Lower Level

1,004 sq. ft.

1st Floor

2,958 sq. ft.

Porch, Front

92 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 0"

Depth

41' 0"

Max Ridge Height

25' 10"

Garage

Type

Drive Under

Area

1358 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Architectural Style

Country

New American

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Split Level

Plan Collections

Sloping Lot
