Traditional Split Level House Plan with Vaulted Open Concept Living Space - 1479 Sq Ft

Name: Plan 623257DJ: Traditional Split Level House Plan with Vaulted Open Concept Living Space - 1479 Sq Ft
Brand: Architectural Designs
SKU: 623257DJ
Price: 1399.0 USD
Availability: InStock

Heated S.F.

1,479

Beds

Baths

2.5

Stories

Cars

Tour

Floor Plan

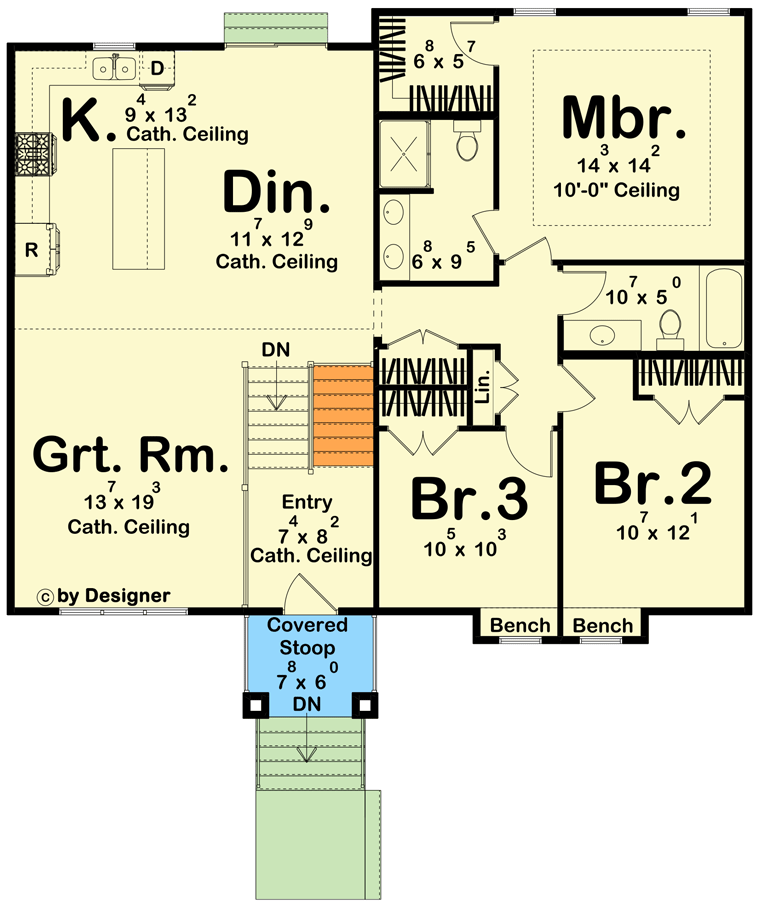

Main Level

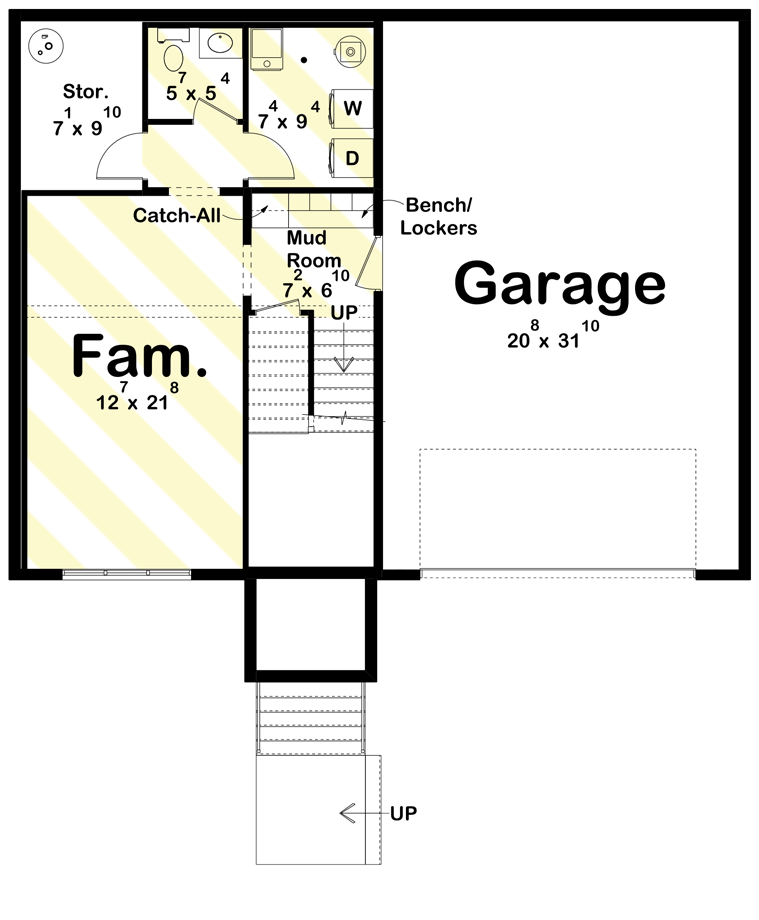

Optional Lower Level Layout ($ Paid Option)

Plan 623257DJ: Traditional Split Level House Plan with Vaulted Open Concept Living Space - 1479 Sq Ft - Floor Plan - Optional Lower Level Layout ($ Paid Option) - Country, New American, Traditional

Plan Details

This 43-foot-wide split-level home plan gives you 1,479 square feet of heated living all on one floor and has an optional finished lower level - available for an extra charge from the Options menu - which gives you 502 square feet of expansion space including a spacious family room.
The main level has an open concept design with a great room, dining room, and kitchen encompassing the left half of the home. The kitchen has an island with workspace and seating. A door on the back wall takes you to stairs going out back.
Bedrooms are clustered on the right side of the home. The master bedroom has a tray ceiling, an en-suite bathroom and a spacious walk-in closet.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
