Traditional Starter or Retiree Home Plan

Plan 72844DA

  • 1,792

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • A vaulted great room dominates the main floor of this traditional home, with a small second story.
  • This plan could serve as a starter or retirement home, with the two bedrooms upstairs kept ready for grandchildren or other guests.
  • The first impression is one of openness. In the entry hall, the ceiling is two stories high with light spilling in through two windows overhead.
  • Take a few steps to the left, and you'll find yourself in a vaulted great room with a fireplace. This room spans the home, front to back. A wide bay window faces the street, and French doors at the back open onto a small deck.
  • Pull-down steps in the garage provide access to storage space overhead, and there's also a small storage area on the ground level.
  • In the home's master suite, French doors open onto a private deck. Amenities here include a walk-in closet and a dual vanity.
  • Two small bedrooms and a bathroom are upstairs. From the landing at the top of the stairs, you can overlook the entry.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

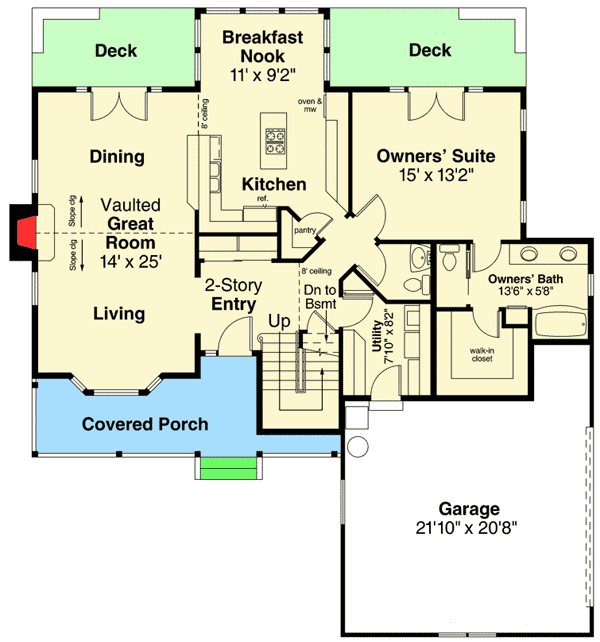

Traditional Starter or Retiree Home Plan - 72844DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

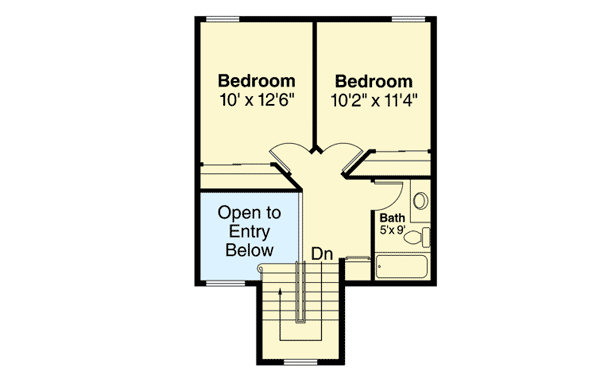

Traditional Starter or Retiree Home Plan - 72844DA floor plan - 2nd Floor

Architectural Style

Traditional Starter or Retiree Home Plan

  • 1,792

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,792 sq. ft.
  • 1st Floor: 1,360 sq. ft.
  • 2nd Floor: 432 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 56' 0"
  • Max ridge height: 28' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 498 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 10 on 12
