Plan 51959HZ

Traditional-Style Duplex House Plan with 2 Bed 2 Bath Units - 1098 Sq Ft Each

Heated S.F.
2,196
Units
2
Width
Depth

Floor Plan

Plan 51959HZ

Main Level
Main Level

Plan 51959HZ

M-F 9am-5pm EST |

1-203-761-8500

Main Level

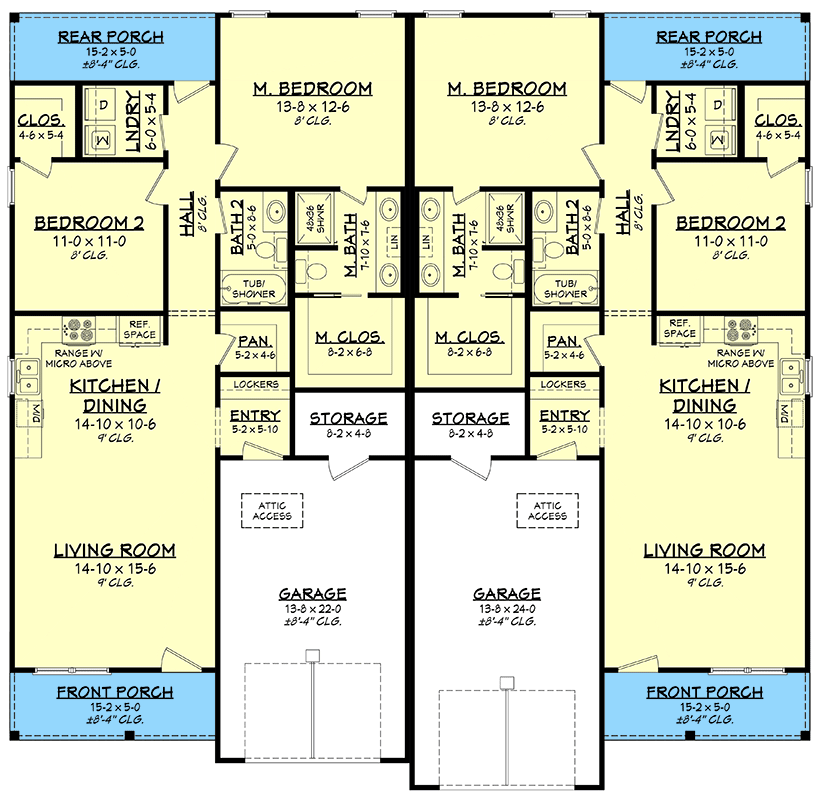

Plan 51959HZ: Traditional-Style Duplex House Plan with 2 Bed 2 Bath Units - 1098 Sq Ft Each - Floor Plan - Main Level - Traditional

Plan Details

  • This duplex house plan gives you matching 2 bed, 2 bath units each with 1,098 square feet of heated living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes.
  • Our website offers a vast collection of multi-family house plans, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,098Sq. Ft.
1098 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
330 Sq. Ft.
Dimensions
29' 6"width
57' 4"depth
18'height
Unfinished Areas
76 Sq. Ft. Porch, Front
76 Sq. Ft. Porch, Rear
43 Sq. Ft. Storage
330 Sq. Ft. Garage
Unit B
Heated Area
1,098Sq. Ft.
2196 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
330 Sq. Ft.
Dimensions
29' 6"width
57' 4"depth
18'height
Unfinished Areas
330 Sq. Ft. Garage
76 Sq. Ft. Porch, Front
76 Sq. Ft. Porch, Rear
43 Sq. Ft. Storage

What's Included

Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

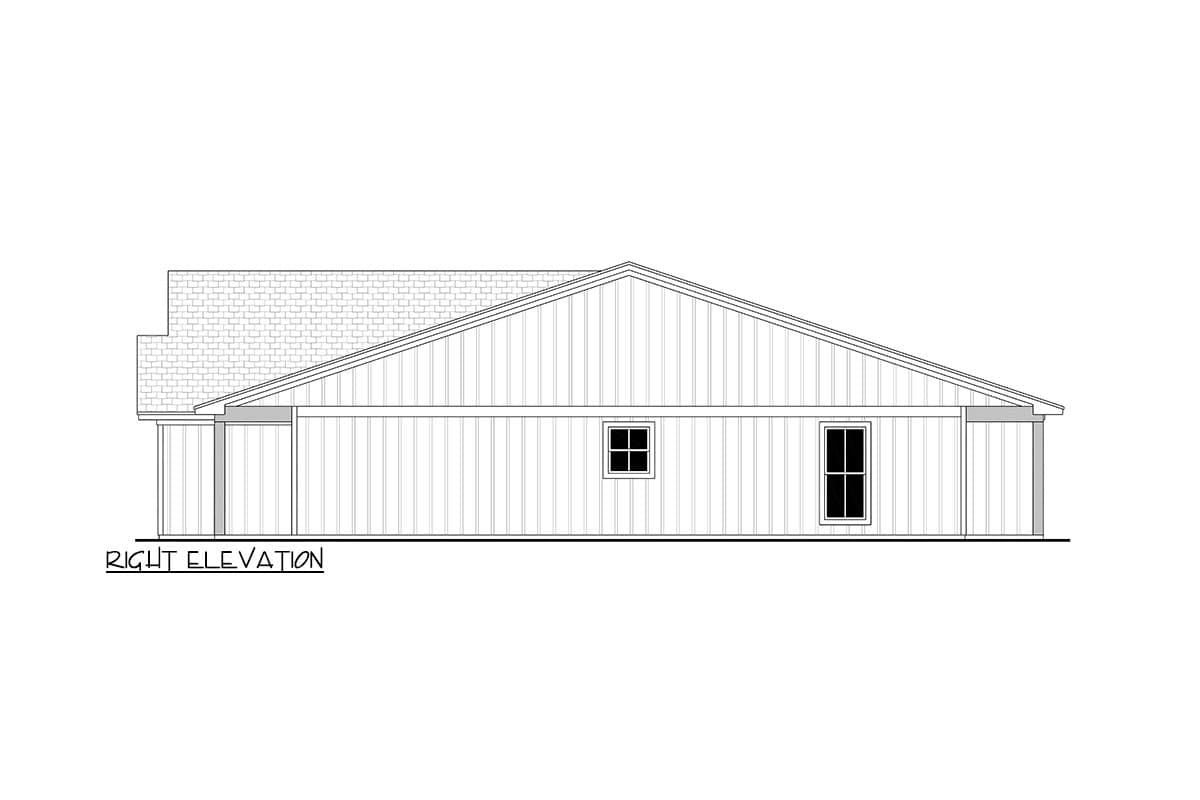

Page 4  Exterior views with additional notes and details
Page 5  Roof plan and span charts with additional details
Page 6  Cross Section & kitchen cabinet views
Page 7  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,196 sq. ft.

1st Floor

2,196 sq. ft.

Porch, Front

152 sq. ft.

Porch, Rear

152 sq. ft.

Storage

86 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

57' 4"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

659 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,196 sq. ft.

1st Floor

2,196 sq. ft.

Porch, Front

152 sq. ft.

Porch, Rear

152 sq. ft.

Storage

86 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

57' 4"

Max Ridge Height

18' 0"

Garage

Type

Attached

Area

659 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

7 on 12

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
