Plan 59179ND

Traditional Touches

Heated S.F.
1,976
Beds
3 - 4
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59179ND

Main Level
Main Level

Plan 59179ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

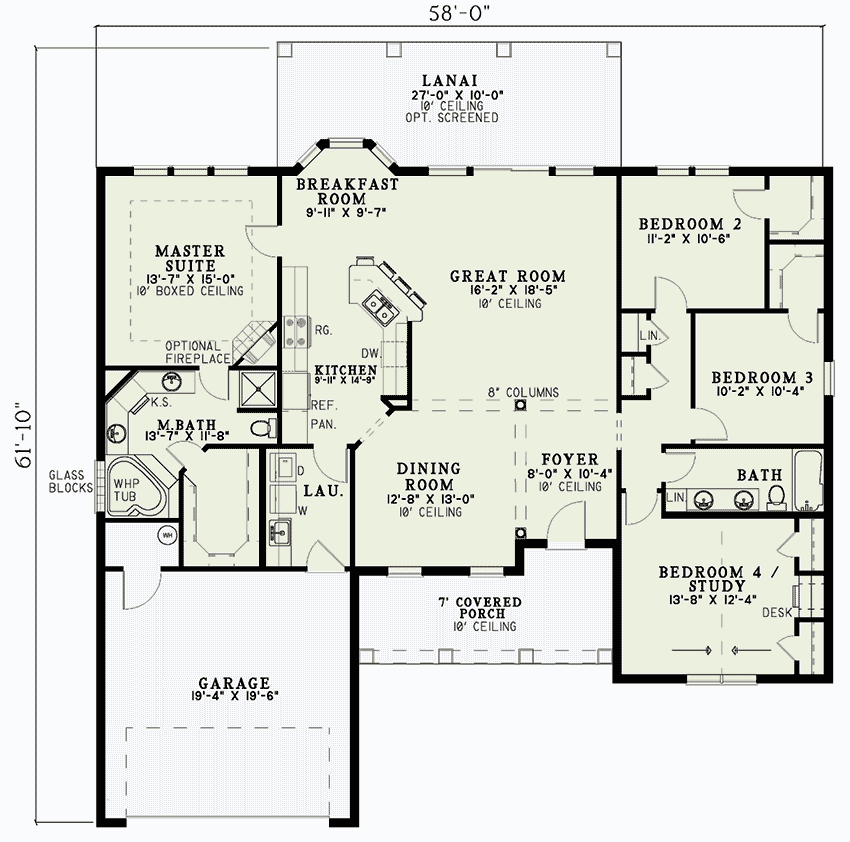

Plan 59179ND: Traditional Touches - Floor Plan - Main Level

Plan Details

  • In the foyer of this traditional design, round columns set off the dining room from the fireplaced great room.
  • The family area comprises a kitchen featuring a walk-in pantry and a large eating island. The hearth room features a gas fireplace and a nearby computer center.
  • In the bedroom wing, a sitting area expands the master bedroom, while a vaulted ceiling and a garden whirlpool tub are among the amenities in the master bath.
  • Bedrooms three and four share a hall bath, while bedroom two enjoys a private bath. With an optional door to the foyer, bedroom two becomes a study.
  • Upstairs, bonus space can be converted to a large playroom.
  • Ceilings: 9' standard, 10' in great room, dining room and foyer.
  • Foundation options: slab or crawl space. Specify when ordering.
  • Note: Exterior framing is 8" concrete

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,976 sq. ft.

1st Floor

1,976 sq. ft.

Porch, Combined

407 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

58' 0"

Depth

61' 10"

Max Ridge Height

23' 4"

Garage

Type

Attached

Area

441 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9' 4"

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Special Features

Bedrooms - Split

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Playroom
