Plan 5709HA

Tranquility of an Atrium Cottage

Heated S.F.
1,922
Beds
2
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 5709HA

Basement
Basement
Main Level
Main Level

Plan 5709HA

M-F 9am-5pm EST |

1-203-761-8500

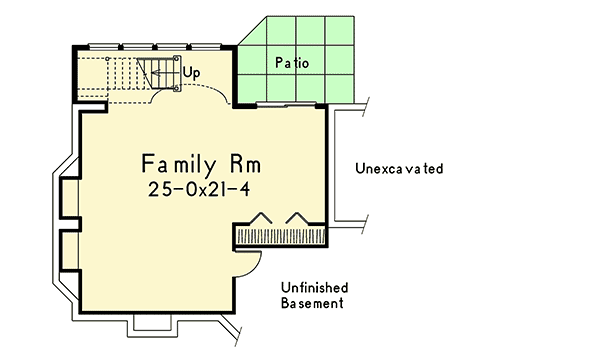

Basement

Plan 5709HA: Tranquility of an Atrium Cottage - Floor Plan - Basement

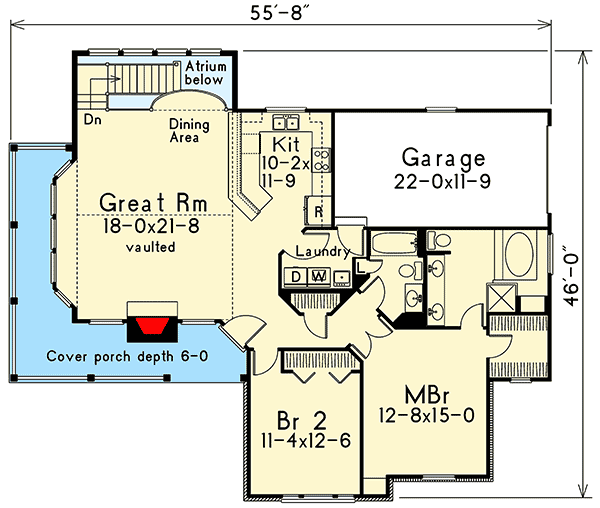

Main Level

Plan 5709HA: Tranquility of an Atrium Cottage - Floor Plan - Main Level

Plan Details

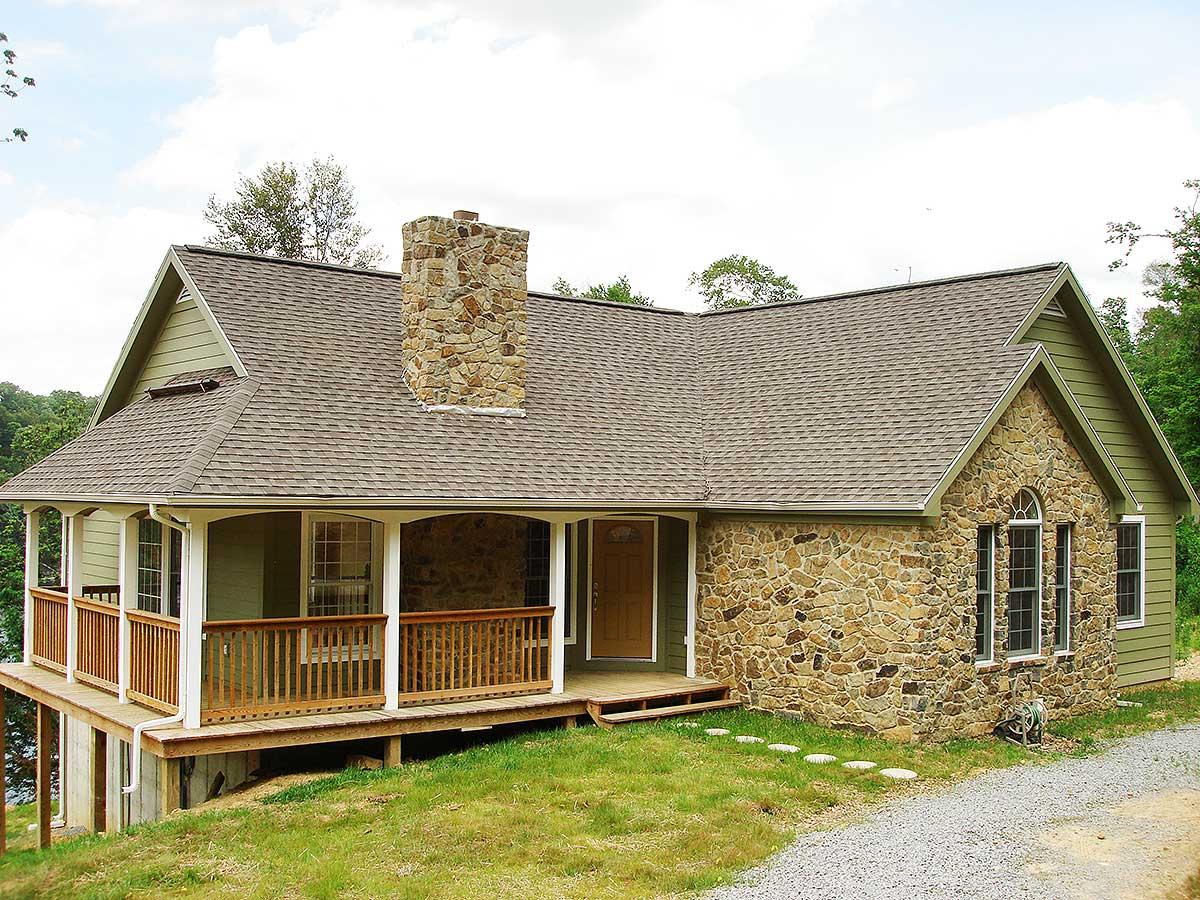

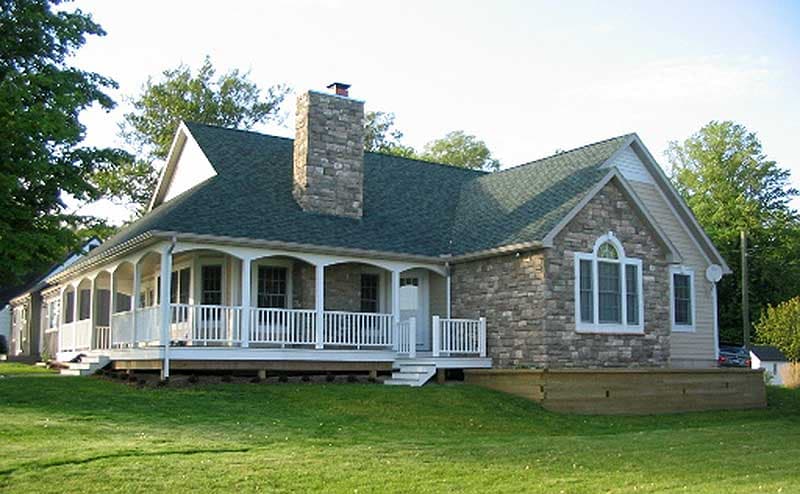

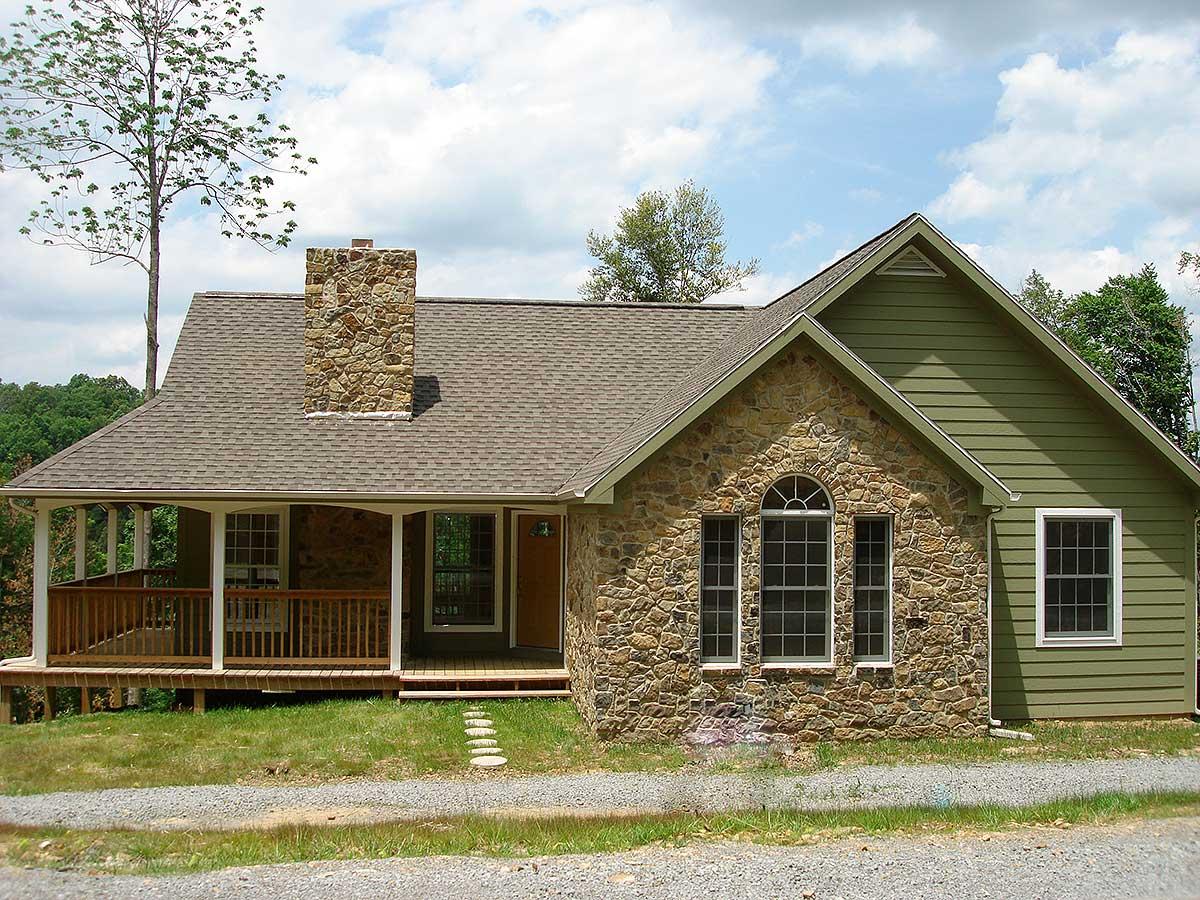

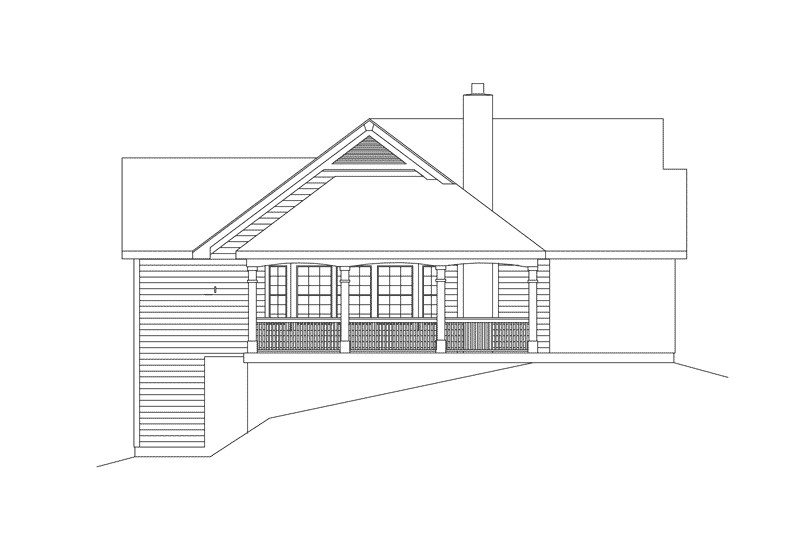

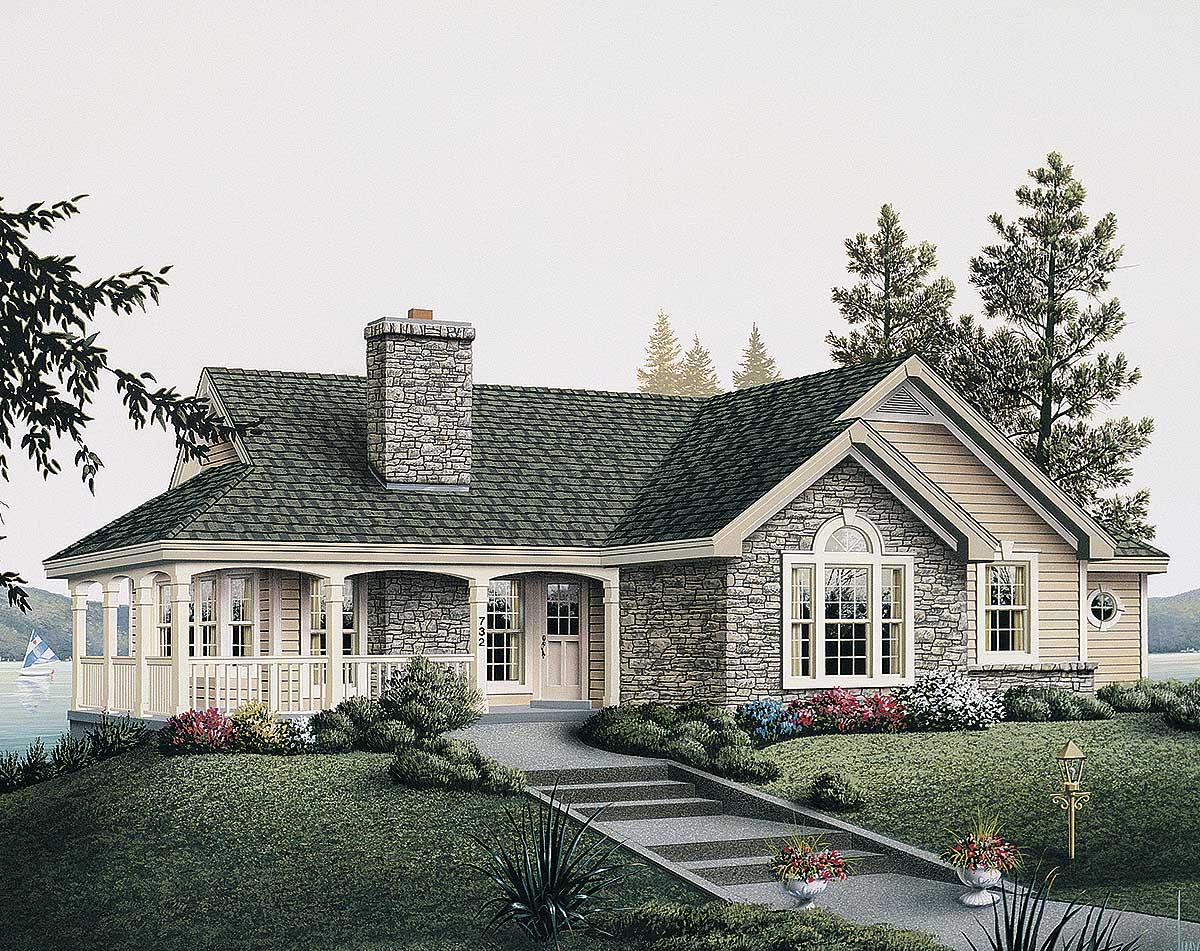

  • Suitable for a sloping lot, this versatile country house plan offers a wrap-around country porch for peaceful evenings.

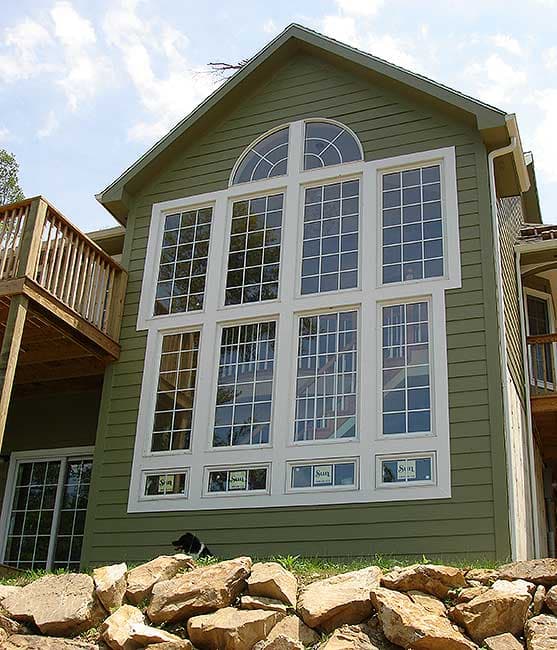

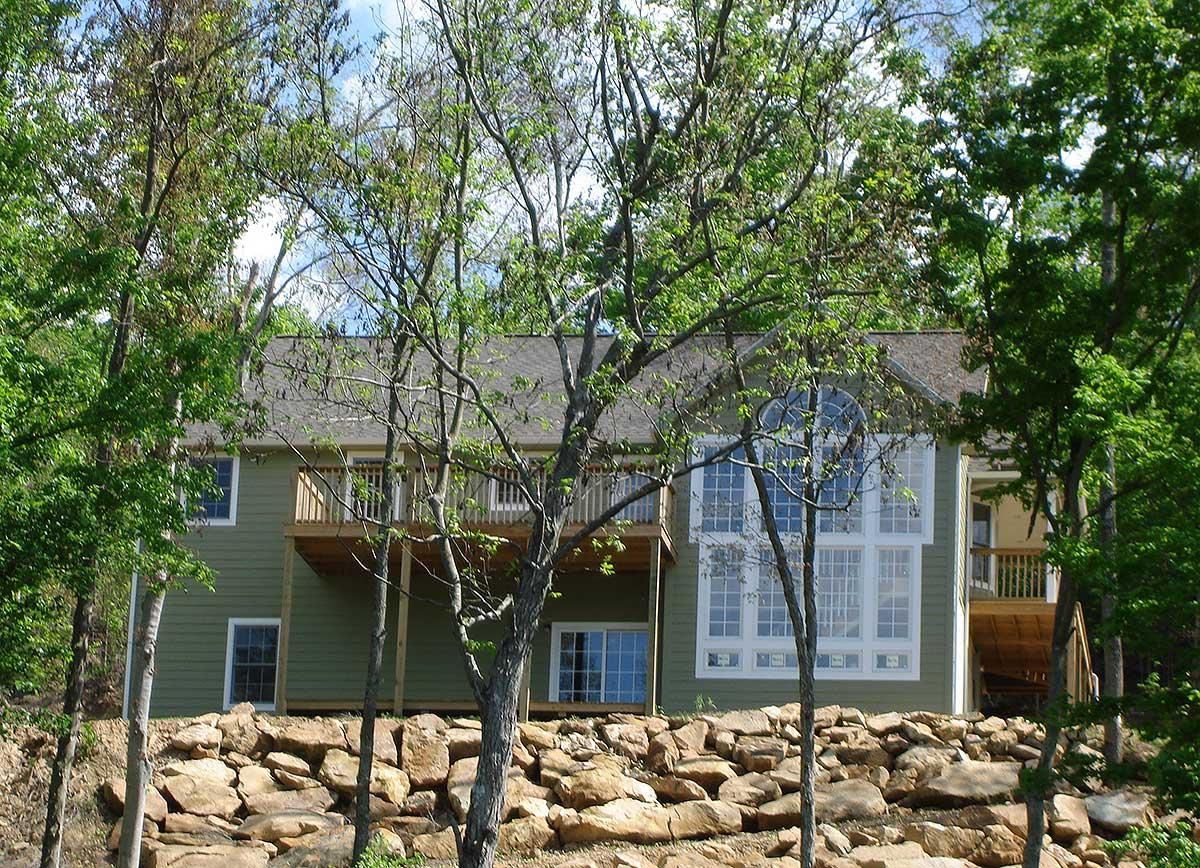

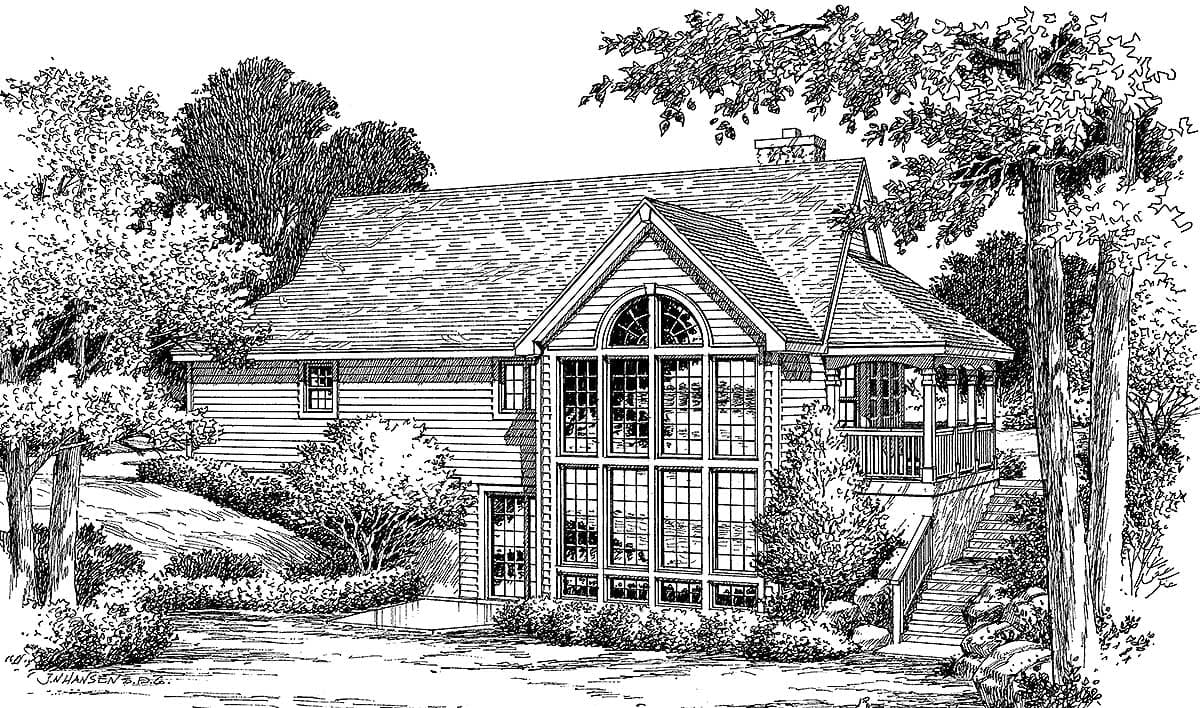

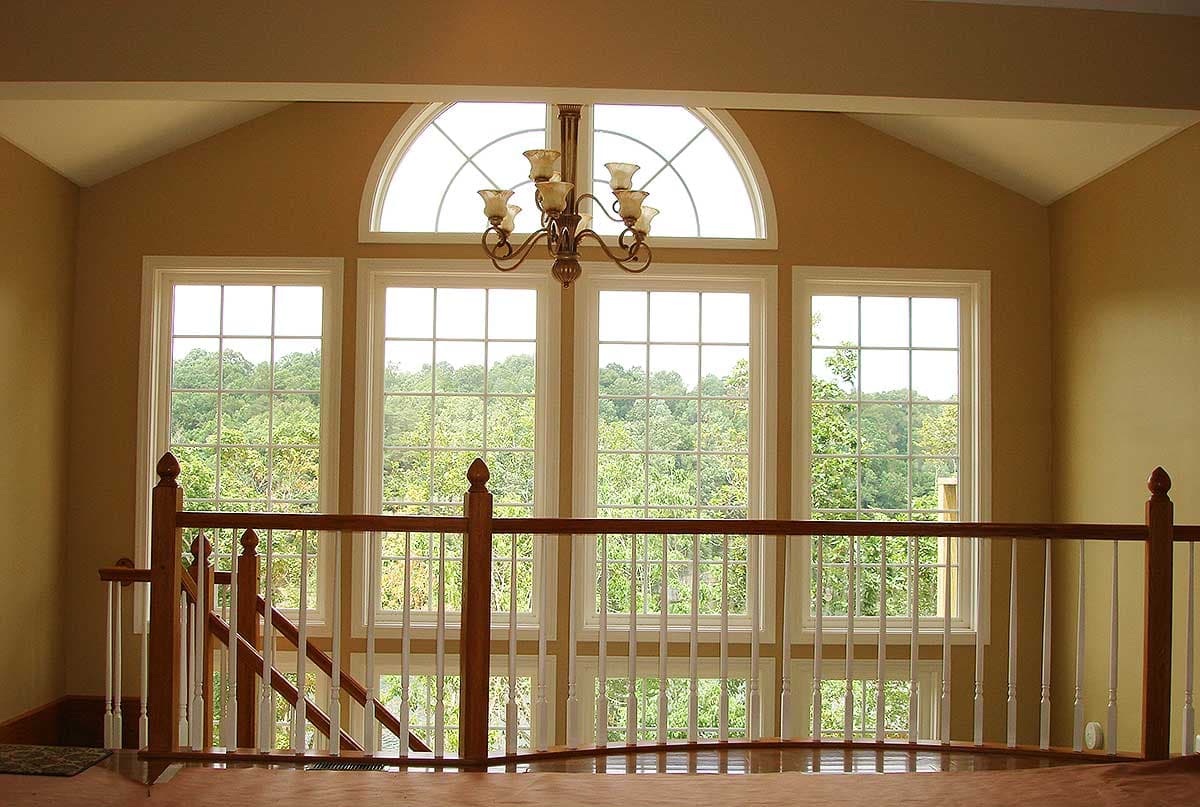

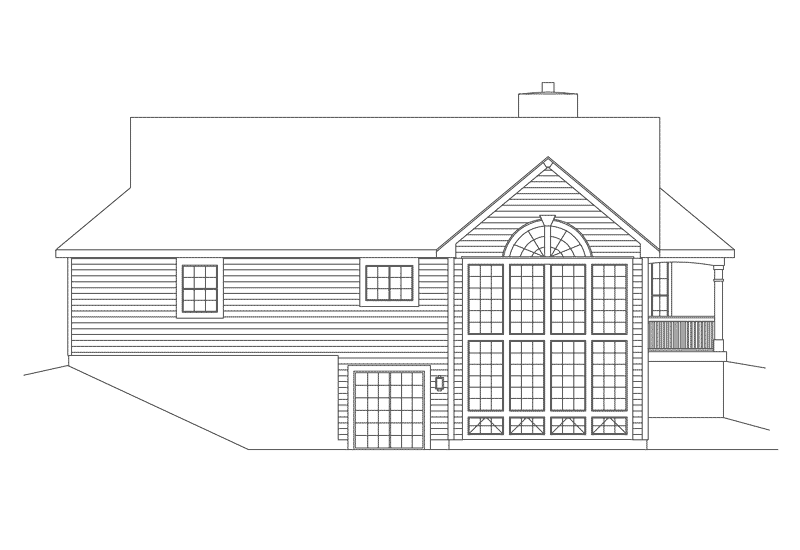

  • The great room vaults to 12'7" and enjoys a large bay window, stone fireplace, pass-through kitchen and awesome rear views through the atrium window wall.
  • The first floor master features double entry doors, a walk-in closet and a fabulous bath.
  • The atrium opens to 611 square feet of optional living area below.
  • The roof pitch is 9:12.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

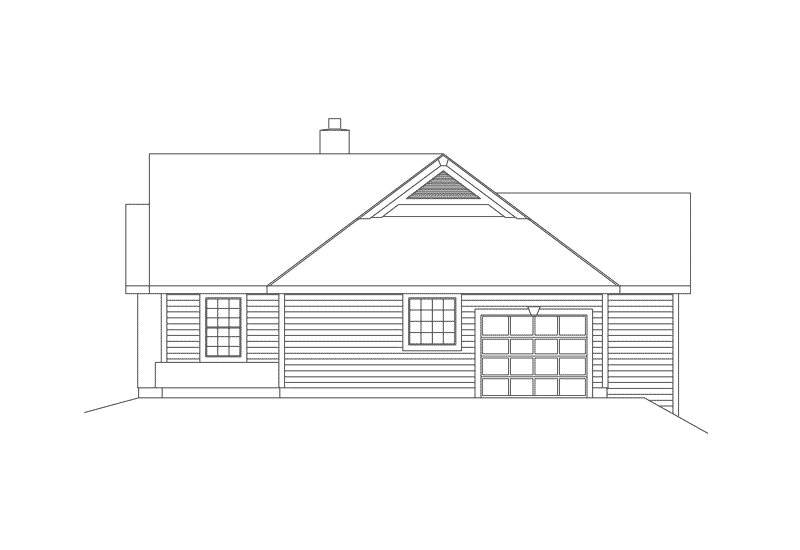

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,922 sq. ft.

Lower Level

507 sq. ft.

1st Floor

1,415 sq. ft.

Porch, Combined

270 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

55' 8"

Depth

46' 0"

Max Ridge Height

20' 6"

Garage

Type

Attached

Area

257 sq. ft.

Count

1 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

10 on 12

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Wrap Around Porch

Plan Collections

Photo Gallery

Sloping Lot
