Plan 280145JWD Transitional 3-Bedroom Modern Farmhouse with 2-Car Angled Garage

Transitional 3-Bedroom Modern Farmhouse with 2-Car Angled Garage

Plan 280145JWD

  • 2,827

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • This Transitional, 3-Bedroom, Modern Farmhouse presents contrasting exterior colors paired with warm wood tones. The 2-car garage projects from the home at an angle with access to a mud / laundry room combo with two coat closets.
  • The family room gains space vertically from the vaulted ceiling that continues through the rear covered patio. The open layout allows you to move easily between the dining area and kitchen, which hosts a prep island surrounded by plenty of counter space and a large range.
  • A quiet den is located behind french doors just off the foyer with additional storage space tucked beneath the stairwell.
  • The main-level master bedroom considers your future needs and delivers lots of natural light, two walk-in closets, and a freestanding tub in the attached bath.
  • Upstairs, two sizable bedrooms share a full bathroom with two sinks, while the activity room can serve as a play / media room or craft area.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

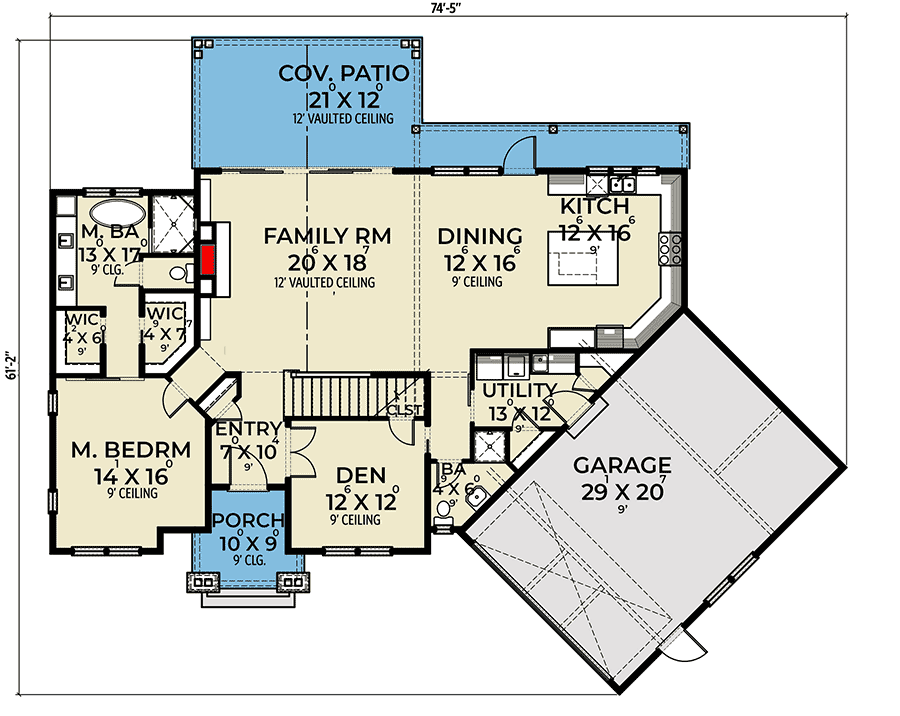

Transitional 3-Bedroom Modern Farmhouse with 2-Car Angled Garage - 280145JWD floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

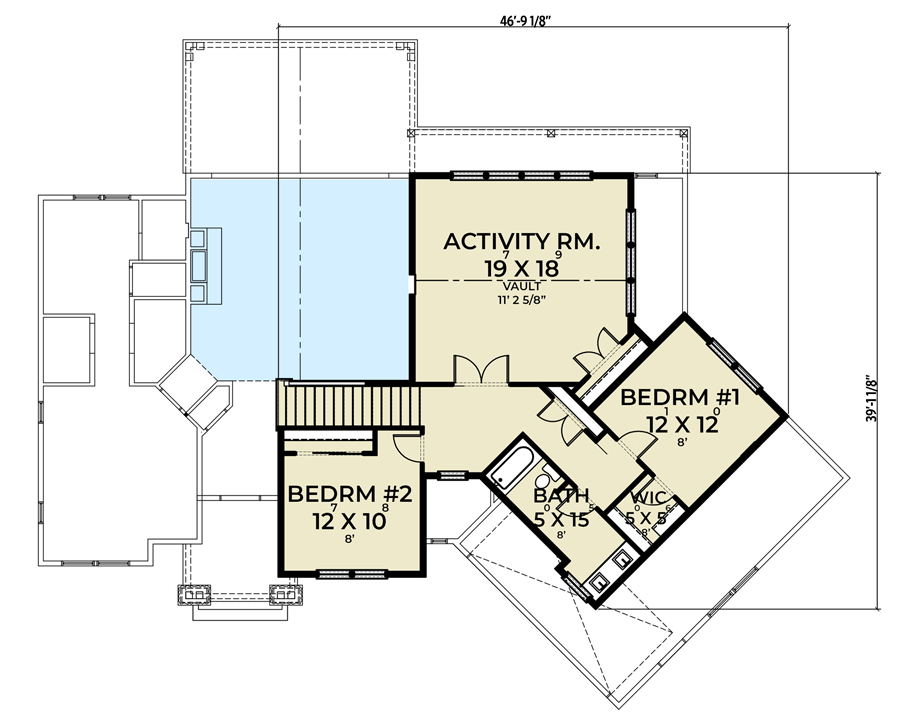

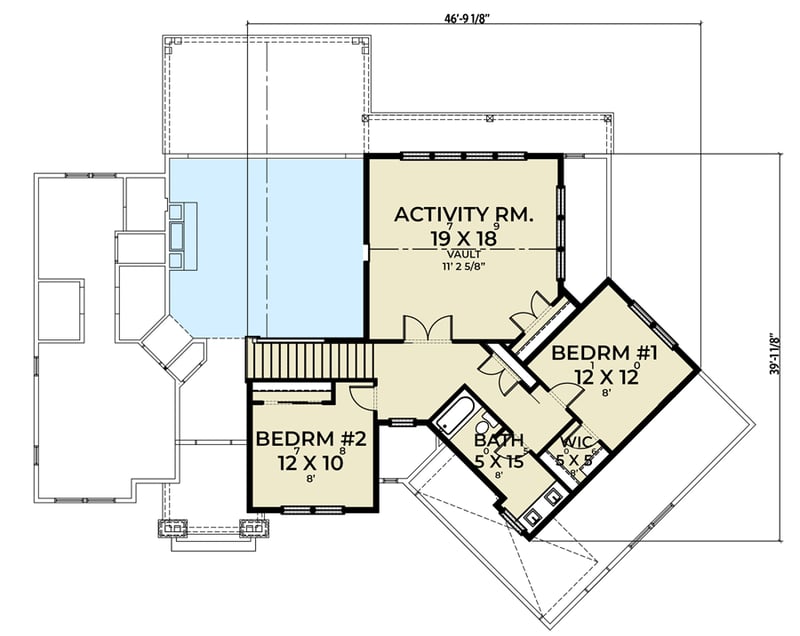

Transitional 3-Bedroom Modern Farmhouse with 2-Car Angled Garage - 280145JWD floor plan - 2nd Floor

Plan details

Transitional 3-Bedroom Modern Farmhouse with 2-Car Angled Garage

  • 2,827

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $2,200
  • CAD + PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • This Transitional, 3-Bedroom, Modern Farmhouse presents contrasting exterior colors paired with warm wood tones. The 2-car garage projects from the home at an angle with access to a mud / laundry room combo with two coat closets.
  • The family room gains space vertically from the vaulted ceiling that continues through the rear covered patio. The open layout allows you to move easily between the dining area and kitchen, which hosts a prep island surrounded by plenty of counter space and a large range.
  • A quiet den is located behind french doors just off the foyer with additional storage space tucked beneath the stairwell.
  • The main-level master bedroom considers your future needs and delivers lots of natural light, two walk-in closets, and a freestanding tub in the attached bath.
  • Upstairs, two sizable bedrooms share a full bathroom with two sinks, while the activity room can serve as a play / media room or craft area.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,827 sq. ft.
  • 1st Floor: 1,798 sq. ft.
  • 2nd Floor: 1,029 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 74' 5"
  • Depth: 49' 2"
  • Max ridge height: 29' 8"

Garage

  • Type: Attached
  • Area: 632 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
