Transitional Cottage with 714 Square Feet of Living Space
Heated S.F.
714
Beds
1
Baths
1
Stories
1
Cars
1
What's Included
Plan Details
  • Enjoy the simple life in this economical Cottage that gives you 714 square feet of heating living space with a transitional style that blends old-world charm with modern aesthetics.
  • A covered porch guides you into the heart of the home where cabinetry helps to form the kitchen and includes an eating bar with seating for three.
  • A door connects the single garage bay with the kitchen for easy access when unloading groceries.
  • French doors in the living area open to a quaint rear patio for outdoor enjoyment.
  • The bedroom offers rearward views, a walk-in closet, and access to the compartmentalized bathroom, and a laundry closet is located across the hall.
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional Cottage with 714 Square Feet of Living Space

  • 714

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

  • 1

    Car garage

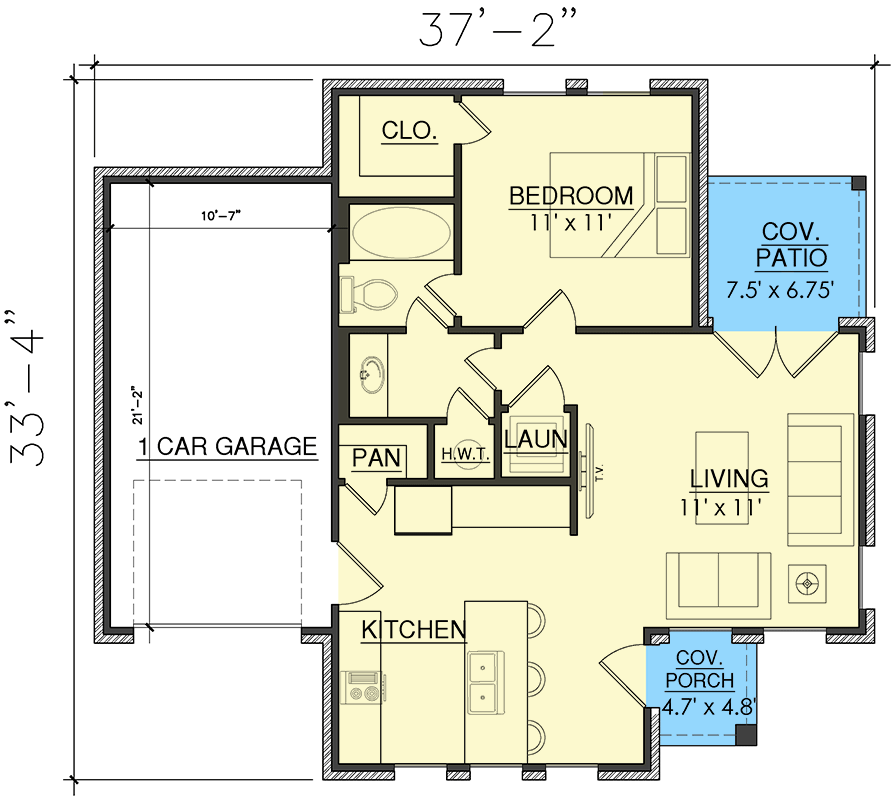

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 714 sq. ft.
  • 1st Floor: 714 sq. ft.

Dimensions

  • Width: 37' 2"
  • Depth: 33' 4"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 256 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
