Transitional Craftsman Home with 5 Bedrooms

Plan 42714DB

  • 1,324

    Heated s.f.

  • 5

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • Charm defines this Transitional Craftsman home plan, complete with a single shed dormer with metal roof accents.
  • A coat closet greets you in the entryway, which easily moves into the family / dining areas. A peninsula-style eating bar connects the kitchen with the family room, and provides a convenient space for quick meals.
  • Three bedrooms reside on the main level including the primary suite with its full bathroom and walk-in closet.
  • The laundry room greets you when entering from the double garage, next to the staircase that leads to the finished basement.
  • Downstairs, enjoy a secondary gathering space and two bedrooms that share a compartmentalized bath. Unfinished space allows you to store holiday decor and memories.
  • Related Plan: Get an alternate exterior with house plans 42695DB.
  • NOTE: Please allow 20 to 25 business days for delivery.

This house plan set has the following details:

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

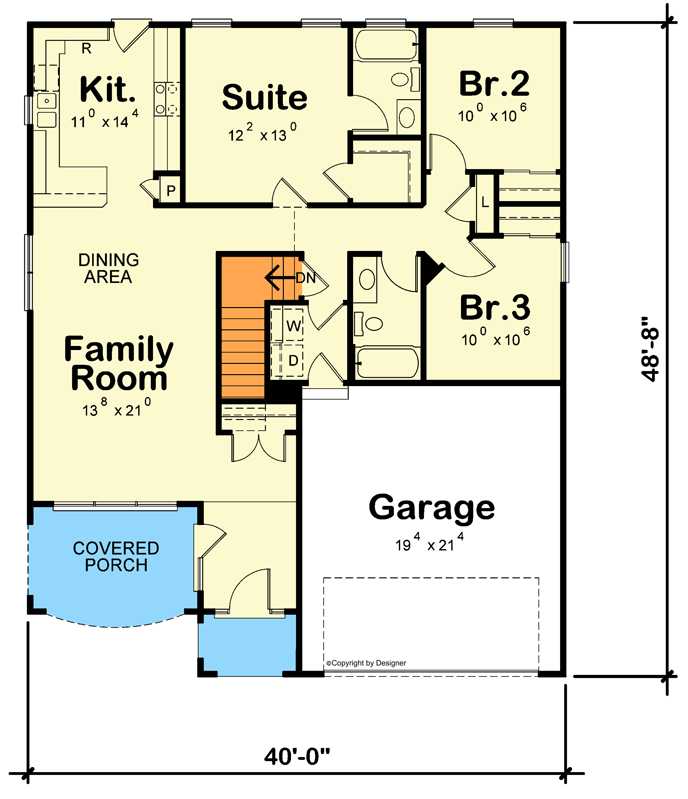

Transitional Craftsman Home with 5 Bedrooms - 42714DB floor plan - Main Level

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Transitional Craftsman Home with 5 Bedrooms - 42714DB floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,324 sq. ft.
  • 1st Floor: 1,324 sq. ft.
  • Porch, Front: 135 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 432 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Transitional Craftsman Home with 5 Bedrooms

  • 1,324

    Heated s.f.

  • 5

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $650
  • PDF - Single-Build $1,005
  • PDF - Unlimited Build $1,505
  • CAD + PDF - Single-Build $1,650
  • CAD - Unlimited Build $2,150
  • View all purchase option online

About This Plan

  • Charm defines this Transitional Craftsman home plan, complete with a single shed dormer with metal roof accents.
  • A coat closet greets you in the entryway, which easily moves into the family / dining areas. A peninsula-style eating bar connects the kitchen with the family room, and provides a convenient space for quick meals.
  • Three bedrooms reside on the main level including the primary suite with its full bathroom and walk-in closet.
  • The laundry room greets you when entering from the double garage, next to the staircase that leads to the finished basement.
  • Downstairs, enjoy a secondary gathering space and two bedrooms that share a compartmentalized bath. Unfinished space allows you to store holiday decor and memories.
  • Related Plan: Get an alternate exterior with house plans 42695DB.
  • NOTE: Please allow 20 to 25 business days for delivery.

Floor Plans

  • Main Level

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,324 sq. ft.
  • 1st Floor: 1,324 sq. ft.
  • Porch, Front: 135 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 8"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 432 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
