Plan 70768SND
Transitional European Home Plan with Single Garage and Main-level Master Bedroom
Heated S.F.
1,523
Beds
3
Baths
2.5
Stories
2
Cars
1
What's Included
Plan Details
  • Dramatic roof lines and an arched front entry add to the storybook character provided by this Transitional European home plan.
  • A coat closet awaits your personal items upon entering while the living room can be found to the right. A gas fireplace anchors the right wall and a seamless transition into the dining area and kitchen creates a desirable open floor plan.
  • Easy access to the patio provides an alternative gathering space when entertaining or dining outdoors.
  • The master bedroom is conveniently located on the main level, next to the laundry room, and a single garage with dedicated storage protrudes from the left elevation.
  • Upstairs, a built-in desk is tucked beneath a window in the landing and bedrooms 2 and 3 share a 3/4 bathroom.
What's Included
  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof Overview Plan (1/4"=1")
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional European Home Plan with Single Garage and Main-level Master Bedroom

  • 1,523

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 1

    Car garage

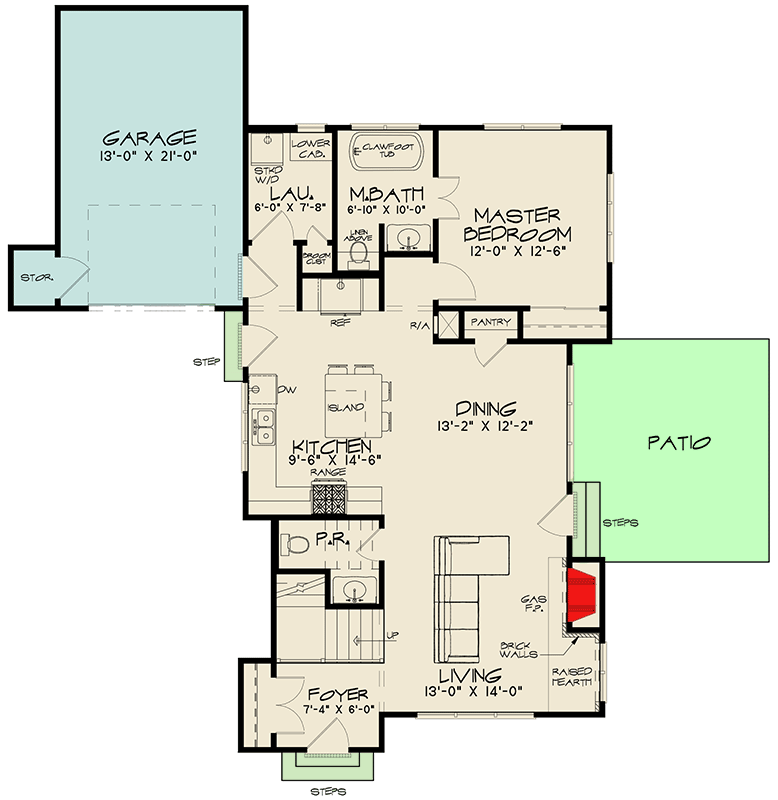

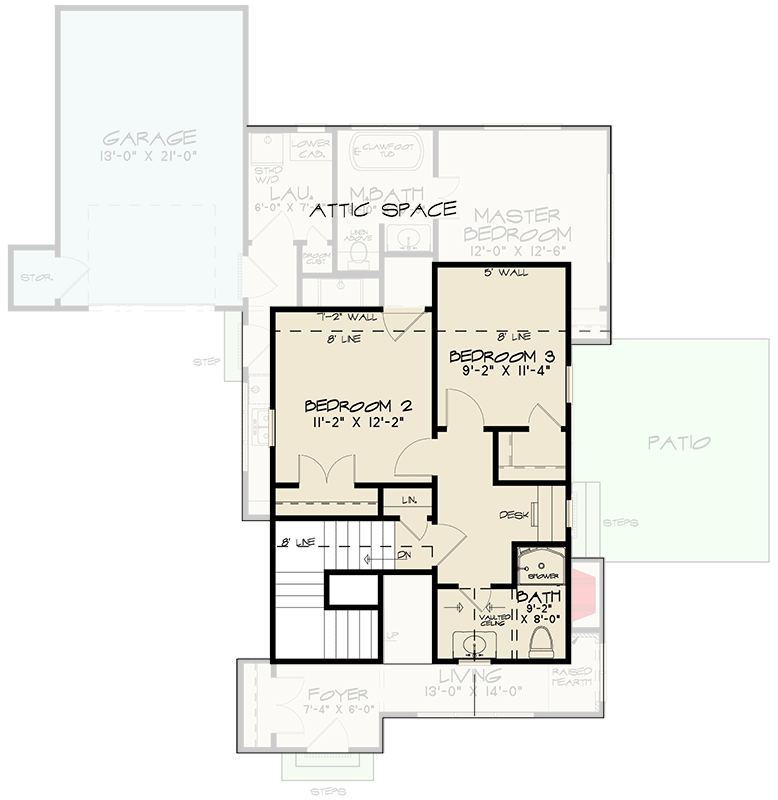

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,523 sq. ft.
  • 1st Floor: 1,058 sq. ft.
  • 2nd Floor: 465 sq. ft.

Dimensions

  • Width: 42' 10"
  • Depth: 53' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 307 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
