Transitional European Home Plan with Split-bed Layout

Plan 461029DNN

2,494
Heated s.f.
3-4
Beds
3
Baths
1
Stories
2
Cars

This Transitional European home plan is outfitted with a fresh exterior showcasing brick, stucco, and arched dormers.
The intuitive and comfortable layout delivers an open, central living space that separates the primary bedrooms fromt the secondary bedrooms.
An elongated island anchors the kitchen and a tray ceiling defines the living room that includes a fireplace and sliding doors to the back porch.
The primary bedroom conveniently neighbors the laundry room and includes a 5-fixture bathroom bordered by two walk-in closets.
Dedicated storage space allows your double garage to remain free of clutter and a drop zone just inside serves as a catchall for bags, shoes, and outerwear.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles. It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

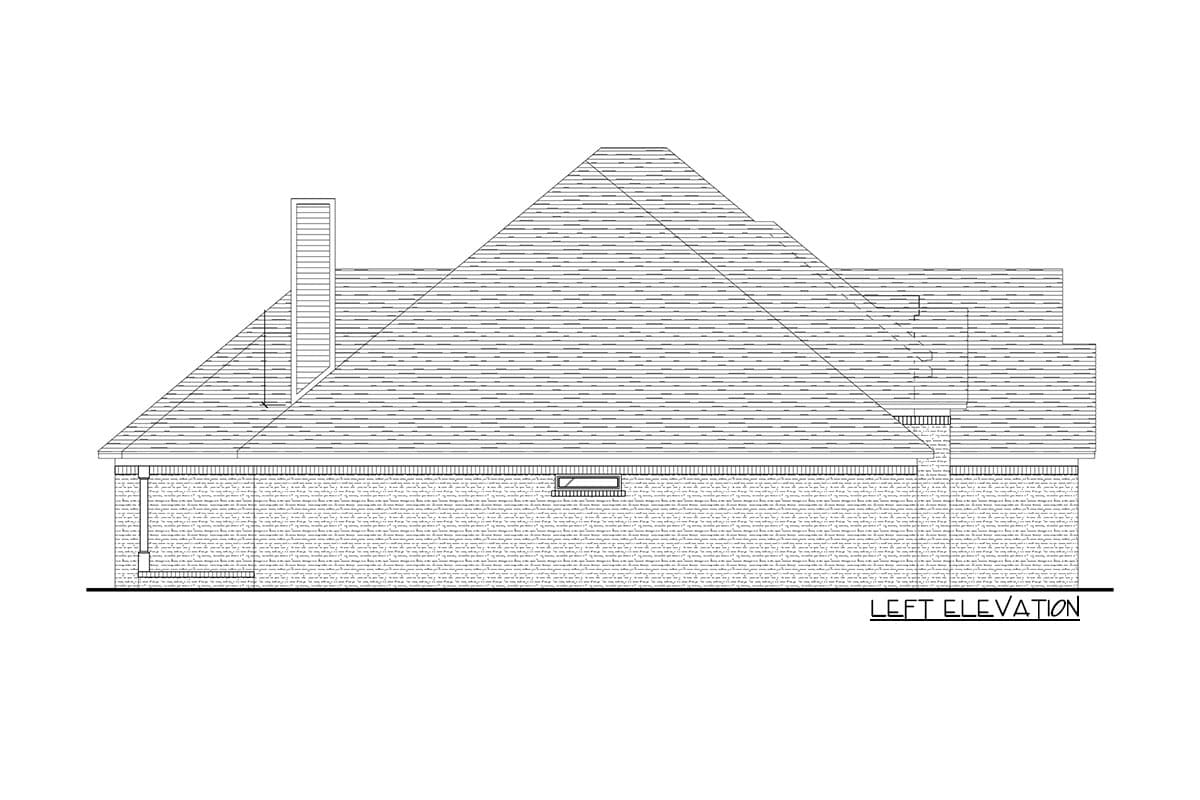

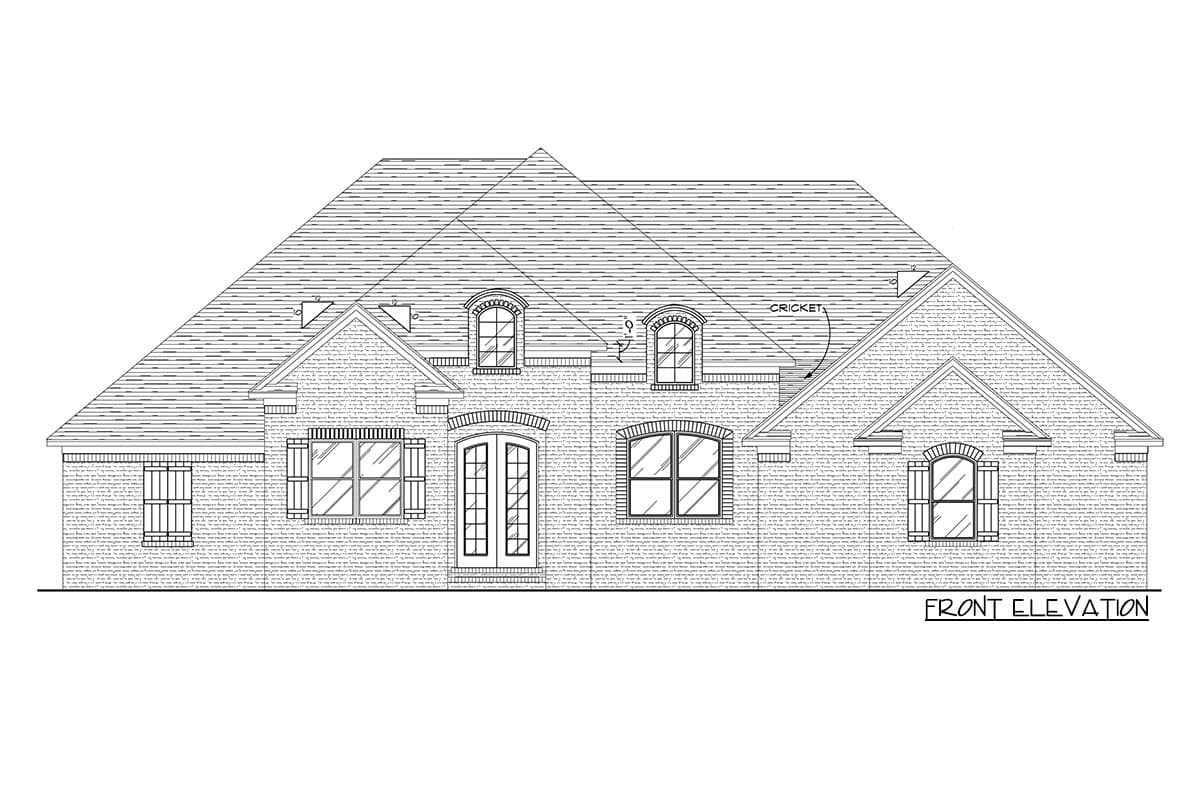

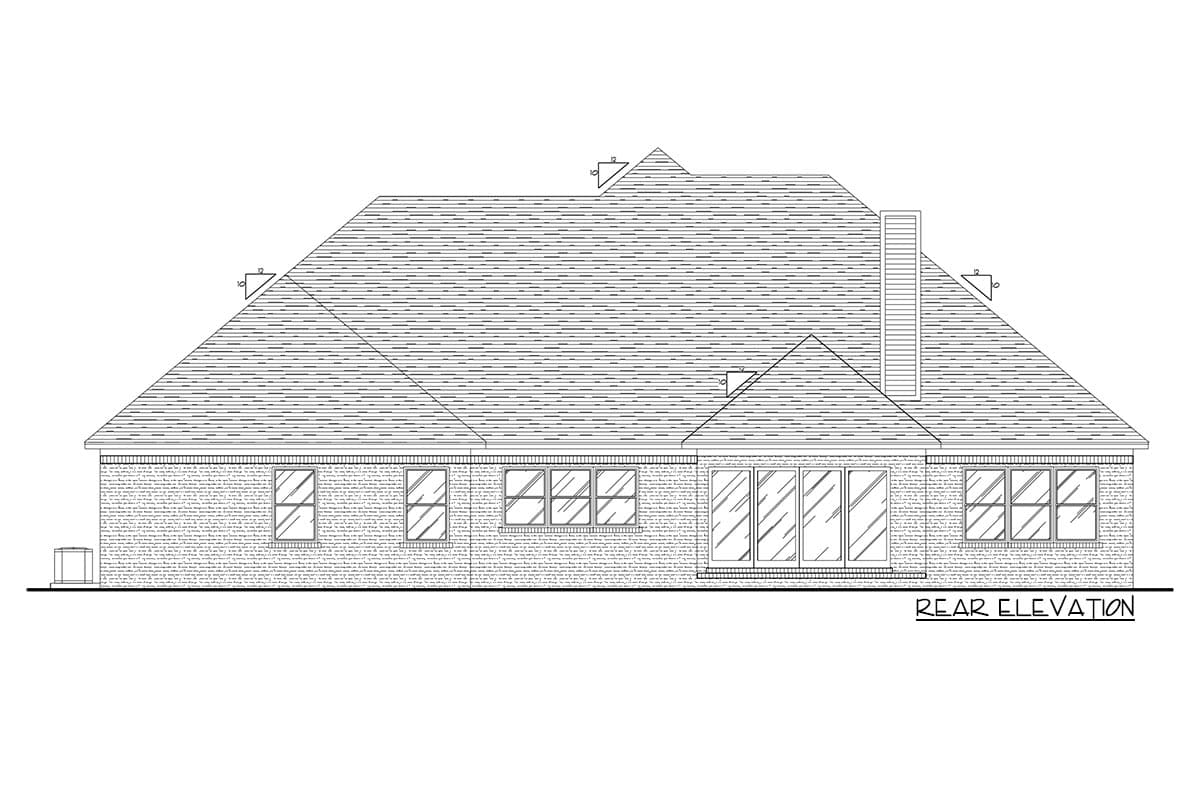

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

Architectural or Engineering Stamp
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work)
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
Framing layouts with beam sizes and locations
Energy calculations
Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

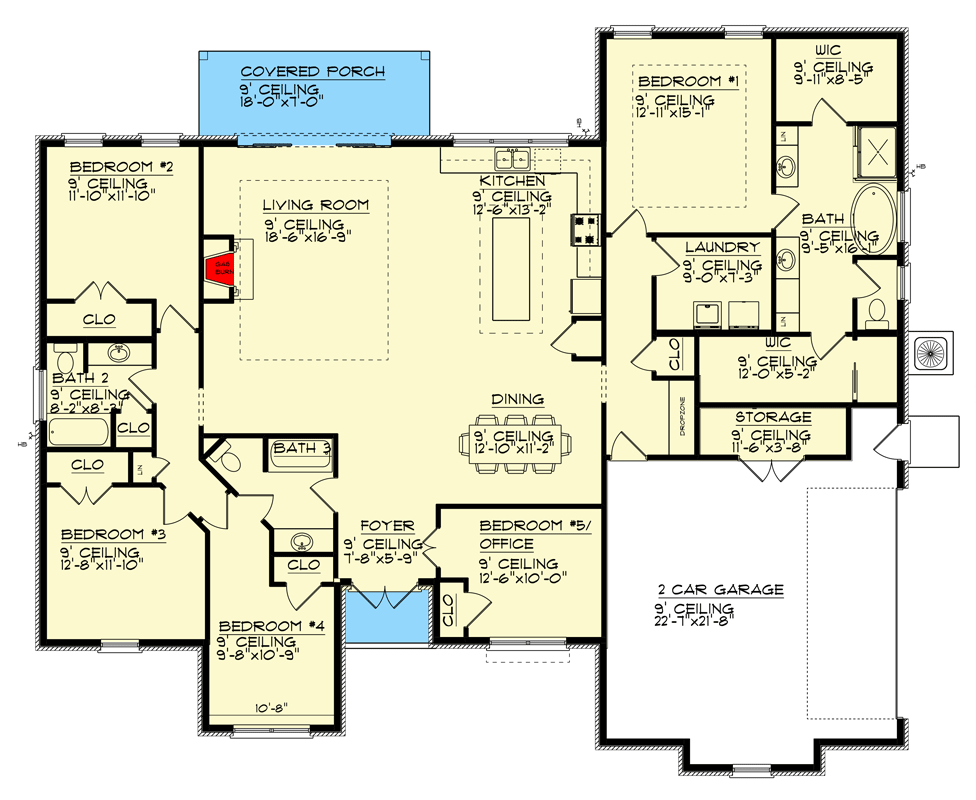

Transitional European Home Plan with Split-bed Layout - 461029DNN floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 2,494 sq. ft.
1st Floor: 2,494 sq. ft.

Porch, Combined: 200 sq. ft.
Porch, Rear: 119 sq. ft.
Porch, Front: 81 sq. ft.

Beds/Baths

Bedrooms: 3 or 4

Full bathrooms: 3

Foundation Type

Standard Foundations: Monolithic Slab

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 68' 1"
Depth: 57' 6"
Max ridge height: 27' 10"

Garage

Type: Attached
Area: 634 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 1"

Roof Details

Primary Pitch: 10 on 12

Framing Type: Stick

Architectural Style

Special features

Plan Collections

Scroll
