Transitional Farmhouse with Vaulted Game Room and 2-Side Fireplace

Plan 490063NAH

  • 3,263

    Heated s.f.

  • 2-6

    Beds

  • 2.5+ - 4.5+

    Baths

  • 1

    Stories

  • 3

    Cars

  • This 2-story, transitional farmhouse house plan offers covered patios in the front and in the rear with metal roofs that add to the winning curb appeal. The exterior has a mix of wood siding, stucco, and stone with wood and concrete trim around the doors and windows.
  • Step in off the covered porch and you find yourself in the great room with it's vaulted ceiling, pass-through fireplace shared with the outdoor patio, and two sets of double doors taking you outside. An open concept design, the kitchen and dining rooms each have views out back. The kitchen has an island with casual seating on two sides, a walk-in pantry and convenient garage access making unloading groceries a breeze.
  • Off the great room, you'll find the game room and the master bedroom with a vaulted ceiling and accompanying bathroom and walk-in closet, standing shower, double vanities, and full size tub.
  • Stairs by the laundry room take you to the upstairs expansions space (bonus room with bath).
  • This home offers basement expansion (2,441 square feet when finished as shown) with a living room, media room, at-home gym, four more bedrooms with walk-in closets, and plenty of storage areas.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

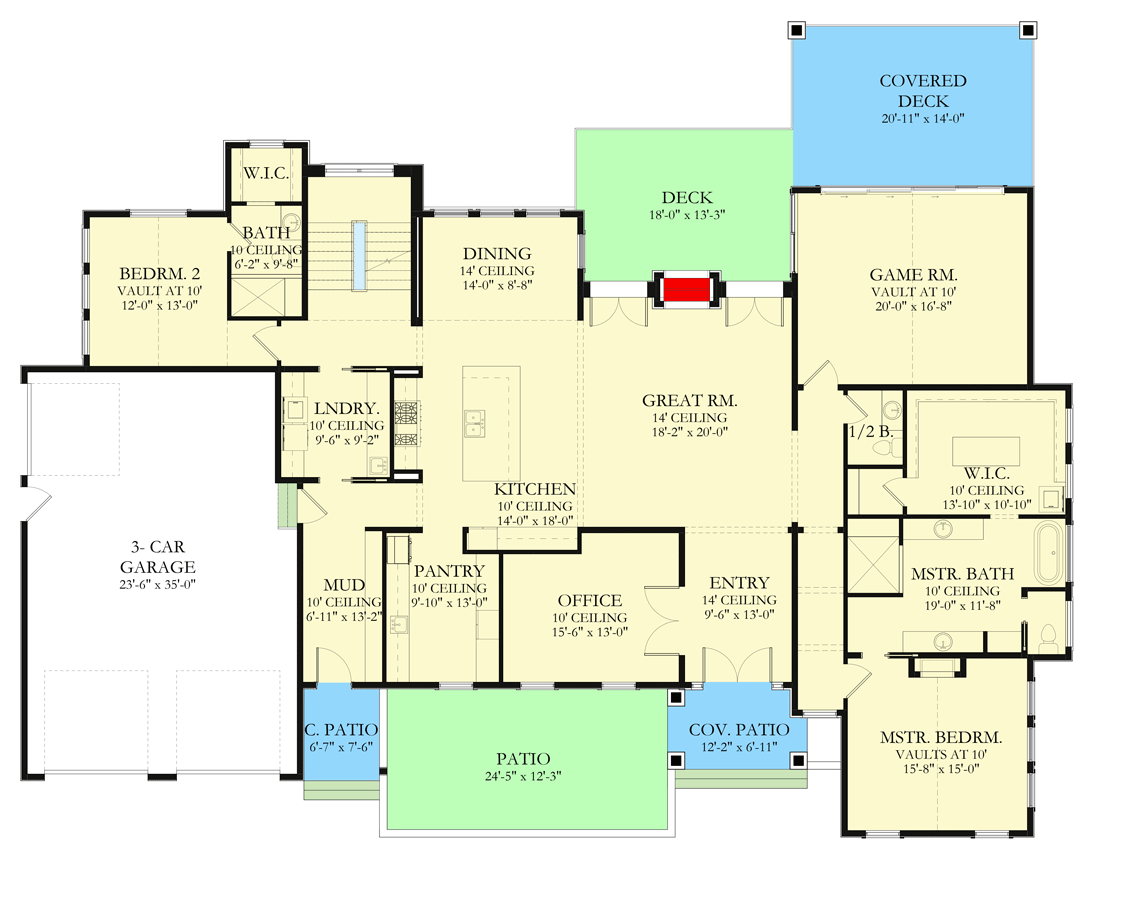

Transitional Farmhouse with Vaulted Game Room and 2-Side Fireplace - 490063NAH floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

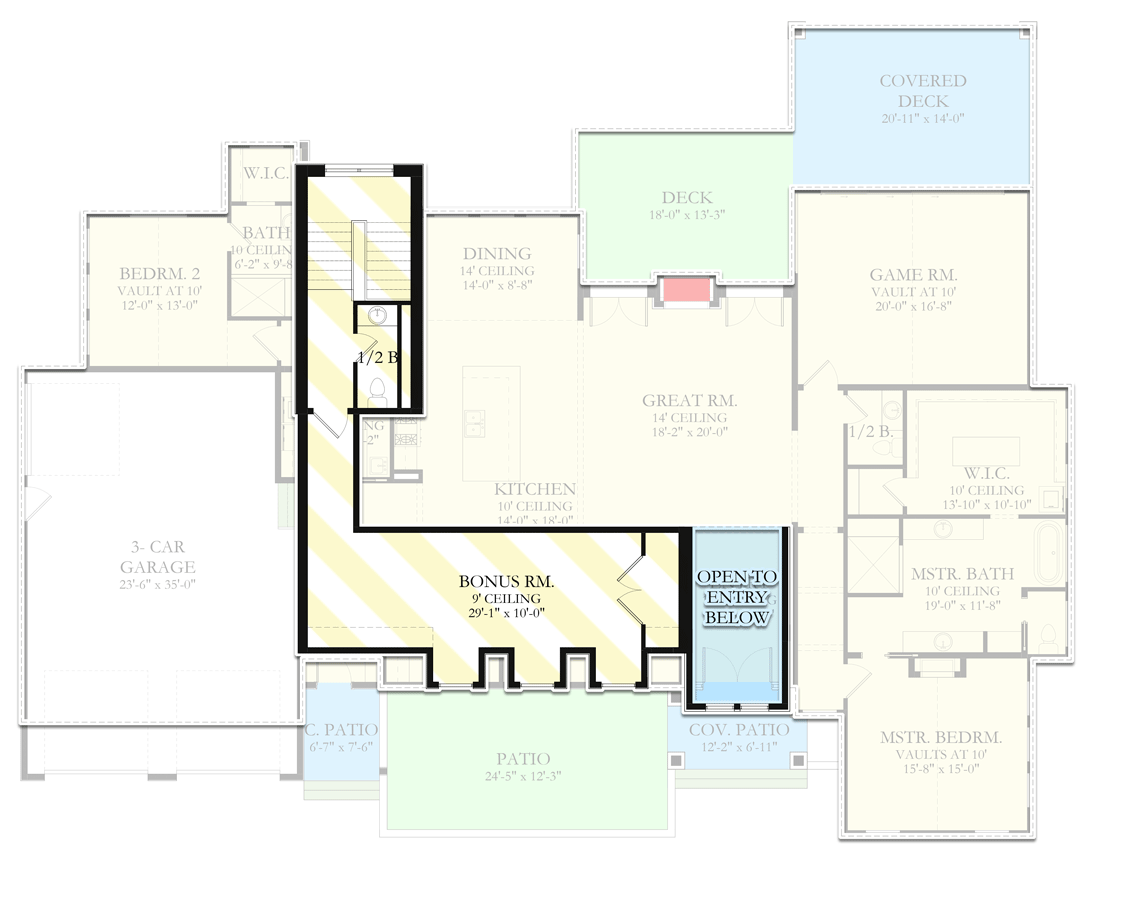

Transitional Farmhouse with Vaulted Game Room and 2-Side Fireplace - 490063NAH floor plan - 2nd Floor

Optionally Finished Walkout Foundation

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

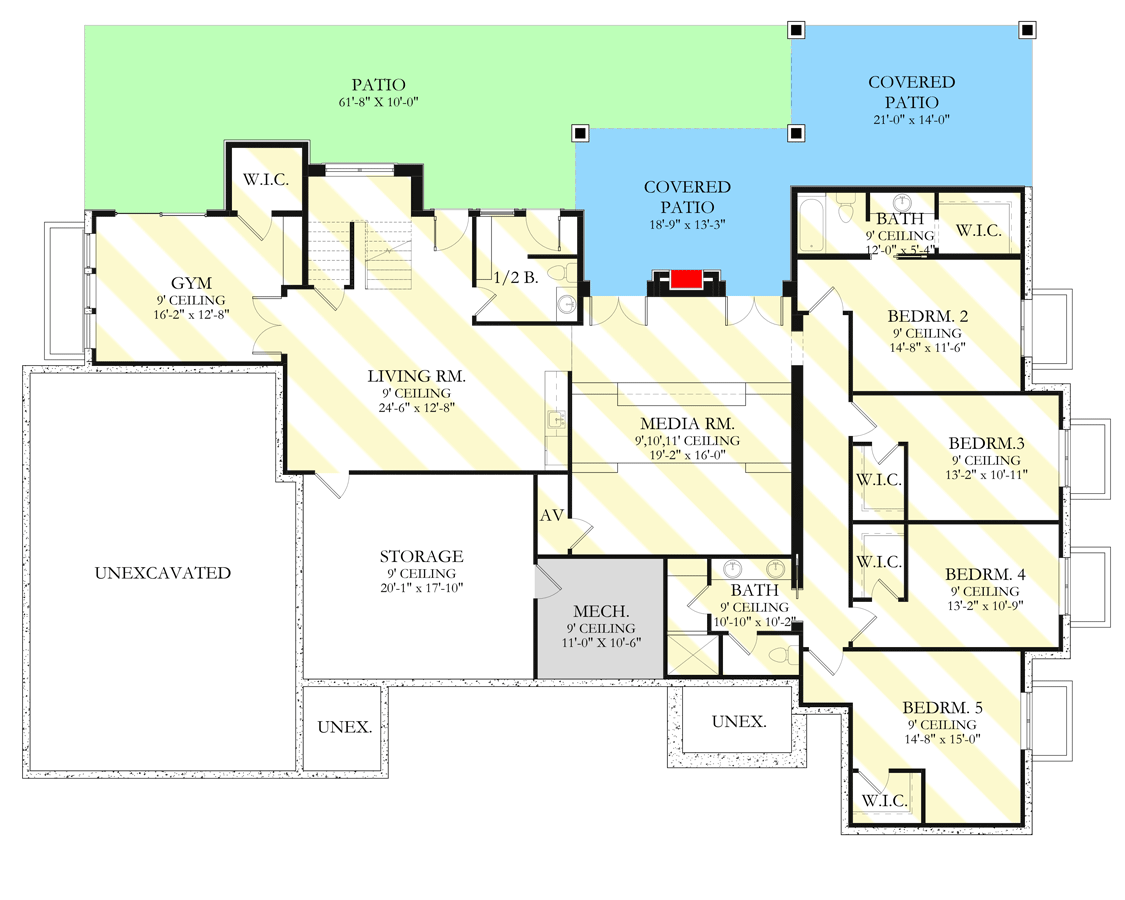

Transitional Farmhouse with Vaulted Game Room and 2-Side Fireplace - 490063NAH floor plan - Optionally Finished Walkout Foundation

Optionally Finished Basement Foundation

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

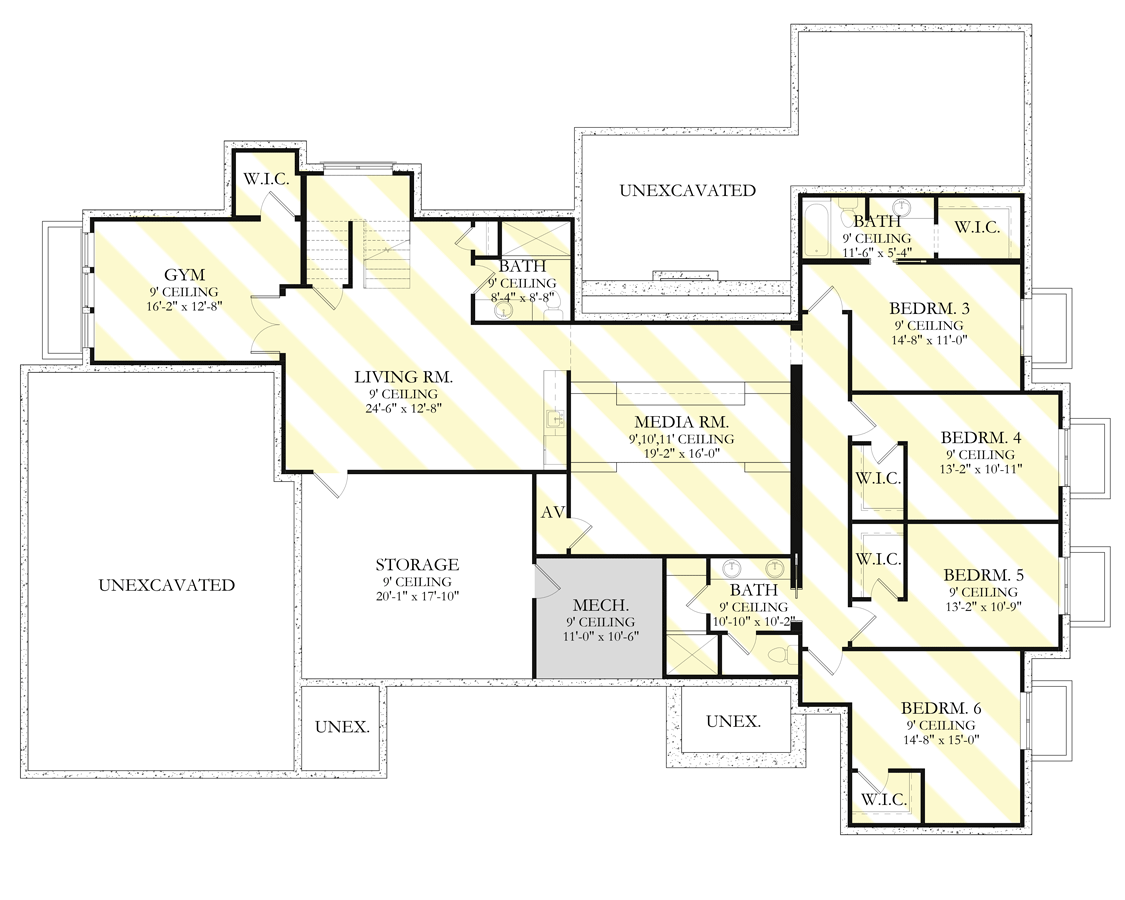

Transitional Farmhouse with Vaulted Game Room and 2-Side Fireplace - 490063NAH floor plan - Optionally Finished Basement Foundation

Transitional Farmhouse with Vaulted Game Room and 2-Side Fireplace

  • 3,263

    Heated s.f.

  • 2-6

    Beds

  • 2.5+ - 4.5+

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optionally Finished Walkout Foundation

  • Optionally Finished Basement Foundation

Plan Details

Square Footage Breakdown

  • Total: 3,263 sq. ft.
  • 1st Floor: 3,263 sq. ft.

Dimensions

  • Width: 91' 5"
  • Depth: 70' 7"

Beds/Baths

  • Bedrooms: 2, 3, 4, 5, or 6
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 804 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"
