Plan 490076NAH Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors

4,088 4-6 3.5 - 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors

Plan 490076NAH

  • 4,088

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This 2-story, transitional house plan offers a covered entry in the front and and a large patio in the rear, with flat and gabled roofs that add to the winning curb appeal. The exterior has a beautiful mix of brick, stucco, and stone.
  • Step in off the covered entry and you find yourself in the great room with it's vaulted ceiling, fireplace, and large set of windows looking out to the rear. An open concept design, the kitchen and dining rooms each have views out back. The kitchen has a modest island centered on the great room's fireplace, a walk-in pantry and convenient garage access making unloading groceries a breeze.
  • Off the great room, you'll find the office and the master bedroom with accompanying bathroom and walk-in closet, standing shower, double vanities, and full size tub.
  • Stairs in the entry take you to the upstairs where you'll find 3 more bedrooms with walk-in closets, and a bonus room.
  • This home offers basement expansion (1,706 square feet when finished as shown) with a recreation room, game room, snack bar, 2 more bedrooms with walk-in closets and a shared bathroom, and plenty of storage areas.

Each plan set includes:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

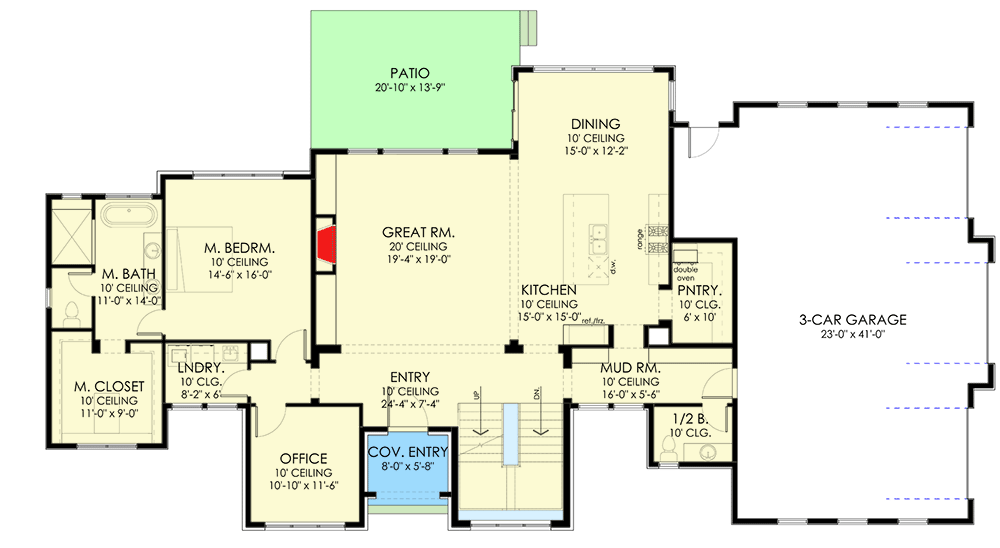

Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors - 490076NAH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

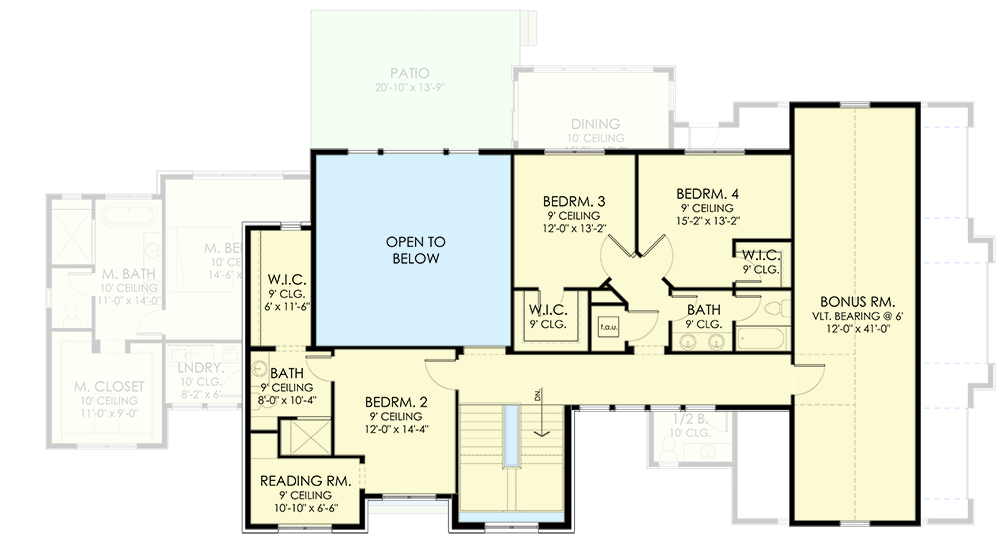

Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors - 490076NAH floor plan - 2nd Floor

Optional Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

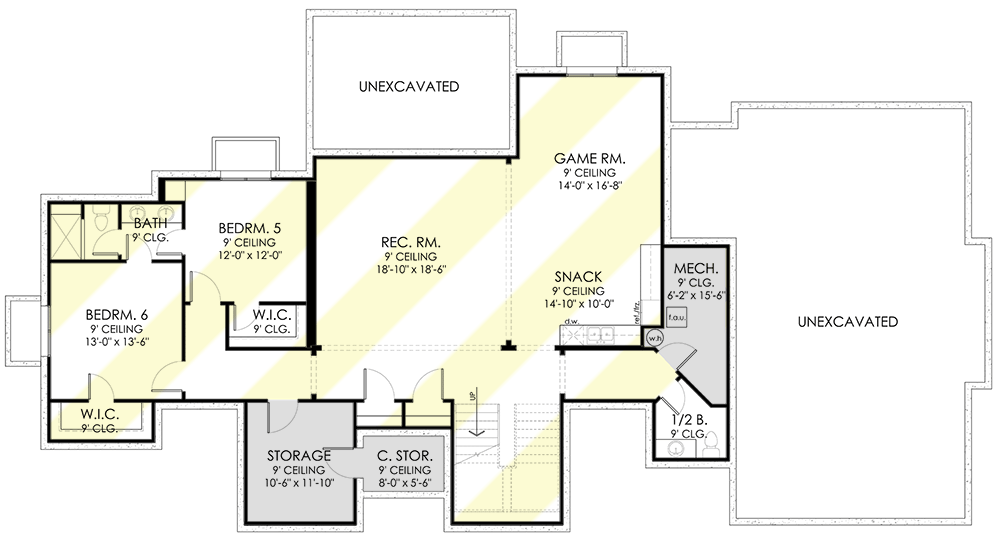

Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors - 490076NAH floor plan - Optional Lower Level

Optional Walkout Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

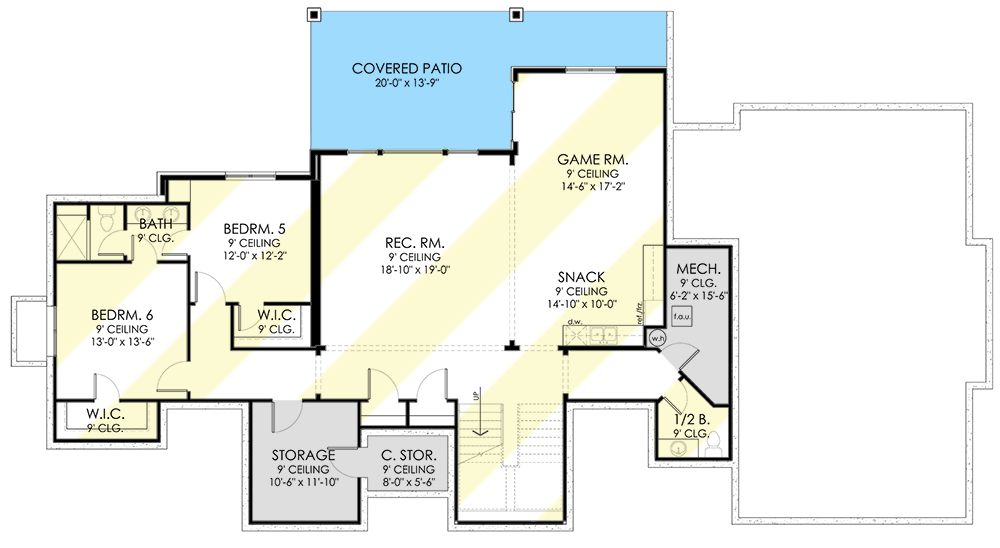

Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors - 490076NAH floor plan - Optional Walkout Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,088 sq. ft.
  • 1st Floor: 2,195 sq. ft.
  • 2nd Floor: 1,893 sq. ft.
  • Porch, Rear: 283 sq. ft.
  • Porch, Front: 45 sq. ft.
  • Optional Lower Level: 1,706 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 94' 4"
  • Depth: 51' 10"

Garage

  • Type: Attached
  • Area: 1040 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Transitional Home Plan with 4000 Square Feet of Living Space Across Two Floors

  • 4,088

    Heated s.f.

  • 4-6

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,700
  • PDF - Unlimited Build $3,400
  • CAD Unlimited + PDF $3,700
  • View all purchase option online

About This Plan

  • This 2-story, transitional house plan offers a covered entry in the front and and a large patio in the rear, with flat and gabled roofs that add to the winning curb appeal. The exterior has a beautiful mix of brick, stucco, and stone.
  • Step in off the covered entry and you find yourself in the great room with it's vaulted ceiling, fireplace, and large set of windows looking out to the rear. An open concept design, the kitchen and dining rooms each have views out back. The kitchen has a modest island centered on the great room's fireplace, a walk-in pantry and convenient garage access making unloading groceries a breeze.
  • Off the great room, you'll find the office and the master bedroom with accompanying bathroom and walk-in closet, standing shower, double vanities, and full size tub.
  • Stairs in the entry take you to the upstairs where you'll find 3 more bedrooms with walk-in closets, and a bonus room.
  • This home offers basement expansion (1,706 square feet when finished as shown) with a recreation room, game room, snack bar, 2 more bedrooms with walk-in closets and a shared bathroom, and plenty of storage areas.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Lower Level

  • Optional Walkout Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,088 sq. ft.
  • 1st Floor: 2,195 sq. ft.
  • 2nd Floor: 1,893 sq. ft.
  • Porch, Rear: 283 sq. ft.
  • Porch, Front: 45 sq. ft.
  • Optional Lower Level: 1,706 sq. ft.

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1 or 2

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Walkout, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 94' 4"
  • Depth: 51' 10"

Garage

  • Type: Attached
  • Area: 1040 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0" Second Floor / 9' 0"
Plan 490076NAH
View this and more for this plan by visiting www.architechtecturaldesigns.com/490076NAH
|
Need Help? 800-854-7852
|
Plan 490076NAH
