Plan 780000KYD

Transitional House Plan with Flex Room and Open Concept Floor Plan - 3221 Sq Ft

Heated S.F.
3,221
Beds
2 - 3
Baths
3.5
Stories
1
Cars
3

Floor Plan

Plan 780000KYD

Main Level
Main Level

Plan 780000KYD

M-F 9am-5pm EST |

1-203-761-8500

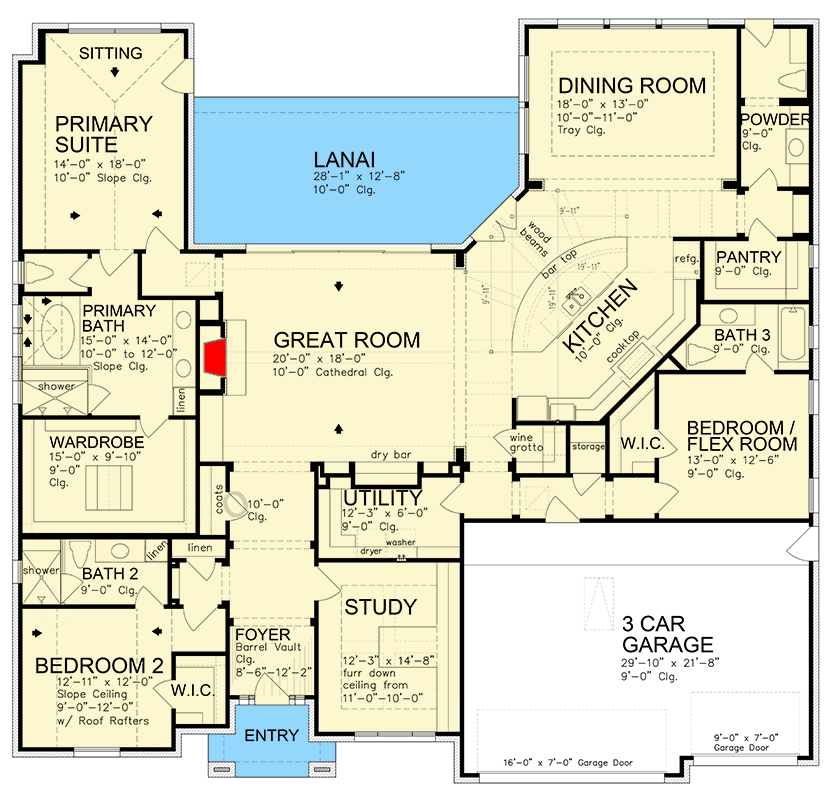

Main Level

Plan 780000KYD: Transitional House Plan with Flex Room and Open Concept Floor Plan - 3221 Sq Ft - Floor Plan - Main Level - European, Southern, Transitional

Plan Details

  • This Transitional House Plan with flex room gives you 3 beds - or 2 plus whatever-your-heart-desires-for-the-flex-space space, 3 bathrooms and 3,221 square feet of  heated living space.
  • Inside, the great room, kitchen, and dining room flow seamlessly into one another, creating a spacious and cohesive living area.
  • Various ceiling treatments throughout the home add distinct character and visual interest to each room.
  • The walk-in pantry features ample storage space and includes a counter for small appliances, enhancing kitchen organization and functionality.
  • The powder room with direct access to the backyard is ideal for entertaining or pool use, providing convenience for guests.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet
  • Floor Plan (s)
  • Exterior Elevations
  • Electrical Plan and Interior Elevations
  • Cross Section and Ceiling Framing Plan
  • Roof Plan and Foundation plan
  • Detail

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,221 sq. ft.

1st Floor

3,221 sq. ft.

Porch, Front

55 sq. ft.

Lanai

344 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

56' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

676 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

European

Southern

Transitional

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Wine Room

Square Footage Breakdown

Total Heated Area

3,221 sq. ft.

1st Floor

3,221 sq. ft.

Porch, Front

55 sq. ft.

Lanai

344 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

69' 8"

Depth

56' 0"

Max Ridge Height

26' 6"

Garage

Type

Attached

Area

676 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

European

Southern

Transitional

Special Features

Bedrooms - Split

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Master Suite - Sitting Area

Mudroom

Wine Room
