Plan 911035JVD

Transitional House Plan with RV-Friendly Garage - 3335 Sq Ft

Name: Plan 911035JVD: Transitional House Plan with RV-Friendly Garage - 3335 Sq Ft
Brand: Architectural Designs
SKU: 911035JVD
Price: 1152.39 USD
Availability: InStock

Heated S.F.

3,335

Beds

2 - 3

Baths

2.5

Stories

Cars

3- 4

Floor Plan

Main Level

Lower Level

Plan Details

This 3,335 sq ft Transitional House Plan features 2-3 bedrooms, 2.5 bathrooms, and an impressive 1,305 sq ft attached garage, including a two-car bay and an RV-friendly tall bay.
Step inside the welcoming foyer, where soaring 10-foot ceilings lead to an elegant home office with a dramatic 17-foot ceiling, perfect for focused work or a quiet library.
The heart of the home unfolds into an expansive open-concept great room with a 14-foot ceiling, flowing seamlessly into the dining room and kitchen, both crowned by a dramatic 24'7" vaulted ceiling. The gourmet kitchen boasts a large island and a substantial chef's walk-in pantry, ideal for culinary exploration and grand entertaining.
The main level master suite offers a private sanctuary, featuring an 11-foot tray ceiling, a luxurious en-suite bath, and an oversized walk-in closet. A secondary bedroom with its own private bath and walk-in closet is thoughtfully situated on the opposite side of the home, ensuring privacy for all occupants.

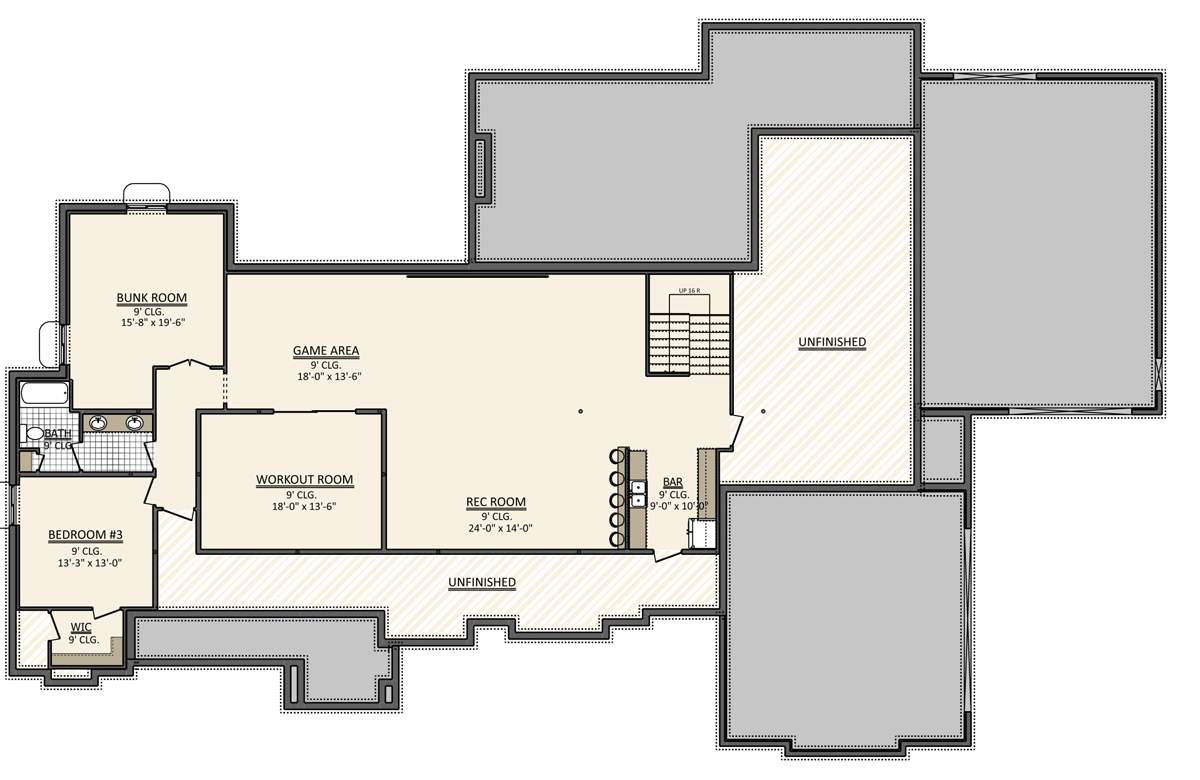

The expansive lower level offers 2,059 square feet of versatile expansion space, thoughtfully designed to include a vibrant game area, a dedicated workout room, a spacious recreation room with a wet bar, and two additional bedrooms (one configured as a bunk room) with a full bath, perfect for family recreation and guest accommodation.

What's Included

Foundation plan with details

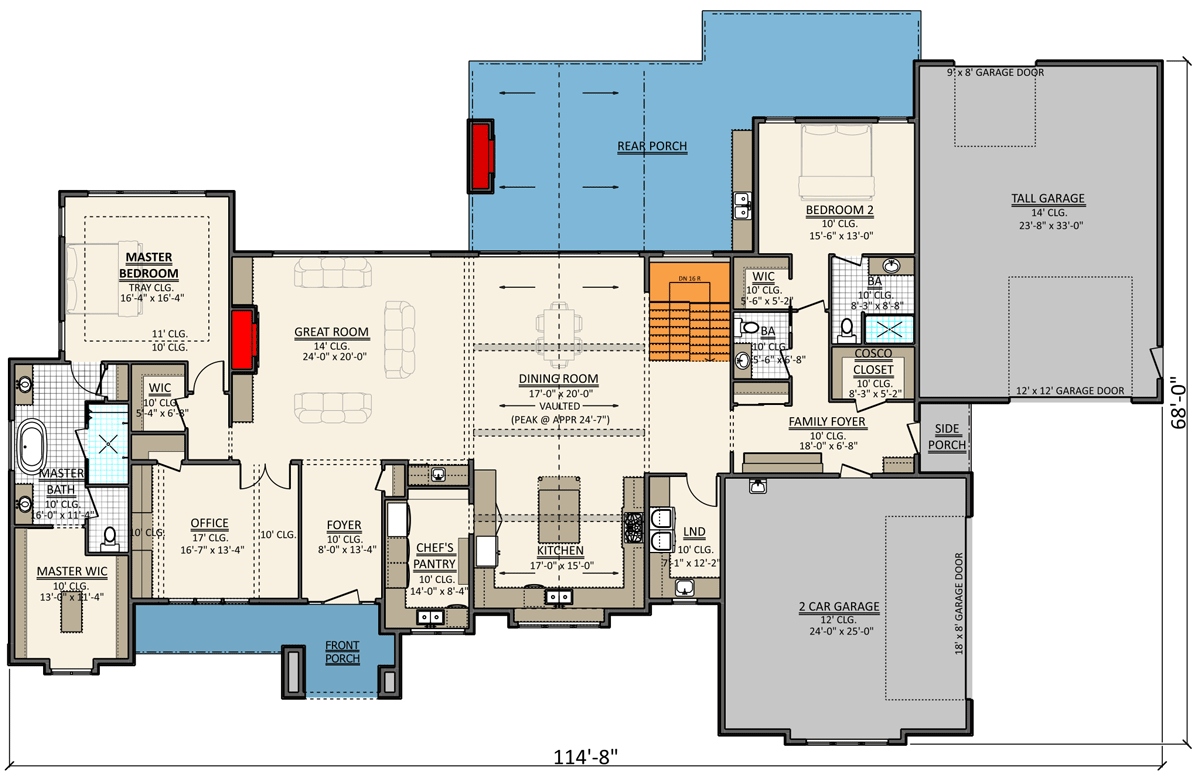

Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc. with electric plan notations)

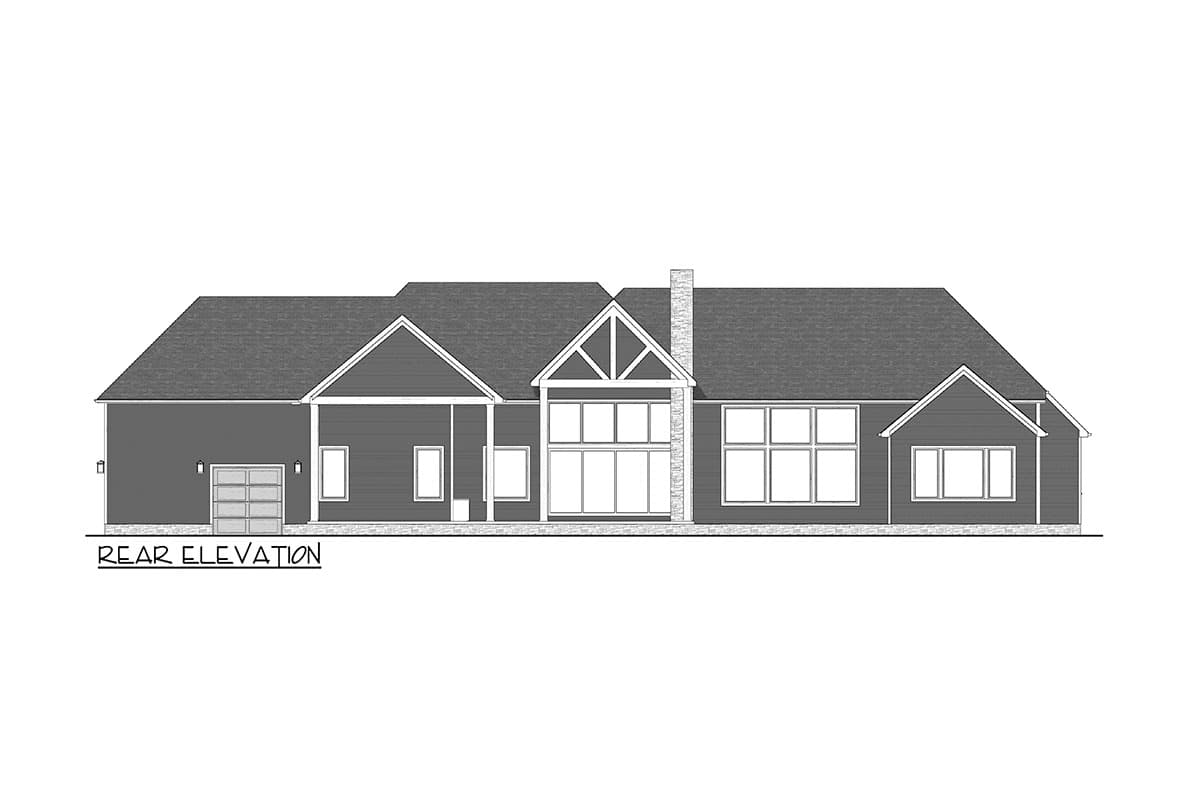

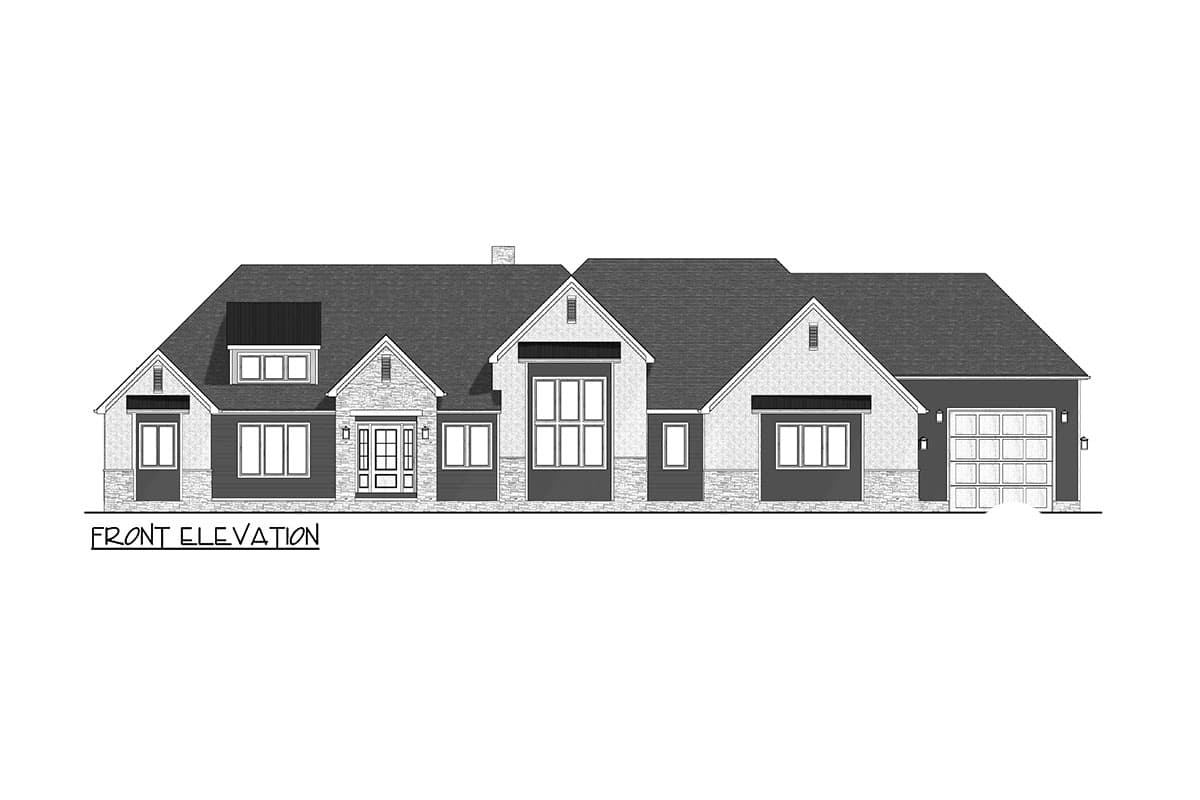

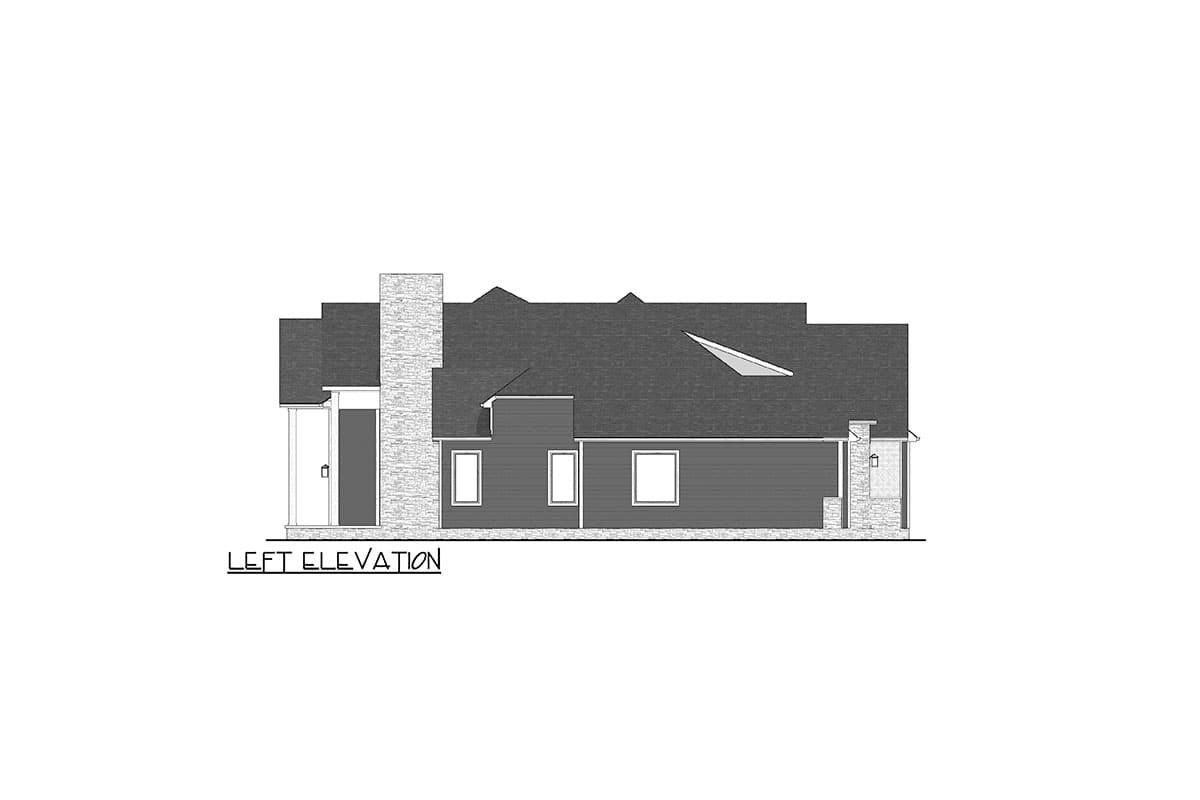

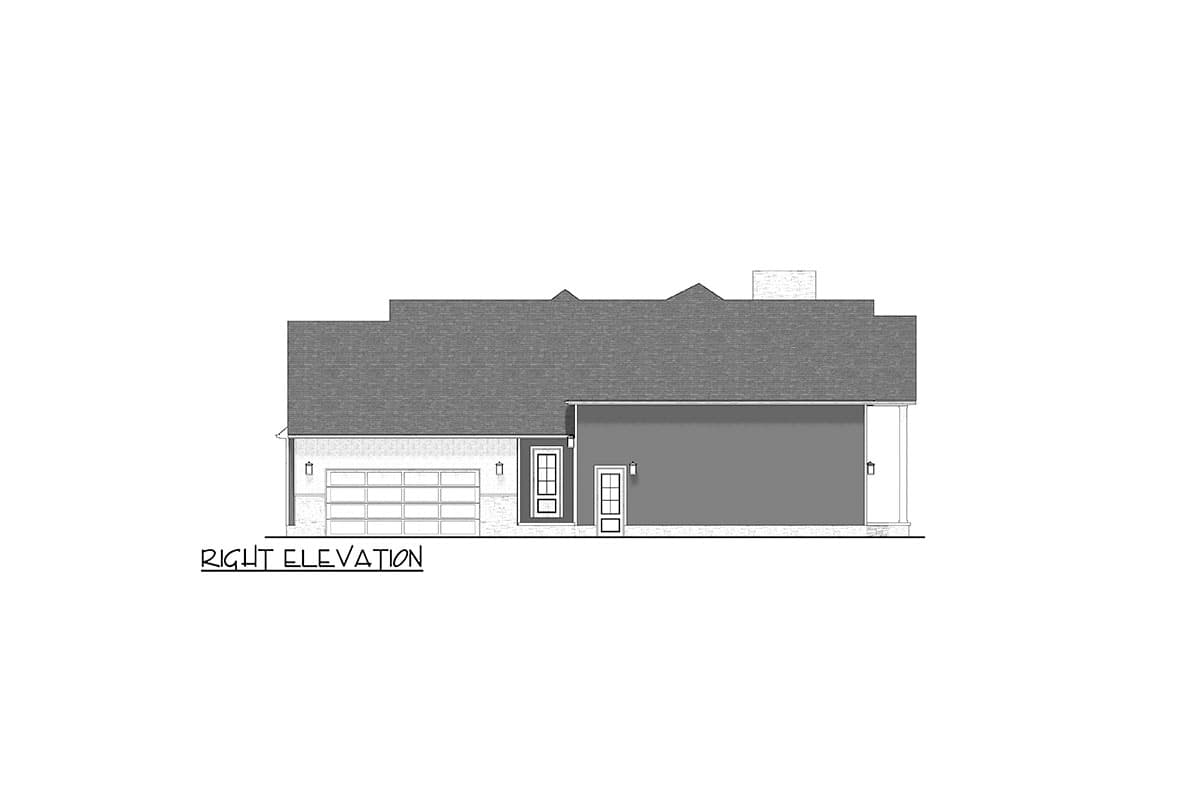

Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Wall section
Span charts and other misc details

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
