Transitional Ranch Plan with Finished Basement
Heated S.F.
2,613
Beds
3-4
Baths
3
Stories
1
Cars
3
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

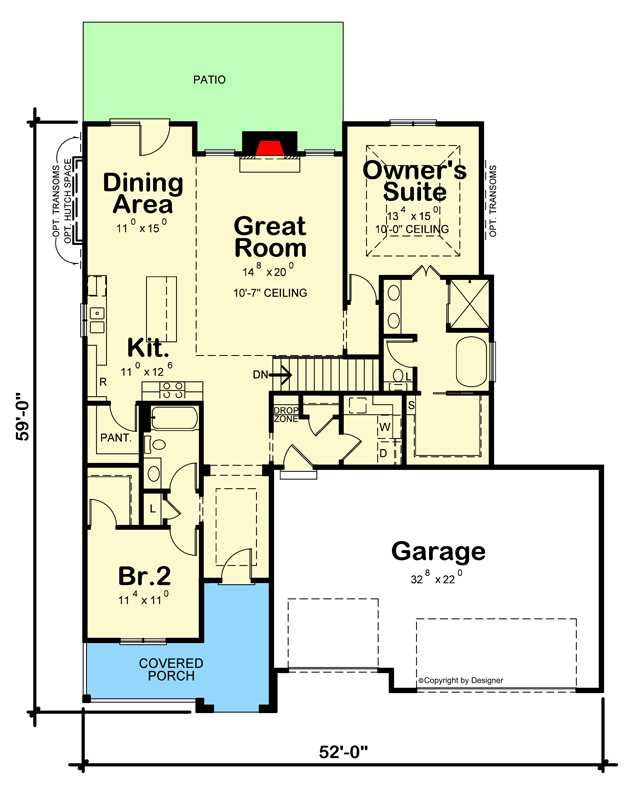

Transitional Ranch Plan with Finished Basement - 42719DB floor plan - Main Level
Lower Level
Reverse Floor Plan

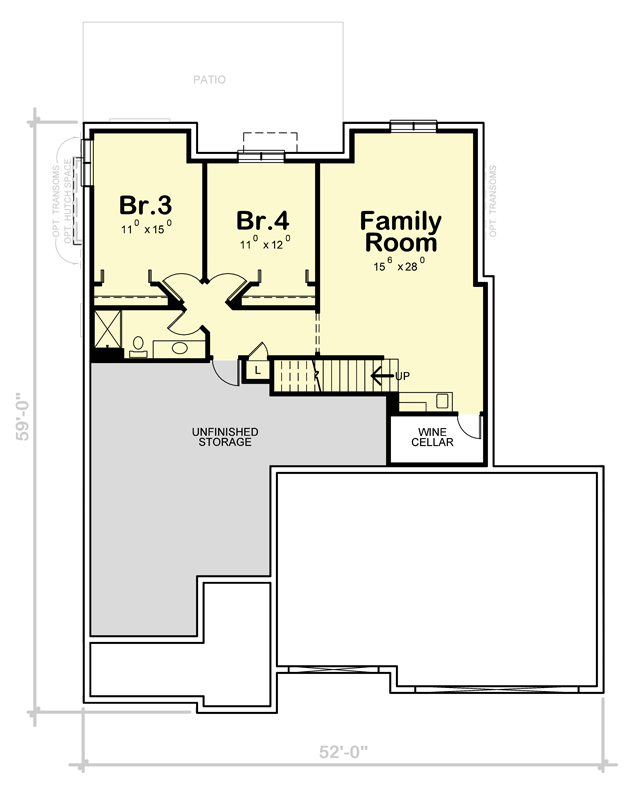

Transitional Ranch Plan with Finished Basement - 42719DB floor plan - Lower Level
Optional Dining Room
Reverse Floor Plan

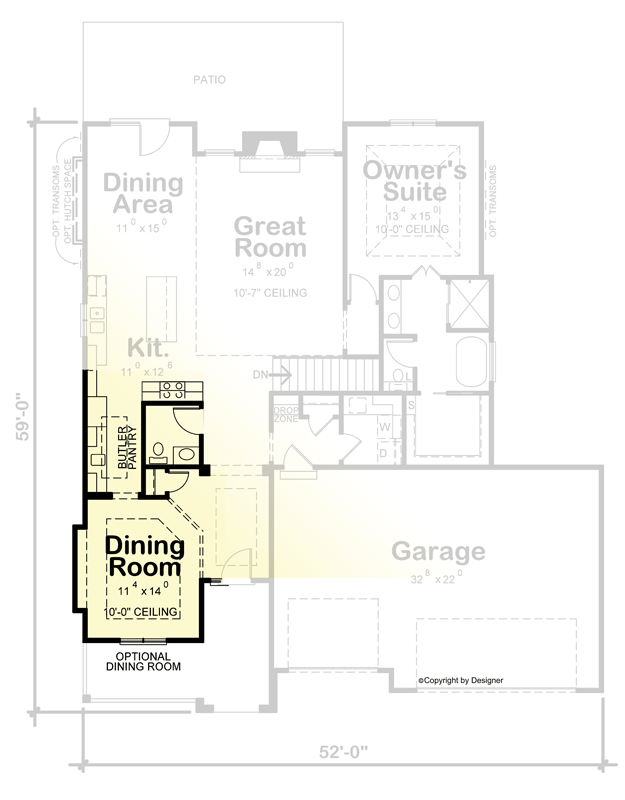

Transitional Ranch Plan with Finished Basement - 42719DB floor plan - Optional Dining Room
Plan Details
  • This Transitional Ranch plan features Mediterranean influences with its stucco exterior and arched entryway. A shed dormer completes the exterior.
  • The great room, kitchen, and dining area are open to one another and enjoy the ambiance and warmth from a fireplace that anchors the back wall.
  • The owner's suite is situated apart from the other bedrooms and topped by a tray ceiling. The ensuite features a separate tub and shower and a sizable walk-in closet.
  • A second bedroom is just off the entryway, while bedrooms 3 and 4 are located downstairs, along with a family room. A wet bar and wine cellar round out the lower level.
  • The forward-facing garage opens into a mudroom with a coat closet and drop zone. The neighboring laundry room has a door in order to conceal any messes during chores.
  • NOTE: Please allow up to 20 business days for delivery.
What's Included
  • General Notes

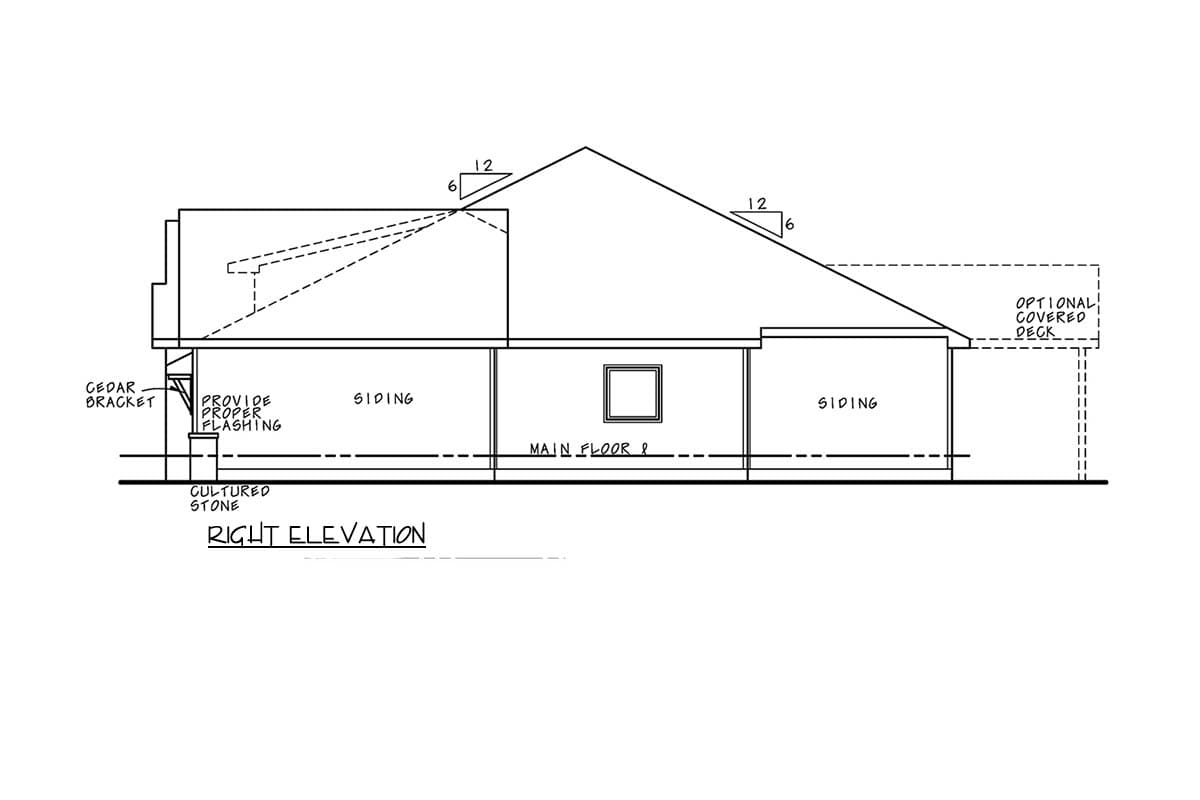

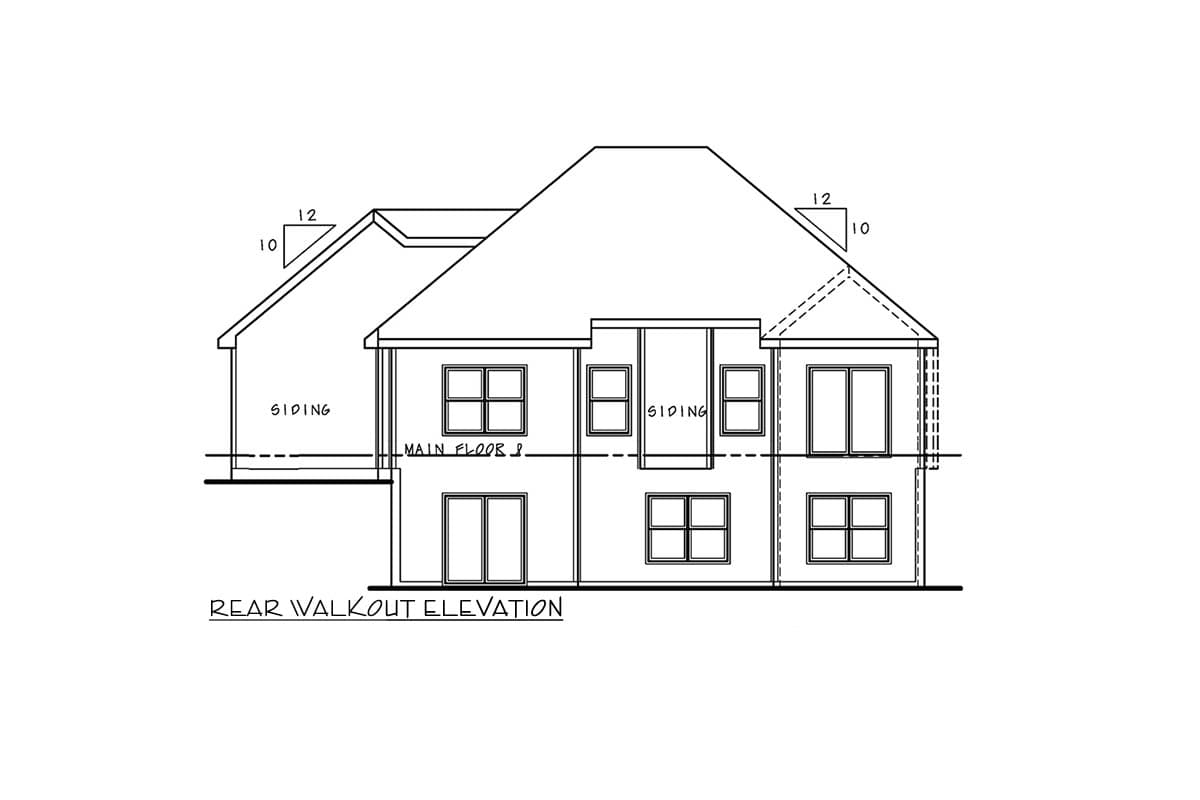

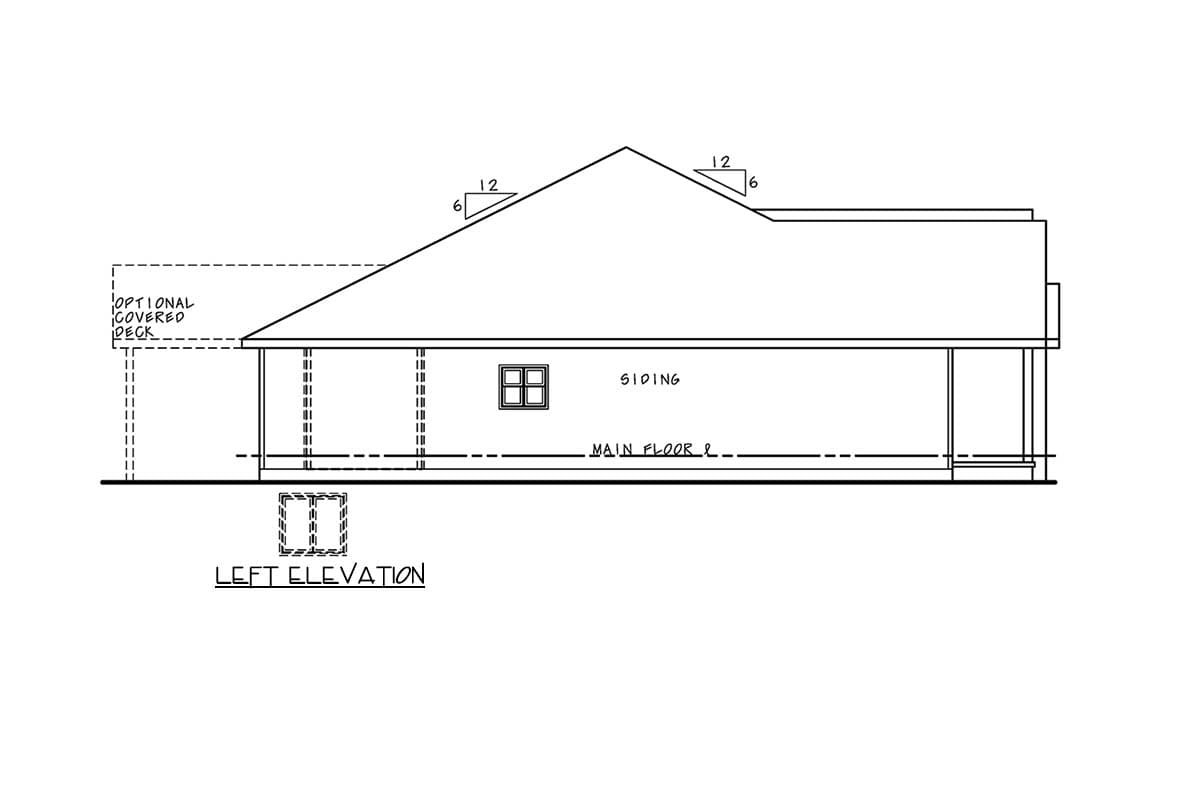

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Transitional Ranch Plan with Finished Basement

  • 2,613

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Optional Dining Room

Plan Details

Square Footage Breakdown

  • Total: 2,613 sq. ft.
  • Lower Level: 949 sq. ft.
  • 1st Floor: 1,649 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 59' 0"
  • Max ridge height: 24' 3"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 10 on 12
