Plan 61416UT
Trapezoidal 2-Car Garage Plan with Workshop and Bonus Space
Heated S.F.
0
Beds
0
Stories
2
Cars
2
What's Included
Plan Details
  • This 2-car detached garage plan has a unique trapezoidal shape, creating space for a workshop in back.
  • A 20' by 12' overhead garage gives your vehicles access to the 1,112 square feet of space. A pair of doors on the right get you in and out on foot.

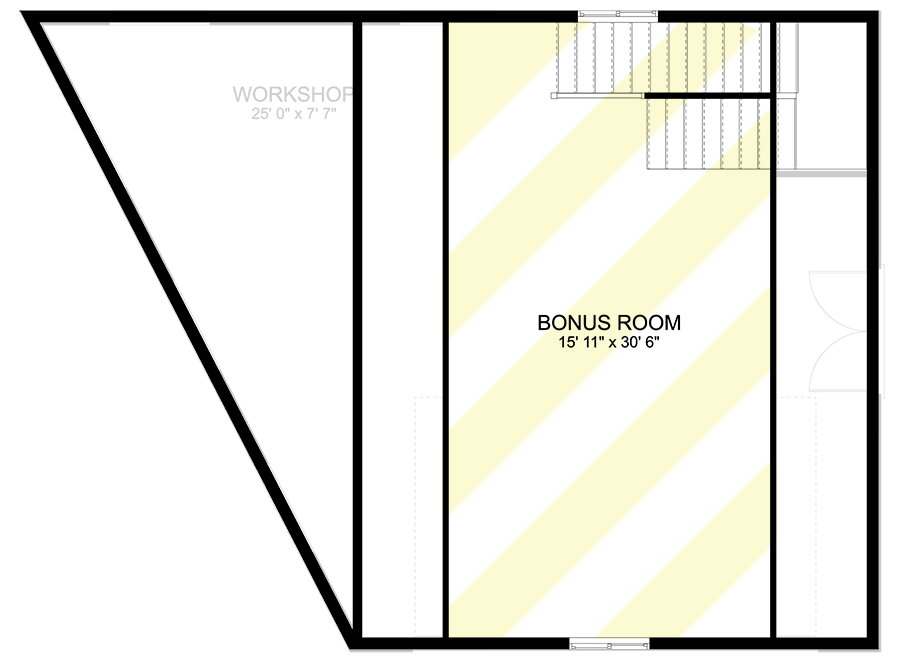

  • Stairs in back take you to a large 529 square foot bonus space that can be put to many uses.

What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Trapezoidal 2-Car Garage Plan with Workshop and Bonus Space

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 2

    Floors

  • 2

    Car garage

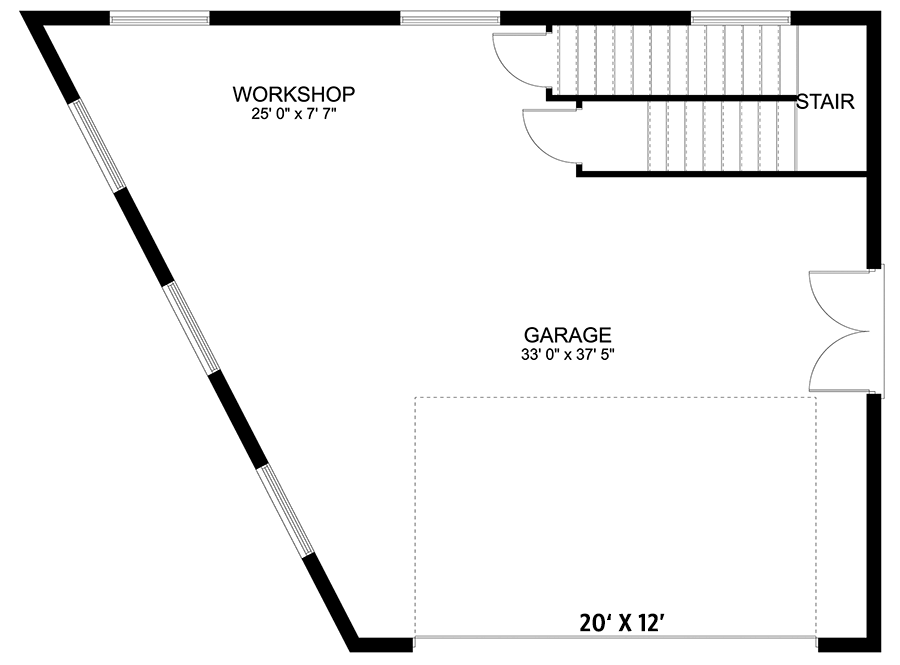

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 43' 0"
  • Depth: 32' 0"
  • Max ridge height: 26' 9"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached
  • Area: 1112 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 14' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
