Plan 59595ND
Triplex with Columns and Dormers
Heated S.F.
4,194
Units
3
Width
122' 2"
Depth
55' 10"
Cars
3
What's Included
Plan Details
  • Columns and dormers adorn the front of this triplex house plan. Each home features an eight foot covered front porch, the perfect place for a rocking chair or two.
  • The kitchen merges with the great and dining rooms, lending an airy and open feel to this layout.
  • Each home has a fireplace and a sun room so you can correspond with the seasons. The master suites are situated towards the rear with the additional bedrooms provided near the front of each home.
  • A convenient laundry room is tucked in the hallway and plenty of storage space can be found in each home in this triplex design.
Unit A
1,398 Sq. Ft.
1398 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
286 Sq. Ft.
40' 8" w 55' 10" d 26' h
Unit B
1,398 Sq. Ft.
1398 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
286 Sq. Ft.
40' 8" w 55' 10" d 26' h
Unit C
1,398 Sq. Ft.
1398 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
1 Vehicle
Attached
286 Sq. Ft.
40' 8" w 55' 10" d 26' h
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Triplex with Columns and Dormers

  • 4,194

    Heated s.f.

  • 3

    Units

  • 122' 2"

    Width

  • 55' 10"

    Depth

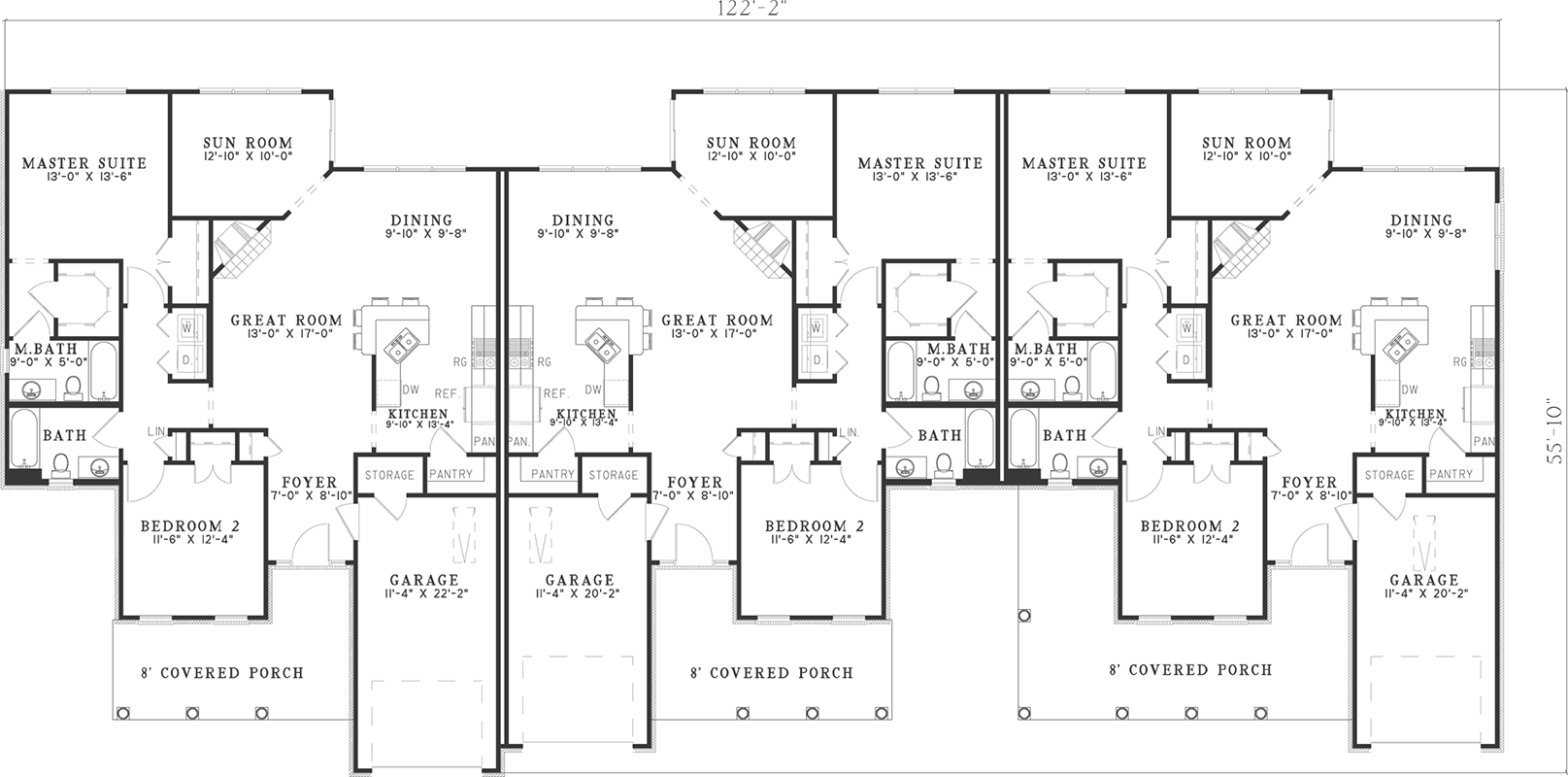

Floor Plan
