Plan 55226BR True Log Home Plan Under 1600 Square Feet with Loft and Breezeway-Attached Garage

1,550 3 2 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

True Log Home Plan Under 1600 Square Feet with Loft and Breezeway-Attached Garage

Plan 55226BR

  • 1,550

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Stories

  • 2

    Cars

  • The covered front porch on this log home plan - designed with 6" by 12" logs - welcomes you and opens into the living room space with sloped ceilings. The ceilings member with those of the upper level ceilings, allowing the rear upper level bed room to have a balcony that overlooks the living room below making the space open and airy. The plan is pre-designed to allow for a wall in lieu of the railing for those that want to privatize the upper level bed room.
  • An additional bed room is located on the front and features clipped ceilings for added coziness. A centrally located full size bath serves the two secondary bedrooms and a study in between makes the upper level ideal for students.
  • Descend to the main level via a stairwell with open areas that allows for a view of the main level living spaces as you make your way to the living room.  An island design kitchen is open to the living room as is the dining area making the space seem much larger than it actually is. The kitchen island features a raised bar which adds to the dining capacity.

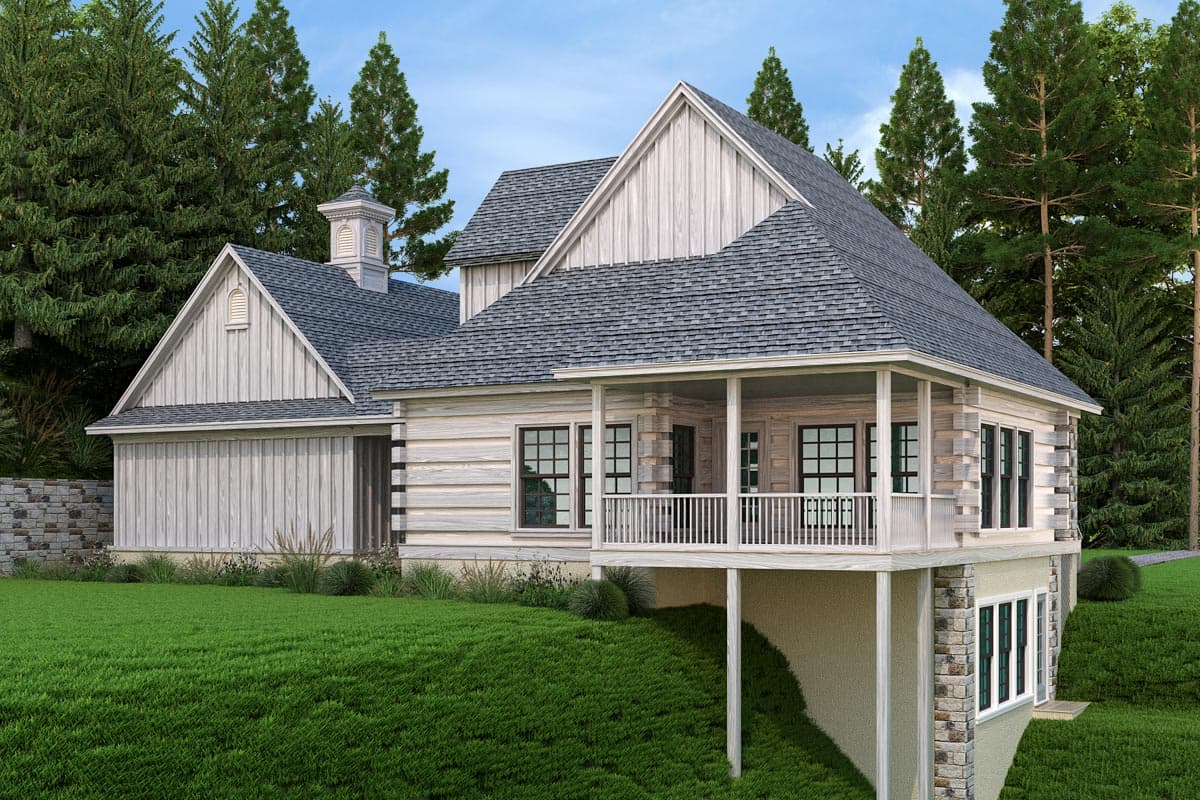

  • The living spaces have maximum glass area to make the living areas even more open and airy. The large covered rear porch gives you a great fresh air space to enjoy.
  • The full size master suite has an adjoining full size bath complete with linen storage, shower, twin vanities, private toilet area and a large walk-in closet. The small alcove leading into the master suite from the living spaces conceals an entrance into a guest bath and a stairwell down to the basement.
  • The basement can be finished to add a live in parent’s suite, extra living space, or a game room – the possibilities are endless.
  • An attached 2-car garage includes large storage rooms and is connected to the house with a covered breezeway.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

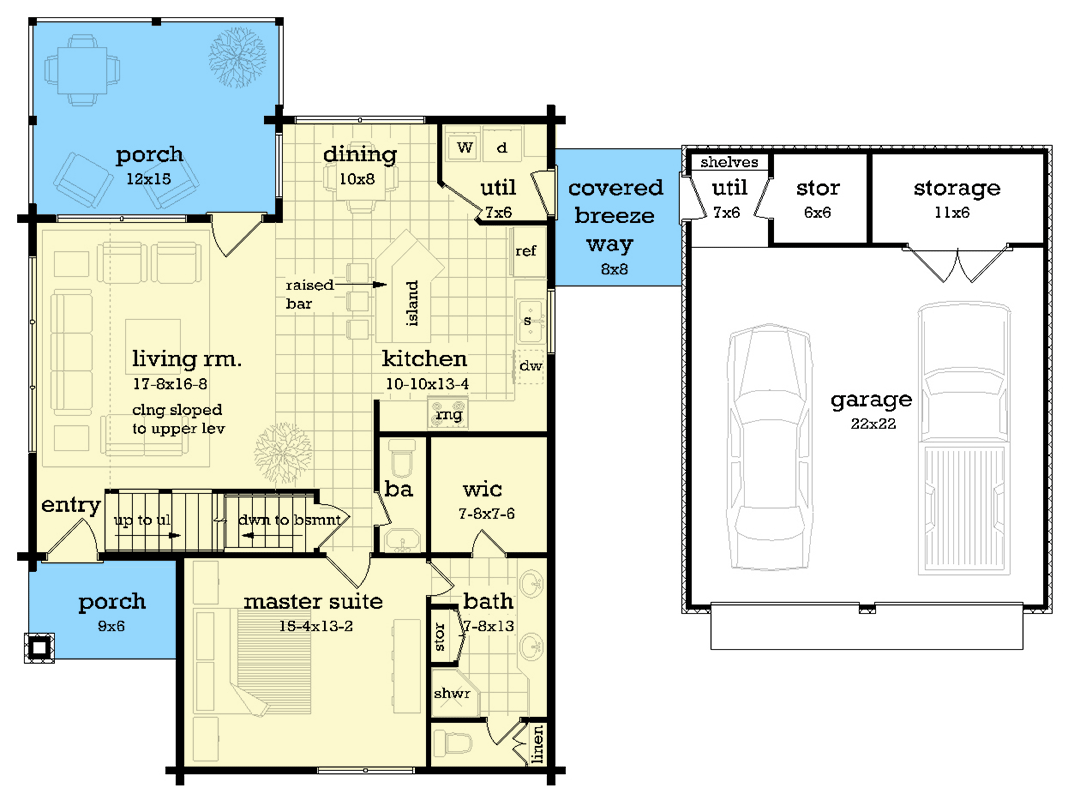

True Log Home Plan Under 1600 Square Feet with Loft and Breezeway-Attached Garage - 55226BR floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

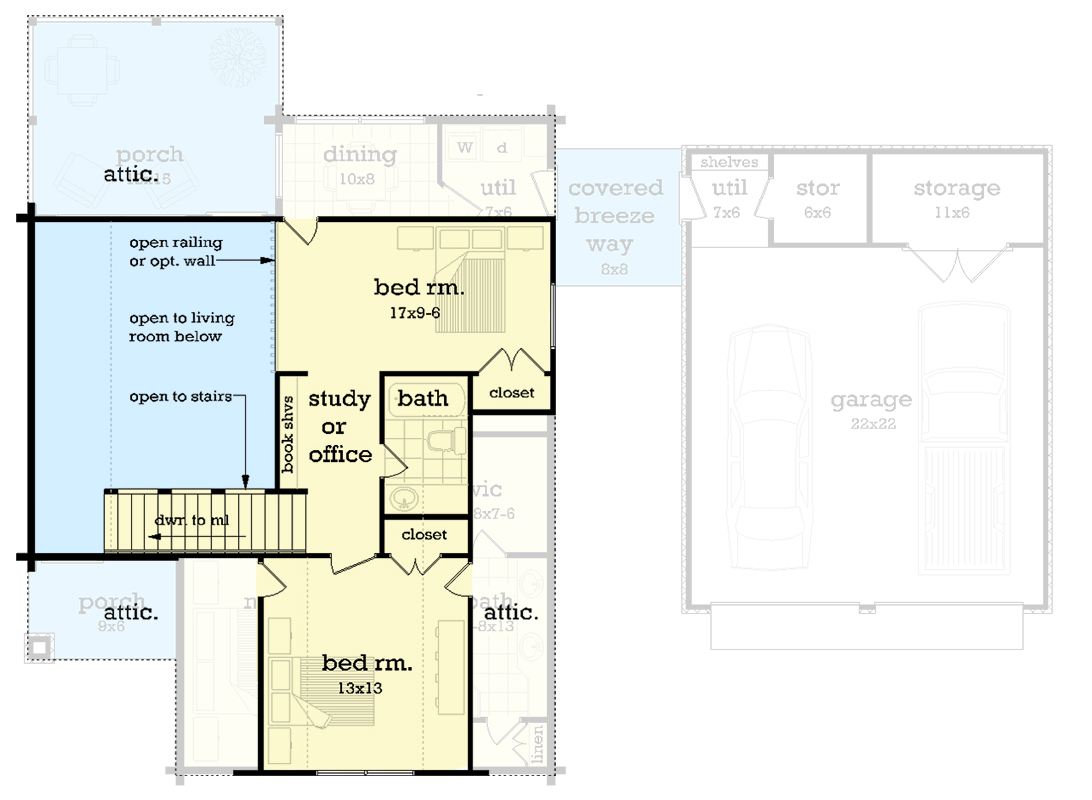

True Log Home Plan Under 1600 Square Feet with Loft and Breezeway-Attached Garage - 55226BR floor plan - 2nd Floor

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

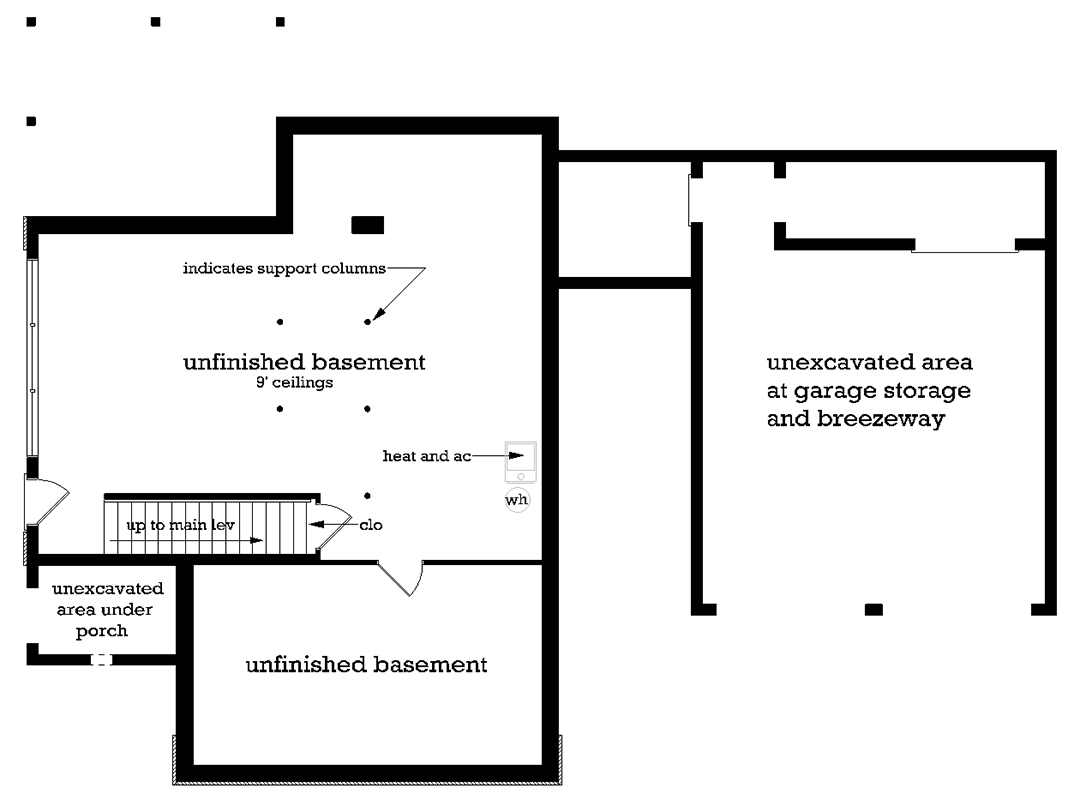

True Log Home Plan Under 1600 Square Feet with Loft and Breezeway-Attached Garage - 55226BR floor plan - Unfinished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,550 sq. ft.
  • 1st Floor: 1,073 sq. ft.
  • 2nd Floor: 477 sq. ft.
  • Porch, Combined: 238 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): Log

Dimensions

  • Width: 62' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 682 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

True Log Home Plan Under 1600 Square Feet with Loft and Breezeway-Attached Garage

  • 1,550

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,000
  • 4 Sets $1,085
  • 5 Sets $1,130
  • 8 Sets $1,240
  • 5 Sets + PDF $1,255
  • CAD + PDF - Single-Build $1,900
  • View all purchase option online

About This Plan

  • The covered front porch on this log home plan - designed with 6" by 12" logs - welcomes you and opens into the living room space with sloped ceilings. The ceilings member with those of the upper level ceilings, allowing the rear upper level bed room to have a balcony that overlooks the living room below making the space open and airy. The plan is pre-designed to allow for a wall in lieu of the railing for those that want to privatize the upper level bed room.
  • An additional bed room is located on the front and features clipped ceilings for added coziness. A centrally located full size bath serves the two secondary bedrooms and a study in between makes the upper level ideal for students.
  • Descend to the main level via a stairwell with open areas that allows for a view of the main level living spaces as you make your way to the living room.  An island design kitchen is open to the living room as is the dining area making the space seem much larger than it actually is. The kitchen island features a raised bar which adds to the dining capacity.
  • The living spaces have maximum glass area to make the living areas even more open and airy. The large covered rear porch gives you a great fresh air space to enjoy.
  • The full size master suite has an adjoining full size bath complete with linen storage, shower, twin vanities, private toilet area and a large walk-in closet. The small alcove leading into the master suite from the living spaces conceals an entrance into a guest bath and a stairwell down to the basement.
  • The basement can be finished to add a live in parent’s suite, extra living space, or a game room – the possibilities are endless.
  • An attached 2-car garage includes large storage rooms and is connected to the house with a covered breezeway.

Floor Plans

  • Main Level

  • 2nd Floor

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,550 sq. ft.
  • 1st Floor: 1,073 sq. ft.
  • 2nd Floor: 477 sq. ft.
  • Porch, Combined: 238 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): Log

Dimensions

  • Width: 62' 0"
  • Depth: 46' 0"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 682 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
Plan 55226BR
View this and more for this plan by visiting www.architechtecturaldesigns.com/55226BR
|
