Plan 93086EL

Exclusive

Tudor Mansion for Sloping Lot - 4000 Sq FT

Heated S.F.
4,000
Beds
4 - 5
Baths
4.5 - 5.5
Stories
2
Cars
3

Floor Plan

Plan 93086EL

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 93086EL

M-F 9am-5pm EST |

1-203-761-8500

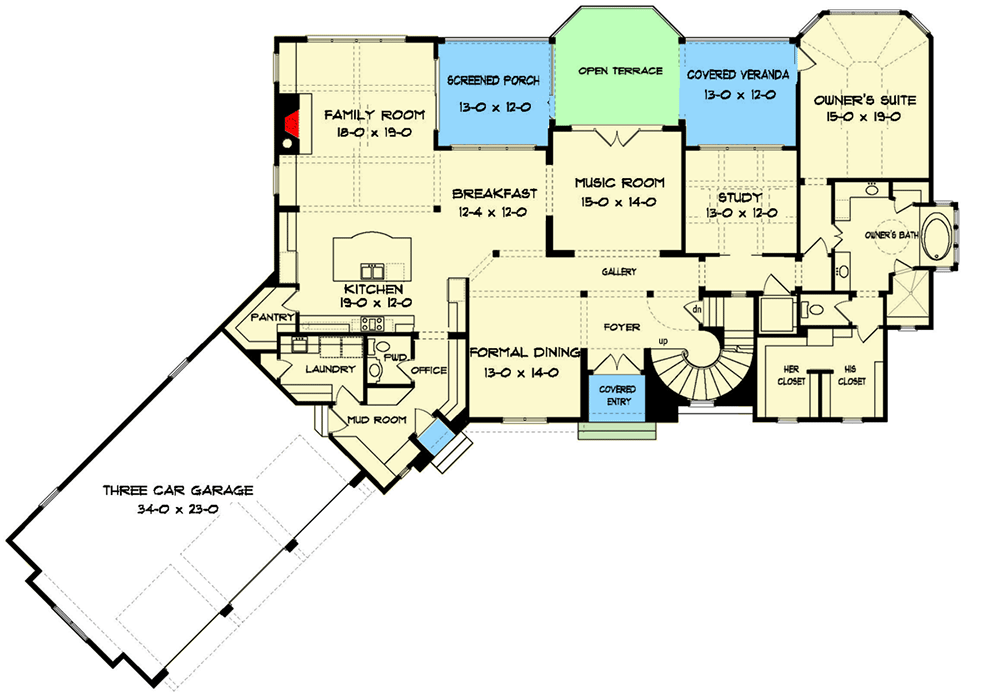

Main Level

Plan 93086EL: Tudor Mansion for Sloping Lot - 4000 Sq FT - Floor Plan - Main Level - European, French Country, Tudor

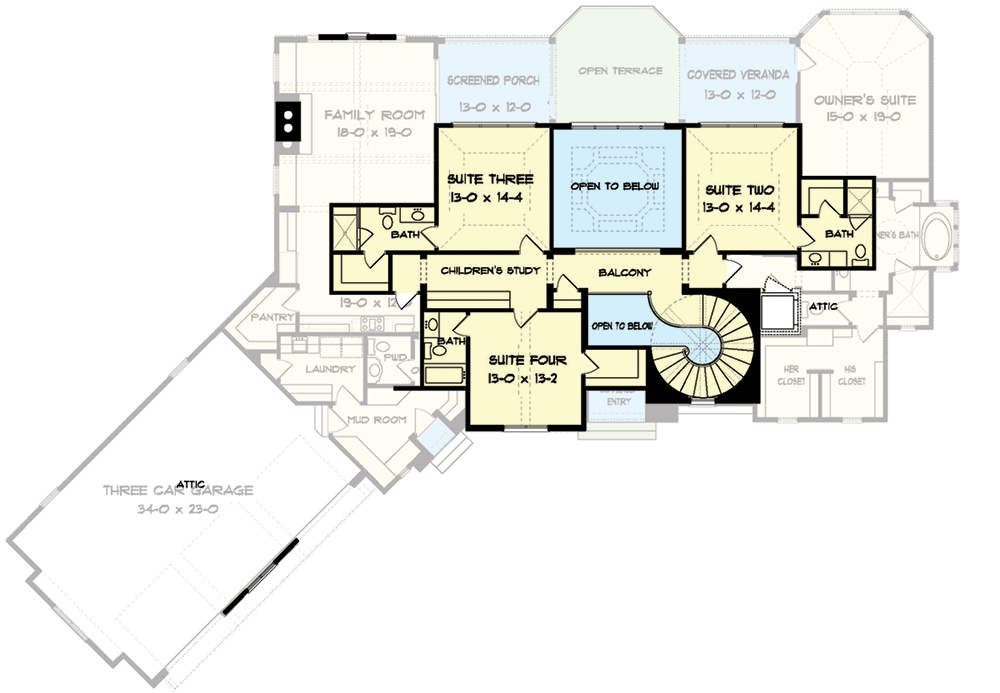

2nd Floor

Plan 93086EL: Tudor Mansion for Sloping Lot - 4000 Sq FT - Floor Plan - 2nd Floor - European, French Country, Tudor

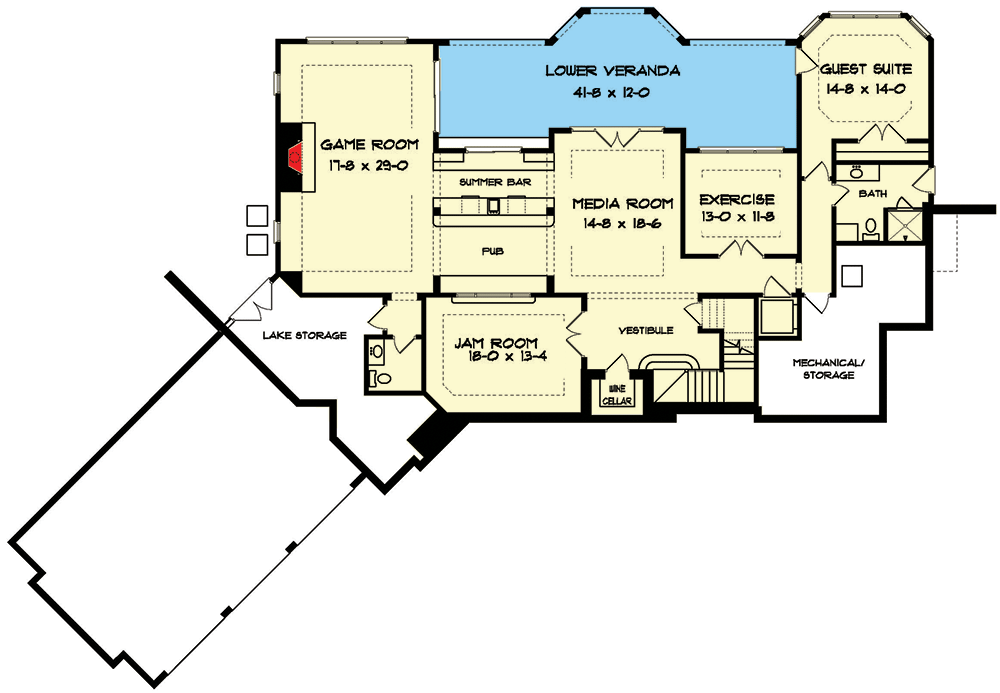

Optional Lower Level

Plan 93086EL: Tudor Mansion for Sloping Lot - 4000 Sq FT - Floor Plan - Optional Lower Level - European, French Country, Tudor

Plan Details

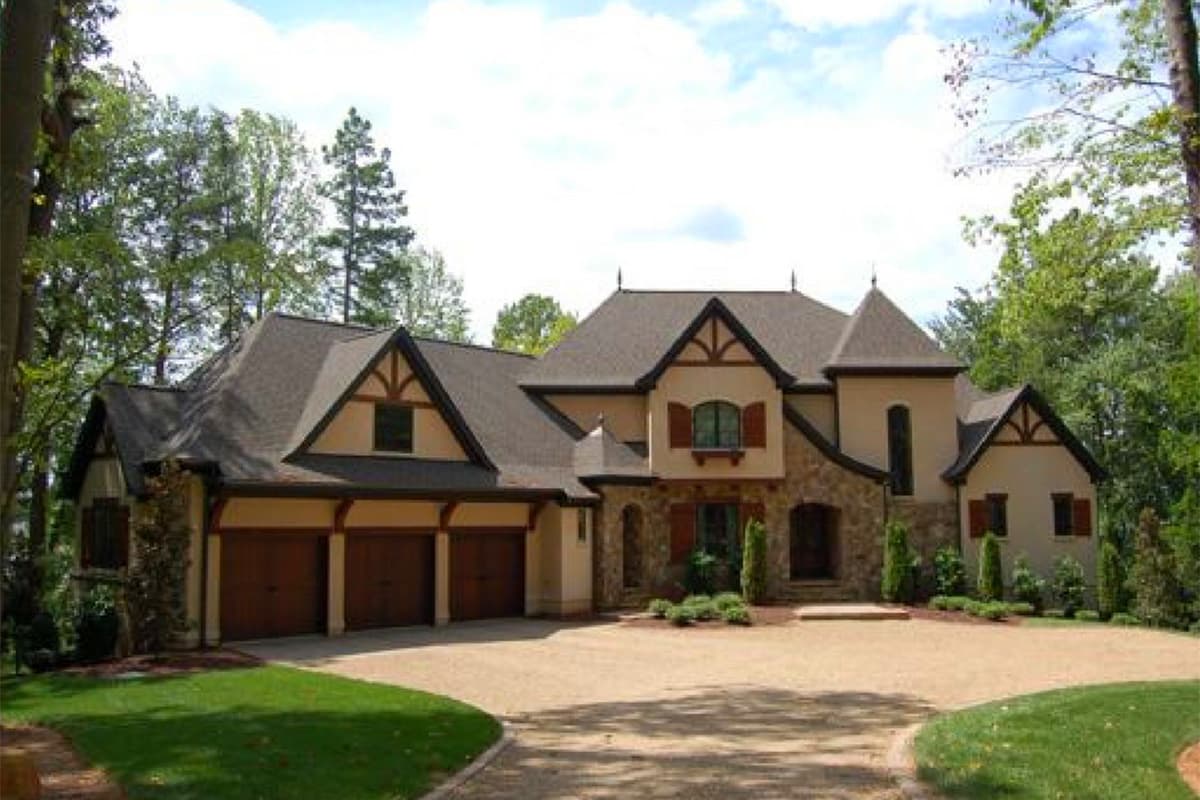

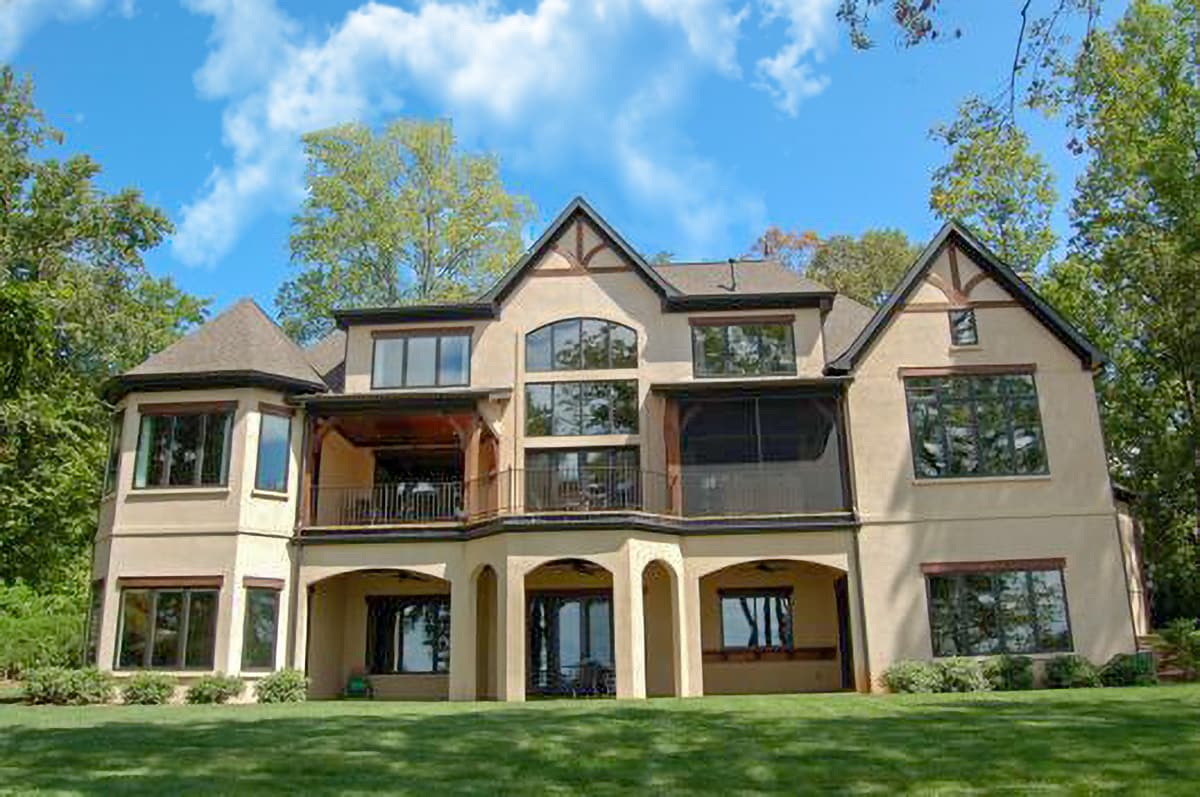

  • Beautiful Tudor detailing and a gorgeous roof line make this Tudor house plan shine. Inside, it gives you 4,000 square feet of heated living with lower level expansion.
  • Wonderful sightlines start right at the foyer where the open layout lets you see all the way to the back of the family room. Another visual treat is the elaborate curved staircase that sweeps up to the second floor.
  • Double doors in the music room open to the rear terrace and a coffered ceiling tops the nearby study.

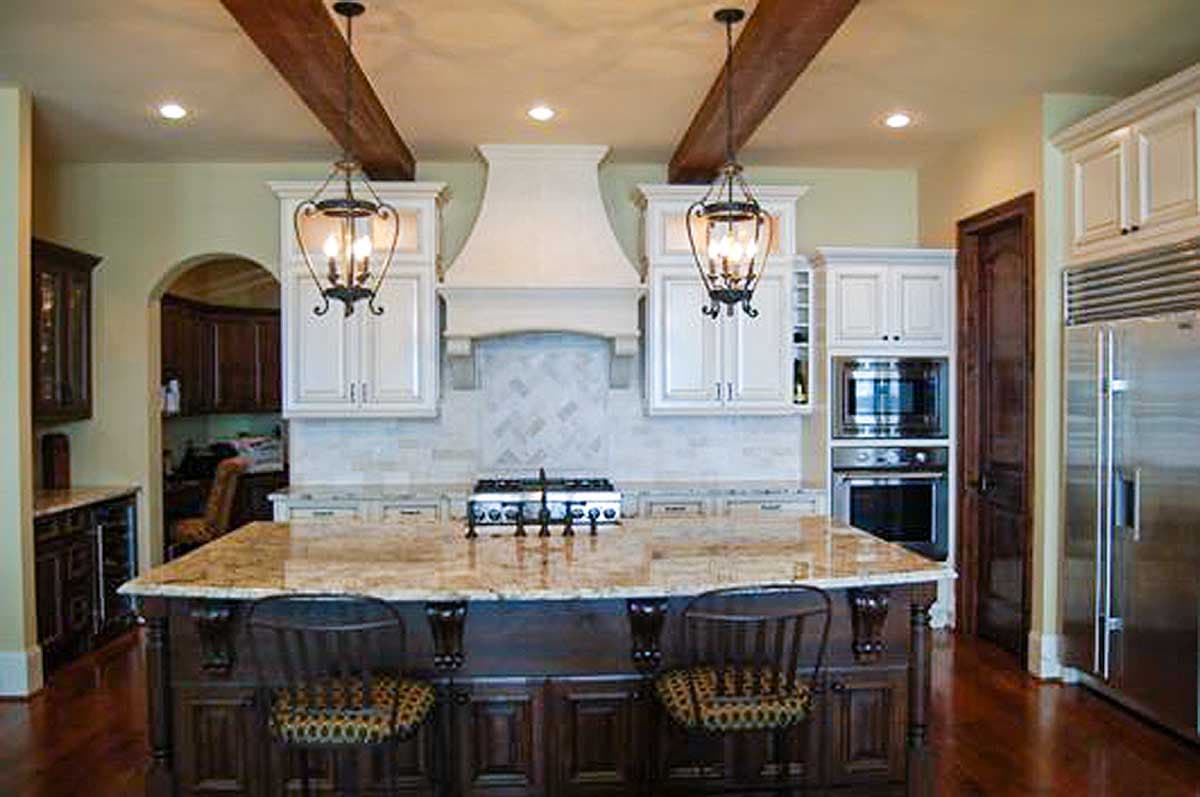

  • Those at the kitchen sink get the best view in the house, facing the family room, breakfast nook and screened porch.

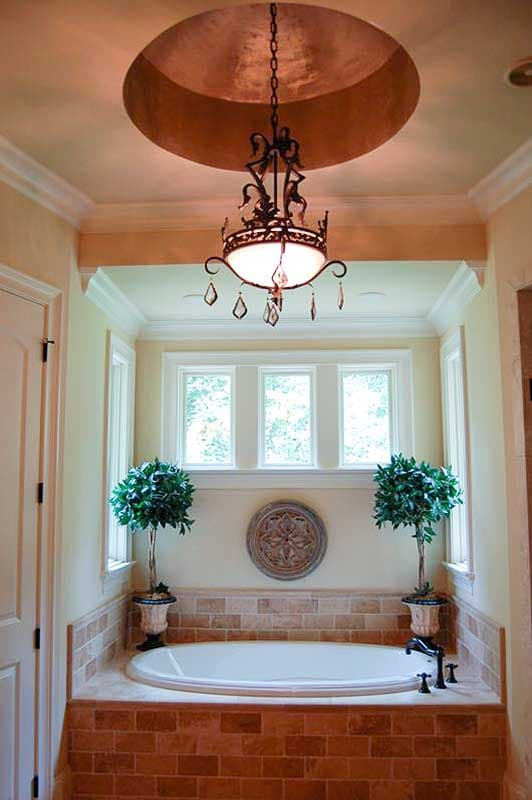

  • Homeowners are treated to a spacious and luxurious first floor master suite. The bathroom has a huge soaking tub, tray ceiling and lots of counter space. The master walk-in closet is compartmented into his and her sections.
  • Every bedroom on the upper floor gets a tray or vaulted ceiling and the children's study is shared by all.
  • Finish the lower level and get a grand entertaining space complete with a summer bar, wine cellar, media room and your very own exercise room. The residential elevator takes you from this level to the first floor.

What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • Floor Plan
  • Bird's Eye Roof Plan

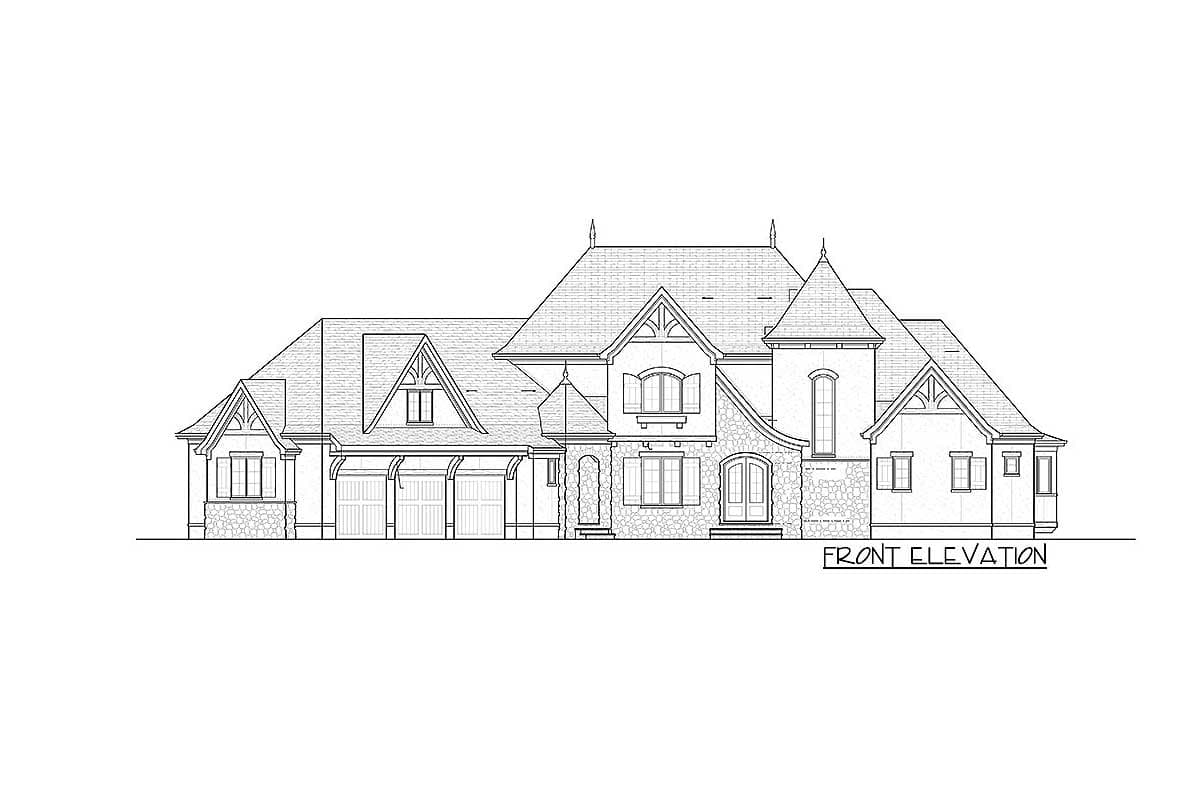

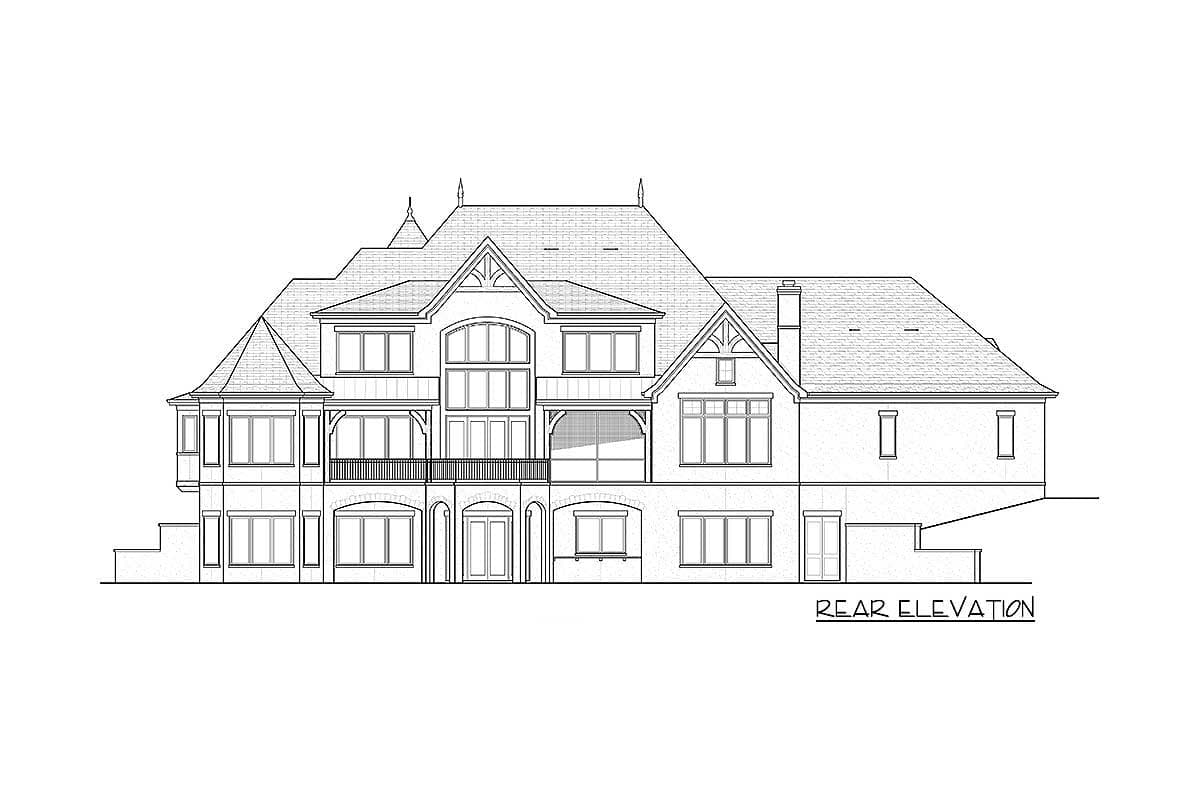

  • 4 Elevations
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • Electrical

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,000 sq. ft.

1st Floor

2,903 sq. ft.

2nd Floor

1,097 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

109' 11"

Depth

78' 10"

Max Ridge Height

34' 11"

Garage

Type

Attached

Area

862 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Architectural Style

European

French Country

Tudor

Special Features

Angled Garage

Breakfast Nook

Elevator

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Exclusive

Luxury

Photo Gallery

Premium Collection

Sloping Lot

Square Footage Breakdown

Total Heated Area

4,000 sq. ft.

1st Floor

2,903 sq. ft.

2nd Floor

1,097 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4 or 5

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

109' 11"

Depth

78' 10"

Max Ridge Height

34' 11"

Garage

Type

Attached

Area

862 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

14 on 12

Architectural Style

European

French Country

Tudor

Special Features

Angled Garage

Breakfast Nook

Elevator

Game/Rec Room

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Walk-in Pantry

Wet Bar

Plan Collections

Exclusive

Luxury

Photo Gallery

Premium Collection

Sloping Lot
