Tudor-Style House Plan Under 1700 Square Feet with 3 Bedrooms

Heated S.F.
1,664
Beds
3
Baths
2
Stories
1
Cars
2
Tour

Floor Plan

Plan 83655CRW

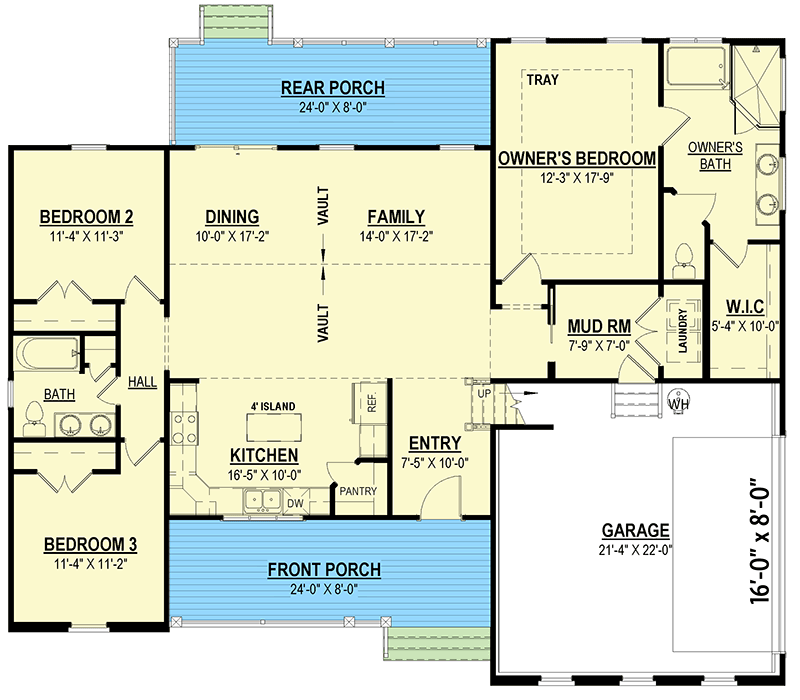

Main Level
Main Level
2nd Floor
2nd Floor
Optional 2-Car Front Garage (+$350)
Optional 2-Car Front Garage (+$350)

Plan 83655CRW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 83655CRW: Tudor-Style House Plan Under 1700 Square Feet with 3 Bedrooms - Floor Plan - Main Level - European, Transitional, Tudor

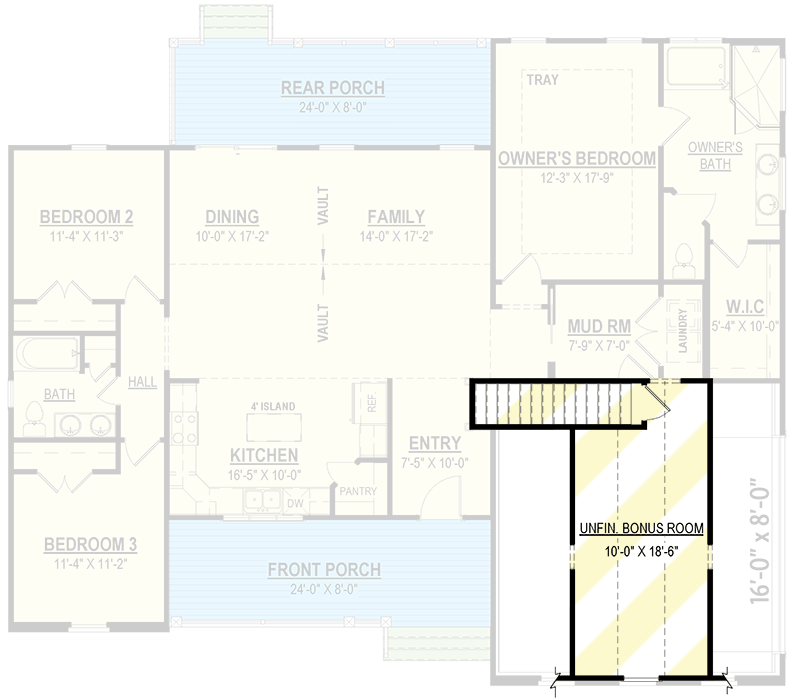

2nd Floor

Plan 83655CRW: Tudor-Style House Plan Under 1700 Square Feet with 3 Bedrooms - Floor Plan - 2nd Floor - European, Transitional, Tudor

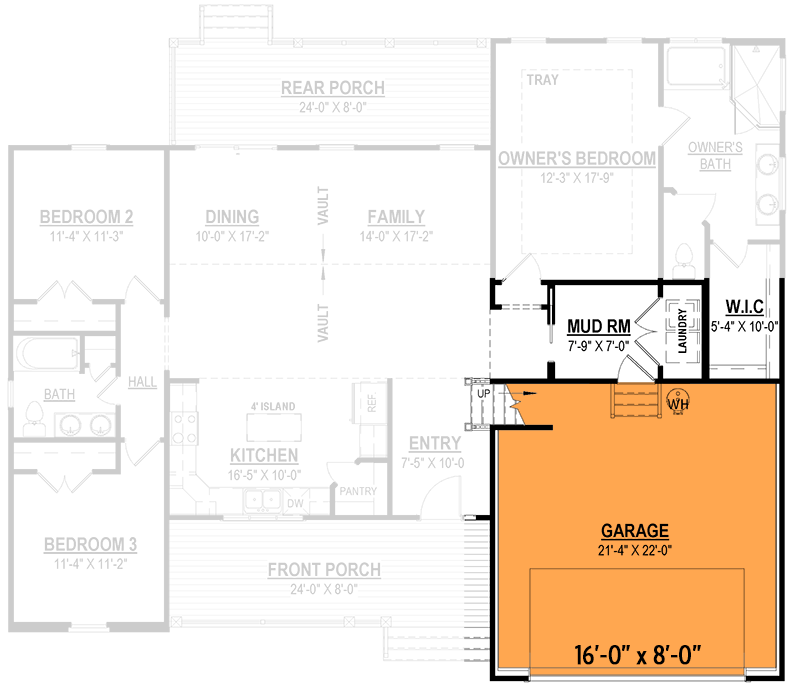

Optional 2-Car Front Garage (+$350)

Plan 83655CRW: Tudor-Style House Plan Under 1700 Square Feet with 3 Bedrooms - Floor Plan - Optional 2-Car Front Garage (+$350) - European, Transitional, Tudor

Plan Details

  • This 1,664 square foot Tudor-style house plan has an 8'-deep front porch and a mixed material exterior.
  • The C-shaped rectangular kitchen overlooks the 8'-deep porch and presents a prep island and corner pantry, while the open design allows you to move easily into the vaulted dining / family room.
  • Tucked behind the double garage, you will find the owner's bedroom with its own foyer, tray ceiling, and 5-fixture bathroom with a toilet room and walk-in closet.
  • Bedrooms 2 and 3 occupy the left side of the home and are separated by a 4-fixture bathroom with a linen closet.
  • Step inside from the garage to find a mudroom with access to the laundry closet and a pocket-door leading to the heart of the home. A bonus room above the garage provides space for future expansion.
  • Related Plans: Get an alternate exterior with house plans 83636CRW, 83654CRW, 83651CRW, 83657CRW and 83664CRW.

What's Included

  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

2nd Floor

219 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

48' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Transitional

Tudor

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

1,664 sq. ft.

1st Floor

1,664 sq. ft.

2nd Floor

219 sq. ft.

Porch, Front

192 sq. ft.

Porch, Rear

192 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

58' 0"

Depth

48' 0"

Max Ridge Height

22' 8"

Garage

Type

Attached

Area

496 sq. ft.

Count

2 Cars

Entry Location

Side, Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

European

Transitional

Tudor

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
