Plan 36607TX
Tuscan Dream Home Plan with Front Courtyard
Heated S.F.
3,084
Beds
3
Baths
3.5
Stories
1-2
Cars
2
Plan Details
  • Fulfill your dreams of living in the Tuscan countryside with this 3-bedroom house plan, where your guests will be greeted by a front courtyard and porch when visiting.
  • Push past the double doors into a foyer flanked by coat closets. The combined kitchen, family room, and dining area feature grand vaulted ceilings, and a cooktop island anchors the living space.
  • Retreat to the roomy master suite with an en suite that will evoke envy, including a freestanding tub in front of a 2-person shower and dual closets. Putting away laundry is made easy with a second laundry room included in the master bath.
  • Bedrooms 2 and 3 are located on either side of the front courtyard, each with a full bath nearby.
  • The hobbyist will delight in the workshop attached to the 2-car garage, and the second-level bonus room above the garage extends onto a rear-facing balcony.
What's Included
Plan set includes the following:

1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Tuscan Dream Home Plan with Front Courtyard

  • 3,084

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

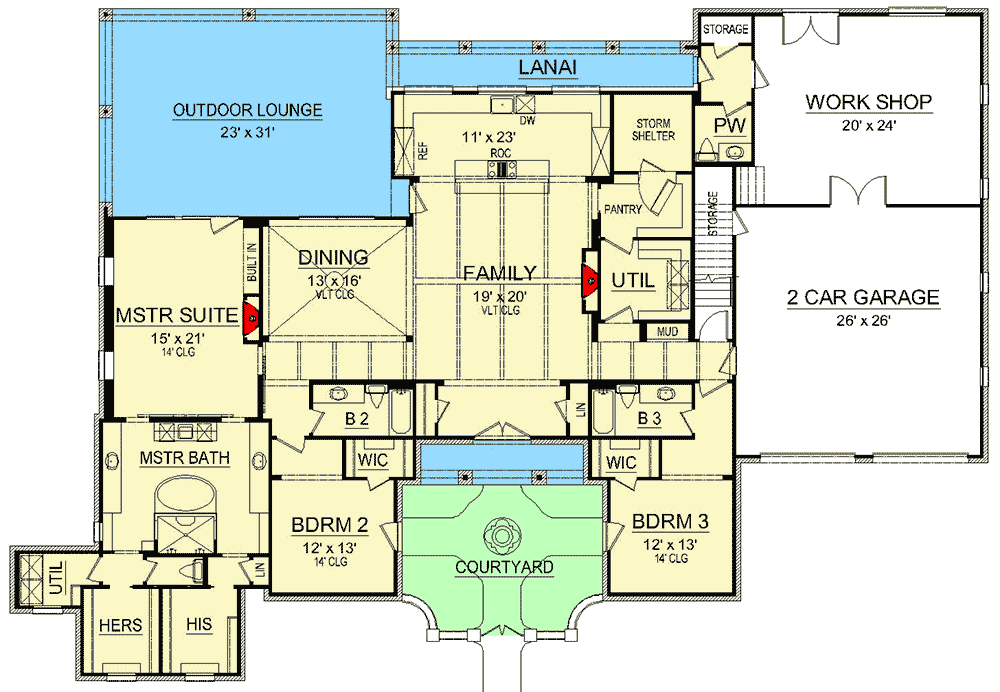

Floor Plan

  • Main Level

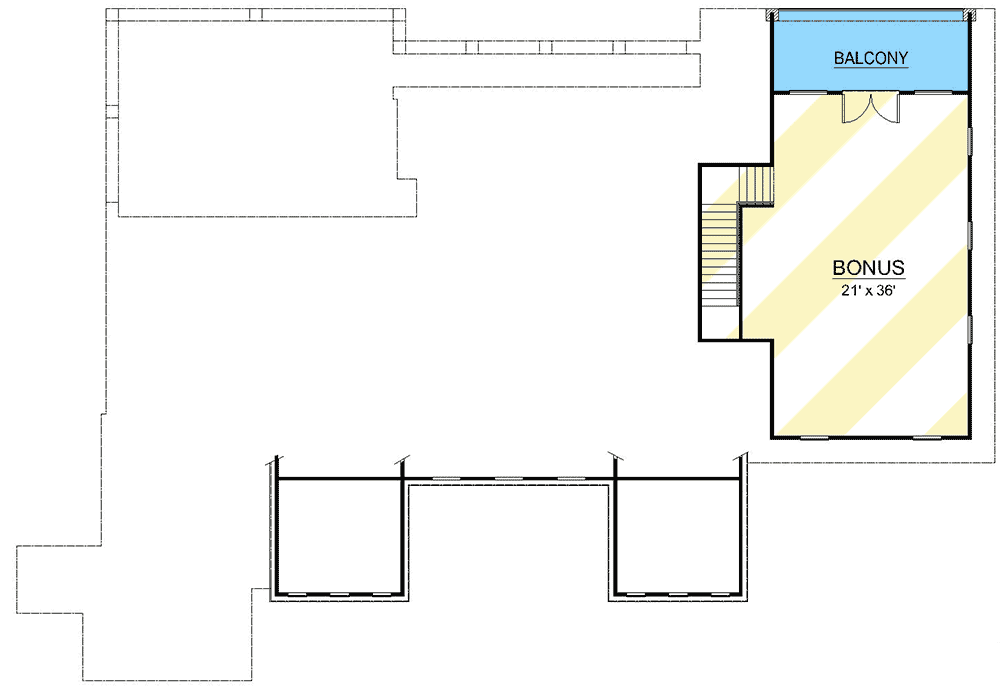

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 3,084 sq. ft.
  • 1st Floor: 3,084 sq. ft.

Dimensions

  • Width: 104' 0"
  • Depth: 72' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 729 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
