Plan 42536DB Two-Bed House Plan with Options

Two-Bed House Plan with Options

Plan 42536DB

  • 2,018

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • A stone, stucco and board and batten exterior combine to give this  mixed material exterior and a shed dormer over the covered entry gives this 2-bed house plan great curb appeal.
  • The great room is open to the kitchen and dining room and has a fireplace.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry and an island with double-sink and dishwasher on one side and casual seating on the other.
  • The master suite has a sitting area and a sunset deck and a large walk-in closet.
  • Stairs lead to a bonus room over the garage giving you expansion possibilities.
  • The house plans include an optional expanded pantry, basement stair location and guest bed location.
  • Related Plans: Get alternate versions with house plans 40898DB42537DB42535DB and 42538DB.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

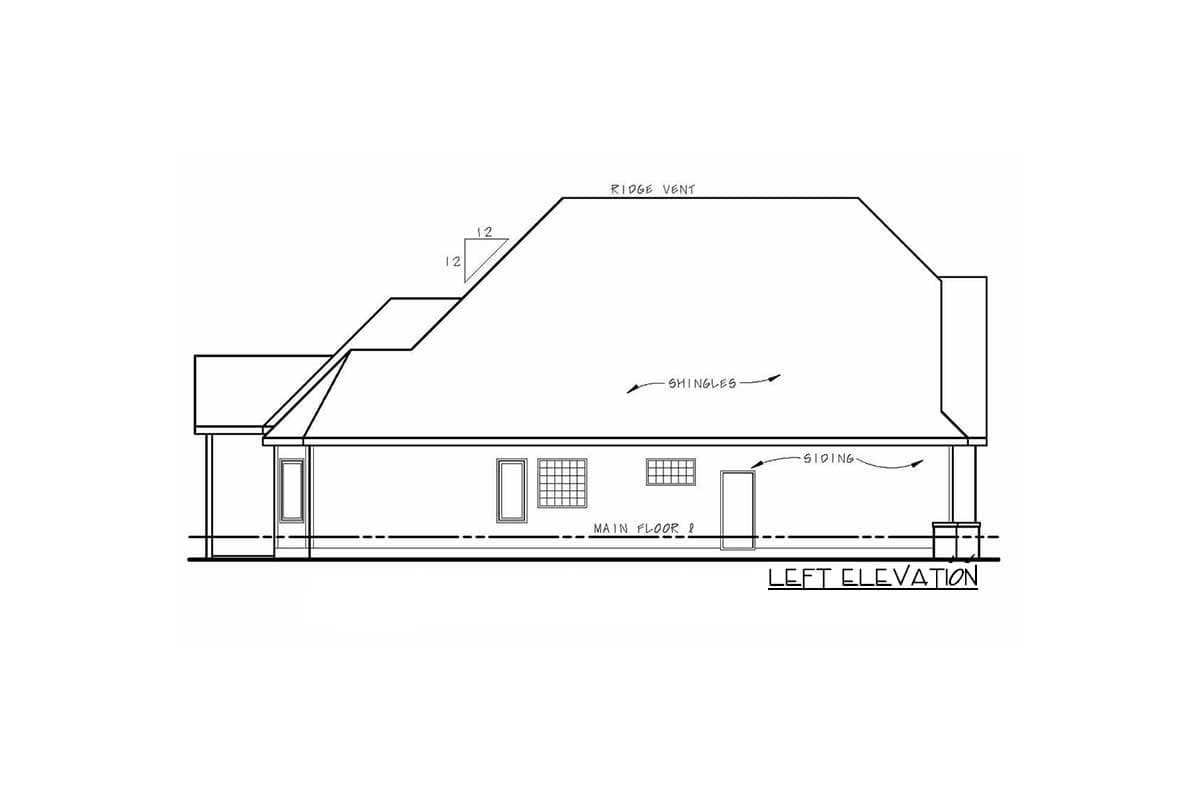

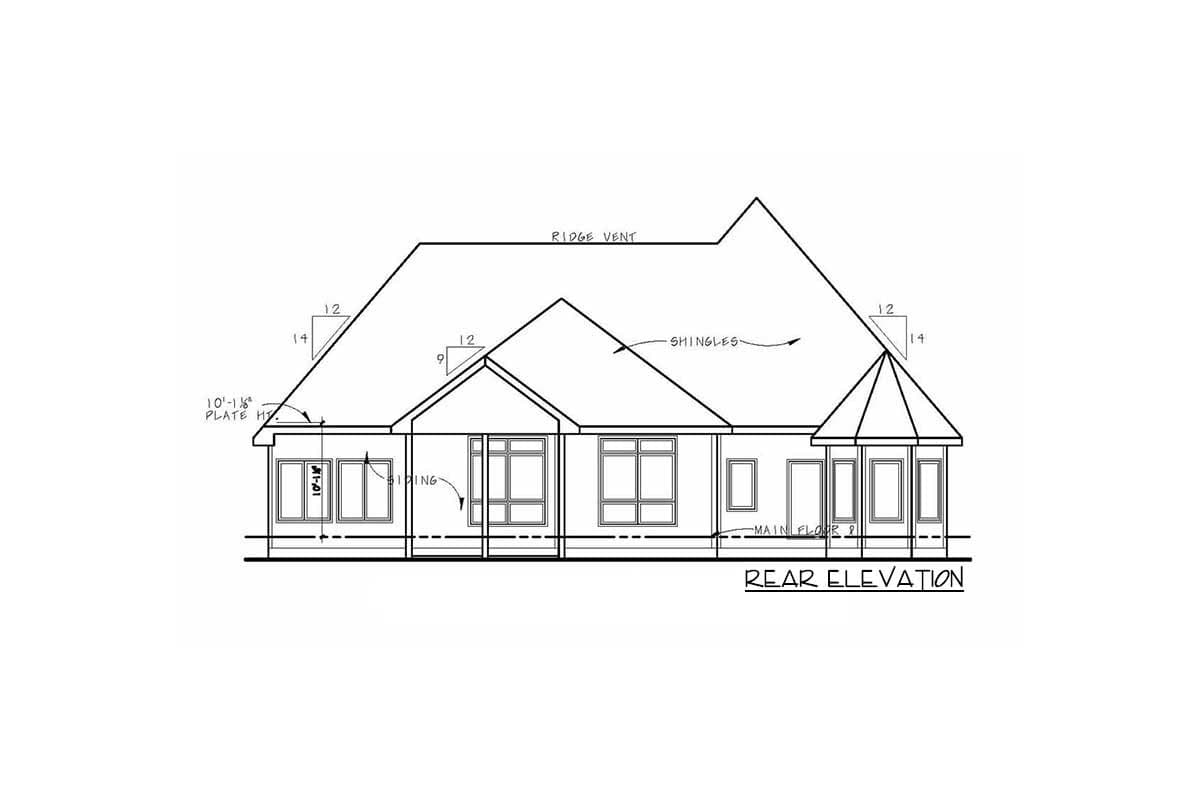

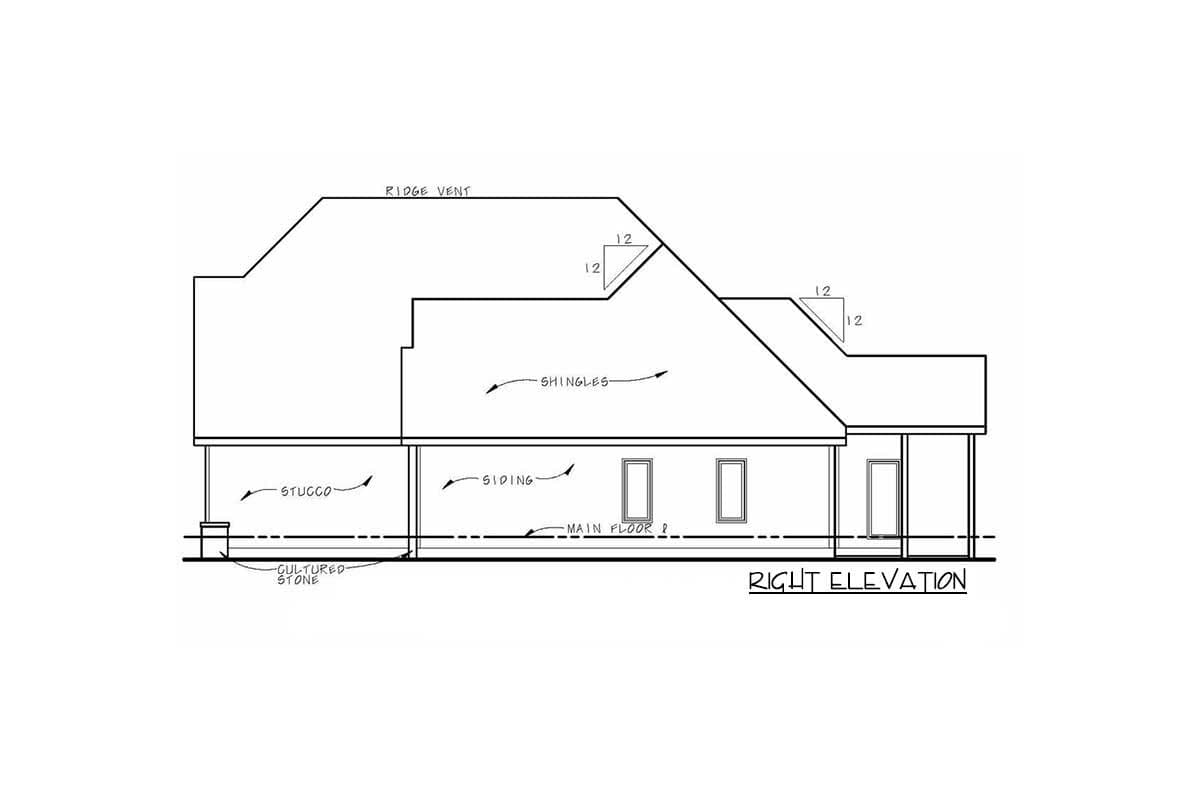

Elevations:
Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

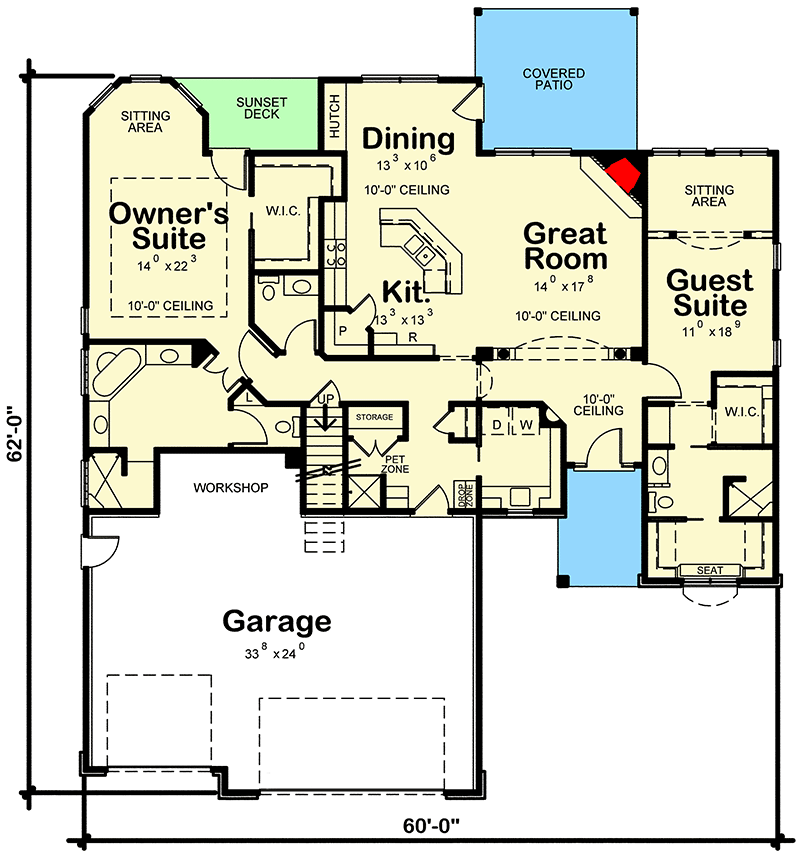

Two-Bed House Plan with Options - 42536DB floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

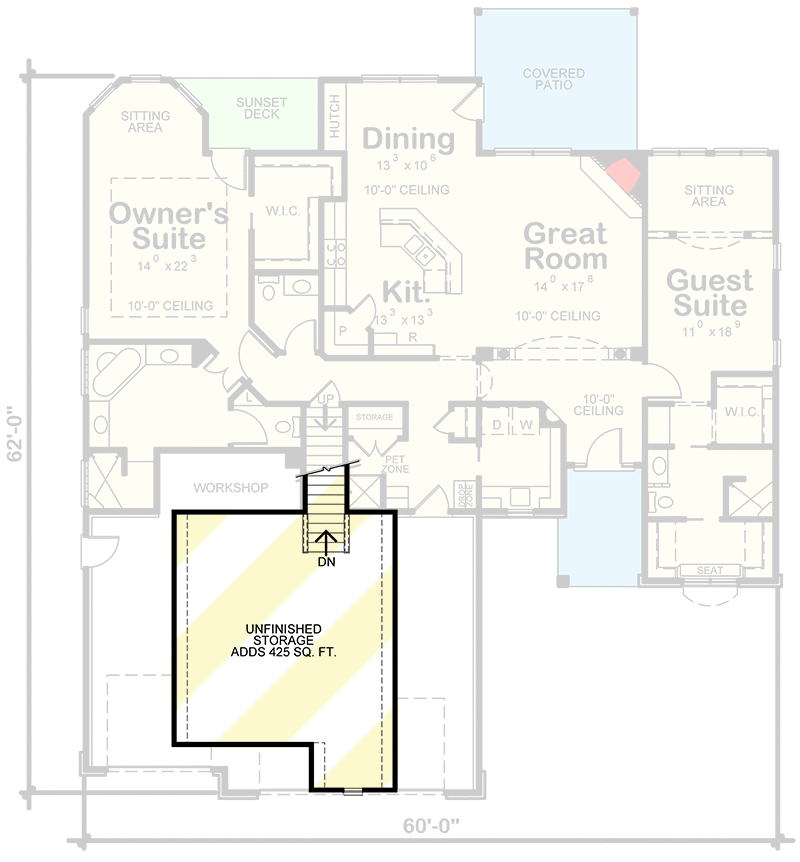

Two-Bed House Plan with Options - 42536DB floor plan - 2nd Floor

Optional Layout

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

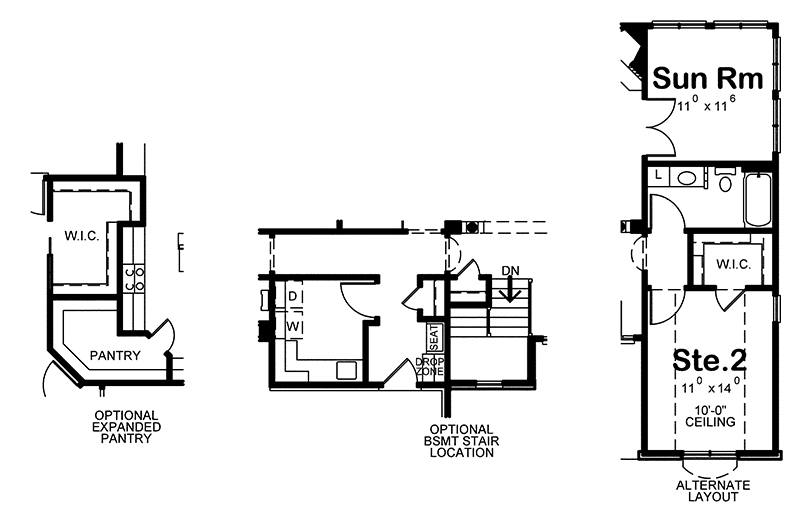

Two-Bed House Plan with Options - 42536DB floor plan - Optional Layout

Plan details

Two-Bed House Plan with Options

  • 2,018

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $685
  • PDF - Single-Build $1,055
  • PDF - Unlimited Build $1,555
  • CAD - Single-Build $1,830
  • CAD - Unlimited Build $2,330
  • View all purchase option online

About This Plan

  • A stone, stucco and board and batten exterior combine to give this  mixed material exterior and a shed dormer over the covered entry gives this 2-bed house plan great curb appeal.
  • The great room is open to the kitchen and dining room and has a fireplace.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry and an island with double-sink and dishwasher on one side and casual seating on the other.
  • The master suite has a sitting area and a sunset deck and a large walk-in closet.
  • Stairs lead to a bonus room over the garage giving you expansion possibilities.
  • The house plans include an optional expanded pantry, basement stair location and guest bed location.
  • Related Plans: Get alternate versions with house plans 40898DB42537DB42535DB and 42538DB.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Layout

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,018 sq. ft.
  • 1st Floor: 2,018 sq. ft.
  • Porch, Rear: 170 sq. ft.
  • Porch, Front: 73 sq. ft.
  • Bonus: 425 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 62' 0"
  • Max ridge height: 32' 0"

Garage

  • Type: Attached
  • Area: 877 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
