Plan 60572ND

Two Bedroom Arts & Crafts

Heated S.F.
1,309
Beds
2
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 60572ND

Main Level
Main Level

Plan 60572ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

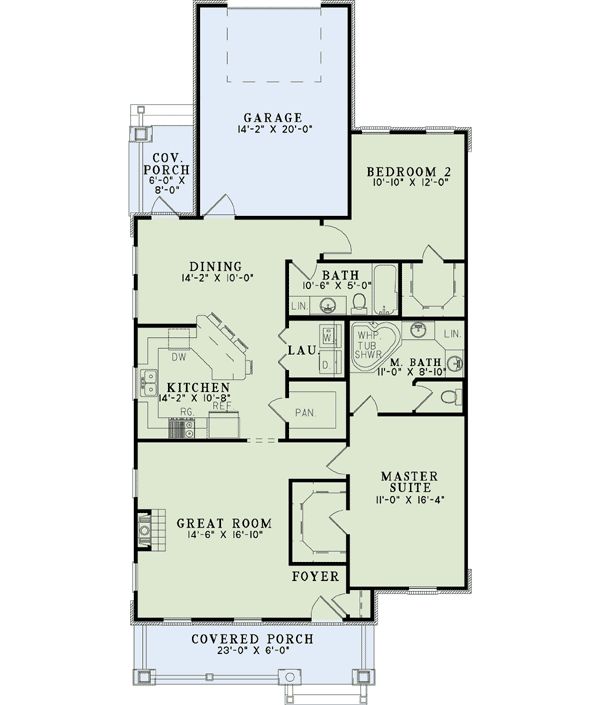

Plan 60572ND: Two Bedroom Arts & Crafts - Floor Plan - Main Level - Cottage, Southern

Plan Details

  • This quaint Arts and Crafts home plan welcomes you into the great room with a warm fireplace.
  • The kitchen features a peninsula bar, a walk-in pantry, and is open to the dining room.
  • The master suite has a nice sized walk-in closet and a whirlpool tub shower.
  • There is also has another bedroom with a walk-in closet and a full bathroom.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,309 sq. ft.

1st Floor

1,309 sq. ft.

Porch, Front

48 sq. ft.

Porch, Rear

141 sq. ft.

Porch, Combined

189 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

32' 0"

Depth

65' 2"

Max Ridge Height

20' 4"

Garage

Type

Attached

Area

299 sq. ft.

Count

1 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Southern

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry
