Plan 22024SL

Two-Bedroom Bungalow House Plan with Split Bedrooms and Basement

Heated S.F.
1,197
Beds
2
Baths
1
Stories
1

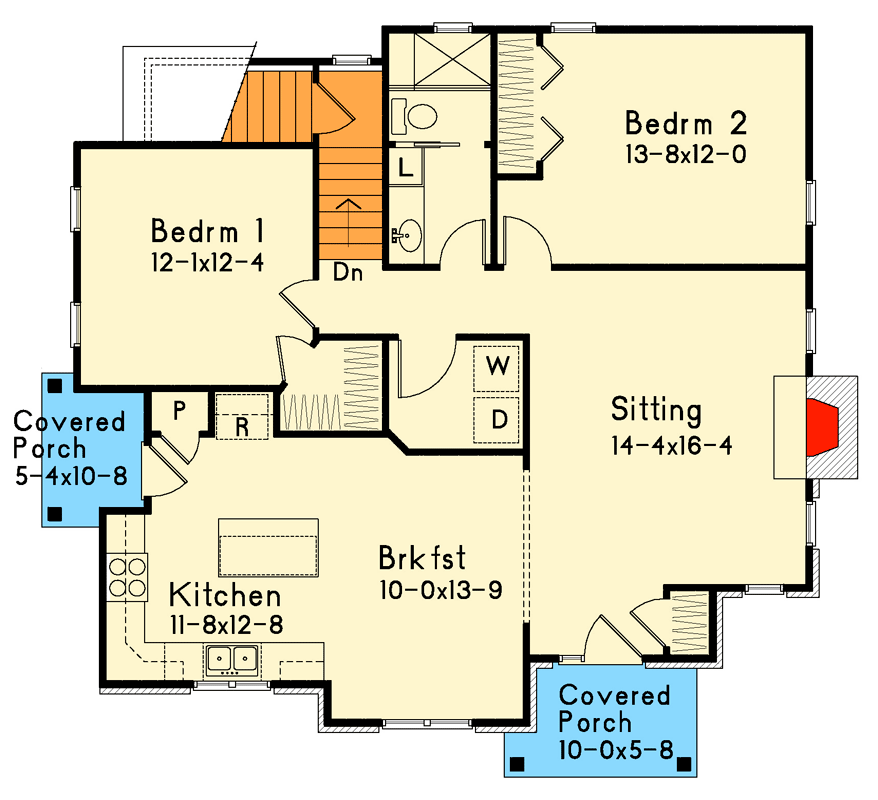

Floor Plan

Plan 22024SL

Main Level
Main Level

Plan 22024SL

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 22024SL: Two-Bedroom Bungalow House Plan with Split Bedrooms and Basement - Floor Plan - Main Level - Bungalow, Cottage, Northwest

Plan Details

  • This charming 1,197 sq ft Bungalow house plan offers 2 bedrooms and 1 full bath, featuring a delightful blend of stone and shake siding.
  • A welcoming 57 sq ft covered front porch with rustic timber posts invites you into this thoughtfully laid out home, designed for comfortable single-level living.
  • The main living areas flow efficiently, likely featuring a comfortable living space connected to a breakfast nook and a convenient main-level laundry area.
  • The primary bedroom suite is ideally located on the first floor, offering privacy with its split bedroom design that separates it from the secondary bedroom.
  • The standard basement foundation offers excellent potential for future expansion, ideal for additional living space or storage.

What's Included

  • Foundation plan
  • Fully dimensioned floor plans
  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,197 sq. ft.

1st Floor

1,197 sq. ft.

Porch, Front

57 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 4"

Depth

39' 0"

Max Ridge Height

21' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,197 sq. ft.

1st Floor

1,197 sq. ft.

Porch, Front

57 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 4"

Depth

39' 0"

Max Ridge Height

21' 9"

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Bungalow

Cottage

Northwest

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
