Plan 52513WM

Two-Bedroom Cottage Craftsman House Plan with Open Living

Heated S.F.
798
Beds
2
Baths
2
Stories
1

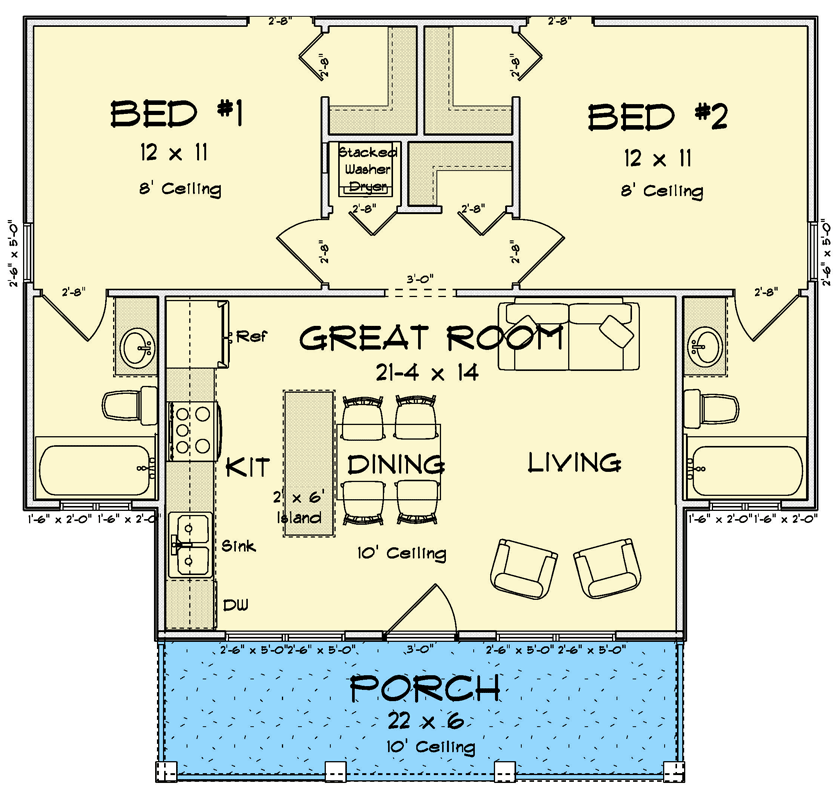

Floor Plan

Plan 52513WM

Main Level
Main Level

Plan 52513WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 52513WM: Two-Bedroom Cottage Craftsman House Plan with Open Living - Floor Plan - Main Level - Cottage, Craftsman

Plan Details

  • This inviting 798 sq. ft. Cottage Craftsman house plan offers 2 bedrooms and 2 full bathrooms, designed for comfortable, compact living.
  • Upon entry from the welcoming front porch, you are greeted by a bright and expansive open-concept Great Room, where living, dining, and kitchen spaces flow effortlessly together, accentuated by 10-foot ceilings.

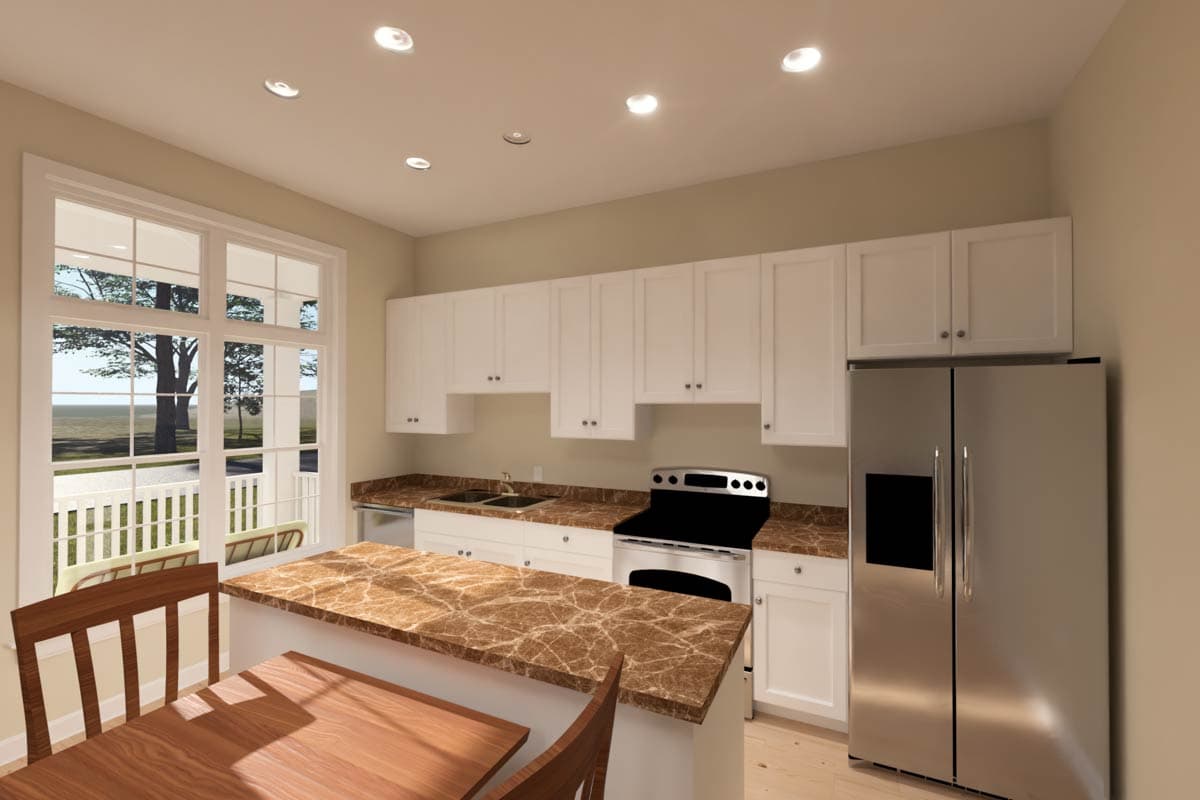

  • The well-appointed kitchen anchors the main living space, featuring a practical 2'x6' island that serves as a breakfast nook and prep area, while the dining zone offers a comfortable setting for intimate meals. A centrally located stacked washer/dryer unit provides convenient main-level laundry.

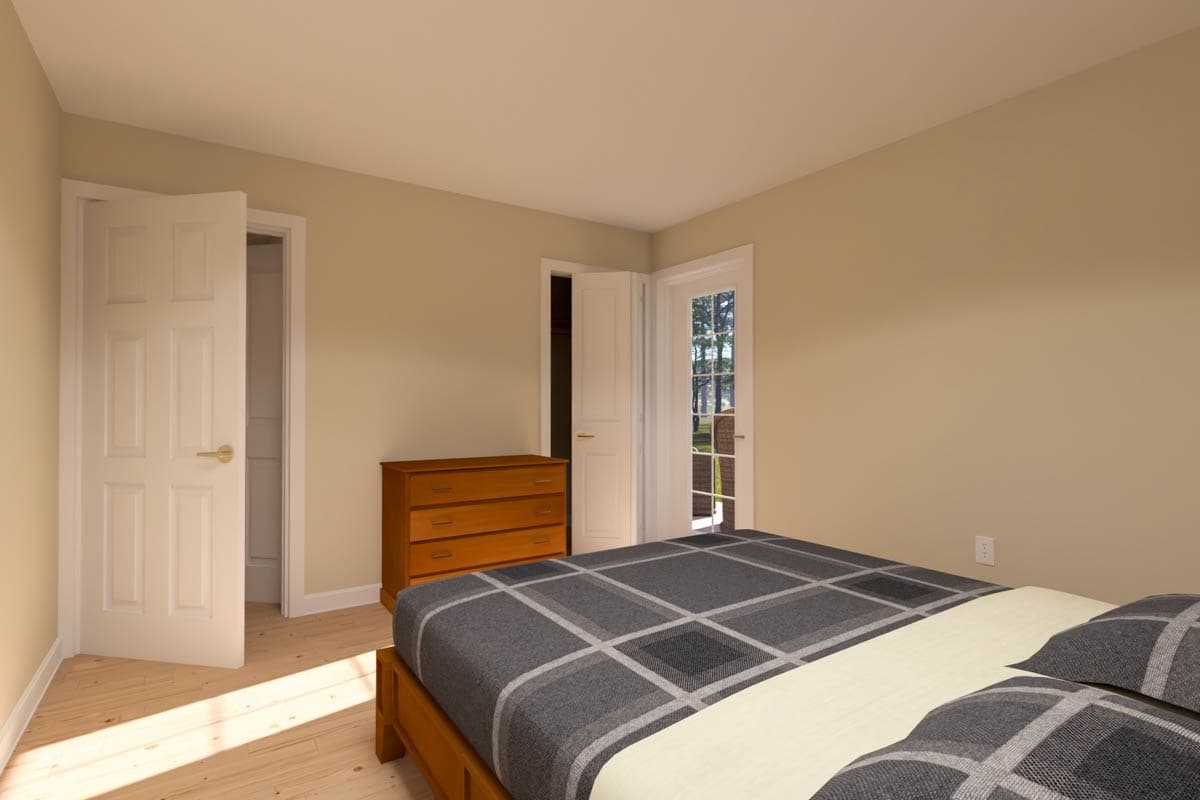

  • Flanking the Great Room, two private bedroom suites each feature an attached full bathroom, providing comfortable personal havens with 8-foot ceilings and ample natural light.
  • A charming 22' x 6' covered front porch, totaling 132 sq. ft., extends a warm welcome, providing a delightful outdoor space perfect for enjoying a quiet morning or greeting neighbors.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

798 sq. ft.

1st Floor

798 sq. ft.

Porch, Front

132 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

33' 0"

Depth

32' 0"

Max Ridge Height

17' 6"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

798 sq. ft.

1st Floor

798 sq. ft.

Porch, Front

132 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

33' 0"

Depth

32' 0"

Max Ridge Height

17' 6"

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
