Two-Bedroom Craftsman Cottage House Plan with Split Layout

Heated S.F.
799
Beds
2
Baths
2
Stories
1
Cars
1

Floor Plan

Plan 52500WM

Main Level
Main Level

Plan 52500WM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

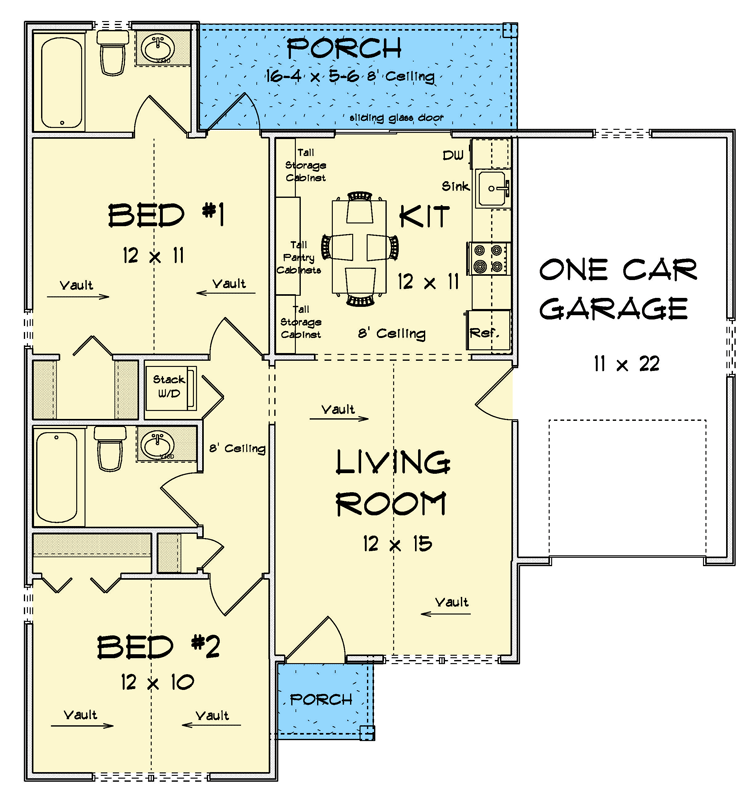

Plan 52500WM: Two-Bedroom Craftsman Cottage House Plan with Split Layout - Floor Plan - Main Level - Cottage, Craftsman

Plan Details

  • This inviting 799 sq. ft. Craftsman Cottage house plan offers comfortable living with 2 bedrooms, 2 full bathrooms, and an attached 242 sq. ft. one-car garage, all wrapped in a timeless exterior.
  • Step inside from the welcoming front porch directly into the vaulted living room, a central gathering space designed for relaxation and seamless daily life.
  • Adjacent to the living room, the well-appointed kitchen features an integrated breakfast nook, perfect for casual meals, and conveniently opens via a sliding glass door to the expansive rear porch for effortless indoor-outdoor flow.
  • The thoughtful split-bedroom layout places private retreats on opposite sides of the home; one spacious bedroom enjoys a private en-suite bath, while the second bedroom is conveniently located near a full hall bath and the stacked main-level laundry.
  • Enjoy tranquil mornings or evening breezes on the delightful front porch, or host gatherings on the generous rear porch, offering ample space for outdoor dining and relaxation.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

799 sq. ft.

1st Floor

799 sq. ft.

Porch, Front

20 sq. ft.

Porch, Rear

90 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

38' 6"

Max Ridge Height

14' 9"

Garage

Type

Attached

Area

242 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

799 sq. ft.

1st Floor

799 sq. ft.

Porch, Front

20 sq. ft.

Porch, Rear

90 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

38' 6"

Max Ridge Height

14' 9"

Garage

Type

Attached

Area

242 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
