Plan 59786ND

Two Family Home Plan with Shared Porte Cochere

Heated S.F.
3,866
Units
2
Width
Depth

Floor Plan

Plan 59786ND

Main Level
Main Level
Bonus
Bonus

Plan 59786ND

M-F 9am-5pm EST |

1-203-761-8500

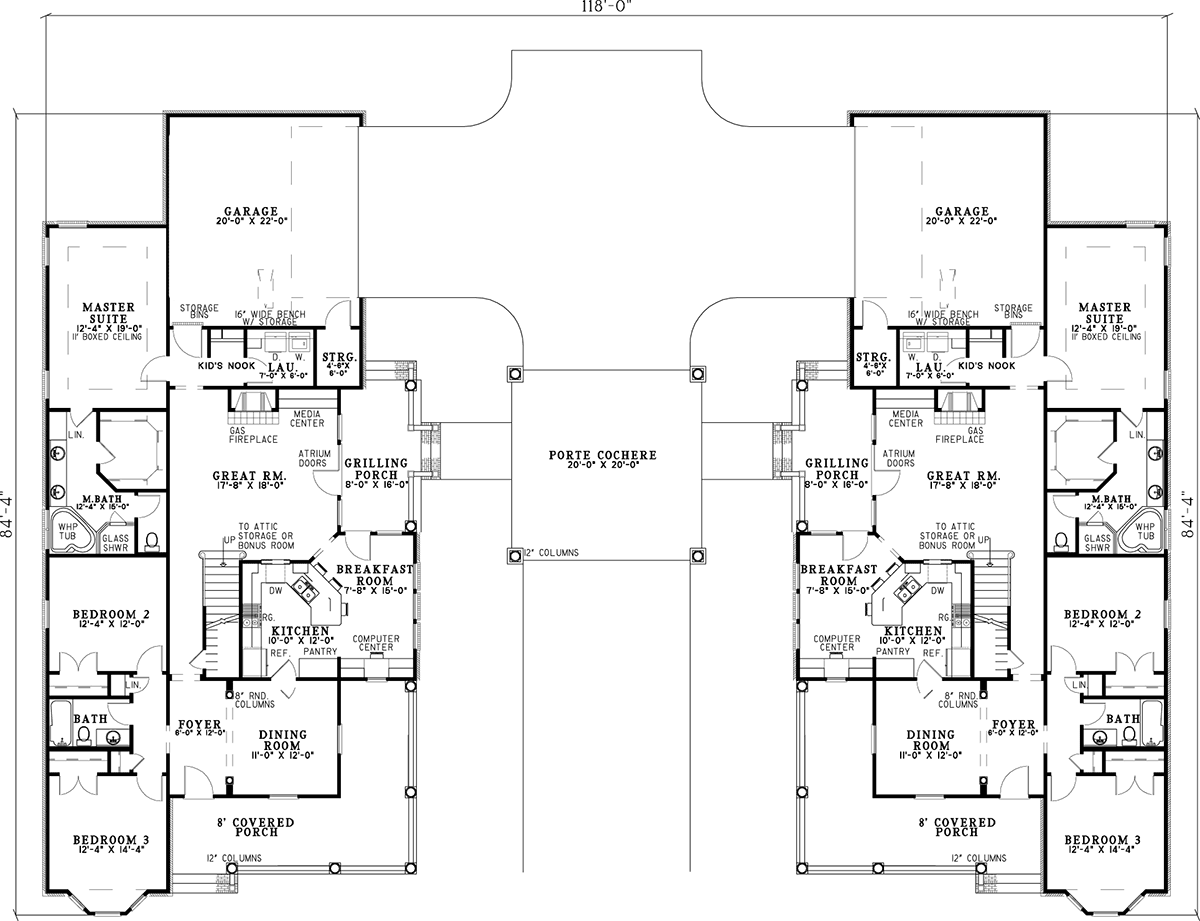

Main Level

Plan 59786ND: Two Family Home Plan with Shared Porte Cochere - Floor Plan - Main Level - Country, Traditional

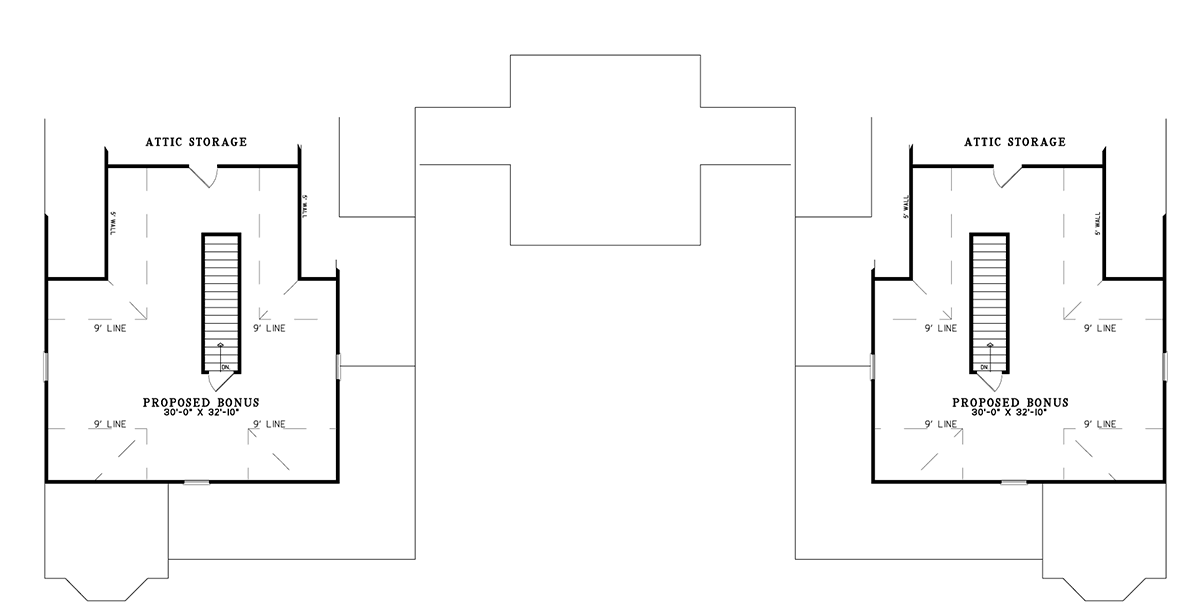

Bonus

Plan 59786ND: Two Family Home Plan with Shared Porte Cochere - Floor Plan - Bonus - Country, Traditional

Plan Details

  • Each 3 bed, 2 bath unit of this country-style duplex gives each family 1,933 square feet of heated living and a 483 square foot garage.
  • A shared porte cochere separates these mirrored home plans. Covered porches wrap around the front and sides, lending the perfect spot for a rocking chair or two.
  • Your family is sure to love the thoughtfulness of this design and the inclusion of amenities such as kid's nooks and computer centers.
  • The proposed bonus room upstairs will be ideal for that home theater you've been dreaming about.
Unit A
Heated Area
1,933Sq. Ft.
3866 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
483 Sq. Ft.
Dimensions
59'width
84' 4"depth
26'height
Unfinished Areas
966 Sq. Ft. Attached
483 Sq. Ft. Garage
Unit B
Heated Area
1,933Sq. Ft.
1933 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
483 Sq. Ft.
Dimensions
59'width
84' 4"depth
26'height
Unfinished Areas
483 Sq. Ft. Garage
866 Sq. Ft. Bonus

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,866 sq. ft.

1st Floor

3,866 sq. ft.

Bonus

866 sq. ft.

Porch, Front

730 sq. ft.

Porch, Rear

256 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

118' 0"

Depth

84' 4"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

966 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Porte Cochere

Square Footage Breakdown

Total Heated Area

3,866 sq. ft.

1st Floor

3,866 sq. ft.

Bonus

866 sq. ft.

Porch, Front

730 sq. ft.

Porch, Rear

256 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

118' 0"

Depth

84' 4"

Max Ridge Height

26' 7"

Garage

Type

Attached

Area

966 sq. ft.

Count

4 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Bedrooms - Clustered

Home Theater

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Porte Cochere
