Two-Family Prairie-style House Plan with Different Layouts

Plan 64489SC

  • 3,692

    Heated s.f.

  • 2

    Units

  • 100' 2"

    Width

  • 65' 6"

    Depth

  • Craftsman detailing on the exterior of this multi-family, cottage plan, clad in stucco and stone, enhances the curb appeal. Each unit, with slightly different layouts, features an open floor plan, covered patio, and 2 bedrooms.
  • The unit on the left gives you 1,904 sq. ft. of heated living space and a 600 sq. ft. 2-car garage. The unit on the right gives you 1,788 sq. ft. of heated living space and a 535 sq. ft. 2-car garage.
  • The open floor plan combines the living room with the eat-in kitchen, which boasts a spacious island with seating for casual meals. Slip through the sliding doors to enjoy nature on the partially-covered patios.
  • Each master bedroom includes a 5-fixture bathroom with a corner, jetted tub, a toilet room, and a walk-in closet.
  • The second bedroom in each unit is generous in size and features a full bath.
  • Entry from the double garage leads into the kitchen, reducing time spent unloading groceries, and the unit on the left includes a pocket office for the work-at-home resident.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.
  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.
  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

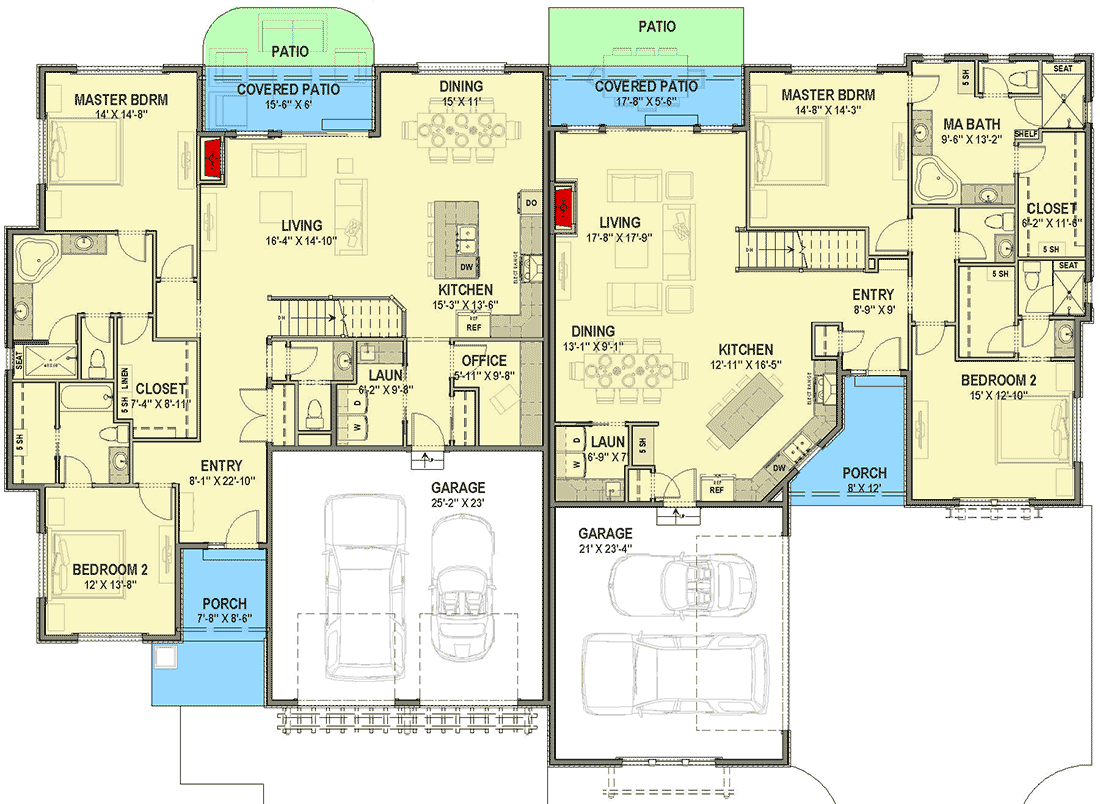

Two-Family Prairie-style House Plan with Different Layouts - 64489SC floor plan - Main Level
