Plan 48104FM
Two Lower Floor Bedrooms
Heated S.F.
3,535
Beds
5
Baths
4.5
Stories
2
Cars
2
What's Included
Plan Details

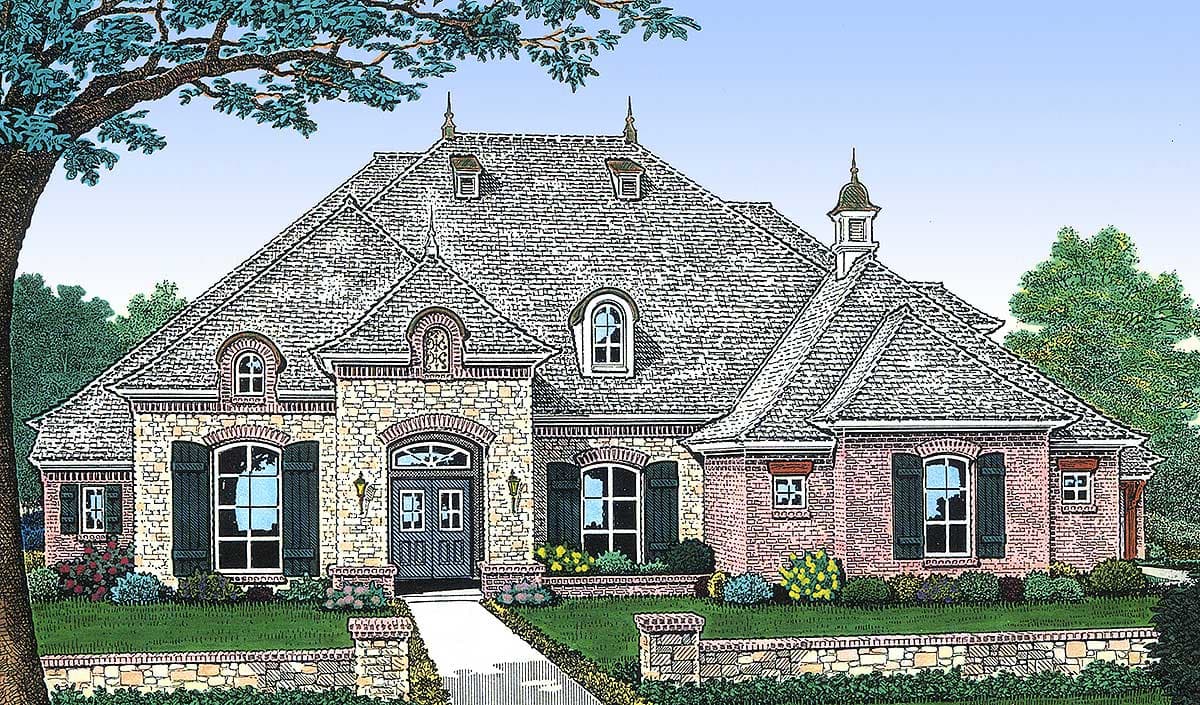

  • This lovely French Country house plan is perfect for those who want to live on one floor with plenty of rooms for guests on the second floor. A stone and brick exterior add to the ambiance.
  • Double doors lead you into the foyer flanked by a private study and a formal dining room. The great room ahead is enormous with a fireplace and built-in entertainment center.
  • The large gourmet kitchen enjoys a walk-in pantry and a breakfast nook flooded with light from multiple windows.
  • Set in the rear for quiet and privacy, the master suite offers a bayed sitting area, perfect for curling up with a cup of coffee and a book.
  • Three bedrooms and two baths occupy the second floor with a future playroom available for expansion.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two Lower Floor Bedrooms

  • 3,535

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

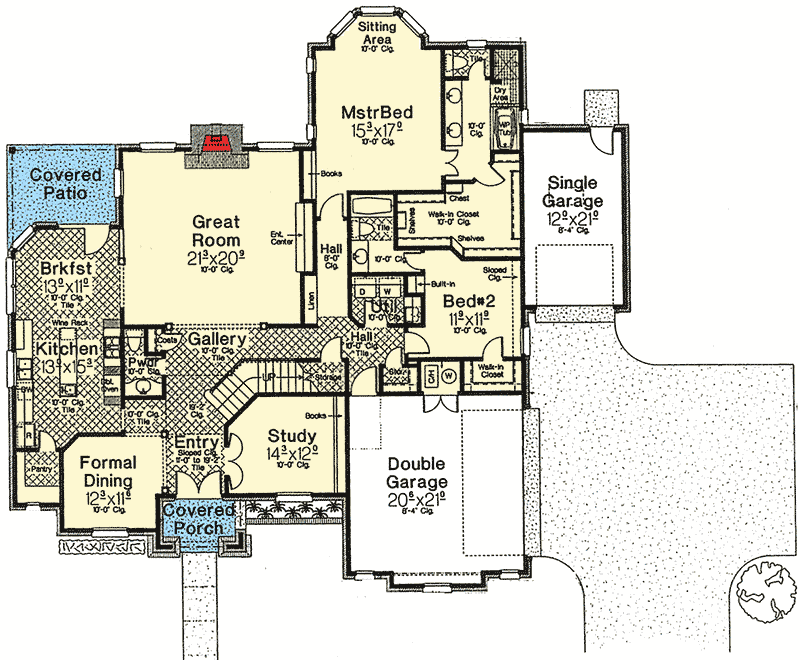

  • Main Level

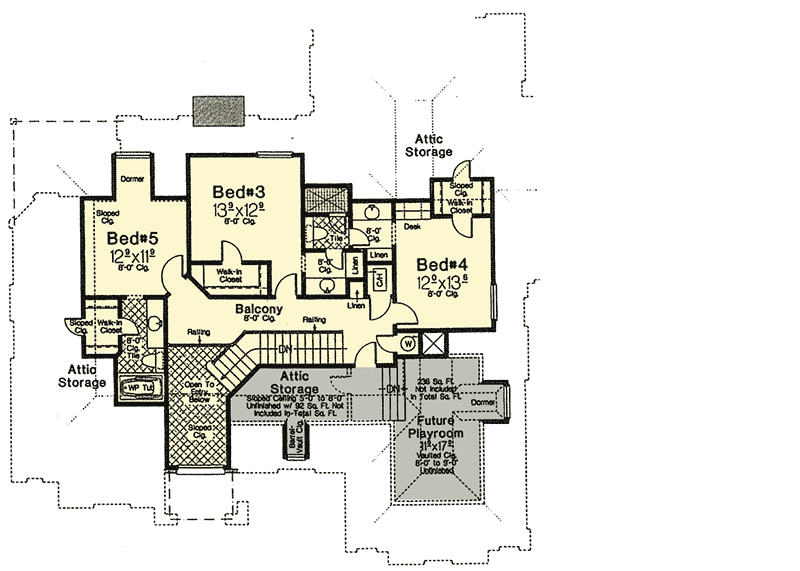

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,535 sq. ft.
  • 1st Floor: 2,522 sq. ft.
  • 2nd Floor: 1,013 sq. ft.

Dimensions

  • Width: 73' 0"
  • Depth: 68' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 420 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
