Two Porches and an Atrium

Plan 57275HA

  • 1,676

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Vaulted ceilings add height to the big great room with fireplace and the master suite.
  • You can chose to use bedroom 3 as a study with sliding glass doors to the rear patio.
  • Atrium windows flood the great room and basement stairs with light.
  • This home comes with a side load drive-under garage that lies under the kitchen area.

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

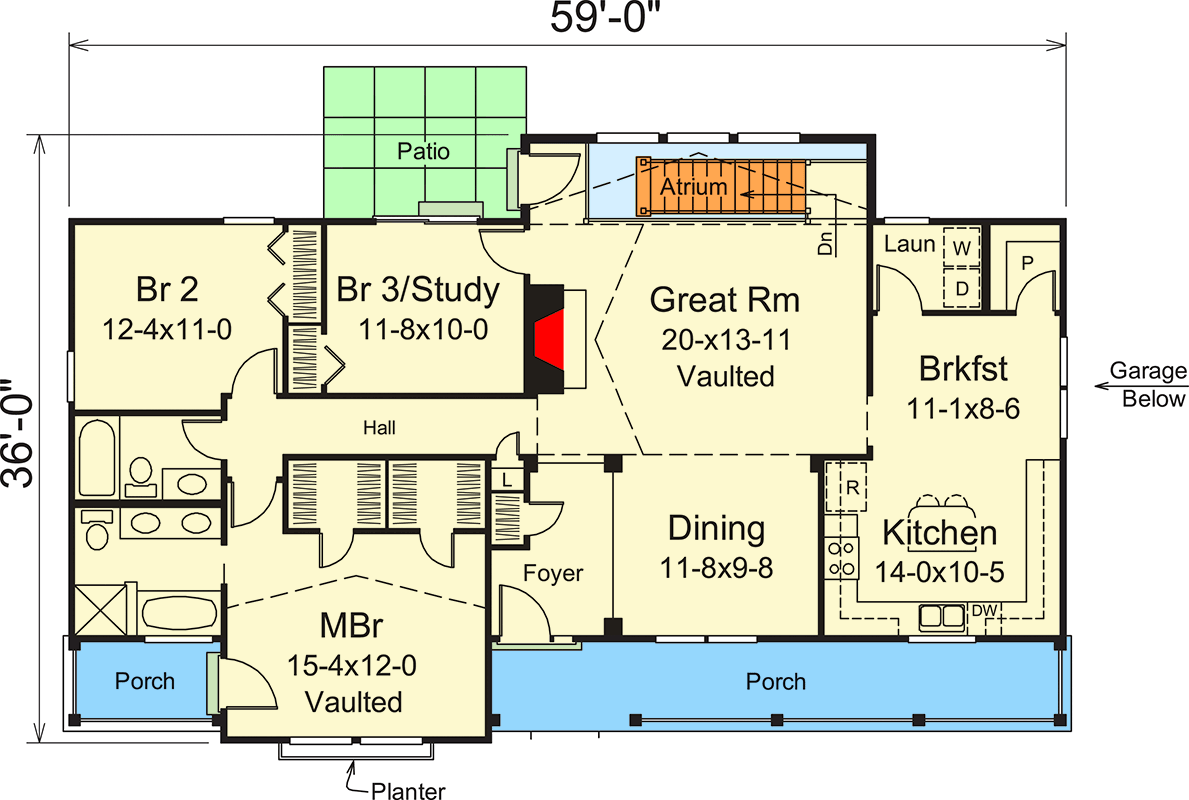

Two Porches and an Atrium - 57275HA floor plan - Main Level

Two Porches and an Atrium

  • 1,676

    Heated s.f.

  • 2-3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,676 sq. ft.
  • 1st Floor: 1,676 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 36' 0"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2

Garage

  • Type: Drive Under
  • Area: 544 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
