Plan 777071MTL

Two-Story Barndominium House plan with Rec Room Above - 2556 Sq Ft

Heated S.F.
2,556
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 777071MTL

Main Level
Main Level
2nd Floor
2nd Floor
Wall Framing Section
Wall Framing Section

Plan 777071MTL

M-F 9am-5pm EST |

1-203-761-8500

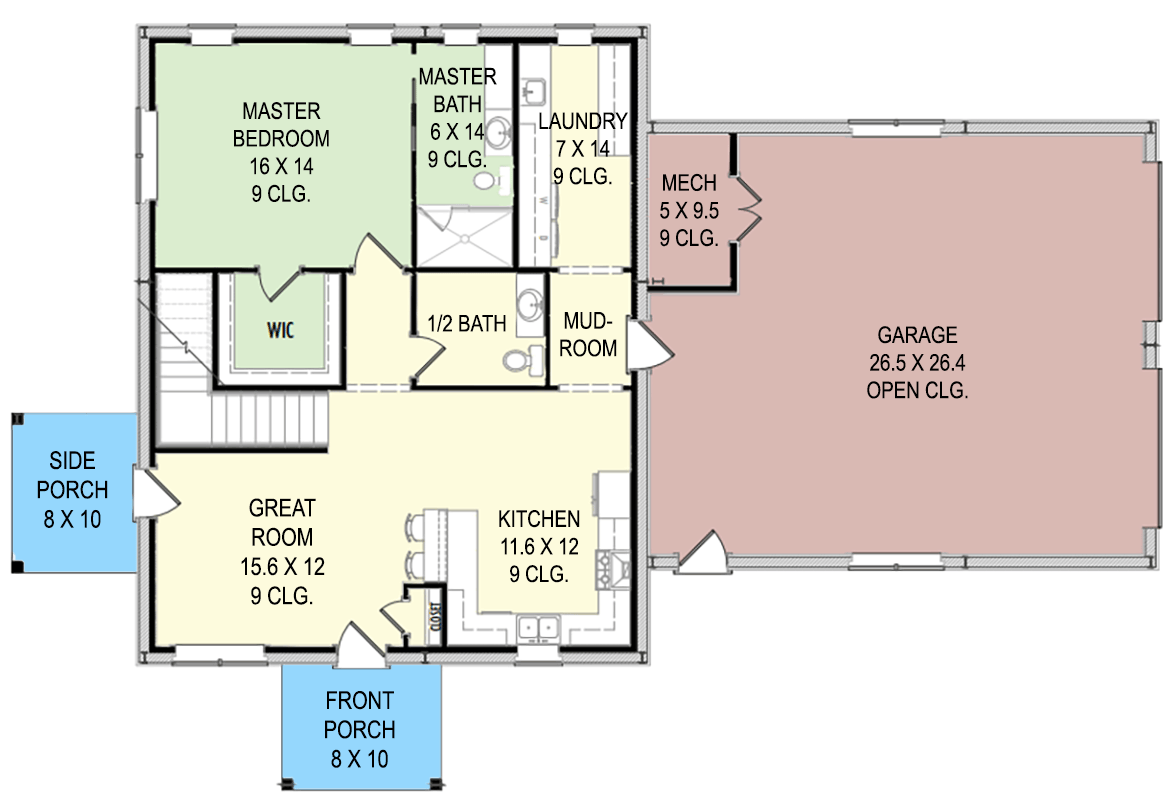

Main Level

Plan 777071MTL: Two-Story Barndominium House plan with Rec Room Above - 2556 Sq Ft - Floor Plan - Main Level - Barndominium, Craftsman, Mountain

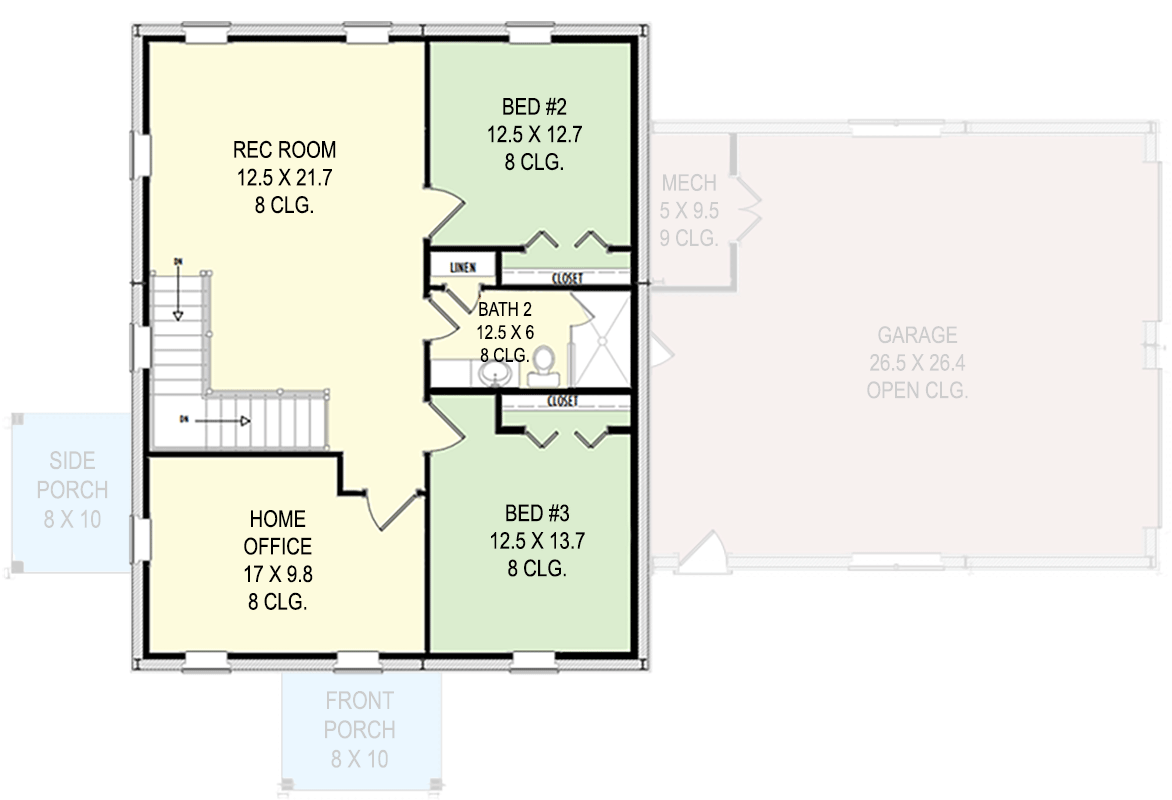

2nd Floor

Plan 777071MTL: Two-Story Barndominium House plan with Rec Room Above - 2556 Sq Ft - Floor Plan - 2nd Floor - Barndominium, Craftsman, Mountain

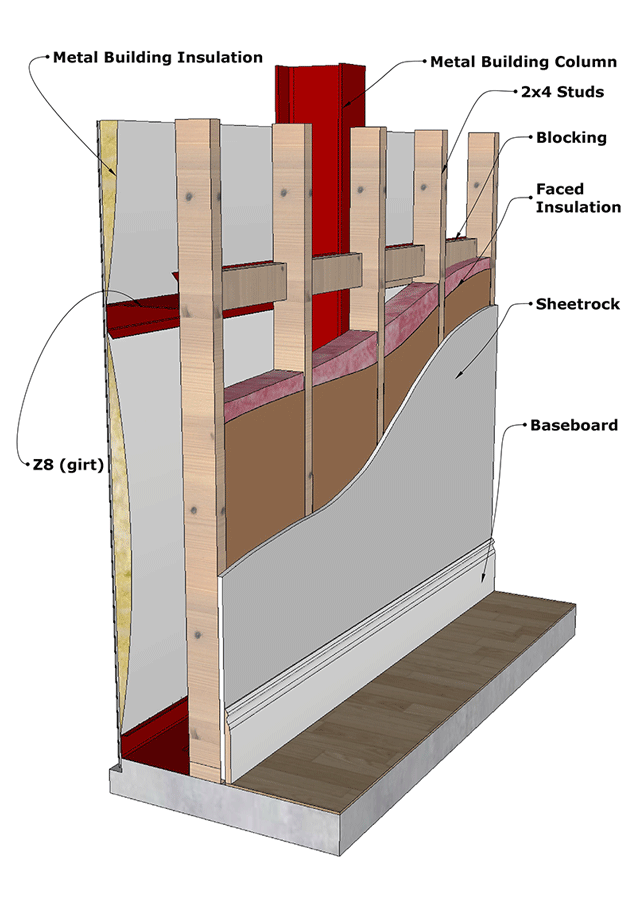

Wall Framing Section

Plan 777071MTL: Two-Story Barndominium House plan with Rec Room Above - 2556 Sq Ft - Floor Plan - Wall Framing Section - Barndominium, Craftsman, Mountain

Plan Details

  • Upon entry, you step into a spacious great room that seamlessly flows into the kitchen area. Towards the rear of the main level lies the master suite, complete with an ensuite bathroom and a walk-in closet.
  • Additionally, the main level features a laundry room, a half bath, and a convenient mudroom that grants access to a side garage.
  • Moving upstairs, you'll find two bedrooms and a bathroom, along with a versatile rec room and a dedicated home office space.
  • This Metal House Plan was designed with a Pre-Engineered Metal Building (PEMB) in mind.  A PEMB is the most commonly used structure when building a barndominium.  A PEMB can be engineered, fabricated and shipped to any location in the world and generally can be installed in a much shorter time than a traditionally framed home. Pre-Engineered Metal Buildings get a project in the dry very quickly and allow for interior build-outs to be convenient, not having to support roof loads.
  • This metal house plan is available with 2x6 exterior framing by selecting it the Options menu.

What's Included

  • Cover sheet
  • Foundation Plan
  • Floor plan with basic Electrical Plan and Door/Window Schedule
  • Roof Plan
  • Elevations with necessary sections

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,556 sq. ft.

1st Floor

1,278 sq. ft.

2nd Floor

1,278 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

80 sq. ft.

Porch, Combined

160 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

72' 0"

Depth

48' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

896 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

PEMB & Stick

Architectural Style

Barndominium

Craftsman

Mountain

Special Features

Bedrooms - Split

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,556 sq. ft.

1st Floor

1,278 sq. ft.

2nd Floor

1,278 sq. ft.

Porch, Front

80 sq. ft.

Porch, Rear

80 sq. ft.

Porch, Combined

160 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

72' 0"

Depth

48' 0"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

896 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

3 on 12

Framing Type

PEMB & Stick

Architectural Style

Barndominium

Craftsman

Mountain

Special Features

Bedrooms - Split

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
