Two-story Cape Cod Home with Main-level Master Bedroom

Heated S.F.
2,818
Beds
3 - 4
Baths
3
Stories
2
Cars
2

Floor Plan

Plan 86369HH

Main Level
Main Level
2nd Floor
2nd Floor

Plan 86369HH

M-F 9am-5pm EST |

1-203-761-8500

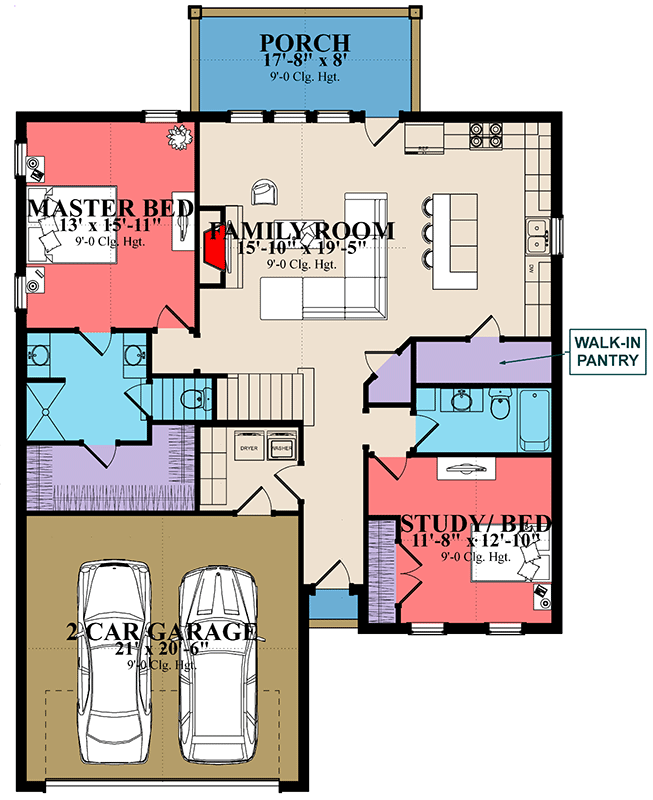

Main Level

Plan 86369HH: Two-story Cape Cod Home with Main-level Master Bedroom - Floor Plan - Main Level - Cape Cod, Traditional

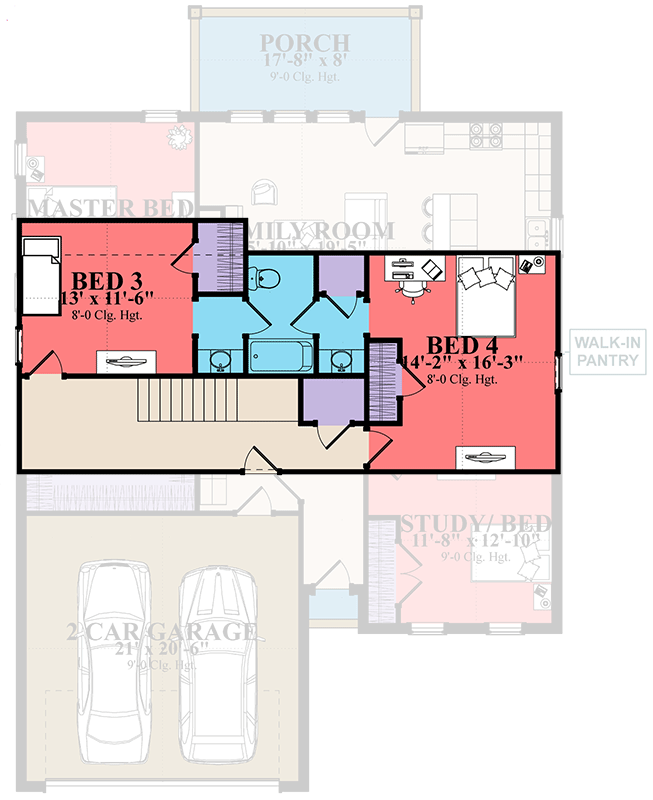

2nd Floor

Plan 86369HH: Two-story Cape Cod Home with Main-level Master Bedroom - Floor Plan - 2nd Floor - Cape Cod, Traditional

Plan Details

  • With over 2,800 square feet of living space, this two-story Cape Cod plan delivers a combined family room and kitchen with easy access to the back porch.
  • Cabinets, counters, and appliances surround the kitchen island, complete with an eating bar, and a walk-in pantry boosts storage space for dried foods.
  • The master bedroom is conveniently located on the main level and paired with a 4-fixture bathroom and a walk-in closet.
  • A second bedroom, or a study, is accessible from the foyer, across from the double garage.
  • The remaining two bedrooms can be found upstairs, separated by the shared Jack-and-Jill bathroom.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,818 sq. ft.

1st Floor

1,475 sq. ft.

2nd Floor

1,343 sq. ft.

Porch, Combined

141 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

59' 11"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cape Cod

Traditional

Special Features

Butler Walk-in Pantry

Flex Room

Jack & Jill Bath

Laundry - Main Level

Library/Study

Square Footage Breakdown

Total Heated Area

2,818 sq. ft.

1st Floor

1,475 sq. ft.

2nd Floor

1,343 sq. ft.

Porch, Combined

141 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

59' 11"

Max Ridge Height

26' 5"

Garage

Type

Attached

Area

473 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cape Cod

Traditional

Special Features

Butler Walk-in Pantry

Flex Room

Jack & Jill Bath

Laundry - Main Level

Library/Study
