Plan 31559GF

Two-story Cottage with First-floor Master

Heated S.F.
1,999
Beds
4
Baths
2.5
Stories
2

Floor Plan

Plan 31559GF

Main Level
Main Level
2nd Floor
2nd Floor

Plan 31559GF

M-F 9am-5pm EST |

1-203-761-8500

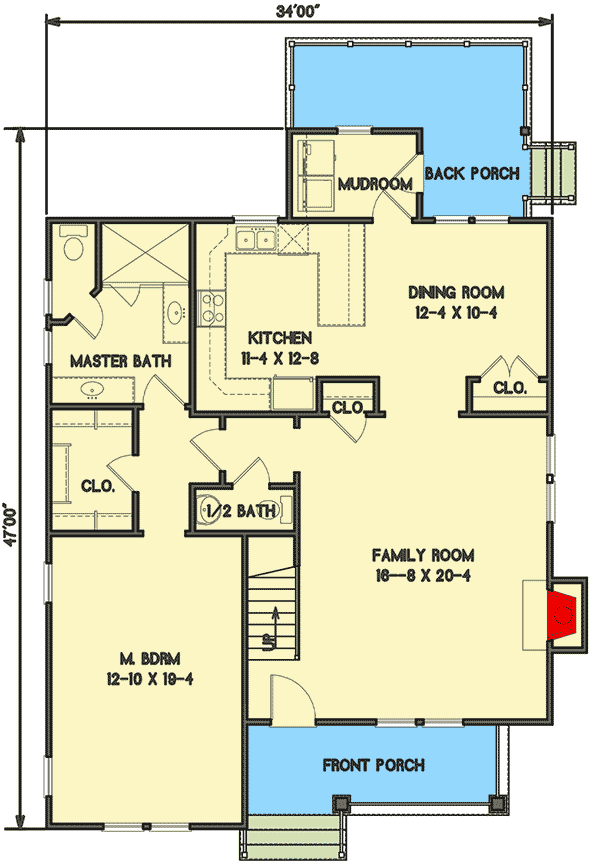

Main Level

Plan 31559GF: Two-story Cottage with First-floor Master - Floor Plan - Main Level - Cottage, Country, Vacation

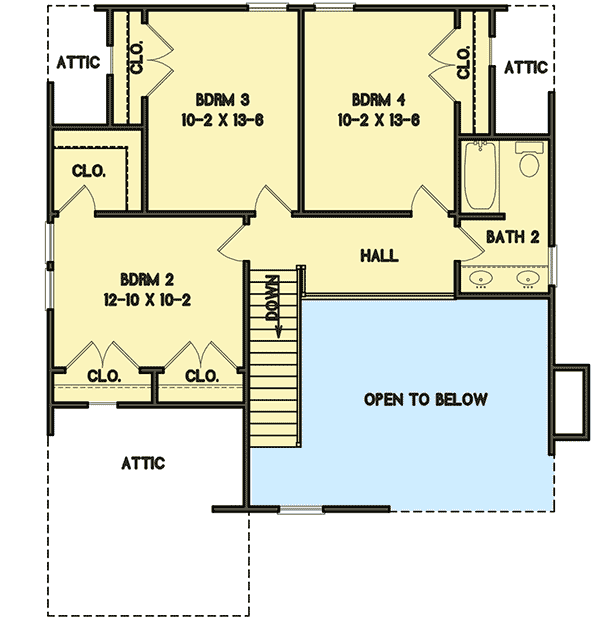

2nd Floor

Plan 31559GF: Two-story Cottage with First-floor Master - Floor Plan - 2nd Floor - Cottage, Country, Vacation

Plan Details

  • Just under 2,000 square feet of charm is presented with this two-story cottage plan. The master bedroom is located on the first floor, considering your future needs, while offering quick and easy access.
  • The formal entry leads into the family room, where a fireplace lends a sense of comfort and double-height ceilings make the room feel larger. The kitchen rests towards the rear of the home and opens to the dining room.
  • Wrap-around counters offer a counter-height seating option, and the adjacent mudroom provides access to the back porch.
  • Retreat to the master bedroom, and discover a walk-in closet and 4-fixture bathroom with dual sinks and a commode room.
  • Upstairs, discover three family bedrooms that share the 4-fixture bath at the end of the hall.

What's Included

  • Cover Sheet: Shows typical notes and requirements.

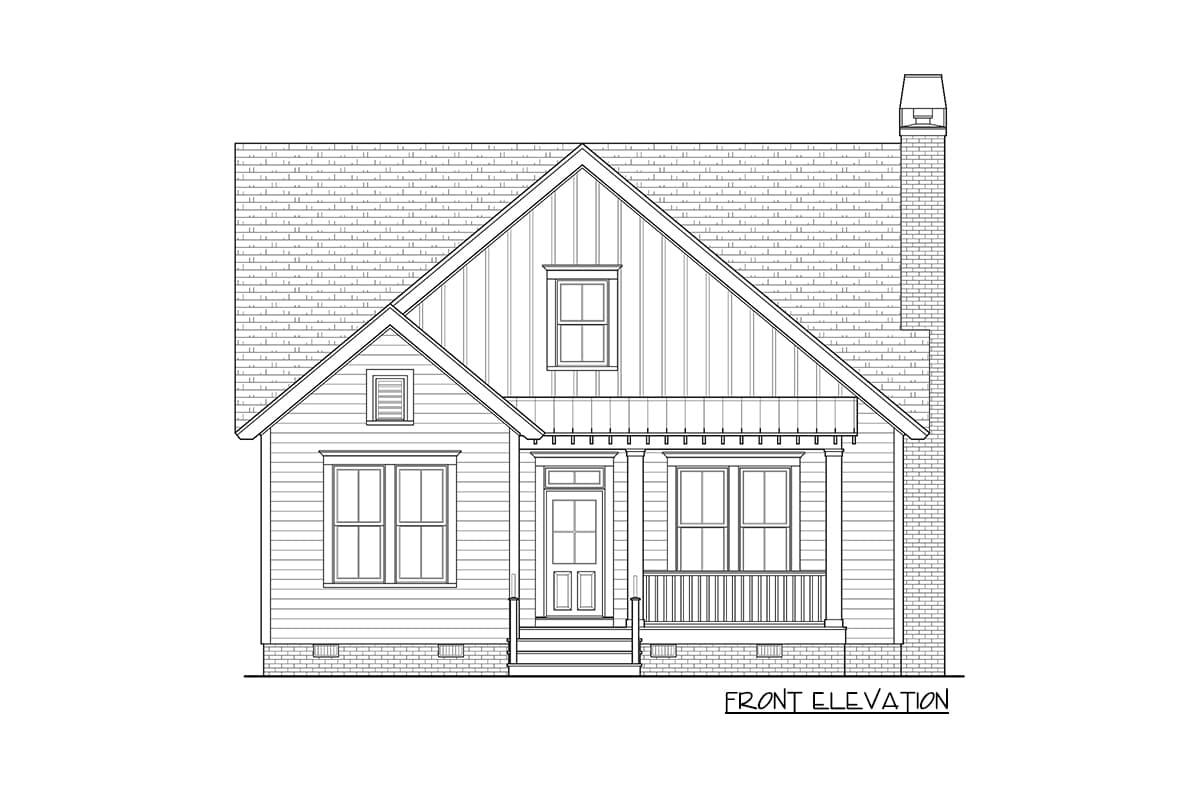

  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Foundation Plan: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Typical wall section
  • Typical stair section (if applicable)
  • Typical shelving and cabinet details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - handled by your subcontractors
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - handled by your subcontractors
  • Energy calculations - handled locally when required
  • Electrical Layout - handled by your builder and subcontractor

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,999 sq. ft.

1st Floor

1,305 sq. ft.

2nd Floor

694 sq. ft.

Porch, Front

105 sq. ft.

Porch, Rear

142 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

47' 0"

Max Ridge Height

28' 5"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,999 sq. ft.

1st Floor

1,305 sq. ft.

2nd Floor

694 sq. ft.

Porch, Front

105 sq. ft.

Porch, Rear

142 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

47' 0"

Max Ridge Height

28' 5"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
