Two-story Craftsman House Plan with Main-floor Master

Plan 64487SC

  • 3,117

    Heated s.f.

  • 4-6

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • The welcoming front porch of this two-story, Craftsman house plan spans the width of the home, in true farmhouse fashion, contributing to the great curb appeal.
  • The two-story ceilings in the foyer offer a feeling of grandeur immediately upon entering, and carry through to the living room. French doors swing open to invite you onto the covered patio, complete with a grilling station.
  • The chef's kitchen boasts an oversized island to maximize prep space and the adjoining walk-in pantry lends plenty of storage space.
  • The design provides a master bedroom on the main floor, which considers the homeowner's future needs. The attached en suite includes 5 fixtures and a linen closet.
  • Upstairs, a bridge-style hallway connects the two bedrooms, while overlooking the living room and foyer below. Each bedroom includes a full bath, and the option of adding a bonus room on either side offers the homeowner flexibility.
  • The 3-car garage provides entry from the side and opens into a spacious mudroom with a half bath and built-in lockers.

This plan includes the following details:

  • Cover Sheet - project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.
  • Foundation/basement plan - showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.
  • Main Level Plan - floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.
  • Upper Level Plan (if needed) - same information as Main Level.
  • Roof Plan - layout with pitch markers, dimensions and notes.
  • Main Level Electrical Plan - electrical outlets, switches and light locations shown.
  • Upper Level Electrical Plan (if needed) - electrical outlets, switches and light locations shown.

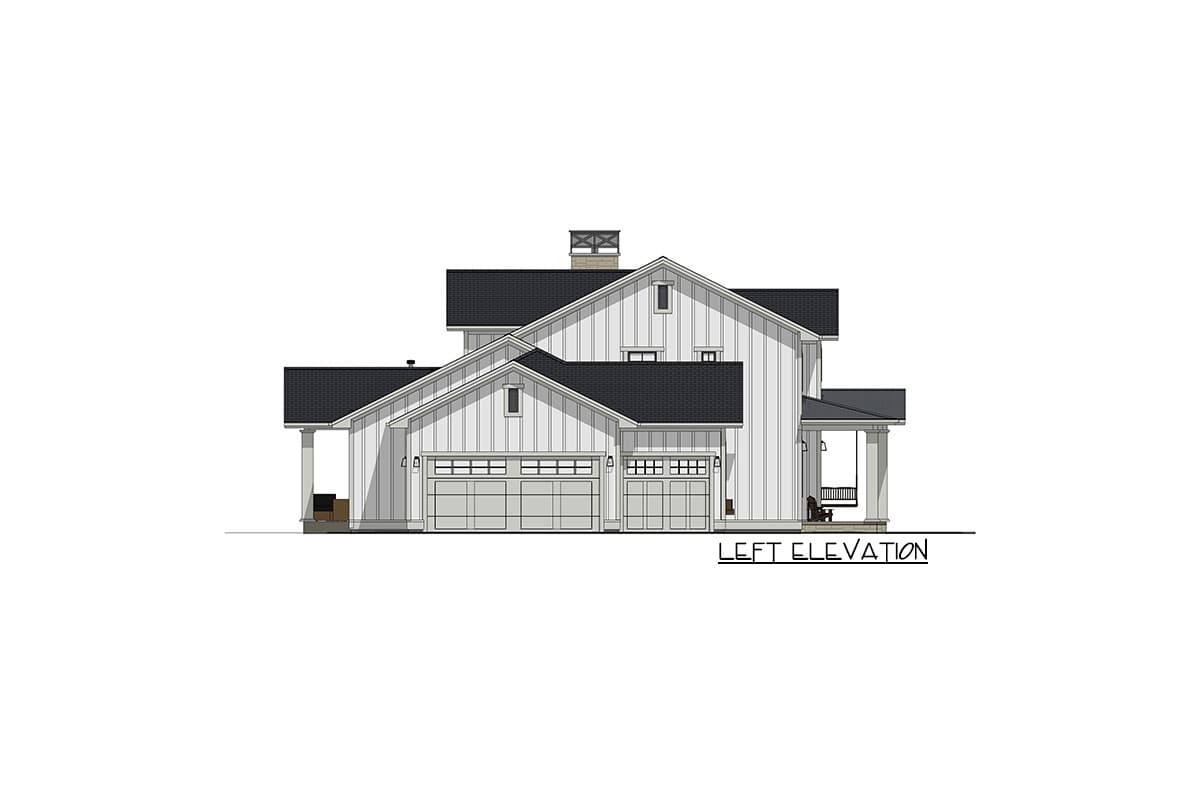

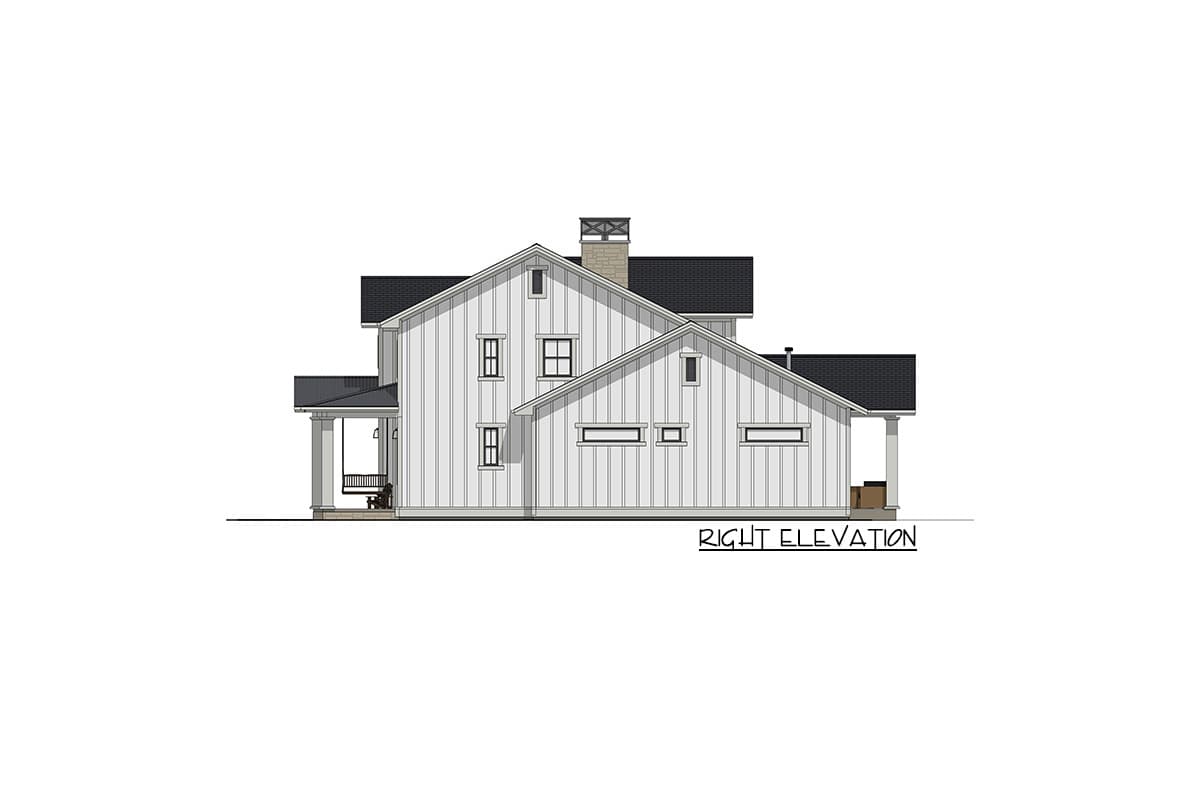

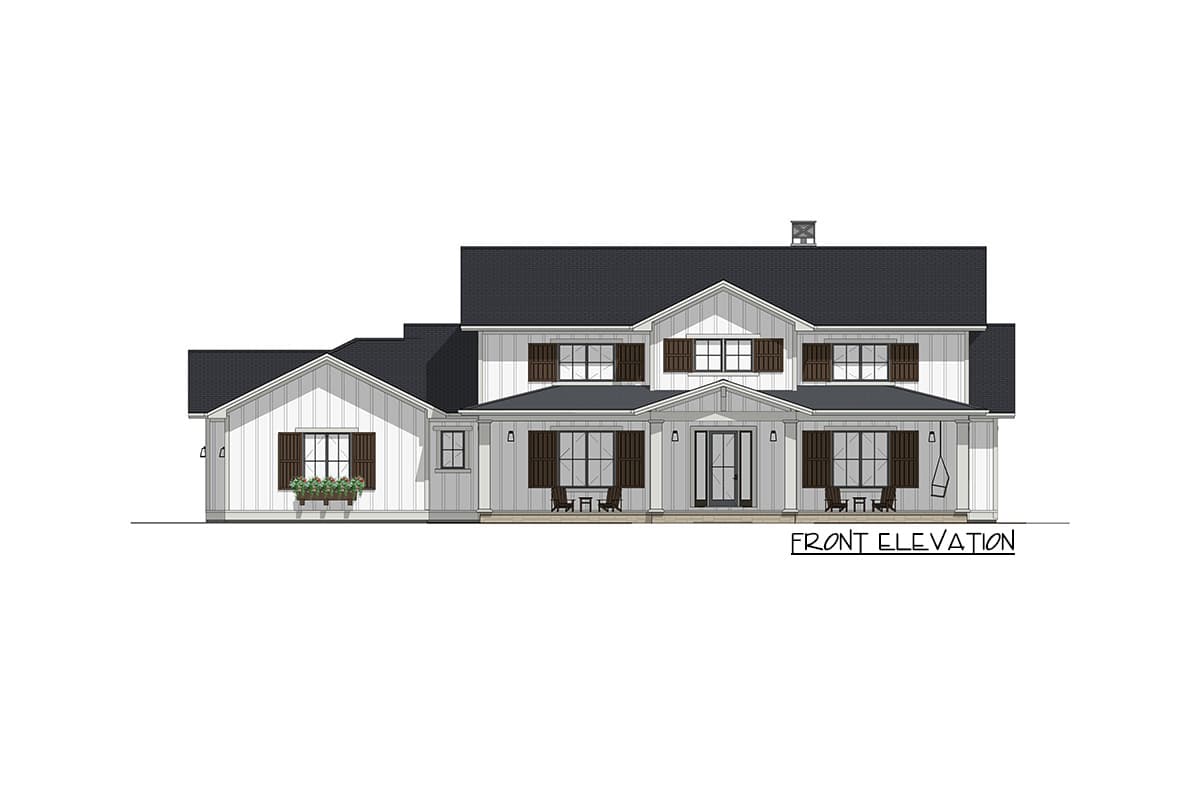

  • Exterior Elevations - Elevations of the Front and Right side with notes, dimensions and material designations.

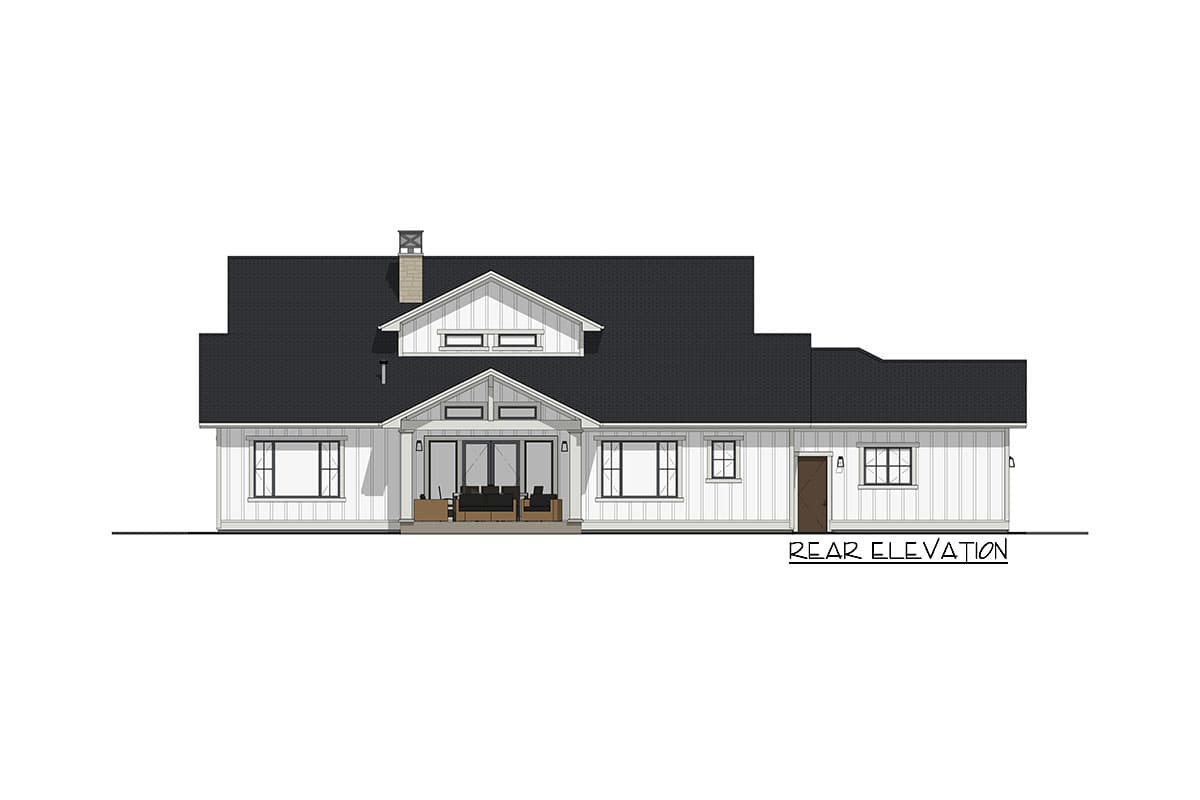

  • Exterior Elevations - Elevations of the Back and Left side with notes, dimensions and material designations.
  • Sections and details - One or more building sections to show vertical relationships and construction plate heights, details as needed.
  • Interior Elevations and Details - mostly millwork, fireplace and other items that need additional explanation, details as needed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

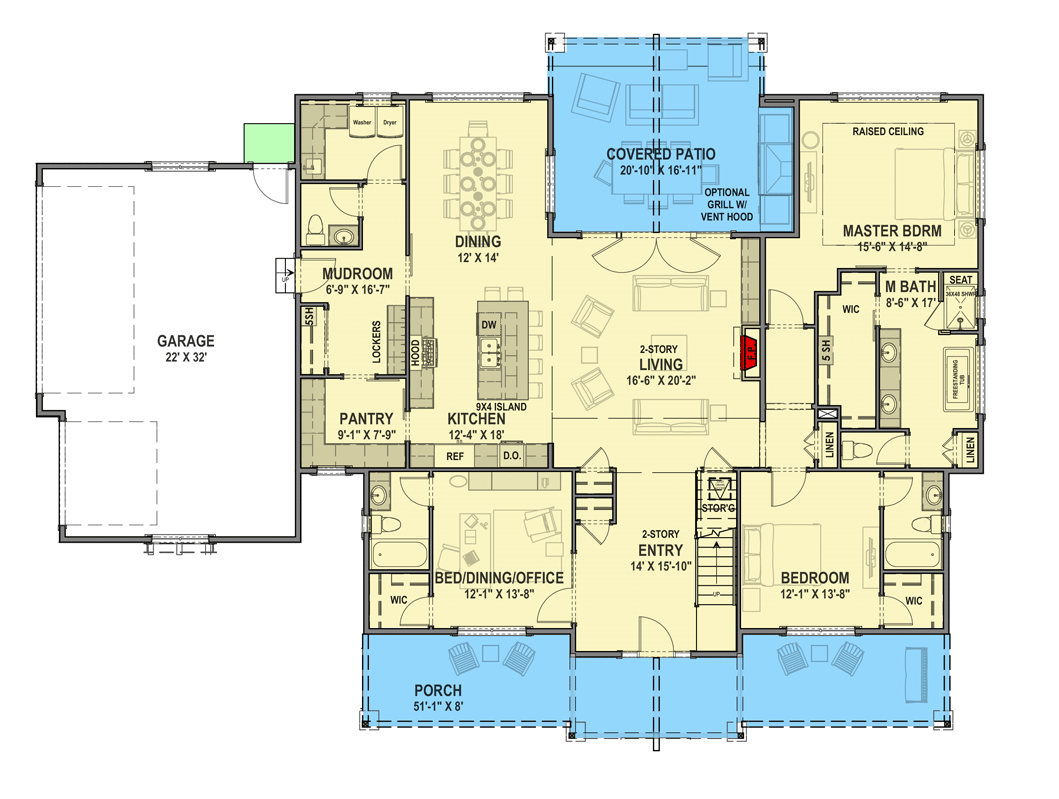

Two-story Craftsman House Plan with Main-floor Master - 64487SC floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

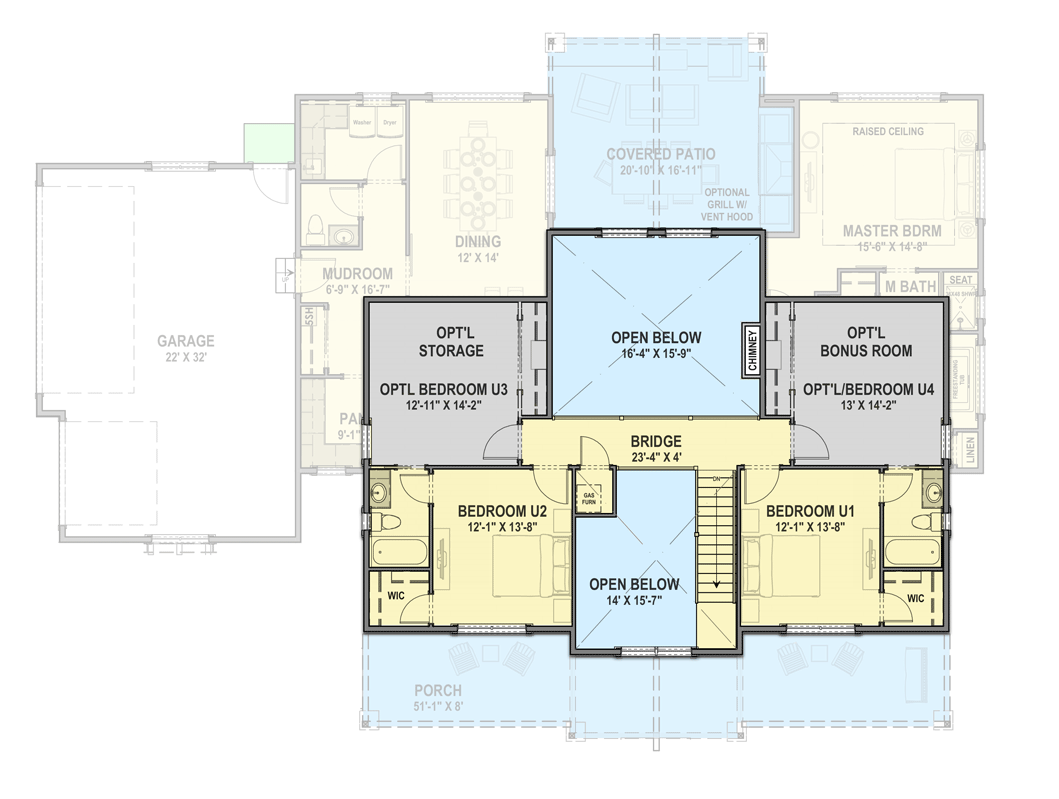

Two-story Craftsman House Plan with Main-floor Master - 64487SC floor plan - 2nd Floor

Two-story Craftsman House Plan with Main-floor Master

  • 3,117

    Heated s.f.

  • 4-6

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,117 sq. ft.
  • 1st Floor: 2,475 sq. ft.
  • 2nd Floor: 642 sq. ft.

Dimensions

  • Width: 82' 6"
  • Depth: 61' 0"
  • Max ridge height: 27' 4"

Beds/Baths

  • Bedrooms: 4, 5, or 6
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 725 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Walkout, Slab, Daylight, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Stick And Truss
