Plan 59143ND

Two-Story Great Room

1,635 3 3 2 2
Pageloader

Two-Story Great Room

Plan 59143ND

  • 1,635

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

  • Through the foyer, you'll notice the beautiful dining room before heading into the great room with fireplace.
  • Just steps away, the breakfast room and kitchen merge to form a second serving area.A unique bar and all the amenities can be found in this kitchen, perfect for the family chef.
  • The two-story great room is grand yet no overly large. A fireplace serves as a central focal point.
  • Transport yourself away and relax in your lovely master suite. The corner spa tub and huge walk-in closet are nice features.
  • Upstairs, two additional bedrooms share a full bath and complete this design.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

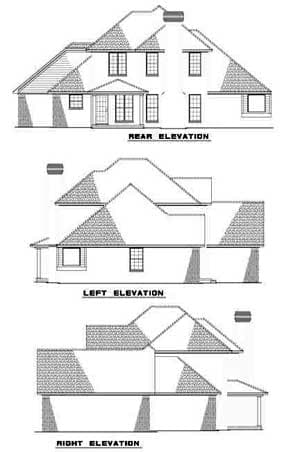

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style

Special features



Two-Story Great Room

  • 1,635

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $580
  • 5 Sets $630
  • 8 Sets $720
  • Reproducible Set $1,105
  • PDF - single-use $1,105
  • CAD $1,700
  • View all purchase option online

About This Plan

  • Through the foyer, you'll notice the beautiful dining room before heading into the great room with fireplace.
  • Just steps away, the breakfast room and kitchen merge to form a second serving area.A unique bar and all the amenities can be found in this kitchen, perfect for the family chef.
  • The two-story great room is grand yet no overly large. A fireplace serves as a central focal point.
  • Transport yourself away and relax in your lovely master suite. The corner spa tub and huge walk-in closet are nice features.
  • Upstairs, two additional bedrooms share a full bath and complete this design.

Floor Plans

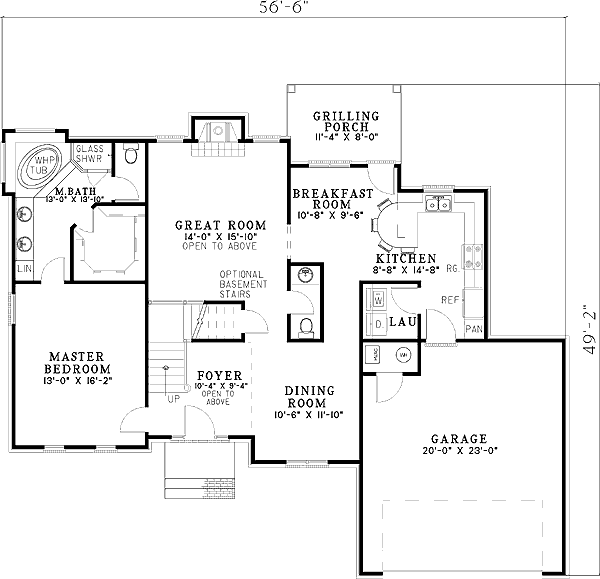

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,635 sq. ft.
  • 1st Floor: 1,280 sq. ft.
  • 2nd Floor: 355 sq. ft.
  • Porch, Rear: 90 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 56' 6"
  • Depth: 49' 2"
  • Max ridge height: 26' 8"

Garage

  • Type: Attached
  • Area: 480 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
