Plan 710046BTZ
Two-Story House Plan with Vaulted Keeping Room
Heated S.F.
3,629
Beds
3-5
Baths
4
Stories
2
Cars
3
What's Included
Plan Details
  • Beam-accented gables with board-and-batten accents give this 2-story house plan cozy cottage-like curb appeal.

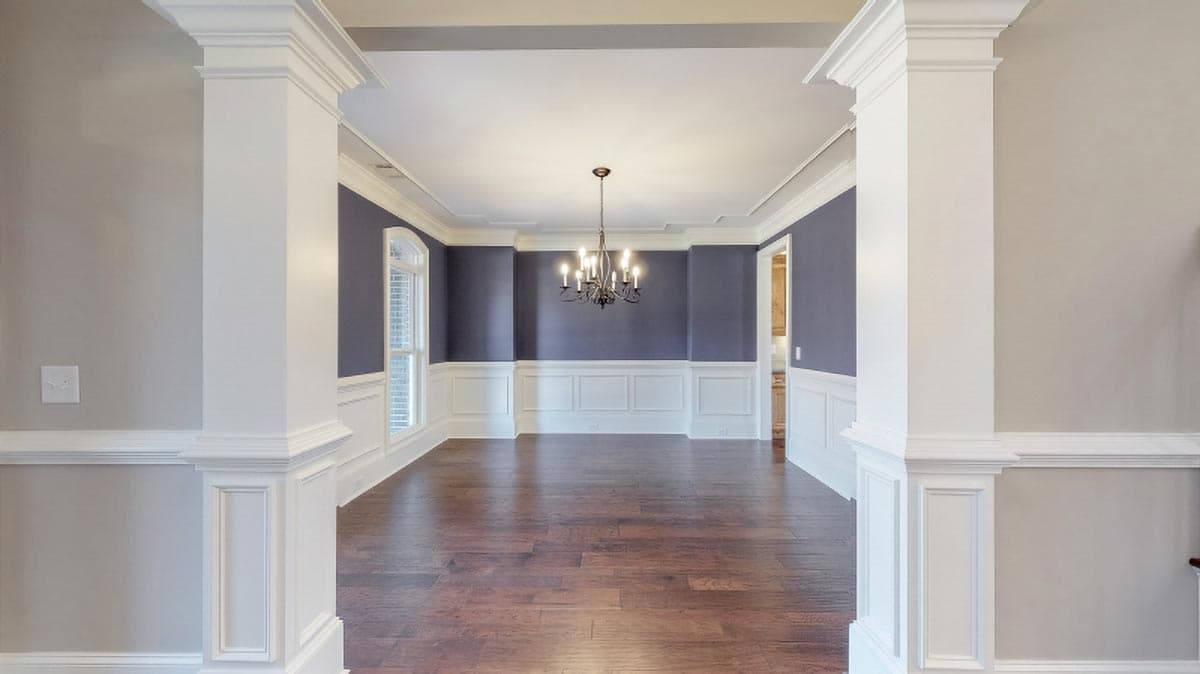

  • One step inside and it's easy to see that its character doesn't stop at the curb. The foyer gives you front-to-back views and is open to the dining room on the left.

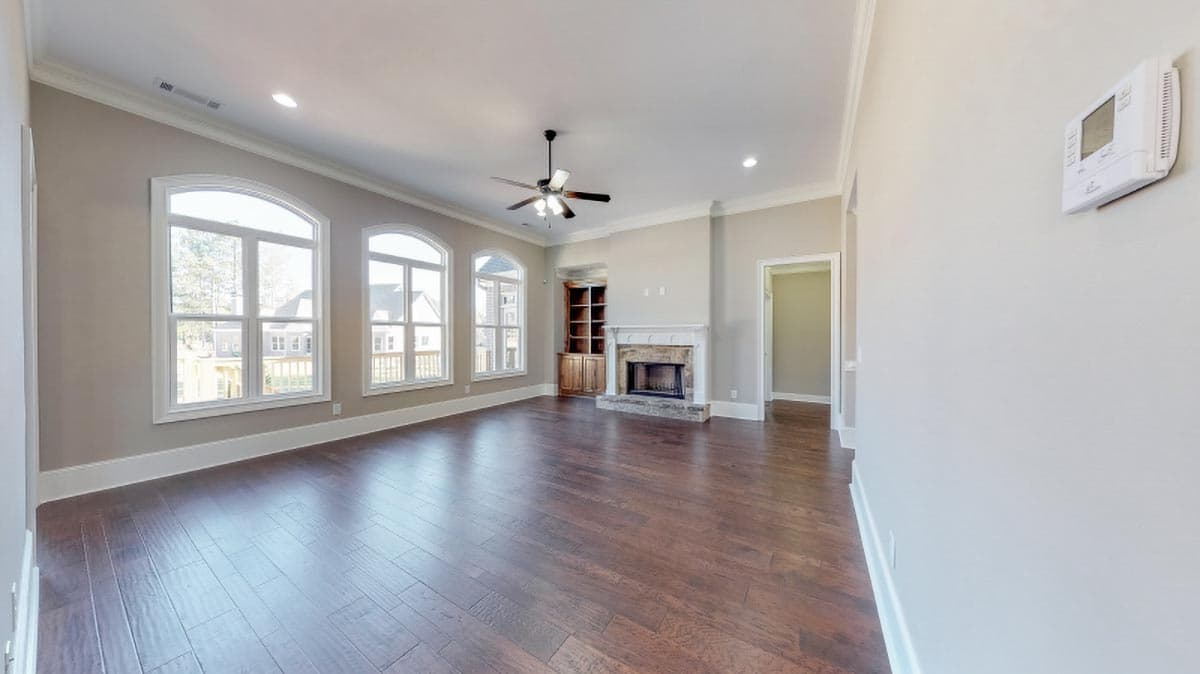

  • Coffered ceilings and built-in cabinetry make the family room extra special. Windows lining the back wall give you great views.

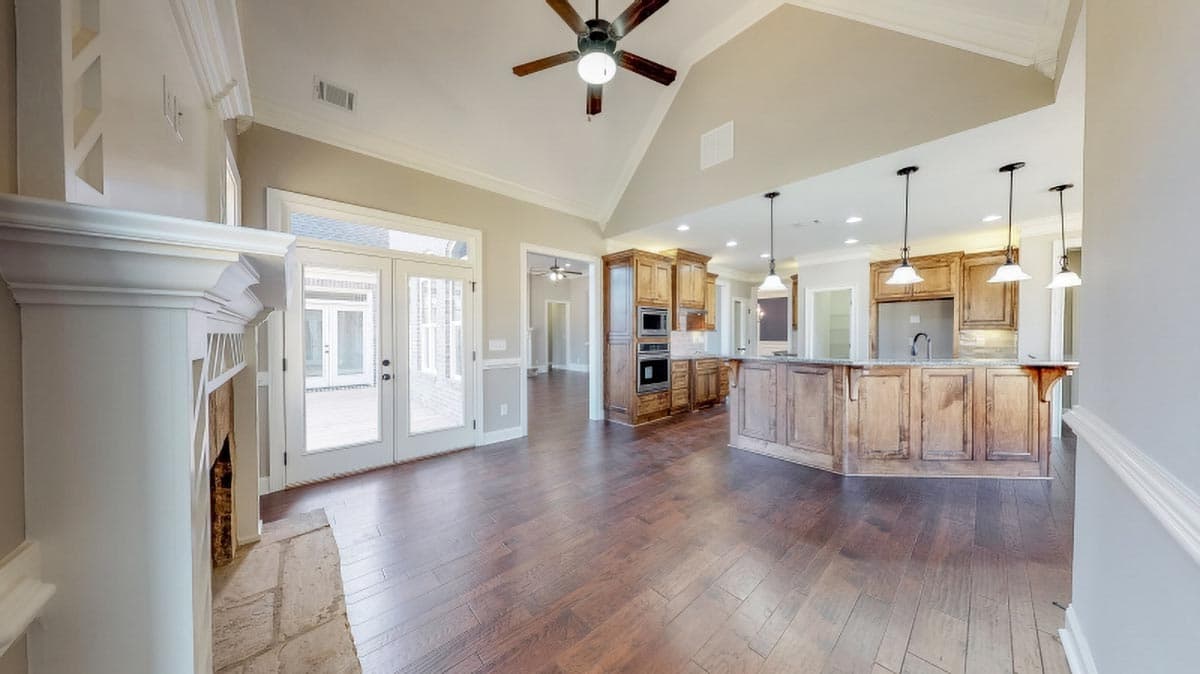

  • The kitchen overlooks a gracious breakfast area, as well as a fire-lit keeping room, providing plenty of space for family time or entertaining. A screened porch is accessed off this area as well providing the perfect opportunity to take the party outside.

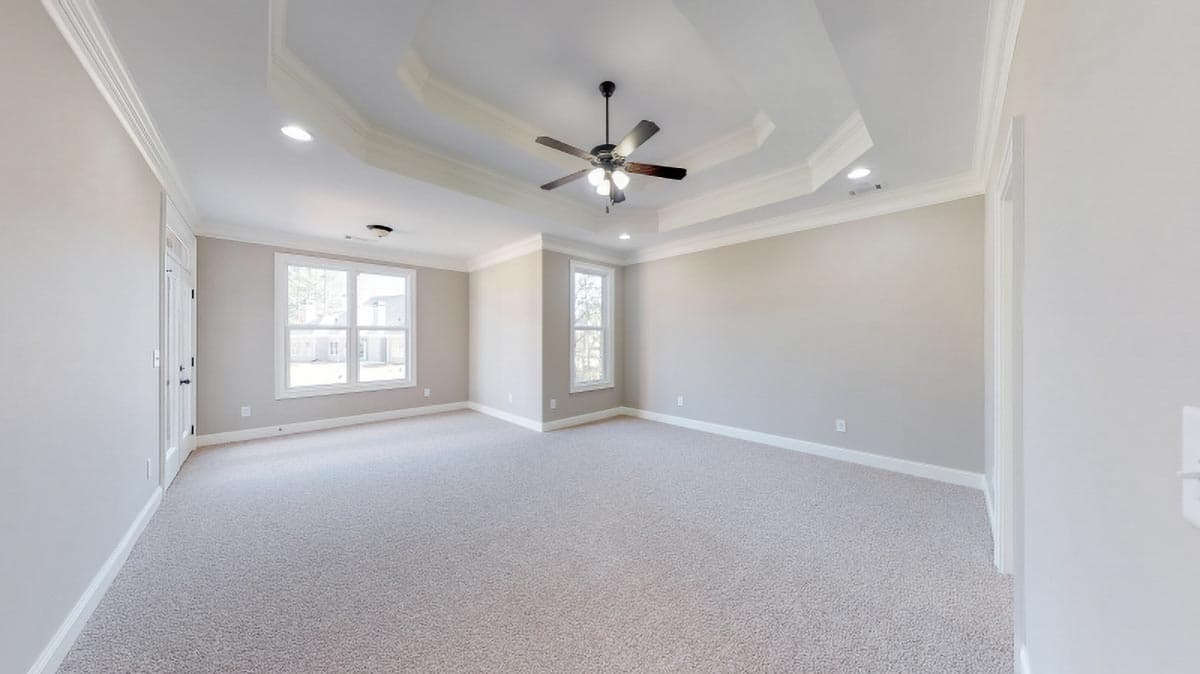

  • The master suite has a large sitting area with access to the outdoors. The bath has dual vanities and there are two walk-in closets as well. The master suite is the only bedroom on this floor if you don't use the vaulted home office as a bedroom.
  • A children's retreat upstairs makes the perfect playroom or can be easily used as a fourth bedroom or guest suite.
What's Included

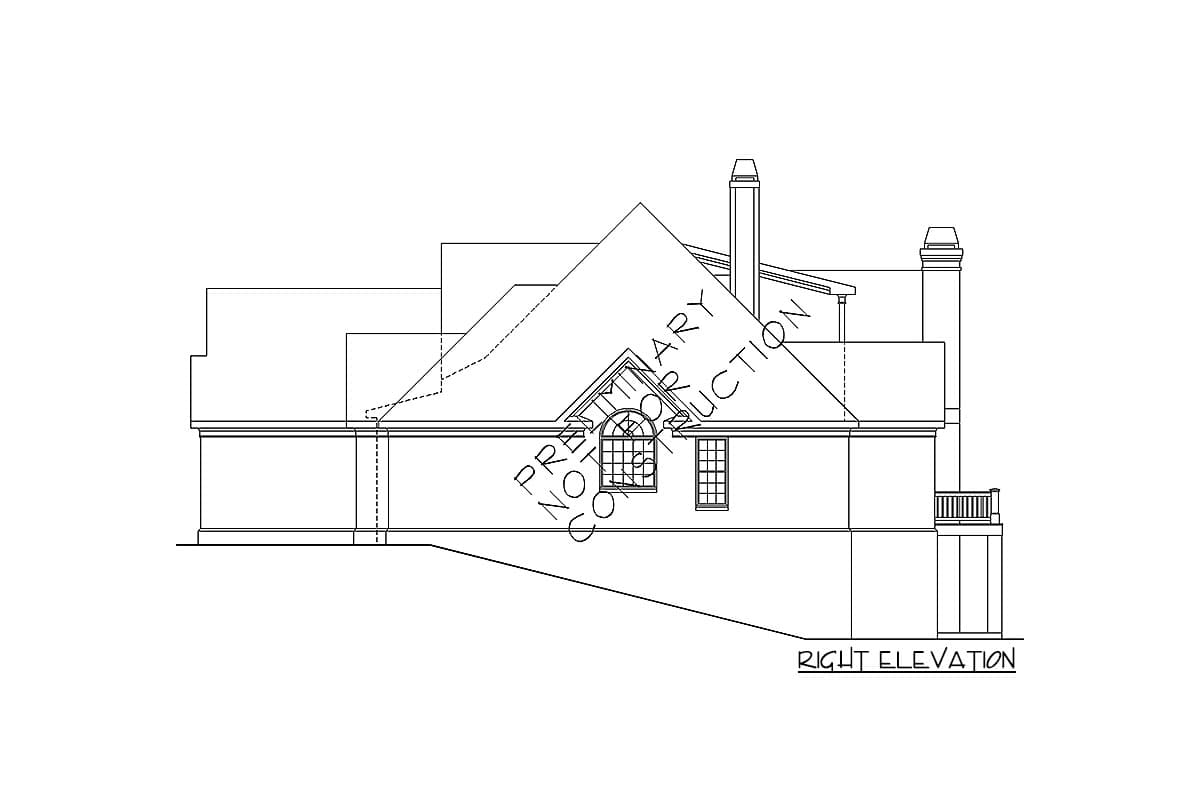

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two-Story House Plan with Vaulted Keeping Room

  • 3,629

    Heated s.f.

  • 3-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

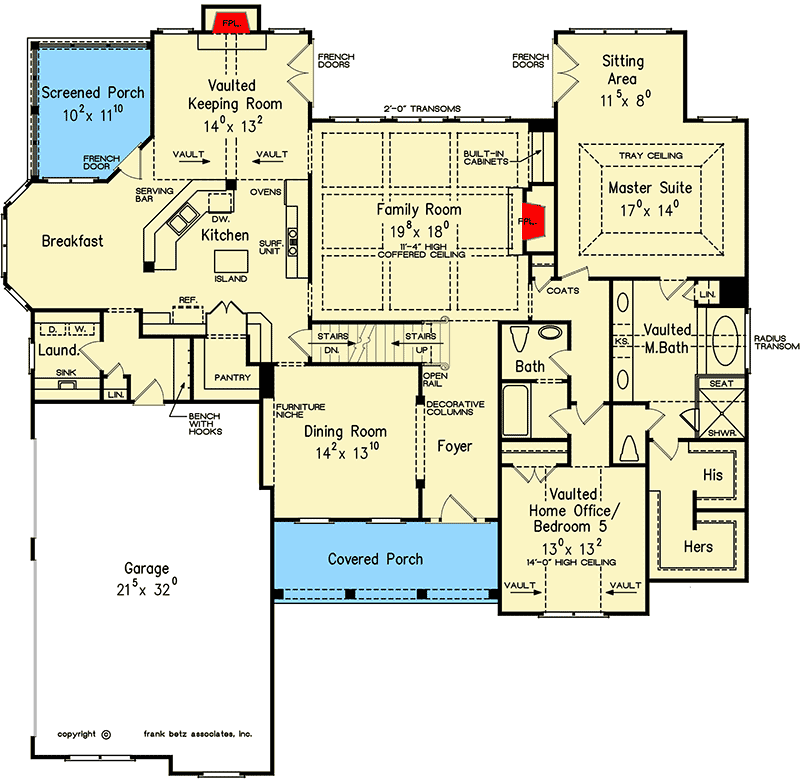

Floor Plan

  • Main Level

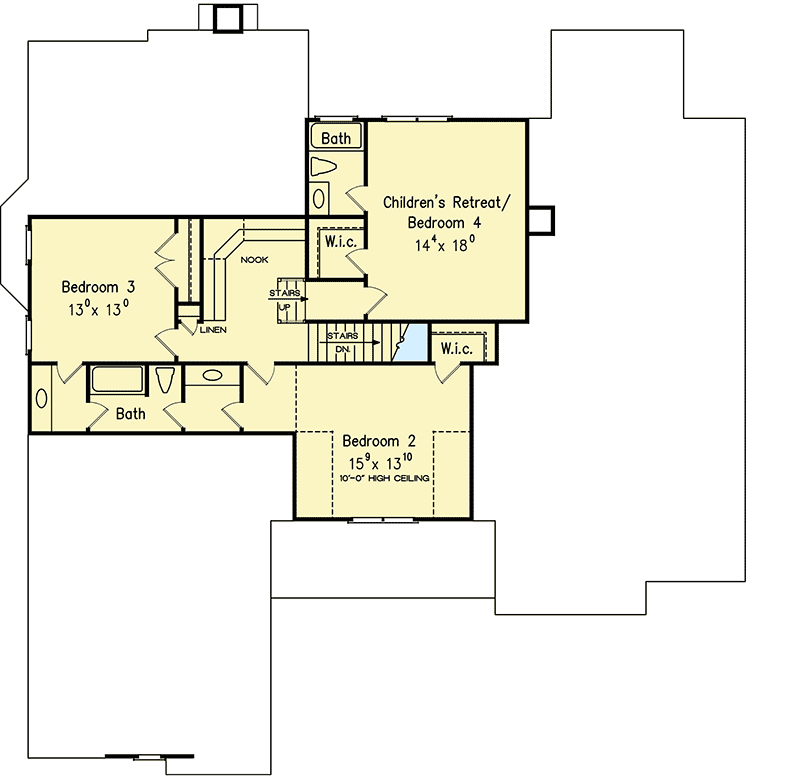

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,629 sq. ft.
  • 1st Floor: 2,499 sq. ft.
  • 2nd Floor: 1,130 sq. ft.

Dimensions

  • Width: 67' 6"
  • Depth: 69' 10"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 711 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
