Plan 290145IY
Two-story New American Craftsman Home Plan with Optional 3-Bed Apartment Downstairs
Heated S.F.
2,365
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

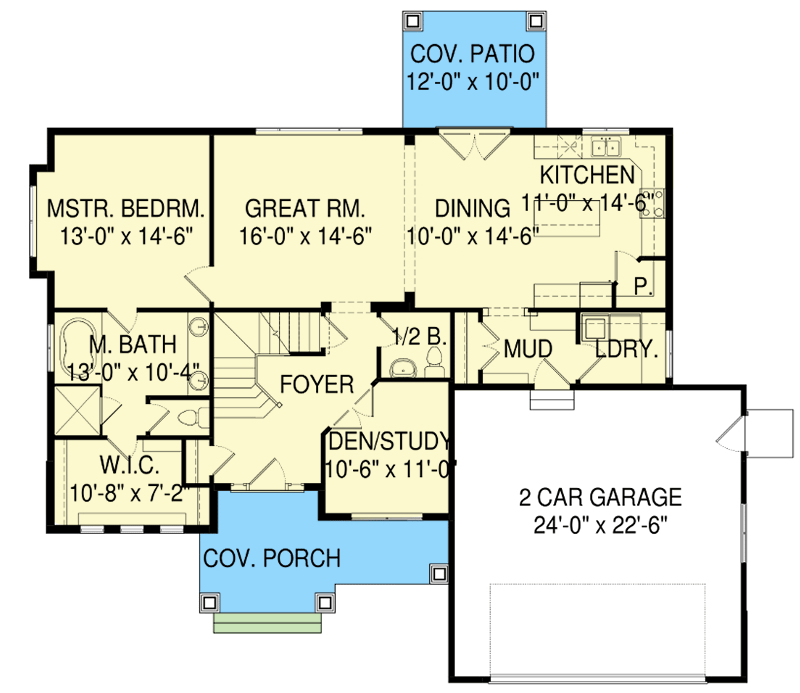

Two-story New American Craftsman Home Plan with Optional 3-Bed Apartment Downstairs - 290145IY floor plan - Main Level
2nd Floor
Reverse Floor Plan

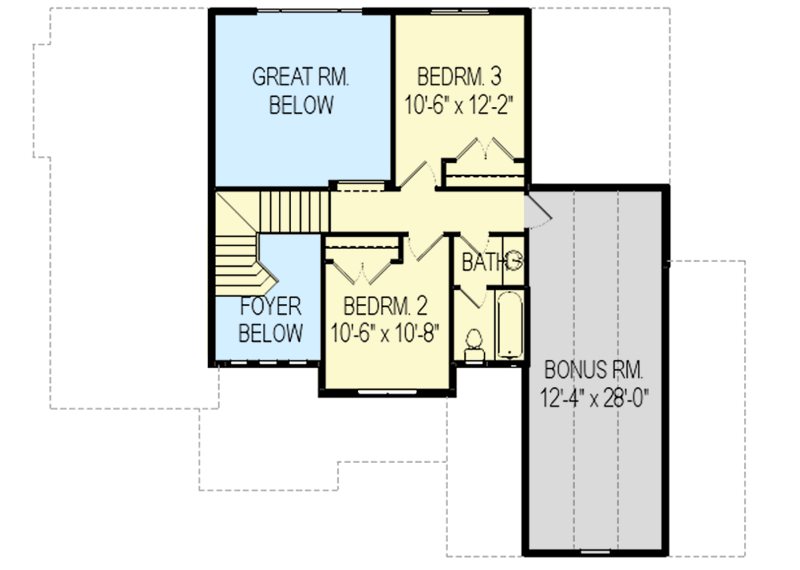

Two-story New American Craftsman Home Plan with Optional 3-Bed Apartment Downstairs - 290145IY floor plan - 2nd Floor
Optional Lower Level
Reverse Floor Plan
Two-story New American Craftsman Home Plan with Optional 3-Bed Apartment Downstairs - 290145IY floor plan - Optional Lower Level
Plan Details
  • Three tapered columns support the front porch of this two-story, New American Craftsman home plan, clad in stone and stucco.
  • A coat closet can be found in the foyer, along with the 90-degree staircase and access to a quiet den. Towards the rear, discover an open great room with tall ceilings and an eat-in kitchen.
  • U-shaped cabinets, counters, and appliances surround a prep island in this spacious kitchen, and french doors off the dining area connect to a covered patio, perfect for a grill.
  • Enjoy the convenience of a main-level master bedroom, which includes a boxed-bay window, 5-fixture bath, and roomy walk-in closet. Bedrooms 2 and 3 reside upstairs, beside a full bath and bonus room.
  • Gain 1,389 square feet of living space with the optional lower-level apartment, boosting the bedroom count to six and including a living room, kitchen, and laundry room.
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Two-story New American Craftsman Home Plan with Optional 3-Bed Apartment Downstairs

  • 2,365

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,365 sq. ft.
  • 1st Floor: 1,514 sq. ft.
  • 2nd Floor: 851 sq. ft.

Dimensions

  • Width: 58' 4"
  • Depth: 56' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x6
