Plan 580117DFT
Two-Story New American Home Plan with Flex Room and RV Garage - 3228 Sq Ft
Heated S.F.
3,228
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 580117DFT

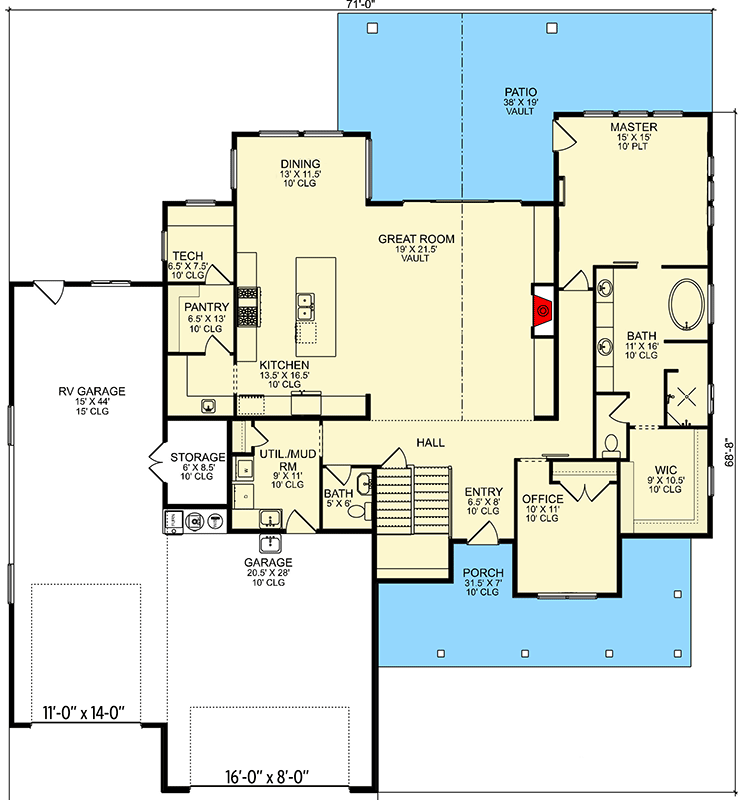

Main Level
slide image 0

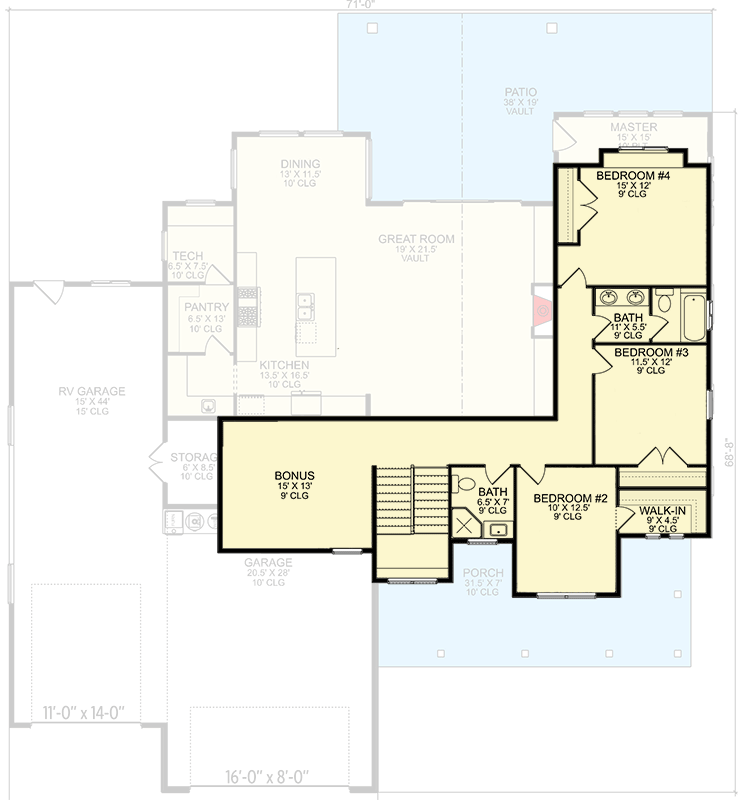

2nd Floor
slide image 1

Plan 580117DFT

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • This 4 bed, 3.5 bath New American home plan gives you 3,228 square feet of heated living and 3 car front load garage (1,331 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

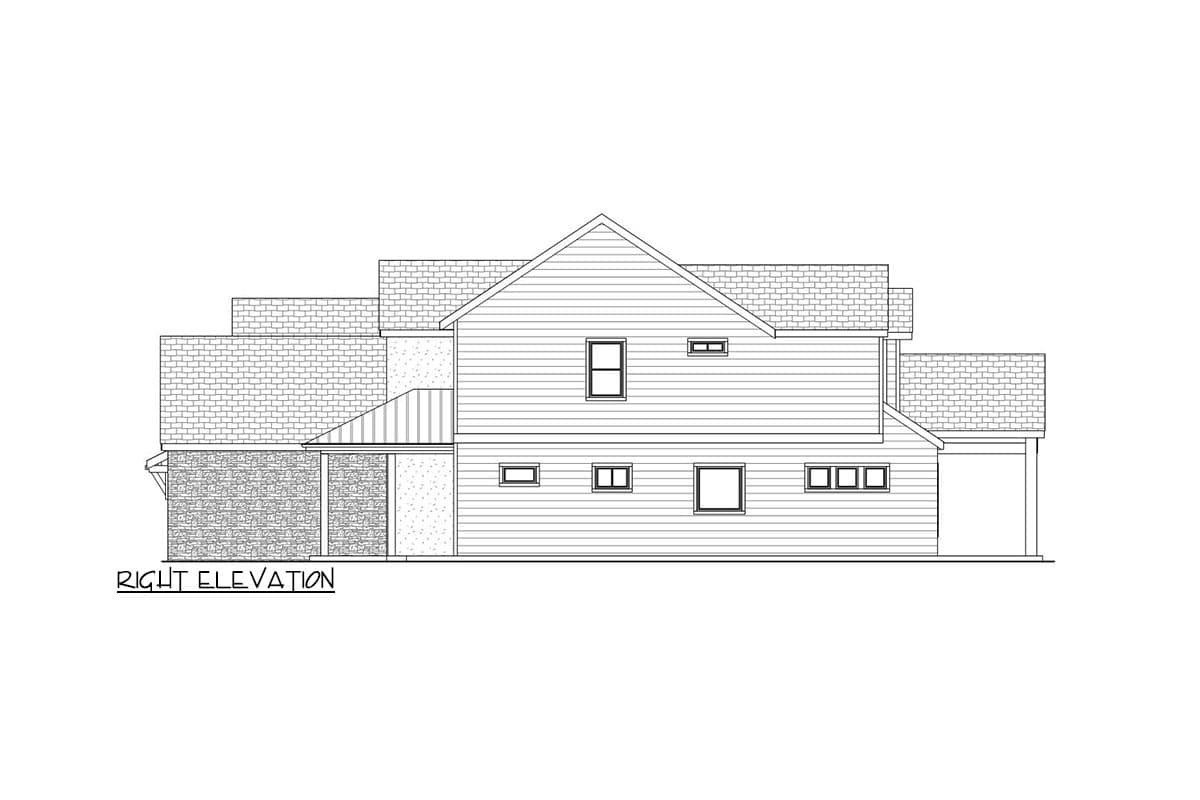

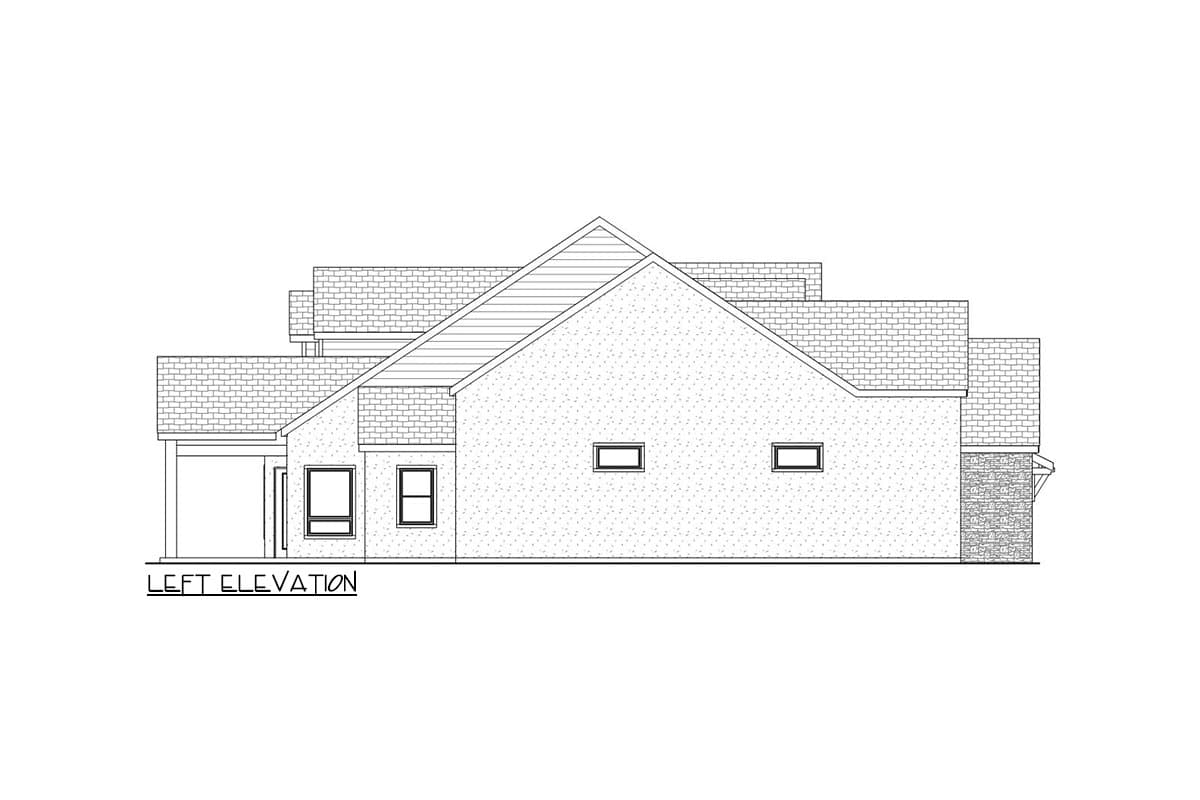

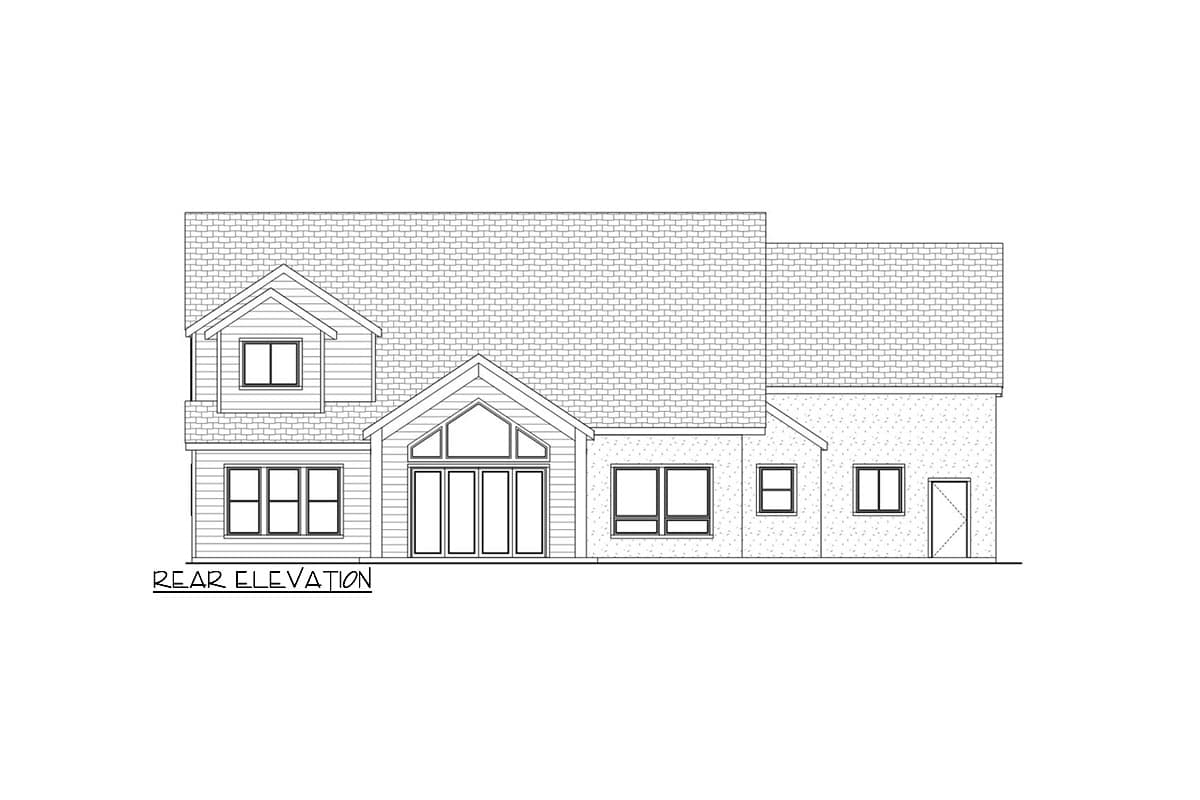

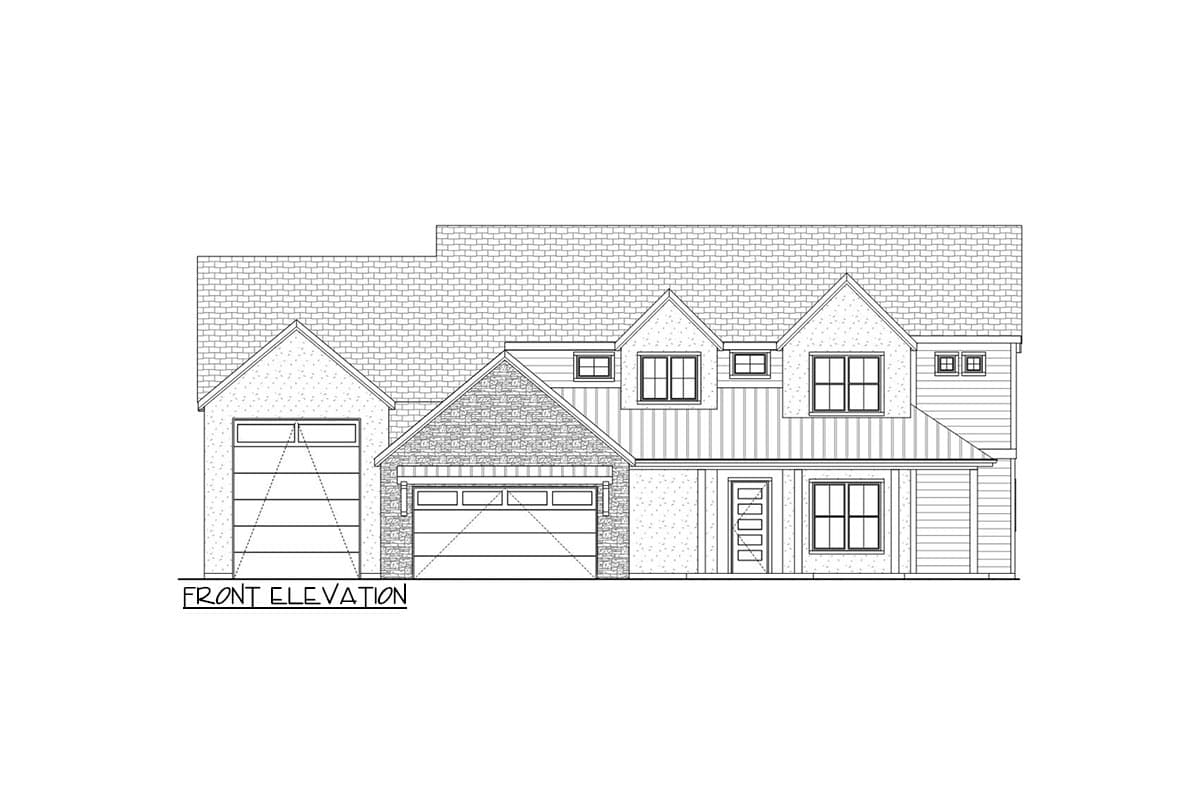

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,228 sq. ft.

1st Floor

2,151 sq. ft.

2nd Floor

1,077 sq. ft.

Porch, Front

264 sq. ft.

Covered Patio

340 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

71' 6"

Garage

Type

Attached, RV Garage

Area

1331 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

3,228 sq. ft.

1st Floor

2,151 sq. ft.

2nd Floor

1,077 sq. ft.

Porch, Front

264 sq. ft.

Covered Patio

340 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

71' 6"

Garage

Type

Attached, RV Garage

Area

1331 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

New American

Special Features

Bedrooms - Split

Bonus Room

Butler Walk-in Pantry

Flex Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Home Office
