Two-Story New American House Plan with Room Over Garage

Plan 86329HH

3,332
Heated s.f.
5
Beds
3.5
Baths
2
Stories
3
Cars

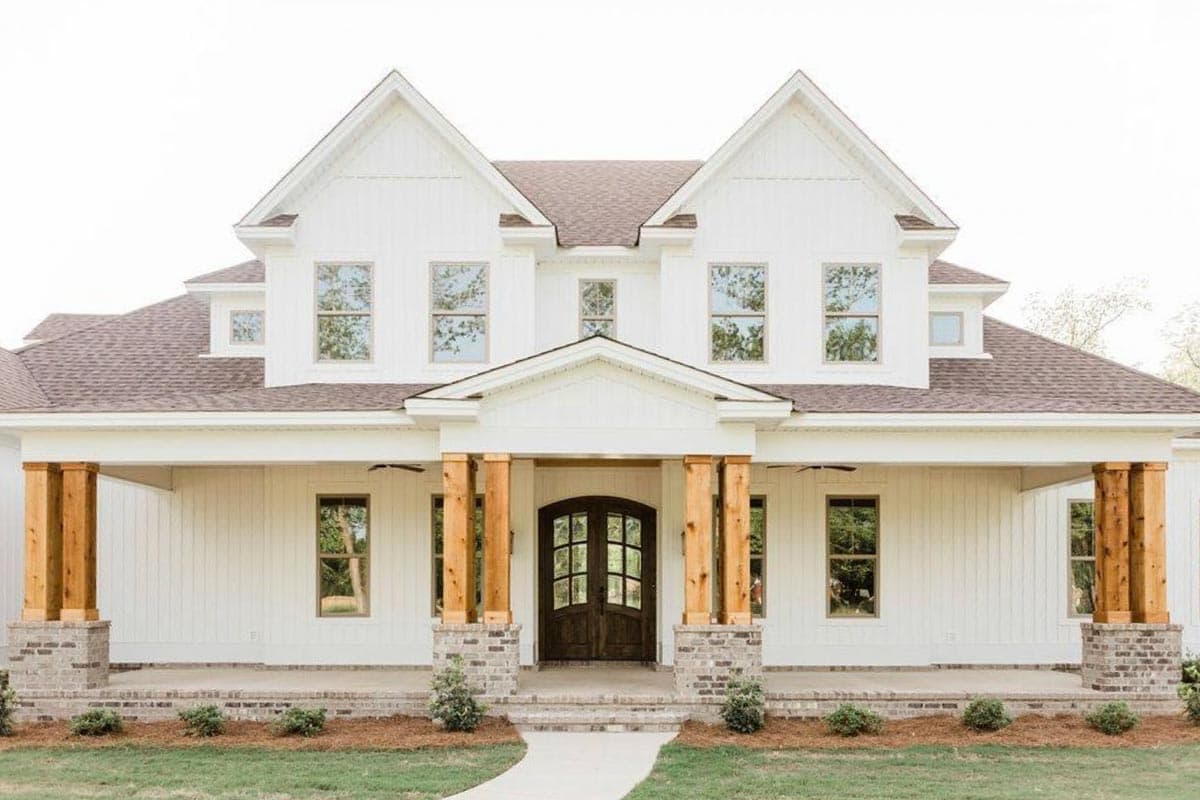

A wide front porch welcomes guests into this 5-bedroom, New American house plan, complete with board and batten siding and a brick skirt.

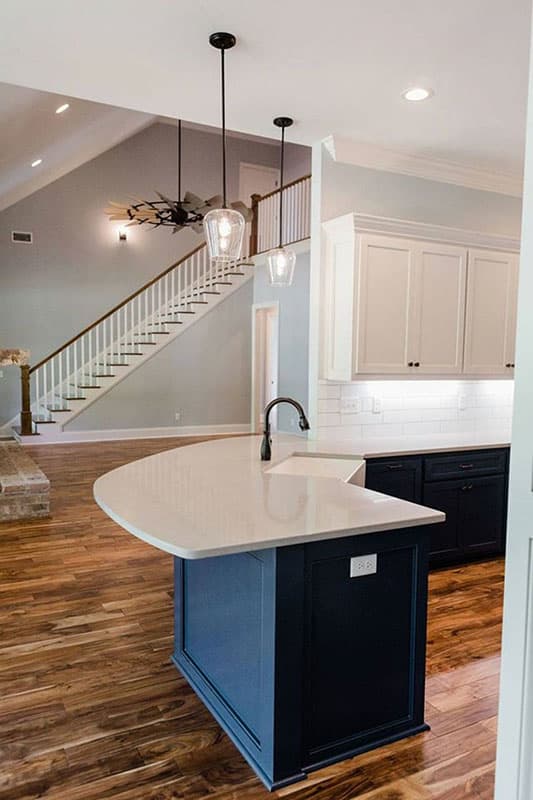

A curved counter offers bar top seating and links the family room and breakfast nook with the kitchen. The walk-in pantry sits across a butler's pantry on the way to the formal dining room, lending ample prep space and storage.

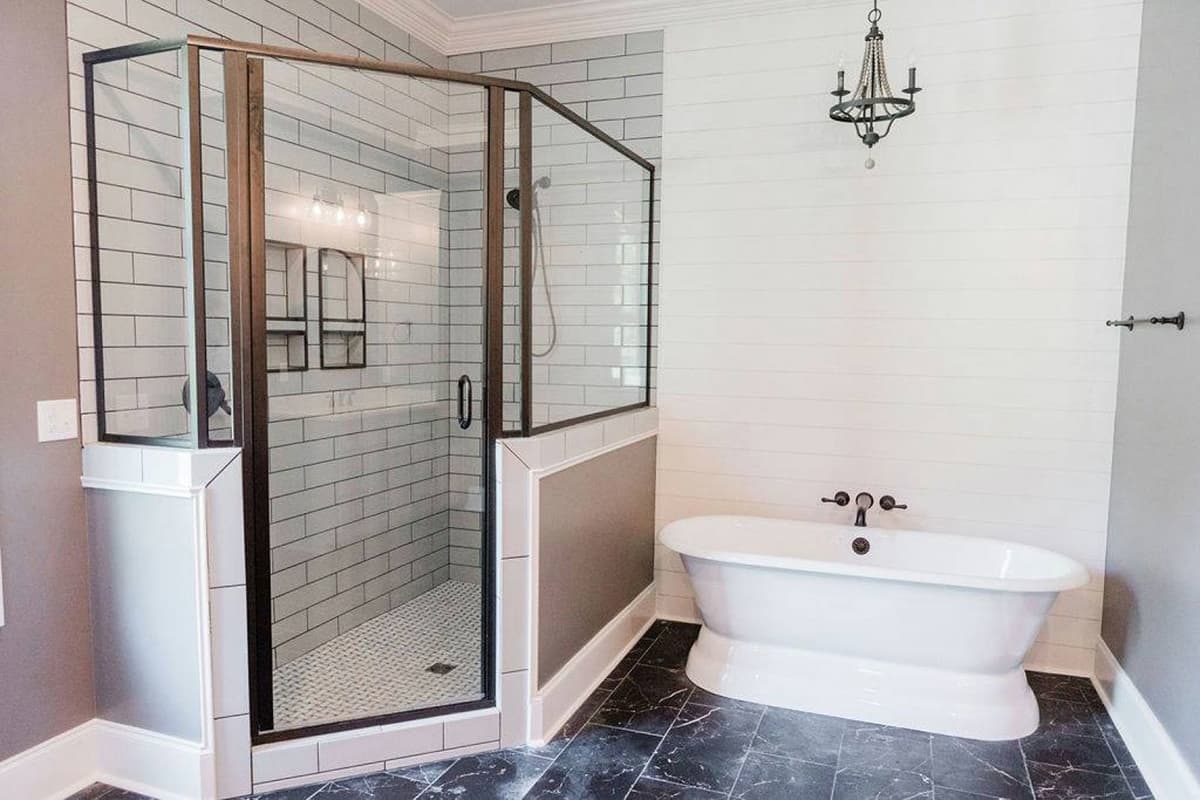

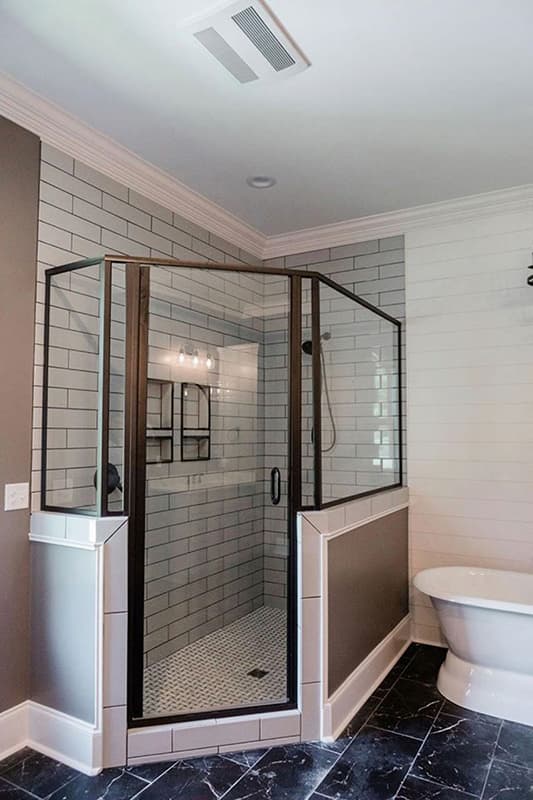

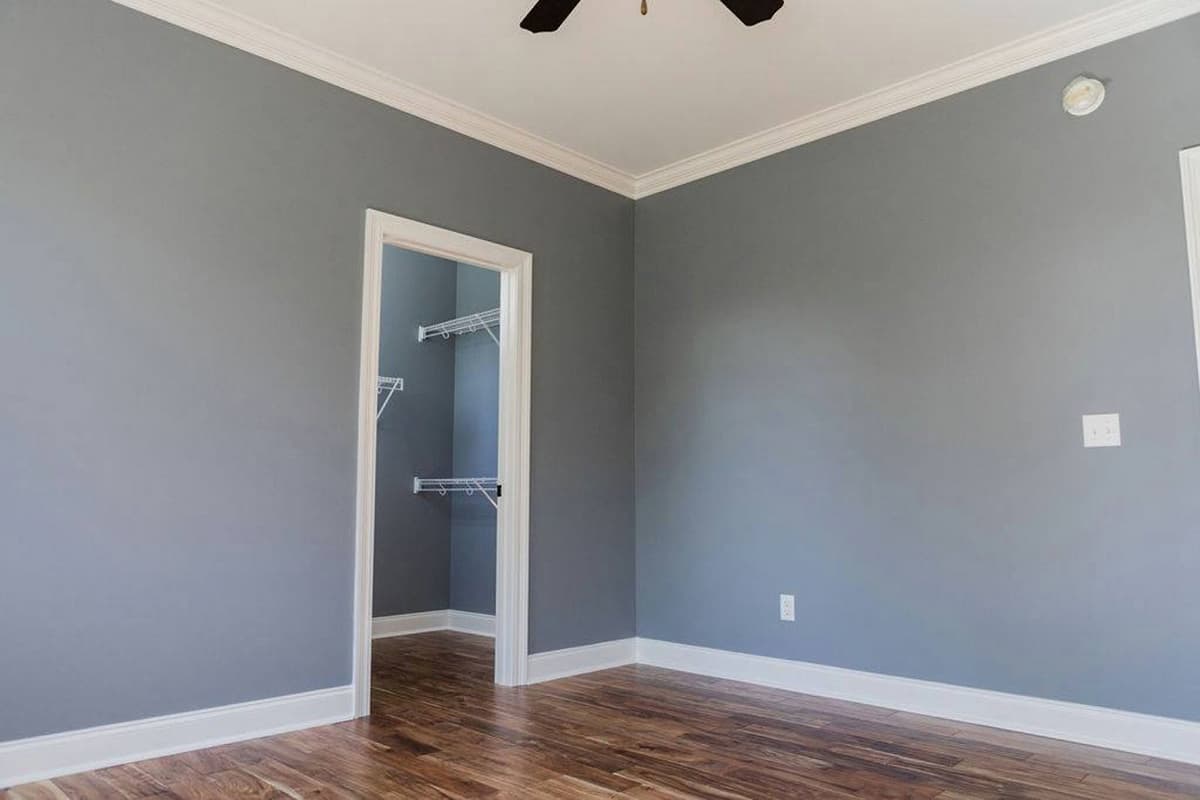

Retreat to the master bedroom, which boasts dual closets on either side of the hall leading to the 5-fixture bath. Two additional bedrooms on the main floor include walk-in closets and share the hall bath.
Upstairs, bedrooms 4 and 5 share a Jack-and-Jill bath, and a spacious bonus room awaits the homeowner's creative touch.
The drop zone just inside from the 3-car, side-entry garage provides a space for keys and personal items to remain organized.

Cover Sheet

Foundation plans

Elevations - complete with dimensions, ridge heights and special notes

Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes

Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions

Rafter Plan

Details

Interior Elevations - include applicable cabinetry, electrical and special construction notes

Floor Joist Plan - complete with spans, sizes and direction (if applicable)

Ceiling Joist - complete with spans, sizes and direction

Sections - complete with dimensions, notes and specifications

Electrical plan - complete wit layout, light fixtures, outlets and legend

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

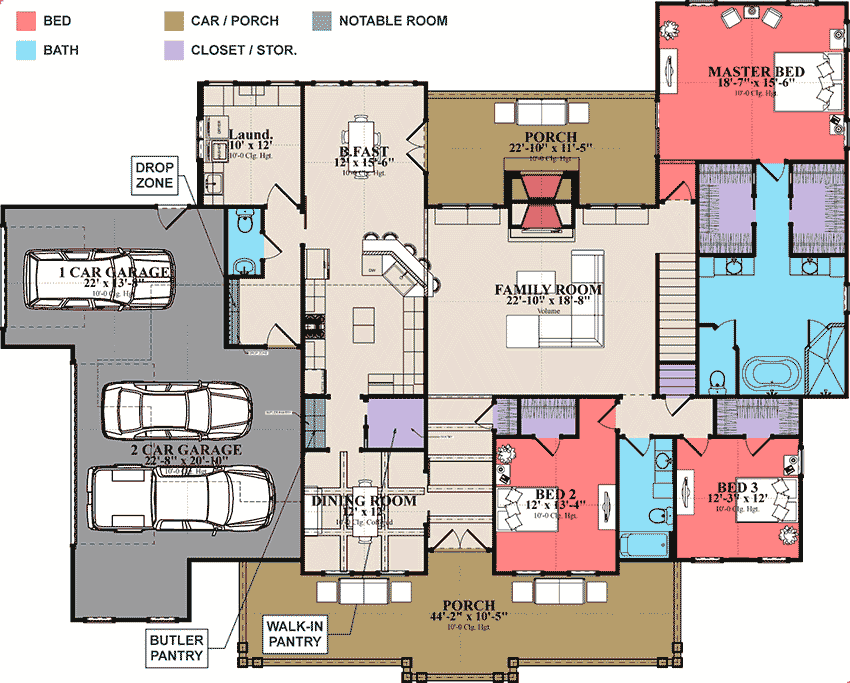

Two-Story New American House Plan with Room Over Garage - 86329HH floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

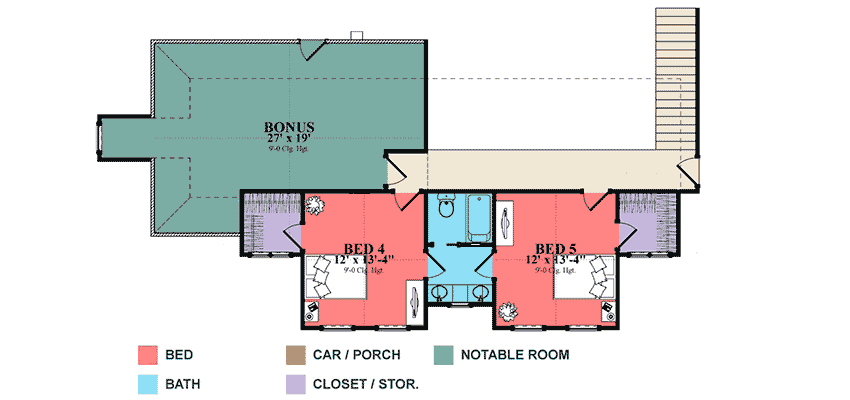

Two-Story New American House Plan with Room Over Garage - 86329HH floor plan - 2nd Floor
