Two-story New American House Plan with Second Floor Family Room

Heated S.F.
3,134
Beds
4
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 280064JWD

Main Level
Main Level
2nd Floor
2nd Floor

Plan 280064JWD

M-F 9am-5pm EST |

1-203-761-8500

Main Level

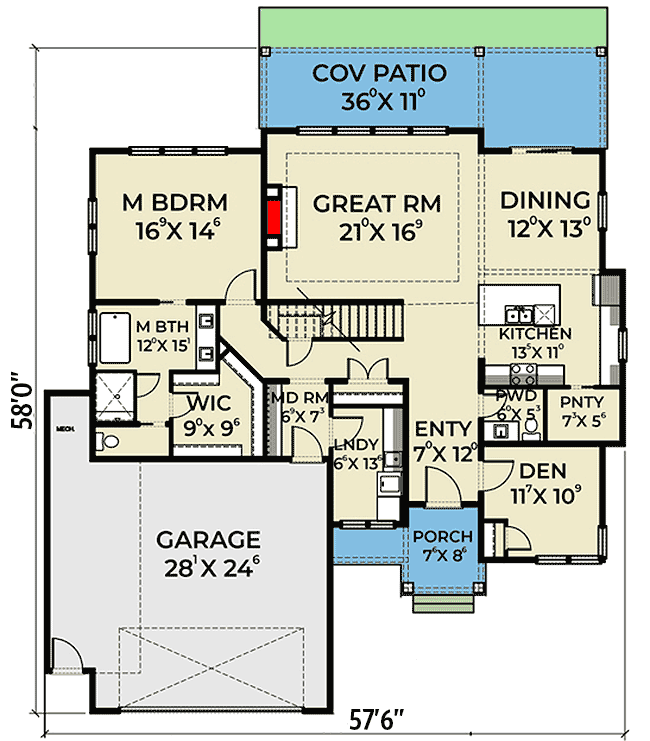

Plan 280064JWD: Two-story New American House Plan with Second Floor Family Room - Floor Plan - Main Level - Craftsman, Modern Farmhouse, New American, Northwest

2nd Floor

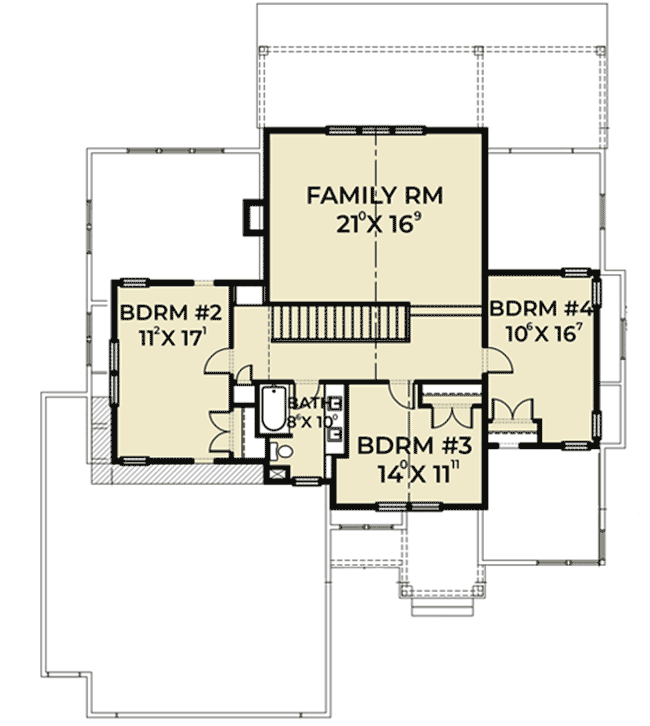

Plan 280064JWD: Two-story New American House Plan with Second Floor Family Room - Floor Plan - 2nd Floor - Craftsman, Modern Farmhouse, New American, Northwest

Plan Details

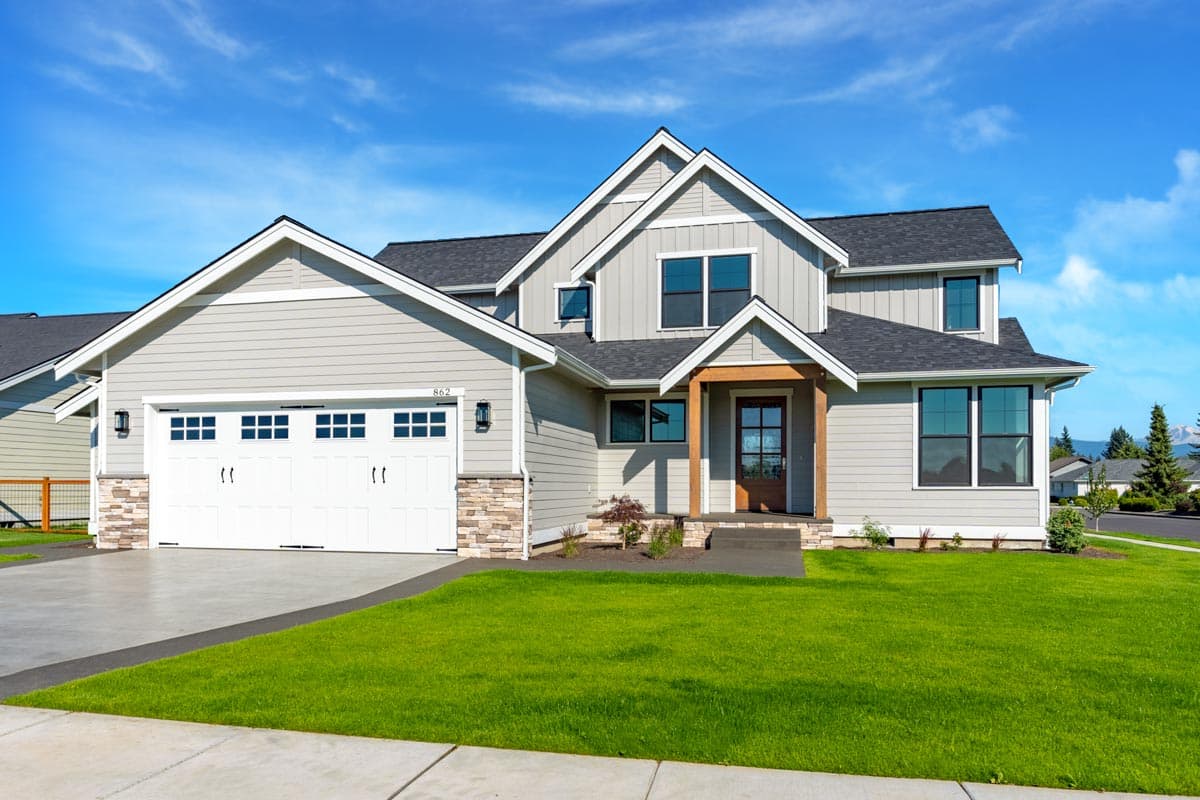

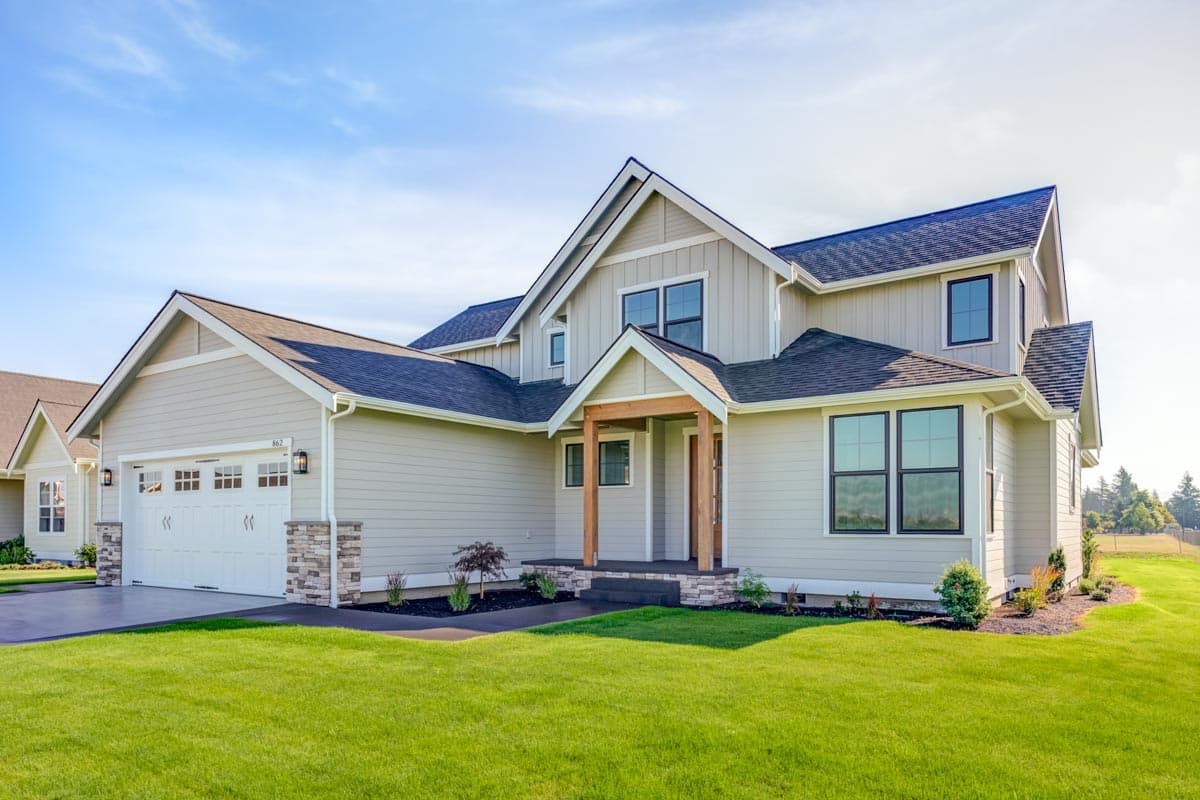

  • Layered gables add dimension and curb appeal to the front elevation of this two-story, New American house plan.

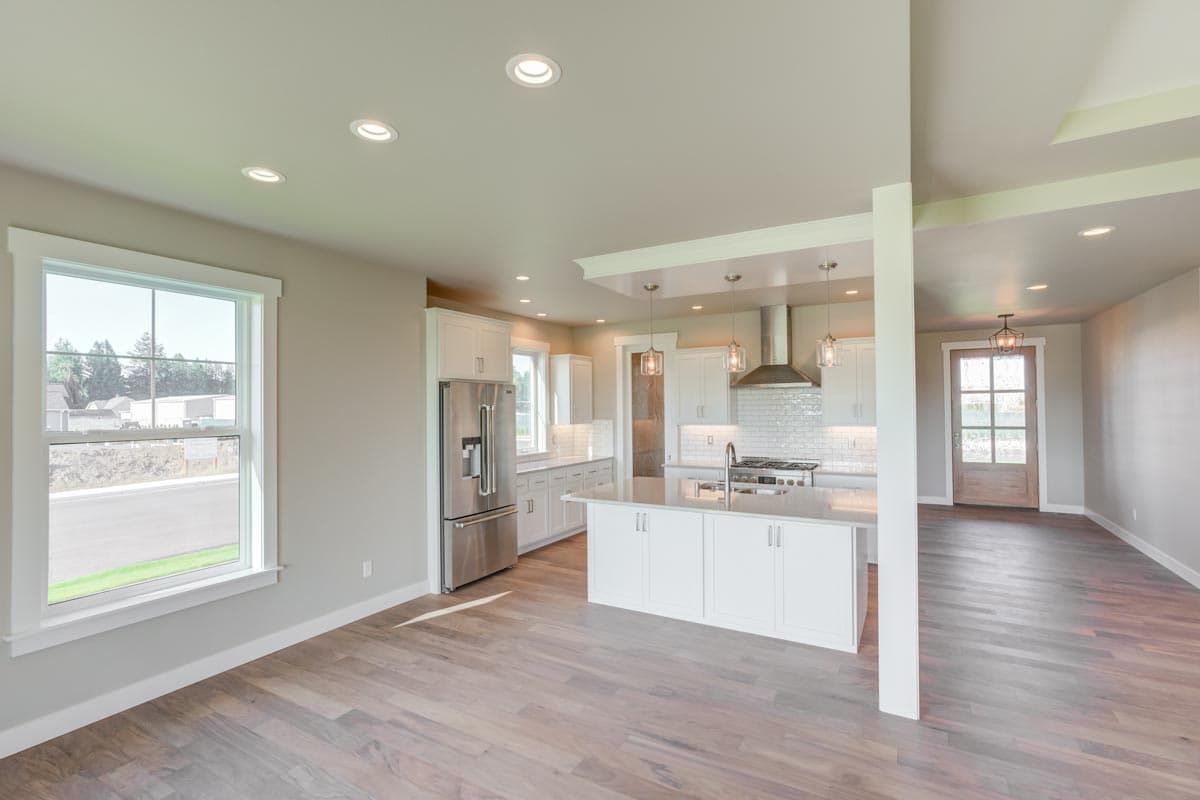

  • Upon entering, a quiet den sits to the right, while the heart of the home is located straight ahead. The open layout creates a light and airy flow, which extends outdoors onto a covered patio for grilling, dining, or lounging.

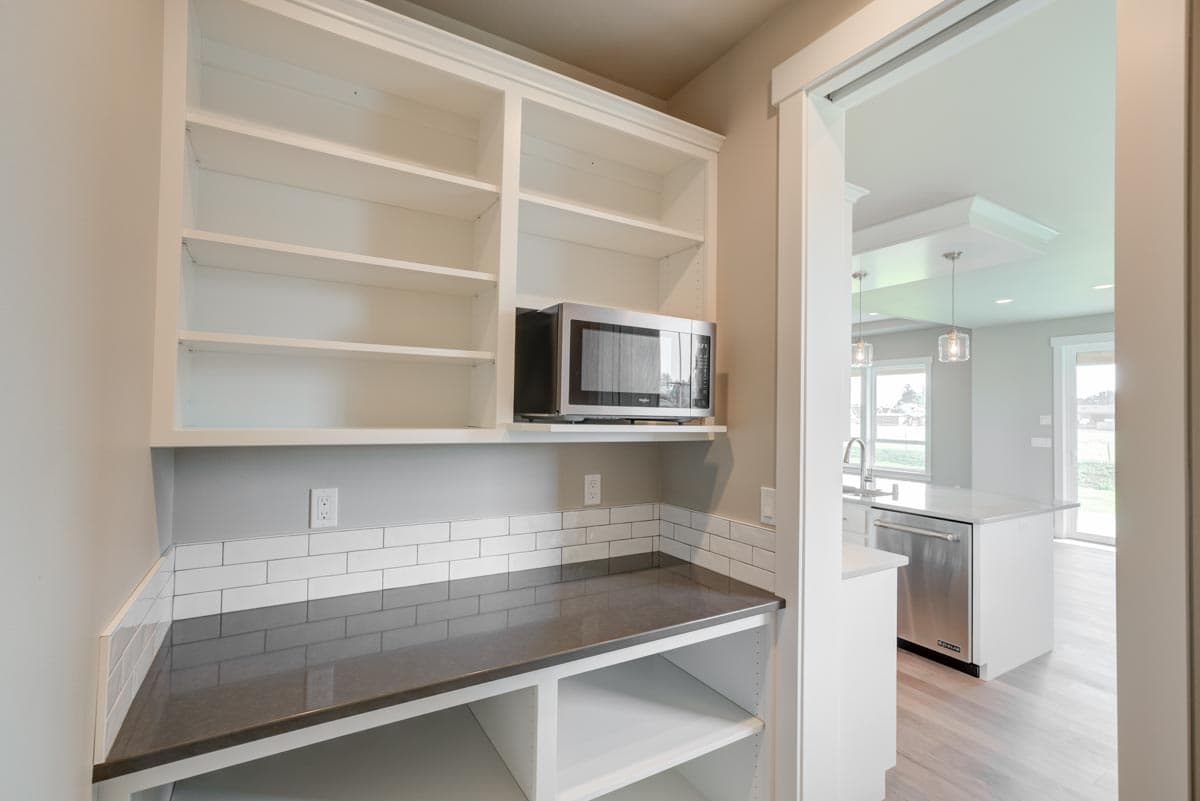

  • A double-bowl sink rests in the large island, and a pocket door hides the easily accessible, walk-in pantry.

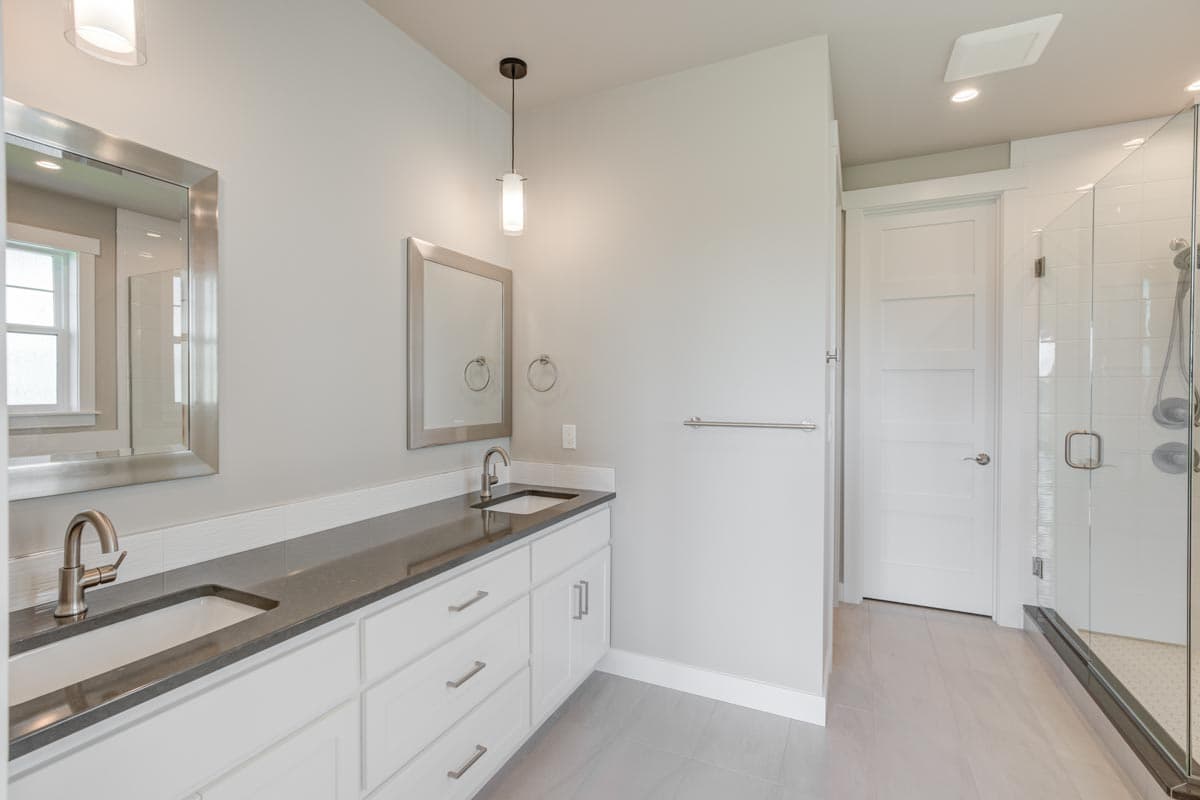

  • The serene master bedroom awaits on the main level, and features a 5-fixture bath with a commode room and sizable walk-in closet.

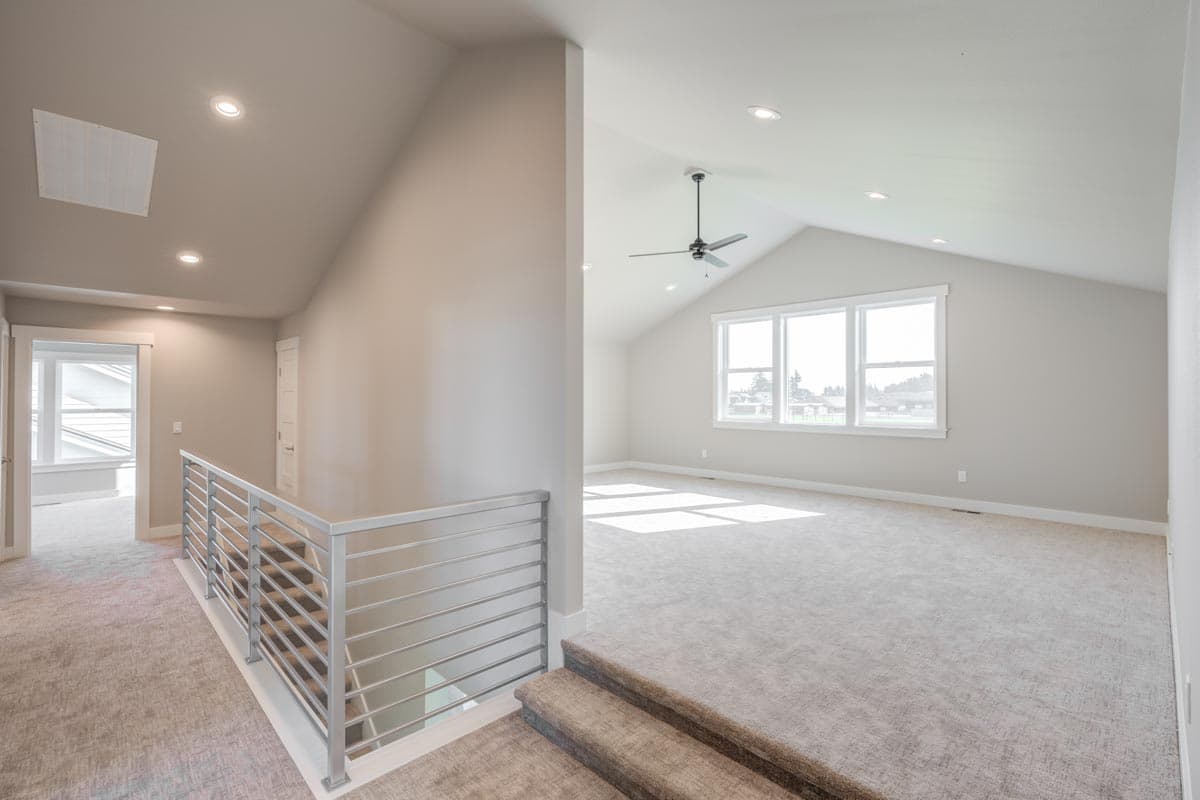

  • A family room upstairs provides a shared space to enjoy on the second level and is centrally located between the three bedrooms, which share the hall bath.

What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,134 sq. ft.

1st Floor

1,868 sq. ft.

2nd Floor

1,270 sq. ft.

Porch, Combined

89 sq. ft.

Covered Patio

296 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 6"

Depth

58' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

735 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Modern Farmhouse

New American

Northwest

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,134 sq. ft.

1st Floor

1,868 sq. ft.

2nd Floor

1,270 sq. ft.

Porch, Combined

89 sq. ft.

Covered Patio

296 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 6"

Depth

58' 0"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

735 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Modern Farmhouse

New American

Northwest

Special Features

Den

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Photo Gallery
