Under 1,500 Square Foot Modern Home Plan with Rear Garage

Plan 420096WNT

  • 1,346

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Modern home plan delivers a sleek exterior and gives you just under 1,500 square feet of living space.
  • The central foyer is framed by covered porches which gives some separation between the open living space and bedrooms.
  • To the right, the great room and kitchen act as one space and is drenched in natural lighting. An island anchors the kitchen and provides an eating bar for meals.
  • The mud hall is framed by a laundry room and walk-in pantry and guides you to the double garage with side entry.
  • Two bedrooms consume the left side of the design, separated by two full bathrooms.

  • Foundation Plan - Footing sizes, slab thickness, floor framing sizes/layout, etc.
  • Floor Plan(s) - Detailed dimensions, window/door details, plumbing fixture type/locations, etc. for each level of the home.
  • Electrical Plan - Locations of electrical panels, lights, switches, outlets, etc.
  • Roof Plan - Roof framing sizes/layout, roof pitch, attic venting, overhangs, roof finish materials, etc.

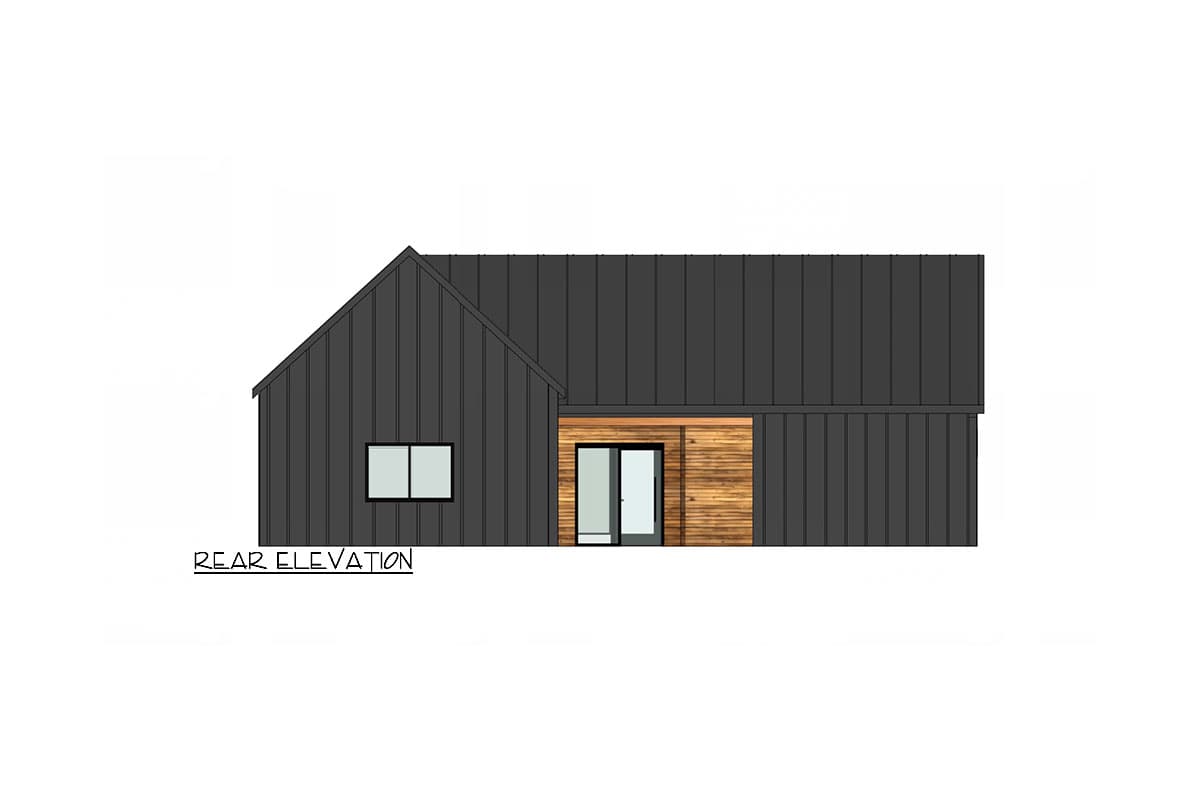

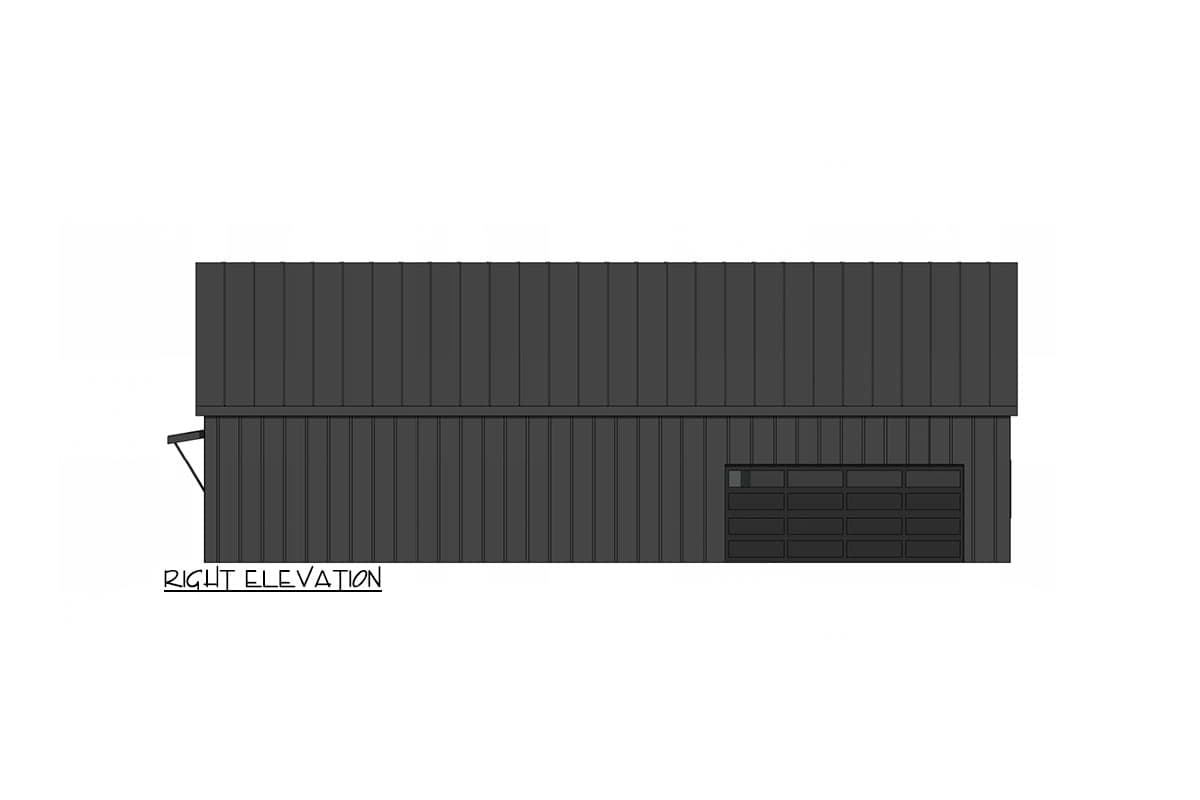

  • Exterior Elevations - Views of the front, rear, and sides of home detailing exterior finish work.
  • Details - Dissected drawings of foundation/footings, floor framing, door framing, window framing, roof framing, roof venting, etc.
This plan set does NOT include;
  • Architectural or Engineering Stamp
  • Site Plan (Available as an upgrade option)
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations)Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations)Typically provided by your Plumbing subcontractor
  • Energy Calculations (Property specific energy efficiency calculations)Typically provided by local Energy Consultant

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

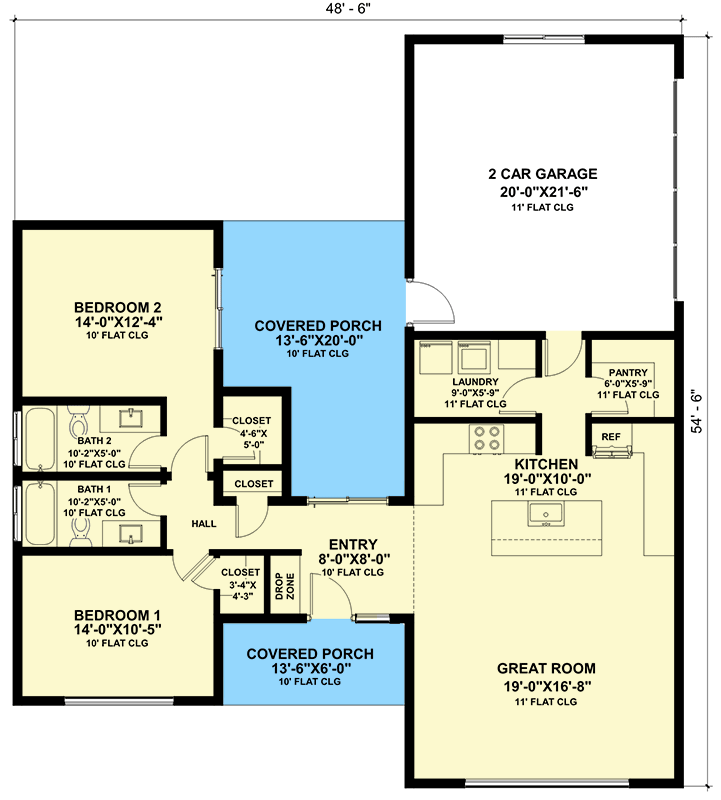

Under 1,500 Square Foot Modern Home Plan with Rear Garage - 420096WNT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,346 sq. ft.
  • 1st Floor: 1,346 sq. ft.
  • Porch, Combined: 312 sq. ft.
  • Porch, Rear: 231 sq. ft.
  • Porch, Front: 81 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab, Monolithic Slab
  • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 6"
  • Depth: 54' 6"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Living Room Flat 11' 0"
Kitchen Flat 11' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Under 1,500 Square Foot Modern Home Plan with Rear Garage

  • 1,346

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,095
  • 5 Sets $1,245
  • 5 Sets + PDF $1,445
  • PDF - Unlimited Build $1,495
  • CAD Unlimited + PDF $1,995
  • View all purchase option online

About This Plan

  • This Modern home plan delivers a sleek exterior and gives you just under 1,500 square feet of living space.
  • The central foyer is framed by covered porches which gives some separation between the open living space and bedrooms.
  • To the right, the great room and kitchen act as one space and is drenched in natural lighting. An island anchors the kitchen and provides an eating bar for meals.
  • The mud hall is framed by a laundry room and walk-in pantry and guides you to the double garage with side entry.
  • Two bedrooms consume the left side of the design, separated by two full bathrooms.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,346 sq. ft.
  • 1st Floor: 1,346 sq. ft.
  • Porch, Combined: 312 sq. ft.
  • Porch, Rear: 231 sq. ft.
  • Porch, Front: 81 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab, Monolithic Slab
    • Optional Foundations: Daylight, Walkout, Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 48' 6"
  • Depth: 54' 6"
  • Max ridge height: 20' 6"

Garage

  • Type: Attached
  • Area: 430 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 11 on 12
  • Framing Type: Truss
Plan 420096WNT
View this and more for this plan by visiting www.architechtecturaldesigns.com/420096WNT
|
